VD458Q3ZIGBEE INTERFACE MODULE

Copyright © 2014 Exegin Technologies Limited Exegin Q58 802.15.4 SPI Module OEM Manual Version 0.9 Copyright © 2014 Exegin Technologies Limited Copyright © 2014 Exegin Technologies Limited All rights reserved. No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this manual, Exegin assumes no liability for errors or omissions contained herein or for any damages in connection with the performance or use of this material. All rights reserved. All other product names are trademarks of their respective manufacturers or providers. This manual was written, illustrated, and produced using FrameMaker publishing software. Rev:0.9 Made in Canada. Exegin Technologies Limited 401 - 2071 Kingsway Avenue Port Coquitlam, B.C. V3C 6N2 http://www.exegin.com/ P/N: 79-058-100 1Q58 OEM Manual© 2014 Exegin Technologies Limited 1. Contents Documentation Conventions 1 CONTENTS This manual is written for hardware and software engineers designing a Q58 into a microprocessor-based system. For the latest information on the Q58, please see the Technical Support section of Exegin’s Web site: http://www.exegin.com/ Documentation Conventions The document conventions used in this manual and the appendices are as follows: •The Courier font in boldface indicates commands that you type. $ping exegin.com •Regular Courier font indicates displayed results. exegin.com is alive •Example names, numbers, and commands are presented in bold. To create an IP address for the Q58 using the TCP/IP arp command, do the following... •Variable values are shown in italics. Italics may also be used to add emphasis in explanatory text. ping ipname ipname is alive Please enter the ipname at the prompt. Make sure you first contact... 2. Overview Introduction 3Q58 OEM Manual© 2014 Exegin Technologies Limited 2 OVERVIEW This chapter describes the Q58’s architecture and special features. The topics included are: •Introduction on page 9 •Hardware Features on page 10 •Firmware Features on page 10 •Block Diagram on page 11 •Pinout on page 12 •Pin Assignments on page 13 •Electrical on page 15 •Design Notes on page 16 •JTAG Interface on page 15 Introduction The Q58 802.15.4 SPI Module allows a microprocessor-based host with a SPI interface to connect to two separate IEEE 802.15.4 networks. It is typically used in conjunction with up to two instances of mesh networking processes that run on the host. Figure 1 — Top View 2. Overview Hardware Features 4Q58 OEM Manual© 2014 Exegin Technologies Limited Hardware Features The Q58 hardware features include: •Through-hole or socket mounted PCB •Two Atmel ATmega128RFRR2 SoC radios on one SPI bus •Two U.FL connectors for external antennas •Flash memory to store firmware and user-configurable settings Firmware Features The Q58 firmware features include: •Full Implementation of IEEE 802.15.4-2006 Media Access Control (MAC) and Physical (PHY) •Includes license for one instance of Exegin’s ZigBee PRO mesh networking stack 2. Overview Block Diagram 5Q58 OEM Manual© 2014 Exegin Technologies Limited Block Diagram Figure 2 — Block Diagram Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHz Transceiver CS IRQ U.FL [SPI] NRST Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHz Transceiver CS IRQ U.FL [SPI] NRST MUX [SPI] CS1n CS0n RESETn ID3/IRQ1 ID2/IRQ0 ID1/SLP1 ID0/SLP0 2. Overview Pinout 6Q58 OEM Manual© 2014 Exegin Technologies Limited Pinout Figure 3 — Pinout 2. Overview Pin Assignments 7Q58 OEM Manual© 2014 Exegin Technologies Limited Pin Assignments Table 2 — Pin Assignments Table 1 — PinNameDirectionDescription 1CHG-Frame (Chassis) Ground 2RSVD1-Reserved, no connect 3RSVD2-Reserved, no connect 4RSVD3-Reserved, no connect 5SPI_CS0nInputChip Select, Radio 0, active low 6SPI_SPCKInputSPI Clock 7SPI_MOSIInputSPI Master Out Slave In 8SPI_MISOOutputSPI Master In Slave Out 9VCC-Power Supply 10GND-Ground 11GND-Ground 12VCC-Power Supply 13SPI_CS1 InputChip Select, Radio 1, active low 14RESET InputModule reset, active low 15ID0/SLP0 In/OutID Bit 0 when RESET active. Sleep 0, active low output when RESET inactive 16ID1/SLP1 In/OutID Bit 1 when RESET active. Sleep 1, active low output when RESET inactive 17ID2/IRQ0 In/OutID Bit 2 when RESET active. IRQ0, active low interrupt when RESET inactive 18ID3/IRQ1 In/OutID Bit 3when RESET active. IRQ1, active low interrupt when RESET inactive 19RSVD0In/OutReserved, no connect 20CHG-Frame (Chassis) Ground 2. Overview Mechanical 8Q58 OEM Manual© 2014 Exegin Technologies Limited Mechanical Figure 4 — Mechanical Drawings Dimensions Metric Width: 33.02 mm Height: 7.72 mm (above mounting surface) Length: 63.5 mm 2. Overview Electrical 9Q58 OEM Manual© 2014 Exegin Technologies Limited ImperialWidth: 2.55" Height: 1.925" Length: 4.4" Weight:14g / 0.5 oz. (Device); 175 g or 6 oz. Environmental Operating:-40° C to 85° C Storage:-40 ° C to 125° C 95% maximum humidity, non-condensing. Electrical Power Voltage:3.0 - 3.6 VDC Current, Typical:100 mA Current, Maximum: 150 mA JTAG Interface Figure 5 — JTAG Interface A JTAG interface allows customers to write and debug their own firmware. Contact Exegin’s support department for more details. 2. Overview Design Notes 10Q58 OEM Manual© 2014 Exegin Technologies Limited Design Notes HostThe Q58 requires only a power supply and SPI bus connection to operate. Conditioning circuitry prevents host power supply noise from adversely affecting radio performance. Nevertheless, good design and layout practices will insure optimum performance. Keep power and signal traces connected to the Q58 separated from noisy clocks and fast-transition signals. Switching power supplies with switching frequencies above 500kHz are optimal. Power supply ripple should be 100mV or less. Connections to power pins should be wider than signal pins and appropriate for the maximum current. Antenna Location P…

Text truncated - open the document above for the full version.

1 / 1 Q58-3 Block Diagram Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHzTran sceiver CS IRQ U.FL [ SPI ] N RST Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHzTran sceiver CS IRQ U.FL [ SPI ] N RST MUX [ SPI ] CS1 n CS0 n RESETn ID3/ IRQ1 ID2/ IRQ0 I D 1 / SLP1 I D 0 / SLP0

401 – 2071 Kingsway Ave. Port Coquitlam, BC V3C 6N2 Canada February 7, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of: FCC ID: VD458Q3 IC ID: 7162A-58Q3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Bill of Material VD458Q3-BOM.pdf Schematic Diagram VD458Q3-SCHEM.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Exegin Technologies Limited Fred Fierling [email protected] T: 604-468-2552 x636

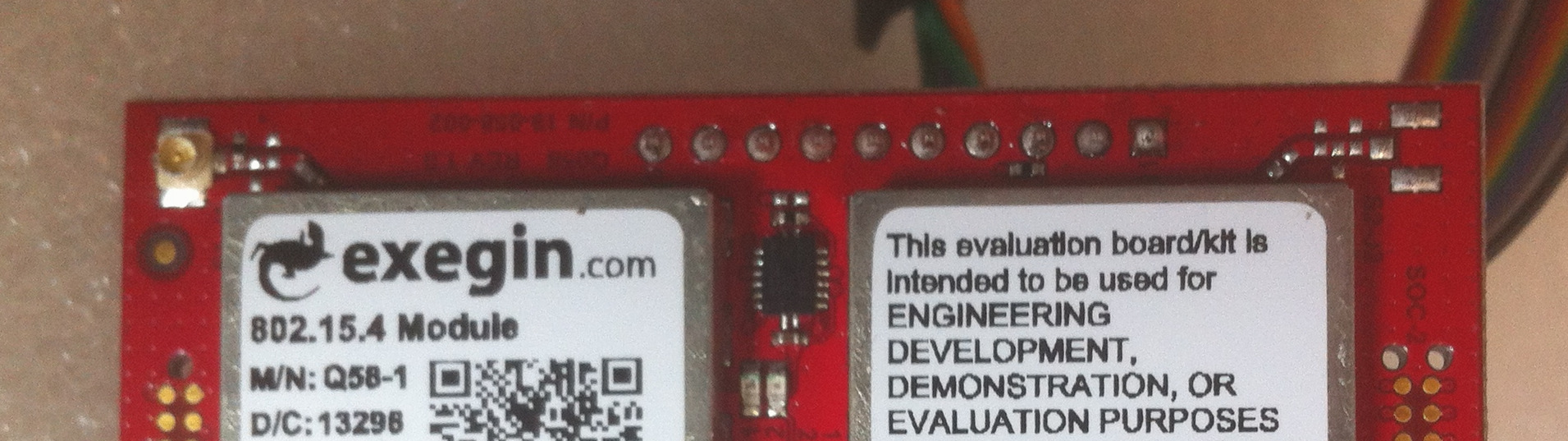

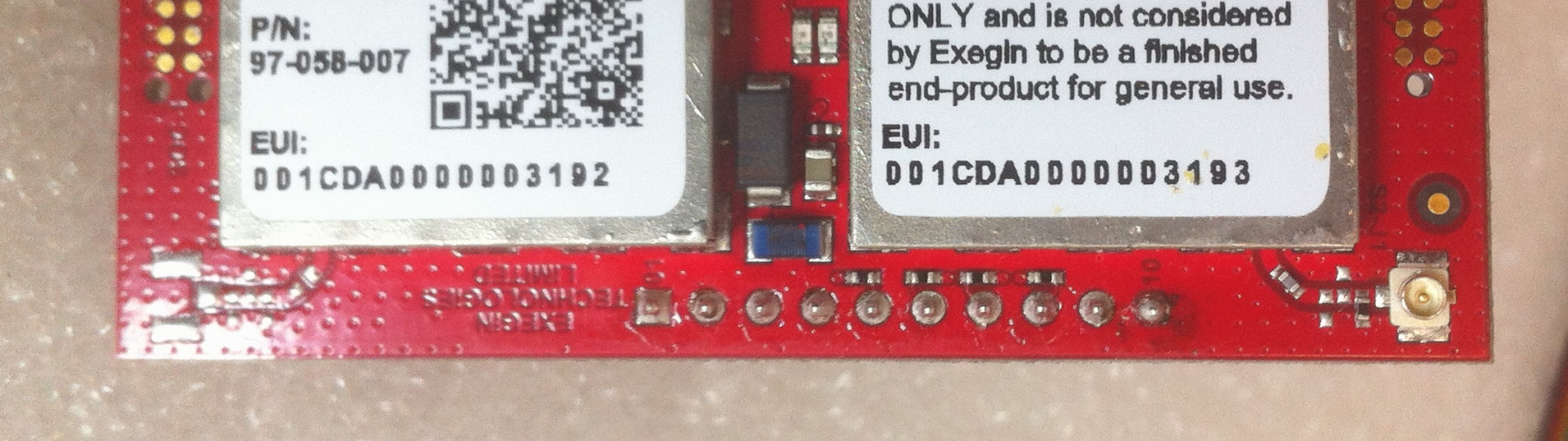

Island Compliance Services Inc. Exegin Technologies Limited. Page | 1 of 2 Island Compliance Services Inc. External Photographs Island Compliance Services Inc. Exegin Technologies Limited. Page | 2 of 2 Island Compliance Services Inc.

Island Compliance Services Inc. Exegin Technologies Limited. Page | 1 of 1 Island Compliance Services Inc. Internal Photographs FIGURE 1 - EUT, SHIELDS REMOVED FIGURE 2 - BOTTOM SIDE OF PCB

1 / 2 Q58 Theory of Operation Introduction ZigBee is a mesh networking protocol for control devices with IEEE 802.15.4 radios, such as switches, dimmers, volume controls, and sensor devices such as thermostats, humidistats and motion detectors. Devices in a mesh network directly communicate only with nearby neighbour devices at low RF power levels. To communicate with more distant devices, packets are hopped across the mesh from device to device using the most reliable route. Adding an 802.15.4 radio to a general purpose host computer allows it to join a mesh network and collect data from or control nodes in the mesh network as shown in Figure 1. Operation The Q58 hardware has the architecture shown in Figure 2. Identical firmware runs in both microcontrollers implementing an IEEE 802.15.4 media access control (MAC) function and a physical radio (PHY). Data Flow Under the direction of software running on the host computer, the Q58 joins the network advertised by its nearest neighbours using its MAC and PHY. A standard application programmatic interface (API) allows host software to configure and send and receive packetized data on the Q58. The Q58 handles the low-level transfer of packets to and from its nearest neighbours in the mesh, leaving the higher level routing to host software. Q58 Host Computer Figure 1 – Mesh Network with Host Computer 2/7/2014 2 / 2 VD458Q3-Op-Theory.docx Figure 2 – Q58 Block Diagram Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHzTran sceiver CS IRQ U.FL [ SPI ] N RST Atmel ATmega128RFR2 Microcontroller/Transceiver 32KHz XTAL 16MHz XTAL Skyworks SE2431L 2.4GHzTran sceiver CS IRQ U.FL [ SPI ] N RST MUX [ SPI ] CS1 n CS0 n RESETn ID3/ IRQ1 ID2/ IRQ0 I D 1 / SLP1 I D 0 / SLP0

Island Compliance Services Inc. Exegin Technologies Limited Page | 1 of 3 Island Compliance Services Inc. RF Exposure Evaluation Report Prepared for: Exegin Technologies Limited 401 – 2071 Kingsway Avenue Port Coquitlam BC, V3C 6N2, Canada Equipment Under Test (EUT): Model: Q58-3 Trade Name: Q58-3 FCC ID: VD458Q3 IC Certification number: 7162A-58Q3 FCC Rule Part(s): Part 15B, 15C Industry Canada Rule Part(s) RSS-210 Tested by: Island Compliance Services Inc. 6454 Fitzgerald Road Courtenay, BC V9J 1N7 Authorized By Andrew Eadie (Manager) Date: 11 th Feb 2014 FCC OATS registration number: 386117 Industry Canada OATS registration number: 9578B-1 Island Compliance Services Inc. Exegin Technologies Limited Page | 2 of 3 Island Compliance Services Inc. 1.1 RF EXPOSURE EVALUATION FCC 1.1310 states the criteria listed in the table below shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Section 2.1093. Further information on evaluating compliance with these limits can be found in the FCC's OST/OET Bulletin Number 65, “Evaluating Compliance with FCC-Specified Guidelines for Human Exposure to Radiofrequency Radiation”. Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational/Control Exposures 300-1500 - - F/300 6 1500-100,000 - - 5.0 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 TABLE 1 - POWER DENSITY LIMITS 1.2 EUT OPERATING CONDITION Maximum antenna gain = 4 dBi TE Connectivity. P/N: 2118059-1 2300–3800 MHz Single Band Antenna The RF module contains two identical transmitter implementations that both use the transmitter outlined above. As such, the RF exposure calculations are the same for both transmitters. Island Compliance Services Inc. Exegin Technologies Limited Page | 3 of 3 Island Compliance Services Inc. 1.3 RF EXPOSURE EVALUATION DISTANCE CALCULATION Frequency (MHz) Conducted Output Power (dBm) Max Antenna Gain (dBi) Max EIRP (mW) Power Density Limit (mW/cm 2 ) R (cm) 2.405 22.3 4.0 427 1.0 5.8 2.440 22.2 4.0 417 1.0 5.8 2.475 -11.3 4.0 0.2 1.0 0.1 TABLE 2 - DISTANCE CALCULATIONS where: S = Allowable Power density Limit (mW/cm 2 ) EIRP = Equivalent (or effective) isotropically radiated power (mW) R = Distance to the center of radiation of the antenna (cm) As shown above, the minimum distance where the MPE limit is reached is 5.8 cm from the EUT with a 4.0 dBi antenna.
=
