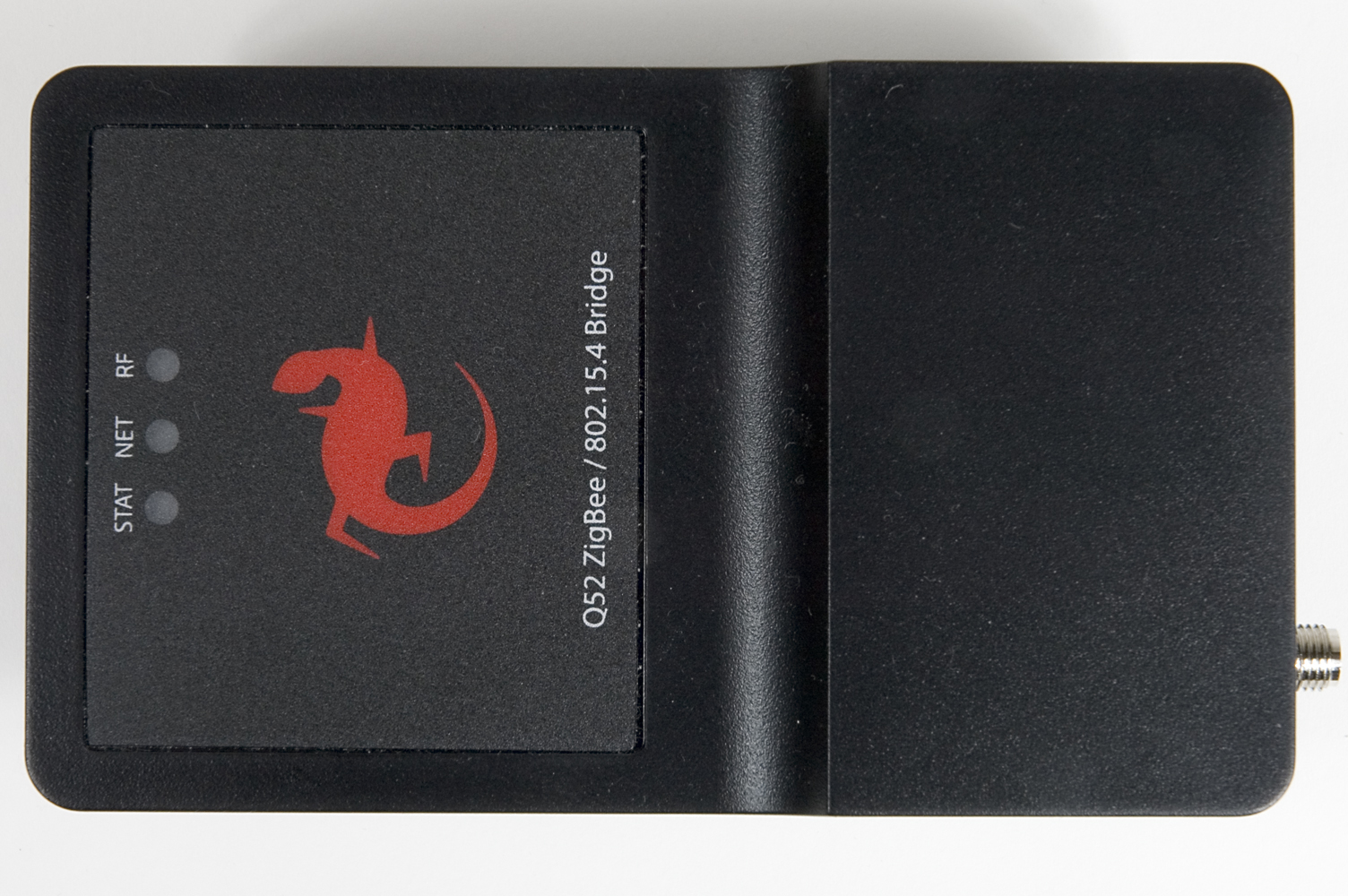

VD4Q52ZIGBEE BRIDGE DEVICE

iQ52 Installation and Configuration Guide © Exegin Technologies Limited, 2007 Exegin Q52 ZigBee / 802.15.4 Bridge Installation and Configuration Guide Version 0.6 iiQ52 Installation and Configuration Guide © Exegin Technologies Limited, 2007 Copyright © Exegin Technologies Limited, 2007 All rights reserved. No patent liability is assumed with respect to the use of the information contained herein. While every precaution has been taken in the preparation of this manual, Exegin Technologies Limited assumes no liability for errors or omissions contained herein or for any damages in connection with the performance or use of this material. All rights reserved. All other product names are trademarks of their respective manufacturers or providers. This manual was written, illustrated, and produced using FrameMaker publishing software. Rev:0.6 Made in Canada. Exegin Technologies Limited 204 - 2071 Kingsway Avenue Port Coquitlam, B.C. V3C 6N2 http://www.exegin.com/ P/N 79-052-100 iiiQ52 Installation and Configuration Guide © Exegin Technologies Limited, 2007 Table of Contents iiList of Figures ................................................................................................................................ v iList of Tables ................................................................................................................................ vi 1Overview Of The Manual ............................................................................................................... 8 Contents of the Manual..................................................................................................................... 8 Documentation Conventions............................................................................................................ 9 2Introduction to the Q52 ZigBee / 802.15.4 Bridge..................................................................... 10 What is the Q52? ............................................................................................................................ 10 Physical Features ............................................................................................................................ 10 How Does the Q52 Work?.............................................................................................................. 11 Product Features ............................................................................................................................. 11 3Installing the Q52......................................................................................................................... 12 Site Requirements........................................................................................................................... 12 Unpacking the Q52 ......................................................................................................................... 13 Connecting the Q52 to a Network .................................................................................................. 13 4Configuration Tools .................................................................................................................... 17 Q52 Utilities ................................................................................................................................... 17 TCP/IP Commands ......................................................................................................................... 19 5Configuring the Q52 on Your Network ...................................................................................... 20 Required TCP/IP Settings............................................................................................................... 20 Optional TCP/IP Settings ............................................................................................................... 25 Troubleshooting Tips...................................................................................................................... 27 6Q52 Zigbee PAN and Bridge Configuration .............................................................................. 30 Required Zigbee Settings................................................................................................................ 30 Optional Zigbee Settings ................................................................................................................ 32 Required Bridging Settings ............................................................................................................ 33 Optional Bridging Settings ............................................................................................................. 34 Troubleshooting Tips...................................................................................................................... 35 7Using HTML Pages to Configure the Q52 ................................................................................. 38 Accessing the Q52 HTML Pages ...................................................................................................38 Q52 Home Page.............................................................................................................................. 40 Zigbee Forms .................................................................................................................................. 42 Bridge Forms .................................................................................................................................. 44 TCP/IP Forms ................................................................................................................................. 46 Administration Forms..................................................................................................................... 49 Help Page........................................................................................................................................ 55 8Reference …

Text truncated - open the document above for the full version.

204 – 2071 Kingsway Ave. Port Coquitlam, BC V3C 4N2 Canada July 12, 2007 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VD4Q52. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Theory of Operation VD4Q52 OpDes.pdf Bill of Material VD4Q52 BOM.pdf Schematic Diagram VD4Q52 Schem.pdf Block Diagram VD4Q52 BlkDia.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Exegin Technologies Limited Fred Fierling [email protected] T: 604-468-3636

EMC Compatibility Testing Report Rev. 1.0 Exegin Technologies – Q52 Zigbee Bridge Report Number: 03204 Page 2 of 46 Index Section I: Report of Mesurements Testing Information.......................................................................3 Section II: Report of Measurements to FCC 47CFR Ch. I....................................................................6 Part 1 - Unintentional Radiated Emission Testing...............................................................8 Part 2 - AC Mains Conducted Emission Testing.................................................................9 Part 3 - Antenna Requirement - 15.203.............................................................................10 Part 4 - Bandwidth.............................................................................................................11 Part 5 - Power Output........................................................................................................12 Part 6 - RF Safety..............................................................................................................16 Part 7 - Conducted Spurious Emissions............................................................................17 Part 8 - Radiated Spurious Emissions...............................................................................19 Part 9 - Power Spectral Density.........................................................................................20 Section III: Report of Measurements to Industry Canada Spectrum Management and Telecommunications Policy and Radio Standards Specification.........................................................................23 Part 1 - Unintentional Radiated Emission Testing.............................................................26 Part 2 - AC Mains Conducted Emission Testing...............................................................27 Part 3 - Bandwidth.............................................................................................................28 Part 4 - Power Output........................................................................................................29 Part 5 - RF Safety..............................................................................................................30 Part 6 - Conducted Spurious Emissions............................................................................31 Part 7 - Radiated Spurious Emissions...............................................................................32 Part 8 - Power Spectral Density.........................................................................................34 Appendix A: Report of Measurements of EUT Photos..........................................................................35 Appendix B: Report of Measurements Data & Plots..............................................................................36 EMC Compatibility Testing Report Rev. 1.0 Exegin Technologies – Q52 Zigbee Bridge Report Number: 03204 Page 3 of 46 Section I: Report of Mesurements Testing Information Testing Details TESTED BY: Emissions: David Johanson TEST CONDITIONS: Temperature and Humidity: 25°C, 68% TEST VOLTAGE: 120Vac 60Hz Test Facilities Protocol Datasystems Inc., EMC Lab 28945 McTavish Rd. Abbotsford BC, Canada, V4X 2E7 SCC ISO/17025 (CAN-P-4E) Accredited Laboratory No. 612 FCC O.A.T.S. Registration Number 96437 Industry Canada O.A.T.S. Registration Number IC3384 Test Equipment List EMISSION: Manufacturer Model Equipment Description Serial No. Last Cal Next Cal HP 85650A CDN Quasi-Peak Adapter 2043A00240 12/07/06 12/07/07 HP 85662A Spectrum Analyzer Display 2318A05184 12/07/06 12/07/07 HP 8566B Spectrum Analyzer RF Section 2241A02102 12/07/06 12/07/07 HP 85685A RF-Preselector 3107A01222 12/07/06 12/07/07 EMCO EM6912 Antenna Biconical 20-300MHz 380 06/03/06 06/03/07 EMCO 3146 Ant. Log Periodic 200-1000MHz 9402-3776 17/02/06 17/02/07 EMCO 3115 Antenna Horn 1-18GHz 9005-3429 07/03/06 07/03/07 SOLAR 8012-50-R- 24-BNC LISN(25A 50ohm 50/250uH 10k- 50MHz) 863092 28/09/06 28/09/07 Rhientech Custom Antenna Mast N/A N/A N/A Protocol EMC Custom Turntable N/A N/A N/A Measurement Uncertainty Parameter Uncertainty Radio Frequency ±1 x 10-5 Total RF power, conducted ±1,5 dB RF power density, conducted ±3 dB Spurious emissions, conducted ±3 dB All emissions, radiated ±6 dB Temperature ±1°C Humidity ±5 % DC and low frequency voltages ±3 % Company Under Test NAME: Exegin Technologies Limited ADDRESS: 204-2071 Kingsway Ave. Port Coquitlam, BC V3C 6N2 CONTACT PERSON: Mr. Fred Fierling EMAIL: [email protected] PHONE NUMBER: 604-468-3639 EMC Compatibility Testing Report Rev. 1.0 Exegin Technologies – Q52 Zigbee Bridge Report Number: 03204 Page 4 of 46 Equipment Under Test THE TEST SYSTEM: EUT 1: Q52 Manufacturer: Exegin Technologies Ltd. Part Number: Q52 Serial Number: 00065 Antenna1: Antenna 2.4GHz ½ Wave Manufacturer: Linx Technologies Antenna Factor Part Number: ANT-2.4-CW-RCL EUT Firmware Q52 Firmware Manufacturer: Exegin Part Number: Q52-Ver 0.40 Test Software PC test software Manufacturer: Exegin Part Number: EMITest.exe AUX EQUIP 1: 120Vac – 6Vdc 300mA Transformer Manufacturer: AQualities Part Number: MD350603 AUX EQUIP 2: 240Vac – 5Vdc 1A Transformer Manufacturer: Imation Part Number: JOD-4801-011R AUX EQUIP 3: 100-240Vac – 5Vdc 1.2A Switching Power Adapter Manufacturer: Condor Part Number: 3A-061WP05 AUX EQUIP 4: Laptop Manufacturer: Sony Vaio Part Number: VGN-CZ220P AUX EQUIP 5: Ethernet Switch Manufacturer: Netgear Part Number: FS-108 Serial Number: FS18E12132327 Cabling Ref Cable Pins Connector Termination Shielded Ferrites 1 Power Supply 2 2.4mm Coaxial plug No No No 2 Ethernet CAT-5e 8 RJ-45 plug No No No TEST SETUP: The Q52 ZigBee Bridge (Q52) was tested for Unintentional, Intentional, radiated emissions and conducted emissions. The Q52 provides a Communication Bridge between a ZigBee Wireless System module and an Ethernet System. The method of wireless communications is a 2.4GHz Dig…
