VE53100AG802.11 abg Access Point

- 1 - Bandspeed AirMaestro 3100AG Access Point User’s Guide - 2 - SAFETY AND REGULATORY NOTICES FCC STATEMENT The Bandspeed AirMaestro 3100AG Access Point has been tested and found to comply with the specifications for a Class B digital device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna; • Increase the separation between the equipment or devices; • Connect the equipment to an outlet other than the receiver's; • Consult a dealer or an experienced radio/TV technician for assistance; FCC Caution: Any change or modification to the product not expressly approved by Bandspeed could void the user's authority to operate the device. FCC Caution: Operation within the 5150 to 5250GHz band is restricted to indoor use only. FCC RF Radiation Exposure Statement: To comply with the FCC and ANSI C95.1 RF exposure limits, the antenna(s) for this device must comply with the following: • Access points with 2.4 GHz or 5 GHz integrated antenna must operate with a separation distance of at least 20 cm from all persons using the cable provided and must not be co-located or operating in conjunction with any other antenna or transmitter. • End-users must be provided with specific operations for satisfying RF exposure compliance. - 3 - Note: Dual antennas used for diversity operation are not considered co-located. Canadian Department of Communications Industry Canada (IC) Notice: This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 et CNR-210 du Canada. "To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing." " Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une licence. " - 4 - Important Factory Defaults Here are the factory defaults that you may need to get your AirMaestro 3100AG AP up and running on your local network. The defaults were chosen to provide quick initial access to the system and you will likely want to change some of them. Bandspeed recommends that you change your admin/root password immediately and that you configure some level of security. These Quick Start topics will be covered in later sections. IP address DHCP (need a DHCP server on Ethernet network) admin/root password Bandspeed SSID Bandspeed Frequency band 802.11b/g 2.4GHz on WIF 1, 802.11a 5.0GHz on WIF 3, background monitoring on WIF 2. Channels Automatic Intelligent Channel Selection Security None Serial Port 115,200 baud, 8 data bits, no parity bits, 1 stop bit, no flow-control, null-modem cable - 5 - Configuring AirMaestro 3100AG IP Address Over Ethernet The AirMaestro 3100AG is configured with DHCP-assigned IP address at the factory (see Important Factory Defaults). You can access the AirMaestro 3100AG’s configuration web page by creating an isolated network with a personal computer, a DHCP server, an Ethernet switch (or hub) and the AirMaestro 3100AG in one of the configurations shown using a standard CAT-5 cable with RJ-45 connectors. To determine the IP address of the AirMaestro 3100AG, run the Bandspeed Management Console application and it will display details information about AirMaestro 3100AG systems. Figure 1: Possible Ways to Configure AirMaestro 3100AG’s IP Address over Ethernet - 6 - - 7 - Launch your personal computer’s web browser, enter the IP address (see Important Factory Defaults) in the "Address" field and press <Enter>. When prompted for user name and password, enter “admin” as the user name and the factory default password (see Important Factory Defaults) as the password. You will see the AirMaestro 3100AG configuration home page (below). - 8 - Select Configure at the main menu and the configuration page will appear (below). - 9 - Select TCP/IP from the configuration bullet-list and the TCP/IP configuration page will appear (below). If you use a DHCP server on your network to assign IP addresses and you want the AirMaestro 3100AG to obtain its IP address from the DHCP server, select “Obtain an IP address automatically (DHCP client)”, then press [Apply]. You will need to save this configuration change to make it persist across power-cycles, as shown below. Select Commands from the main menu and the Commands menu will appear. - 10 - The configuration change should be saved to the Current Boot Config (nueces in this case). Enter nueces in the Filename text field and press [Save Config]. - 11 - Before you can actually acquire an IP address from your DHCP server, you will need to connect the AirMaestro 3100AG to your enterprise network. Power-off the AirMaestro 3100AG. Figure 2: Connection to enterprise network using automatic IP address assignment Connect the AirMaestro 3100AG’s ethernet port to a switc…

Text truncated - open the document above for the full version.

4301 Westbank Dr., Bldg B, Suite 100, Austin, TX 78746 • Tel: 512.651.6900 • Fax: 512.651.9001 June 20, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn. OET Dept. Ref. FCC Original Certification FCC ID: VE53100AG Applicant: Bandspeed, Inc Dear Examiner, This letter confirms that the device will automatically discontinue transmission in the case of either absence of information to transmit or operational failure pursuant to FCC 15.407(c). The RF portion of the device is controlled entirely by the software and firmware in the host and the MAC/baseband ICs. Data packets are sourced by the higher- layer host software which controls transmission. Certain digital control and signaling information (e.g. ACK) are generated by the MAC/baseband. These signals are only transmitted under the protocol rules specified by 802.11. Sincerely, Ben Jones Principal Engineer Bandspeed, Inc

4301 Westbank Dr., Bldg B, Suite 100, Austin, TX 78746 • Tel: 512.651.6900 • Fax: 512.651.9001 June 20, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn. OET Dept. Ref. FCC Original Certification FCC ID: VE53100AG Applicant: Bandspeed, Inc Dear Examiner, This letter confirms that the software and user interface for the WLAN Access Point with radar detection feature, cannot and will not allow end users or support personnel to access information related to the characterization of signals or waveforms received by the radar detection function. Additionally, the device will not internally store details of signals or waveforms which were previously received and processed by the radar detection function. Sincerely, Ben Jones Principal Engineer Bandspeed, Inc

4301 Westbank Dr., Bldg B, Suite 100, Austin, TX 78746 • Tel: 512.651.6900 • Fax: 512.651.9001 January 30, 2008 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn. OET Dept. Ref. FCC Original Certification FCC ID: VE53100AG Applicant: Bandspeed, Inc Dear Examiner, This letter confirms that the all shipping versions of the device will use the same firmware as the DFS sample sent to the FCC in January 2008. Three files were modified for this sample. The files and their version numbers are given in Table 1. Table 1 Filename Version dfs.c 1.34 dfs_fcc_lpr.c 1.6 dfs_fcc_lpr.h 1.3 Sincerely, Ben Jones Principal Engineer Bandspeed, Inc

4301 Westbank Dr., Bldg B, Suite 100, Austin, TX 78746 • Tel: 512.651.6900 • Fax: 512.651.9001 Letter of Authorization Company: Bandspeed, Inc Address: 4301 Westbank Drive, Bldg. B, Suite 100, Austin, TX 78746 Product: Bandspeed Wireless LAN Access Point, Model 3100AG Type Designation: We authorize MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, to act on our behalf on all matters concerning the above named equipment. This shall include the following: - Testing - Approval applications and procedures - Payment of approval fees We declare that MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566, USA, is allowed to forward all information related to the approval project to the applied notified body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Ben Jones Date: 19 June 2007 Title: Principal Engineer Place of issue: Austin Texas, USA Signature (and seal) of applicant

Declaration of Conformity Bandspeed, Inc 4301 Westbank Drive Bldg. B, Suite 100 Austin, TX 78746 declares that under our sole responsibility the product Bandspeed AirMaestro 3100AG Access Point is in conformity with the provisions of the following radio standards specification, including all amendments and with national legislation: 47 CFR § 15.247 47 CFR § 15.407 Industry Canada RSS-210 Ben Jones, Principal Engineer Austin, TX USA 20 June, 2007

4301 Westbank Dr., Bldg B, Suite 100, Austin, TX 78746 • Tel: 512.651.6900 • Fax: 512.651.9001 June 20, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn. OET Dept. Ref. Request for Confidential Treatment from Public Disclosure FCC ID: VE53100AG Applicant: Bandspeed, Inc Dear Examiner, Bandspeed, Inc. would like to request that the following items submitted with the application for certification be withheld from public disclosure per Section 0.459 of the FCC Rules. 1) Schematics, 2) Block Diagram, 3) Operational Description, 4) Bill of Materials. This confidentiality request is made under the provisions of Section 0.457(d) of the FCC Rules and Section 552(b)(4) of the Freedom of Information Act. The various items contain proprietary, confidential and trade secret materials, which would not customarily be made available for public inspection. If you have any questions, please do not hesitate to contact me. Sincerely, Ben Jones Principal Engineer Bandspeed, Inc

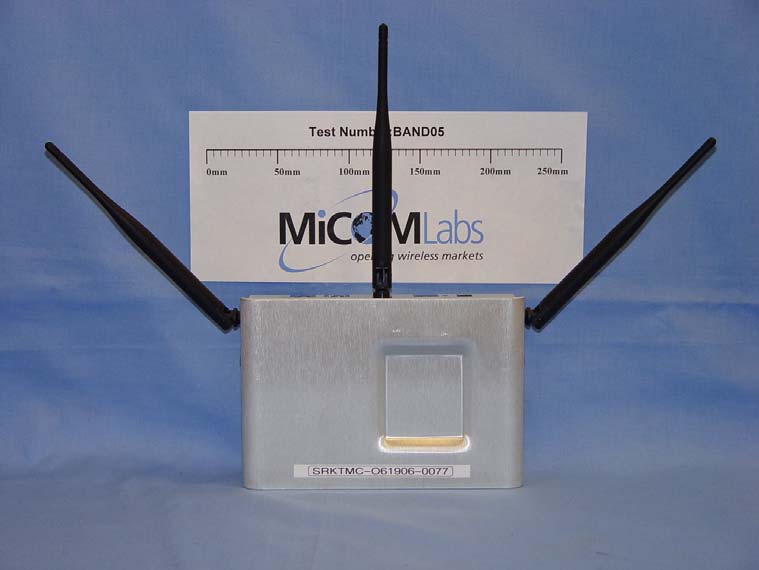

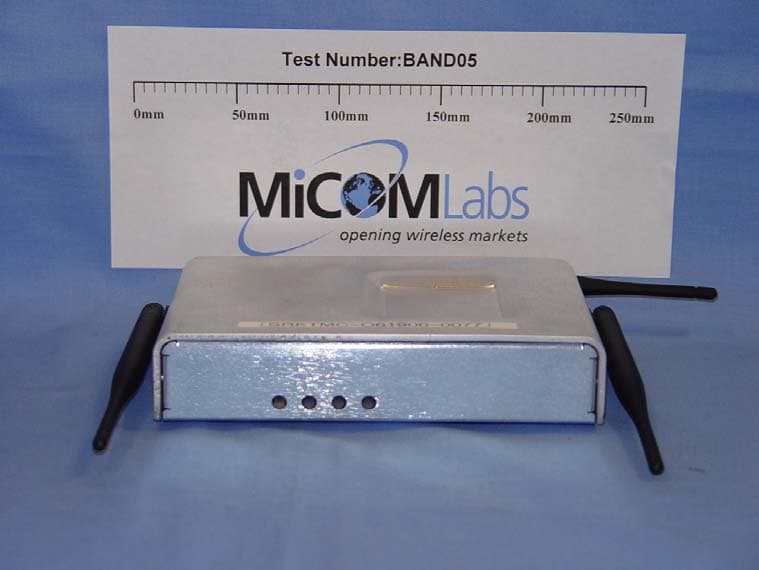

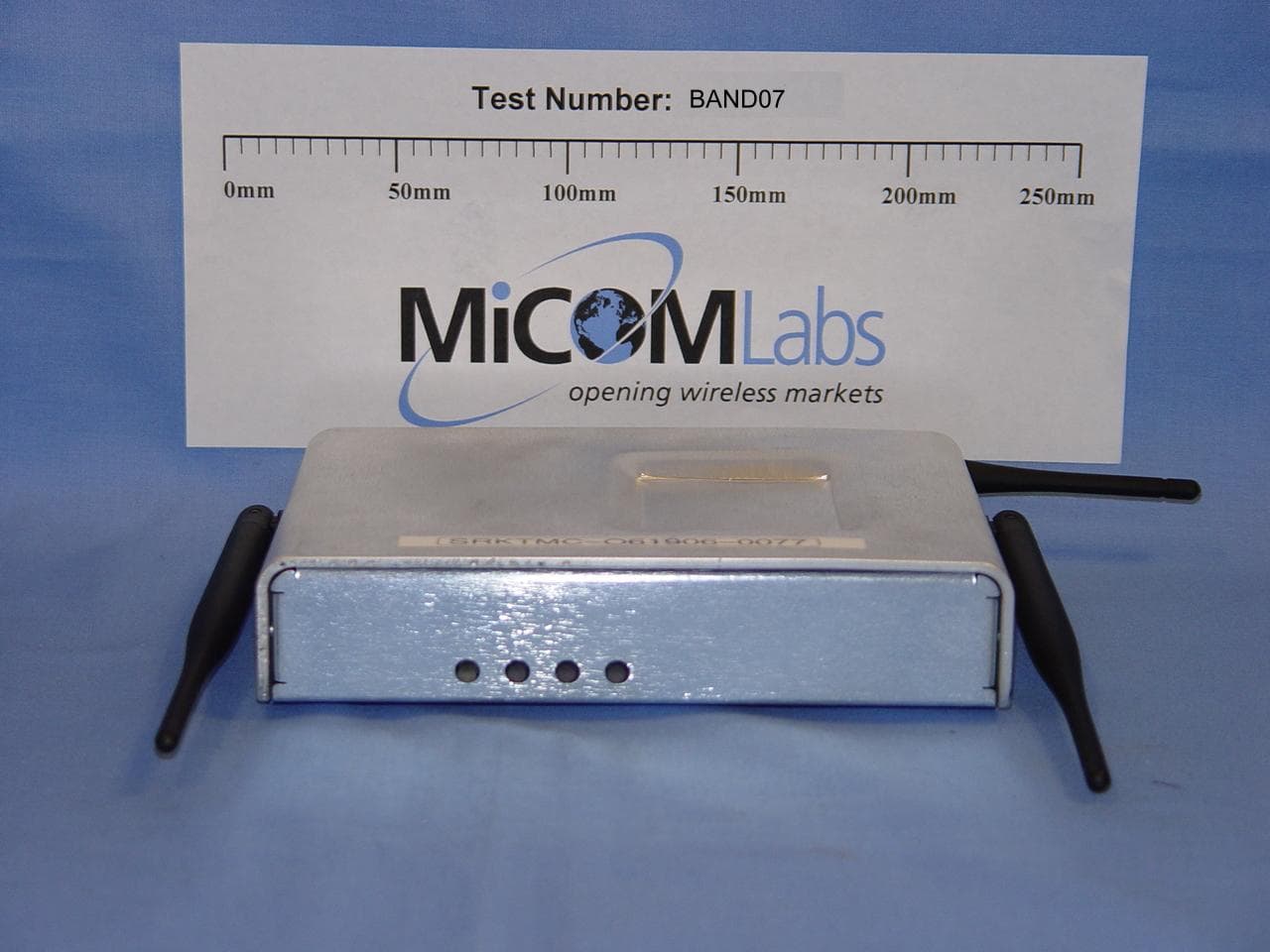

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab July 3, 2007 BAND05 –802.11 a/b/g Wireless Access Point Bandspeed, Inc External Photograph Page 2 of 2 the wireless lab

4301 Westbank Drive Bldg B, Suite 100 Austin, TX 78746 USA 4301 Westbank Drive Bldg B, Suite 100 Austin, TX 78746 USA BSP-AMAP3100AG PATENT PENDING FCC ID: VE53100AG This device complies with Part 15 of the FCC rules. SEE MANUAL BEFORE USE FCC ID: VE53100AG This device complies with Part 15 of the FCC rules. SEE MANUAL BEFORE USE Input: 5VDC2.6AInput: 5VDC2.6A IEEE 802.11 a/b/g Access Point ¼”

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab July 3, 2007 BAND05 –802.11 a/b/g Wireless Access Point Bandspeed, Inc Internal Photographs Internal View of Access Point Page 2 of 3 the wireless lab Motherboard Bottom Motherboard Top Page 3 of 3 the wireless lab Wireless Assembly Bottom Wireless Assembly Top

SPECIFICATION FOR APPROVAL CUSTOMER DATE DESCRIPTION CUSTOMER P/N Part No. WANSHIH ELECTRONIC CO., LTD. 723 3F 72 WU KONG 6TH RD., WU KU INDUSTRIAL DISTRICT TAIPEI HSIEN, TAIWAN,R.O.C. TEL(02) 22988066 (5 LINE) FAX(02)22981102 Bandspeed Inc X3W1865A1 WSL007 Mini 1.13 Dual Feed Dual Band Flying Lead Antenna with MMCX L175.4mm( Black) 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3-4 Electrical Properties Return Loss ......... 5 V. S . W. R ......... 6 Radiation Pattern ......... 7-8 Material Data Sheet Coaxial Cable ......... 9-11 Housing ......... 12 Hinge ......... 13 MMCX R/A ......... 14 EMI Sleeve Core ......... 15-17 2 SPECIFICATION 1. Description Dual Feed Dual Band Flying Lead 2. Customer Bandspeed Inc 3. Model No. WSL007 4. Part No. X3W1865A1 5. Standard IEEE 802.11 a/b/g Wireless LAN 6. Antenna Profile 191.5 mm length(see Drawing) 7. Color Black 8. Electrical Characteristics Operating Frequency 2.4~2.5/5.15~5.35/5.725~5.85GHz Antenna Type PCB Polarization Type Linear Type of Radiation Toroid Antenna Gain 1.5 dBi Typical Impedance 50 Ohm nominal V.S.W.R. 2.5:1 Max. 9. Mechanical Characteristics Swivel 90 degrees Lead Length 175.4 mm length Connector MMCX R/A Core K5A RH4*2*10 10. Raw Material Coaxial Cable Mini 1.13 Housing TPU Hinge PC+ALLOY 3 ScaleFREE UNITmm Part Name Part No. Customer Part No. WANSHIH ELECTRONIC CO,. LTD. Data: Checked Approval Drawed Page1/2 4 Revised ScaleFREE UNITmm Page 2/2 Part Name Part No. Customer Part No. WANSHIH ELECTRONIC CO,. LTD. Data: Checked Approval Drawed 5 Electrical Properties Return Loss(Gray Cable) Electrical Properties Return Loss(Black Cable) 6 Electrical Properties V.S.W.R(Gray Cable) Electrical Properties V.S.W.R(Black Cable) 7 Electrical Properties Radiation Pattern-H Plane(Gray Cable) Electrical Properties Radiation Pattern-H Plane(Black Cable) 8 Electrical Properties Radiation Pattern-E Plane(Gray Cable) Electrical Properties Radiation Pattern-E Plane(Black Cable) 9 Material Data Sheet Mini-1.13 Coaxial Cable 10 11 12 Housing Material Data Sheet z Housing - TPU 13 z Hinge (Base/Holder) - PC+ALLOY 14 Material Data Sheet MMCX R/A 15 Material Data Sheet EMI Sleeve Core 16 17

440 Boulder Court, Suite 200, Pleasanton, California 94566, USA Tel.: +1 925 462 0304, Fax: +1 925 462 0306 www.micomlabs.com Monday, 9 th July 2007 BAND05–A4 Bandspeed Inc – Wireless Access Point Maximum Permissible Exposure Calculation FCC, Part 15 Subpart C §15.407(f) Industry Canada RSS-Gen §5.5 Calculations for Maximum Permissible Exposure Levels Power Density = Pd (mW/cm 2 ) = EIRP/(4πd 2 ) EIRP = P * G P = Peak output power (mW) G = Antenna numeric gain (numeric) d = Separation distance (cm) Numeric Gain = 10 ^ (G (dBi)/10) Because the EUT belongs to the General Population/Uncontrolled Exposure the limit of power density is 1.0 mW/cm 2 Antenna Gain (dBi) Numeric Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated safe distance @ max limit 1mW/ cm 2 (d=cm) 5.0 3.17 +15.46 35.16 3.0

COVER PAGE Test of Bandspeed 3100AG 802.11 Wireless AP To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: BAND05-A4 Rev A TITLE PAGE TEST REPORT FROM Test of Bandspeed 3100AG 802.11 Wireless AP to To: FCC 47 CFR Part 15.407 & IC RSS-210 Test Report Serial No.: BAND05-A4 Rev A Note: this report only contains data with regard to the 5,150 to 5,350 MHz, and 5,470 to 5,725 MHz operational modes of the Bandspeed Wireless Access Point. 2.4 and 5.8 GHz test data are reported in MiCOM Labs test report BAND05-A2. This report supersedes None Manufacturer: Bandspeed Inc 4301 Westbank Drive Bldg B, Suite 100 Austin, Texas 78746 USA Product Function: 802.11a/b/g Wireless Access Point Copy No:pdf Issue Date: 12th July 2007 This Test Report is Issued Under the Authority of; MiCOM Labs, Inc. 440 Boulder Court, Suite 200 Pleasanton, CA 94566 USA Phone: +1 (925) 462-0304 Fax: +1 (925) 462-0306 www.micomlabs.com CERTIFICATE #2381.01 MiCOM Labs is an ISO 17025 Accredited Testing Laboratory This test report may be reproduced in full only. The document may only be updated by MiCOM Labs personnel. Any changes will be noted in the Document History section of the report. Title: Bandspeed 3100AG 802.11 Wireless AP To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.407 & IC RSS-210 BAND05-A4 Rev A 12th July 2007 3 of 112 This page has been left intentionally blank Title: Bandspeed 3100AG 802.11 Wireless AP To: Serial #: Issue Date: Page: FCC 47 CFR Part 15.407 & IC RSS-210 BAND05-A4 Rev A 12th July 2007 4 of 112 This test report may be reproduced in full only. The document may only be updated by MiCOM TABLE OF CONTENTS COVER PAGE....................................................................................................................1 TITLE PAGE.......................................................................................................................2 ACCREDITATION & LISTINGS.........................................................................................6 1. TEST RESULT CERTIFICATE...................................................................................9 2. REFERENCES AND MEASUREMENT UNCERTAINTY........................................10 2.1. Normative References.............................................................................................10 2.2. Test and Uncertainty Procedures............................................................................11 3. PRODUCT DETAILS AND TEST CONFIGURATIONS..........................................12 3.1. Technical Details.....................................................................................................12 3.2. Scope of Test Program............................................................................................13 3.3. Equipment Model(s) and Serial Number(s).............................................................15 3.4. Antenna Details.......................................................................................................15 3.5. Cabling and I/O Ports..............................................................................................15 3.6. Test Configurations..................................................................................................16 3.7. Equipment Modifications..........................................................................................16 3.8. Deviations from the Test Standard..........................................................................16 4. TEST SUMMARY......................................................................................................17 5. TEST RESULTS........................................................................................................20 5.1. Device Characteristics.............................................................................................20 5.1.1. 26 dB and 99 % Bandwidth........................................................................20 5.1.2. Transmit Output Power...............................................................................26 5.1.3. Peak Power Spectral Density.....................................................................30 5.1.4. Peak Excursion Ratio.................................................................................38 5.1.5. Frequency Stability.....................................................................................46 5.1.6. Maximum Permissible Exposure................................................................47 5.1.7. Radiated Emissions....................................................................................48 5.1.8. AC Wireline Conducted Emissions (150 kHz – 30 MHz)............................69 6. Dynamic Frequency Selection (DFS).....................................................................72 6.1. Test Procedure and Setup.......................................................................................72 6.1.1. Interference Threshold values, Master or Client incorporating In-Service Monitoring ...................................................................................................72 6.1.2. DFS Response requirement values............................................................72 6.1.3. Radar Test Waveforms...............................................................................73 6.1.4. Frequency Hopping Radar Test Waveform................................................76 6.1.5. Radar Waveform Calibration......................................................................76 6.1.6. Radar Waveform Calibration Plots.............................................................77 6.1.7. Test Set Up:................................................................................................83 6.2. Dynamic Frequency Selection (DFS) Test Results.................................................85 6.2.1. UNII Detection Bandwidth:.........................................................................85 6.2.2. Initial Channel Availabili…

Text truncated - open the document above for the full version.

MiCOM Labs, 440 Boulder Court, Suite 200, Pleasanton, CA 94566 Tel: +1 (925) 462-0304, Fax: +1 (925) 462-0306, Web: www.micomlabs.com the wireless lab July 3, 2007 BAND05 –802.11 a/b/g Wireless Access Point Bandspeed, Inc TEST SET-UP PHOTOGRAPHS General Measurement Test Set-Up Page 2 of 6 the wireless lab Radiated Emissions (30 MHz-1 GHz) Page 3 of 6 the wireless lab Spurious Emissions >1 GHz Page 4 of 6 the wireless lab AC Wireline Emissions (150 kHz - 30 MHz) Page 5 of 6 the wireless lab General DFS Test Setup Page 6 of 6 the wireless lab DFS Test Equipment
