VEA2401MBLE Module

2401M OPERATOR'S MANUAL 1. Features  On-chip low power microcontroller  In system programmable, 256KB  8 KB SRAM  On board crystal and PCB Antenna. 2. Application  Mobile device accessories (Android/iOS)  Wireless data communication  Remote sensors 3.Pin Definition Pin No. Pin Type Function Description 1 Digital I/O GPIO/ UART_RX 2 Digital I/O GPIO/ UART_TX 3 Digital I/O GPIO / Digital IO 4 Digital I/O GPIO / Digital IO 5 Digital I/O GND 6 Digital I/O Vcc 7 Digital I/O Vcc Enable 8 Digital I/O GPIO / CTS 9 Digital I/O GPIO / RTS 10 Digital I/O GPIO / Digital IO 4.Protocol : Communication parameters： 115200 , 8 , n , 1 The maximum of every packet in the two-way communication is 20 Bytes Every communication will be transferred by the packet, it's an one-inquiry-one-answer approach. When a host sends an inquiry packet, clients will answer with a received packet. Host RXD Time Out：0.5 sec. F ormat of command and answer packet： (1Byte) (1Byte) (1Byte) (1Byte) (nByte) Start code Length of packet Command Type Command Code Command Parameter Start code of the host, fixed with ‘$’(24H) Start code of the answer of client , fixed with ‘%’(25H) Command type and code are defined by HEX Code Command parameter is based on the conditions of the command, there are HEX Code , or ASCII Code. When a host sends a wrong structure or command of a packet, clients won't answer any 1 2 3 4 5 6 7 8 9 10 packet. There are three kinds of command types : I. General setting , like System reset , battery voltage status and system version. II.Wireless products communication setting III.Boot code update-Dongle Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 5 mm may be maintained between the antenna and users. The final end product must be labeled in visible area with the following: “Contains FCC ID: VEA2401M” ” End Product Manual Information The user manual for end users must include the following information in a prominent location. “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 5 mm from all persons and must not be colocated or operating in conjunction with any other antenna or transmitter.” This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or c olocation with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for reevaluating the end product (including the transmitter) and obtaining a separ ate FCC authorization. As long as a condition above is met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).

Antenna Measurement Report Model ： ANT-2400-IF1 Manufacture ： Chy-Meter Series Number ： 1510080S(QTKOTARP00544) Antenna Type ： Print on PCB Date ： 2015/01/05 Test Laboratory: Name: Linkou Laboratory Address: No. 5-22 Rueishu Keng, Rueiping Tsuen, Linkou Shiang,Taipei County 244,Taiwan, R.O.C. The test results relate only to the samples tested. CONTENT: 1. General Information.........................................................................................................3 1.1. Applied Reference Documents............................................................................3 1.2. Test Setup..................................................................................................................3 2. Summary..............................................................................................................................4 3. 2D Plots.................................................................................................................................5 4. 3D Plots...............................................................................................................................10 5. EUT Photo..........................................................................................................................11 1. General Information 1.1. Applied Reference Documents The Equipment Under Test (EUT) has been tested at Linkou Laboratory according to the leading reference document in below table.: No. Identity Document Title Version/Date 1 Std 149 IEEE Standard Test Procedures for Antenna 1979 1.2. Test Setup EUT coordinate systems of the previous sections will apply independent of the physical orientations of the EUT inside the chamber. The figure shows the typical setup using a combined axis system. In addition to the pictured Theta axis rotation, the EUT will have to be rotated about the Z-axis (Phi rotation) in order to perform the full spherical scans. 2. Summary Frequency (MHz) Summary Max power (db) Summary Min power (db) Summary Passive (db) Summary NHPRP+/- 45 deg (db) Summary NHPRP+/- 30 deg (db) Summary UHRP 0 ~ 90 deg (db) Summary PRP 0 ~ 120 deg (db) Directivity (dBi) Efficiency (dB) Efficiency (%) Gain (dBi) 2400 1.30 -25.40 -2.68 -3.60 -4.72 -5.55 -3.57 3.98 -2.68 53.91 1.30 2440 0.47 -21.16 -3.61 -4.49 -5.66 -6.70 -4.56 4.08 -3.61 43.57 0.47 2480 1.09 -20.68 -3.49 -4.38 -5.55 -6.86 -4.54 4.58 -3.49 44.75 1.09 3. 2D Plots 2400 Azimuth 0° 2400 MHz Azimuth 90° 2400 MHz H-Plane (Elevation 90°) 2440 Azimuth 0° 2440 MHz Azimuth 90° 2440 MHz H-Plane (Elevation 90°) 2480 Azimuth 0° 2480 MHz Azimuth 90° 2480 MHz H-Plane (Elevation 90°) 4. 3D Plots 3D view at Channel 2400 3D view at Channel 2440 3D view at Channel 2480 5. EUT Photo

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name:CHY FIREMATE CO., LTD. Address : No.3 Sheng-Li 1st Street, Xintian Village,Rende District, City: Tainan City Country:Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: VEA2401M Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-01-16 Name and signature of applicant: Chun-Yih Lee Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

RF_160, Issue 02 Declaration of Authorization We Name: CHY FIREMATE CO., LTD. Address: No.3 Sheng-Li 1st Street, Xintian Village, Rende District, City: Tainan City Country:Taiwan Declare that: Name Representative of agent: Lynn Kao(1) Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd. Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu District, City: Taipei 114, Country Taiwan is authorized to apply for FCC Certification of the following product(s): Product description: BLE Module Type designation: 2401M Trademark: CHY on our behalf. Date:2015-01-16 City:Tainan City Name:Chun-Yih Lee Function: Engineer assistant Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CHY FIREMATE CO., LTD. No.3 Sheng-Li 1st Street, Xintian Village, Rende District, Tainan City Taiwan Date: 2015-01-16 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Module Approval. To whom may it concern: We have the following attestation to the eight requirements described by FCC public notice DA00-1407 "Part 15 Unlicensed Modular Transmitter Approval". 1. RF shielding. The model 2401M, (FCC ID:VEA2401M) has its own RF shielding. The shielding is made by metal and completely added to RF part during our m anufacturing. It is not easily removed module. Please see exhibition external photos of this module. 2. Excessive data rates or over modulation. The module circuit buffers all modulation and control of the transmitter. The control of the transmitter is via data commands and software instructions contained within the module. The transmitter is tested with the module operated at the maximum power. Data commands are reduced the power of transmitter but do not influence the modulation contents. 3. Power supply regulation. The module has its own power supply regulator to insure compliance with part 15 requirements regardless of the quality or level of external DC supplying the module from the end product. The regulator operates within the 3.3 Vdc. FCC ID: VEA2401M C ontact person: Chun-Yih Lee E-mail: [email protected] CHY FIREMATE CO., LTD. No.3 Sheng-Li 1st Street, Xintian Village, Rende District, Tainan City Taiwan 4. Antenna and unique coupler requirements to antenna connector. The antenna is an integral type and there is no antenna connector for end product. (1) No modification of antenna will be allowed. (2) The end product must be certified by FCC, if customer will use the other antenna. 5. Stand--alone configuration. The modular transmitter has been performed the testing as a stand alone and then confirmed the compliance. Please refer to the test report number W6M21412-14705-C-1. 6. Label with own FCC ID number and exterior label. The module is labeled with own FCC ID number. Please see exhibition label sample for the FCC ID of this module. The label made by polyester sheet is affixed to the module by a high-strength adhesive. Since the FCC ID number will not be visible when the module is installed inside the end product, there are instructions give to the OEM how to label the end product. Please refer to the “User Manual”. 7. Compliant with any specific rule or operating requirements. The module as manufactured is completely controlled by the onboard processor. There are no influences to the operation of the transmitter the end can induce that will operate the module outside of scope of the regulations. The necessary explanation for user to be complied with this requirement is contained on the manual. 8. RF exposure requirements. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Sincerely yours, Signature:

Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 4 EUT Photos Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 4 Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 4

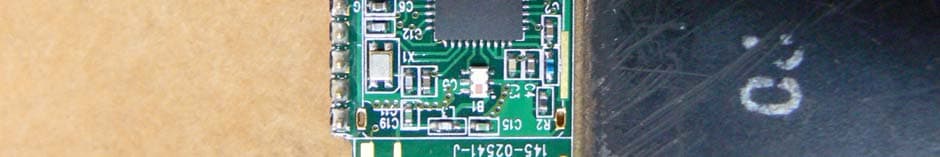

# 17039-0213 1:1 MODEL: 2401M Made in Taiwan FCC ID: VEA2401M MODEL: 2401M Made in Taiwan FCC ID: VEA2401M 2:1 Fieldpiece(CHY) DIM: W19.5mm*H12.0mm FCC ID 2401M

Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 4 EUT Photos Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 4 Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 4

CHY FIREMATE CO., LTD. No.3 Sheng-Li 1st Street, Xintian Village, Rende District, Tainan City Taiwan Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant’s declaration concerning RF Radiation Exposure We hereby indicate that the product Pr oduct description: BLE Module Model No: 2401M The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The integral antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter within the host device. A safety statement concerning minimum separation distances from enclosure of the Product : BLE Module will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate information can be drawn from the test report no: W6M21412-14705-C-1 and the accompanying calculations. Company: CHY FIREMATE CO., LTD. Address: No.3 Sheng-Li 1st Street, Xintian Village, Rende District, Tainan City Taiwan Date: 2015-01-16 Signature Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 28 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = 0.61 dBm + (1.09) dBi = 1.7 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements RESULT: Test standard : FCC KDB Publication 447498 10 D01v05 According to KDB447498 10 D01v05: SAR evaluation, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. The enclosure of the device provides ≥ 0.5 cm separation from the antenna elements to significant metal parts of the enclosure to minimize potential perturbations. Frequency Band:2400-2483.5 MHz Maximum Power fed to Antenna: 1.4791 mW Separation distances: Antenna feed center to metal parts of enclosure: > 5 mm Distance prescribed in user manual: > 5 mm MHz 5 10 15 20 25 mm 2450 10 19 29 38 48 SAR Test Exclusion Threshold (mW) MHz 30 35 40 45 50 mm 2450 57 67 77 86 96 SAR Test Exclusion Threshold (mW) MHz 50 60 70 80 90 100 110120130140150160170 180 190 mm 2450 96 196 296 396496 596 696796896996109611961296 1396 1496 mW

of Applicant: CHY FIREMATE CO., LTD. Address: No.3 Sheng-Li 1st Street, Xintian Village, Rende District, Tainan City Taiwan Tested and Prepared by Worldwide Testing Services (Taiw an) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1, IC 5107A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21412-14705-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for BLE Mo dule Model No.: 2401M FCC ID: VEA2401M Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 28 TABLE OF CONTENTS 1 GENERAL INFORMATION.........................................................................................................................................2 1.1 NOTES......................................................................................................................................................................2 1.2 TESTING LABORATORY.............................................................................................................................................3 1.2.1 Location ..............................................................................................................................................................3 1.2.2 Details of accreditation status ............................................................................................................................3 1.3 DETAILS OF APPROVAL HOLDER...............................................................................................................................3 1.4 APPLICATION DETAILS..............................................................................................................................................4 1.5 GENERAL INFORMATION OF TEST ITEM.....................................................................................................................4 1.6 TEST STANDARDS.....................................................................................................................................................5 2 TECHNICAL TEST........................................................................................................................................................6 2.1 SUMMARY OF TEST RESULTS.....................................................................................................................................6 2.2 TEST ENVIRONMENT.................................................................................................................................................6 2.3 TEST EQUIPMENT LIST..............................................................................................................................................7 2.4 GENERAL TEST PROCEDURE.....................................................................................................................................9 3 TEST RESULTS (ENCLOSURE) ...............................................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER)...................................................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER............................................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS.........................................................................................................15 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS................................................................................16 3.5 SPURIOUS EMISSIONS (TX)......................................................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE...............................................................................................................19 3.7 MINIMUM 6 DB BANDWIDTH..................................................................................................................................21 3.8 PEAK POWER SPECTRAL DENSITY..........................................................................................................................24 3.9 POWER LINE CONDUCTED EMISSION......................................................................................................................27 APPENDIX.............................................................................................................32 Registration number: W6M21412-14705-C-1 FCC ID: VEA2401M Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 28 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at l…
