VEG-BHC-2620Bluetooth Stereo Headset

BHC-2620 QIG Bluetooth™ Stereo Headset BHC-2620 is a headset that supports wireless music streaming with SBC and apt-X codec. By connecting the headset to the PC via a Bluetooth USB audio dongle, the user can listen to music in streaming mode. Also, the user can listen to music by connecting the headset to the MP3 via a Bluetooth audio adapter. The sports design of the headset with its light headband allow user to enjoy sheer and unsurpassed comfort. It is perfect for travel entertainment or as an add-on for your home entertainment system. People can switch to mobile phone automatic or manually when there is an incoming call headset connect with your cellular phone(with Bluetooth™ function) give you a safety way to none stop communication in driving. The BHC-2620 build in NFC function easy connect to mobile phone with NFC function. 1 Headset Features Function Keys Location Keys Function Volume up Volume up function Volume down Volume down function Forward button Play next song for AVRCP function Backward button Play previous song for AVRCP function MFB button Power on / off / call function LED indicators Color LED Status Function Blue Status LED lights up steady Standby(no connection ) Status LED flashes Linked Status LED and Charging LED Flash alternative Pairing state Red Charging LED flashes slowly Low battery Charging LED lights up steady Charging (Indicator turns off when charging is completed.) 2 Charge your headset After opening the package, please make sure to do the following steps full charge the headset by charge it at least 4 hours. The Red LED will be steady on when charging. The LED will go off when battery is fully charged. 3 Power on or off your headset Press MFB key about 3 seconds to power on the headset. When the headset power on the blue led will flash 3 times and you can hear a rising tone. When headset already power on, press MFB key about 3~5 seconds will power off the headset. When the headset power off the red led will flash 3 times and you can hear a falling tone. 4 Pairing device with your headset Pairing headset to your Bluetooth™ mobile phone or other Bluetooth™ devices for the first time only. The headset will remember paired device, so you don’t need pair it every time. To put headset into pairing mode, press and hold the MFB button for six seconds to wait for the Blue and red led flash alternative that indicates the headset is into the paring mode. Operate your Bluetooth™ mobile phone or other Bluetooth™ device to start Bluetooth™ function. Find the headset “BHC-2620”, press the pairing code “0000” The blue LED is start flashing, the headset is in connected mode NFC easy pairing z Power On: Mobile phone short touch the BHC-2620, blue and red LED flash alternatively for into pairing mode. You can auto-connect to the headset. z Connect: Mobile phone short touch with the BHC-2620 when headset is disconnected z Power Off: Mobile phone short touch with the BHC-2620 when headset is connected. 5 Working in AV mode When your headset connects a device with A2DP profile, you can listen to stereo music from transmitter side to your headset. You can connect a USB dongle or AV transmitter or cellular phone with A2DP profile supported. Almost A2DP source device support AVRCP that can use play/pause, next track and pre track function. If you use AV transmitter with 3.5mm audio jack then it doesn’t support AVRCP function. Working in AV connection mode, you can z Short press MFB key to toggle play/pause action z Short press Vol+ or Vol- to adjust volume z Short press forward or backward button to change songs 6 Working in headset mode When your headset connect a device like cellular phone or a Bluetooth USB dongle working with Bluetooth PC stack. Your headset can working in headset mode. Working in headset mode, your headset can using 8 KHz channel to transmit and receive voice data? You can use it as a Bluetooth mono headset to talk phone call wirelessly. You also can connect PC with a USB dongle running skype or massager talking with your headset. Standby mode: z Double MFB button key to init voice dial function z Short press MFB and Vol- keys to init last number redial function z Long press volume down and backward button to clear paired information. Incoming call (ring) mode: z Short press MFB button key to accept phone call z Long press MFB button key when hear a beep tone to reject call In call active mode: z Short press Vol+ or Vol- to adjust volume z Long press MFB button key when hear a beep tone to toggle call between headset and cellular phone z Short press MFB key to end call z Short press Vol+ or Vol- key to toggle mute microphone 7 Led statuses POWER ON Blue led flash 3 times POWER OFF Red led flash 3 times PAIRING Blue and red led flash alternatively STANDBY MODE Blue led steady On AV ACTIVE MODE Blue led flash twice every 2 seconds HEADSET ACTIVE MODE Blue led flash once every 2 seconds LOW BATTERY INDICATION Red led flash once 2 sec continuous AUTO SHUTDOWN Red led flash 3 times and power off (5 minutes no any connection) 8 Troubleshooting If the Bluetooth Headset does not work, try the following: -Ensure connecting devices are charged -Turn off all devices and then turn them on in order to shown in this guide -Ensure devices are within 10 meter range -Ensure the Headset is connected by check the blue LED flash Note 1: Some A2DP source like 3.5mm interface transmitter cannot support AVRCP profile, so it cannot do remote control function. Note 2: Only cellular phone supports hands free profile can use voice dial, last number redial, call transfer function NCC警語： 經型式認證合格之低功率射頻電機，非經許可，公司、商號使用者均不得擅自變 更頻率、加大功率或變更原設計之特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象 時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法 通信或工業、科學及醫療用電波輻射性電機設備之干擾。 FCC: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, IN…

Text truncated - open the document above for the full version.

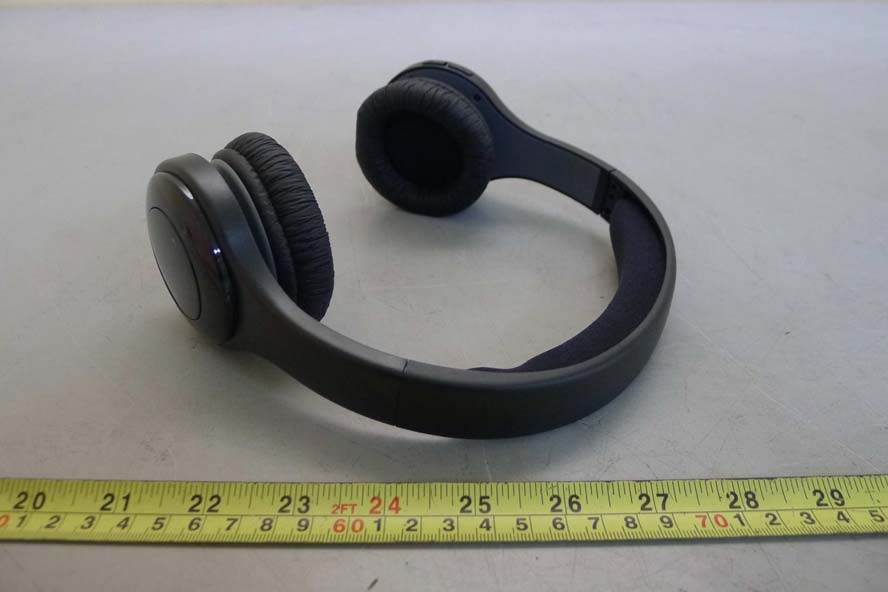

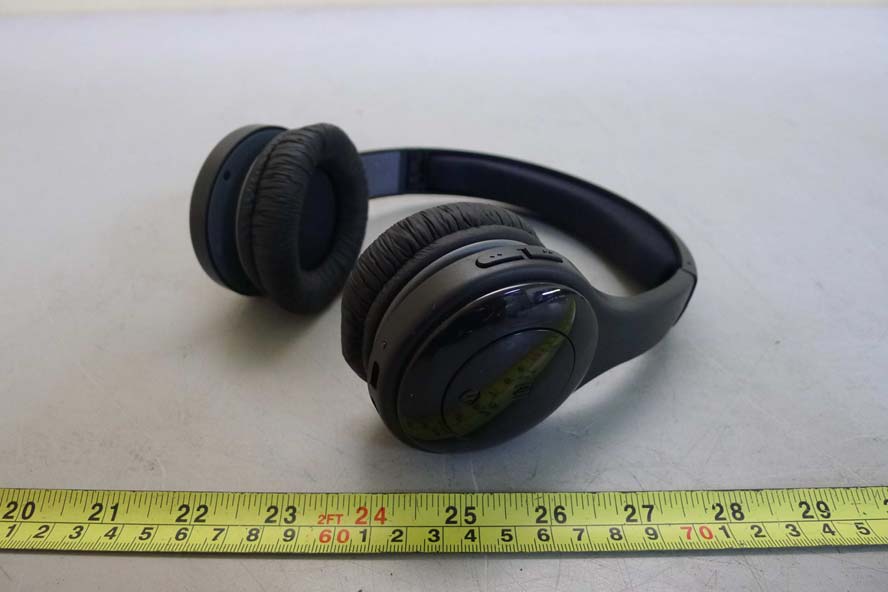

RV-0000000 Project No.: 1310035 Page 2 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 3 of 1 6 Neutron Engineering Inc. 1310035 RV-0000000 Project No.: 1310035 Page 4 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 5 of 1 6 Neutron Engineering Inc. 1310035

M/N:BHC-2620 General Infinity CO.,LTD FCC-ID:VEG-BHC-2620 Made in China 18 ( mm ) 15(mm)

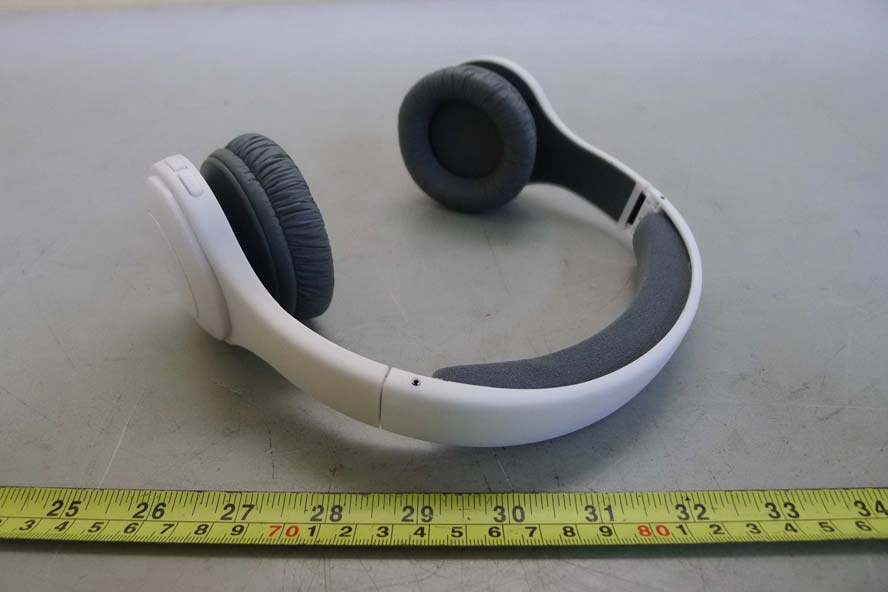

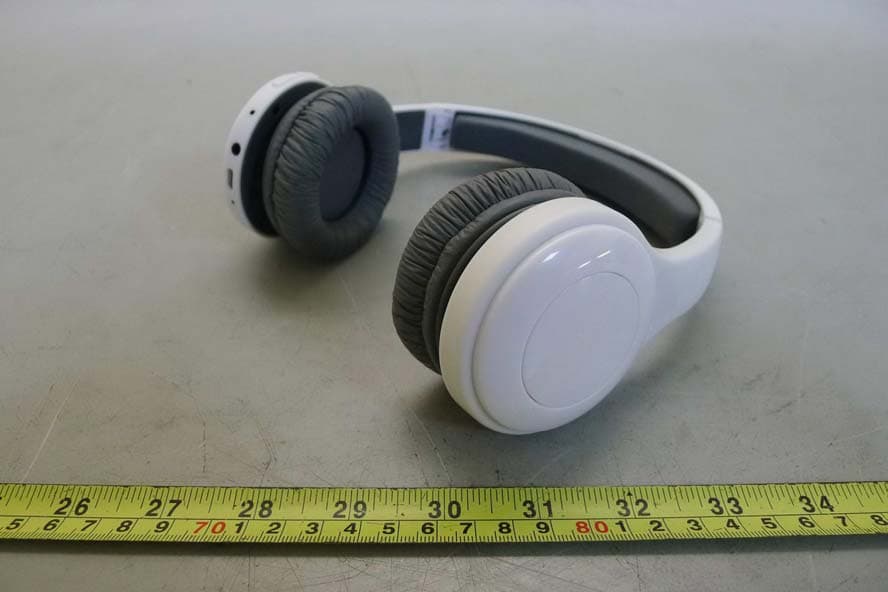

RV-0000000 Project No.: 1310035 Page 6 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 7 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 8 of 1 6 Neutron Engineering Inc. 1310035 RV-0000000 Project No.: 1310035 Page 9 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 10 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 11 of 1 6 Neutron Engineering Inc. 1310035 1310035 Ant. RV-0000000 Project No.: 1310035 Page 12 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 13 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 14 of 1 6 Neutron Engineering Inc. 1310035 RV-0000000 Project No.: 1310035 Page 15 of 1 6 Neutron Engineering Inc. 1310035 1310035 RV-0000000 Project No.: 1310035 Page 16 of 1 6 Neutron Engineering Inc. 1310035

FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 104 of 108 Neutron Engineering Inc. 12 RF EXPOSURE COMPLIANCE 12.1 LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 NOTE: f = frequency in MHz ; *Plane-wave equivalent power density. 12.2 MEASUREMENT INSTRUMENTS LIST Item Kind of EquipmentManufacturer Type No. Serial No. Calibrated until 1 Power Meter Anritsu ML2495A 1128008 Aug. 15, 2014 2 Power Meter Sensor Anritsu MA2411B 1126001 Aug. 15, 2014 NOTE: N/A: denotes No Model Name, No Serial No. or No Calibration specified. 12.3 MPE CALCULATION METHOD E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 105 of 108 Neutron Engineering Inc. 12.4 TEST SETUP LAYOUT 12.5 DEVIATION FROM TEST STANDARD No deviation 12.6 EUT OPERATING CONDITIONS The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. 12.7 TEST RESULTS The power is so low so there is no need for RF calculations.

FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 1 of 108 Neutron Engineering Inc. Radio Test Report FCC ID: VEG-BHC-2620 This report concerns (check one) : Original Grant Class II Change Issued Date : Nov. 12, 2013 Project No. : 1310035 Equipment : Bluetooth Stereo Headset Model Name : BHC-2620 Applicant : General Infinity Company Limited Address : 2F,No.36, Reihu Street Neihu District, Taipei City (114) Taiwan(R.O.C) Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Oct. 08, 2013 Date of Test: Oct. 08, 2013 ~ Nov. 08, 2013 Testing Engineer : (Josh Lin) Technical Manager : (Jeff Yang) Authorized Signatory : (Andy Chiu) Neutron Engineering Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan. TEL: +886-2-2657-3299 FAX: +886-2-2657-3331 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 2 of 108 Neutron Engineering Inc. Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 3 of 108 Neutron Engineering Inc. Table of Contents REPORT ISSUED HISTORY 6 1 CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 10 3 GENERAL INFORMATION 11 3.1 GENERAL DESCRIPTION OF EUT 11 3.2 DESCRIPTION OF TEST MODES 13 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 14 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 15 3.5 DESCRIPTION OF SUPPORT UNITS 16 4 CONDUCTED EMISSION 17 4.1 LIMIT 17 4.2 MEASUREMENT INSTRUMENTS LIST 17 4.3 TEST PROCEDURES 18 4.4 TEST SETUP LAYOUT 18 4.5 DEVIATION FROM TEST STANDARD 18 4.6 EUT OPERATING CONDITIONS 19 4.7 TEST RESULTS 20 5 ANTENNA CONDUCTED SPURIOUS EMISSION 22 5.1 LIMIT 22 5.2 MEASUREMENT INSTRUMENTS LIST 22 5.3 TEST PROCEDURES 22 5.4 TEST SETUP LAYOUT 22 5.5 DEVIATION FROM TEST STANDARD 22 5.6 EUT OPERATING CONDITIONS 22 5.7 TEST RESULTS 23 6 HOPPING CHANNEL SEPARATION 31 6.1 LIMIT 31 6.2 MEASUREMENT INSTRUMENTS LIST 31 6.3 MEASURING INSTRUMENTS SETTING 31 6.4 TEST PROCEDURES 31 6.5 TEST SETUP LAYOUT 31 6.6 DEVIATION FROM TEST STANDARD 31 6.7 EUT OPERATING CONDITIONS 31 6.8 TEST RESULTS 32 7 MAXIMUM PEAK CONDUCTED OUTPUT POWER 40 7.1 LIMIT 40 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 4 of 108 Neutron Engineering Inc. Table of Contents 7.2 MEASUREMENT INSTRUMENTS LIST 40 7.3 TEST PROCEDURES 40 7.4 TEST SETUP LAYOUT 40 7.5 DEVIATION FROM TEST STANDARD 40 7.6 EUT OPERATING CONDITIONS 40 7.7 TEST RESULTS 41 8 RADIATED SPURIOUS EMISSION (9 KHZ TO 1 GHZ) 45 8.1 LIMIT 45 8.2 MEASUREMENT INSTRUMENTS LIST 46 8.3 MEASURING INSTRUMENTS SETTING 46 8.4 TEST PROCEDURES 47 8.5 DEVIATION FROM TEST STANDARD 47 8.6 TEST SETUP LAYOUT 47 8.7 EUT OPERATING CONDITIONS 48 8.8 TEST RESULTS 49 9 RADIATED SPURIOUS EMISSION (ABOVE 1 GHZ) 51 9.1 LIMIT 51 9.2 MEASUREMENT INSTRUMENTS LIST 52 9.3 MEASURING INSTRUMENTS SETTING 52 9.4 TEST PROCEDURES 53 9.5 DEVIATION FROM TEST STANDARD 53 9.6 TEST SETUP LAYOUT 53 9.7 EUT OPERATING CONDITIONS 54 9.8 TEST RESULTS 55 9.9 TEST RESULTS (RESTRICTED BANDS) 79 10 NUMBER OF HOPPING FREQUENCY 87 10.1 LIMIT 87 10.2 MEASUREMENT INSTRUMENTS LIST 87 10.3 MEASURING INSTRUMENTS SETTING 87 10.4 TEST PROCEDURES 87 10.5 TEST SETUP LAYOUT 87 10.6 DEVIATION FROM TEST STANDARD 87 10.7 EUT OPERATING CONDITIONS 87 10.8 TEST RESULTS 88 11 AVERAGE TIME OF OCCUPANCY 90 11.1 LIMIT 90 11.2 MEASUREMENT INSTRUMENTS LIST 90 11.3 TEST PROCEDURES 90 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 5 of 108 Neutron Engineering Inc. Table of Contents 11.4 TEST SETUP LAYOUT 90 11.5 DEVIATION FROM TEST STANDARD 90 11.6 EUT OPERATING CONDITIONS 91 11.7 TEST RESULTS 92 12 RF EXPOSURE COMPLIANCE 104 12.1 LIMIT 104 12.2 MEASUREMENT INSTRUMENTS LIST 104 12.3 MPE CALCULATION METHOD 104 12.4 TEST SETUP LAYOUT 105 12.5 DEVIATION FROM TEST STANDARD 105 12.6 EUT OPERATING CONDITIONS 105 12.7 TEST RESULTS 105 13 EUT TEST PHOTO 106 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 6 of 108 Neutron Engineering Inc. REPORT ISSUED HISTORY Revised Version No. Description Issued Date - Initial Issue. Nov. 12, 2013 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 7 of 108 Neutron Engineering Inc. 1 CERTIFICATION E q u i p m e n t : Bluetooth Stereo Headset Brand Name : General Infinity Model Name : BHC-2620 A p p l i c a n t : General Infinity Company Limited Date of Test : Oct. 08, 2013 ~ Nov. 08, 2013 Standards : FCC Part 15, Subpart C: 2012 ANSI C63.4: 2009 The above equipment has been tested and found compliance with the requirement…

Text truncated - open the document above for the full version.

FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 106 of 108 Neutron Engineering Inc. 13 EUT TEST PHOTO Conducted emission test photos 1310035 1310035 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 107 of 108 Neutron Engineering Inc. Radiated spurious emission test photos Below 1 GHz 1310035 1310035 FCC ID: VEG-BHC-2620 RV-0000000 Report No.: NEI-FCCP-1-1310035 Page 108 of 108 Neutron Engineering Inc. Radiated spurious emission test photos Above 1 GHz 1310035 1310035
