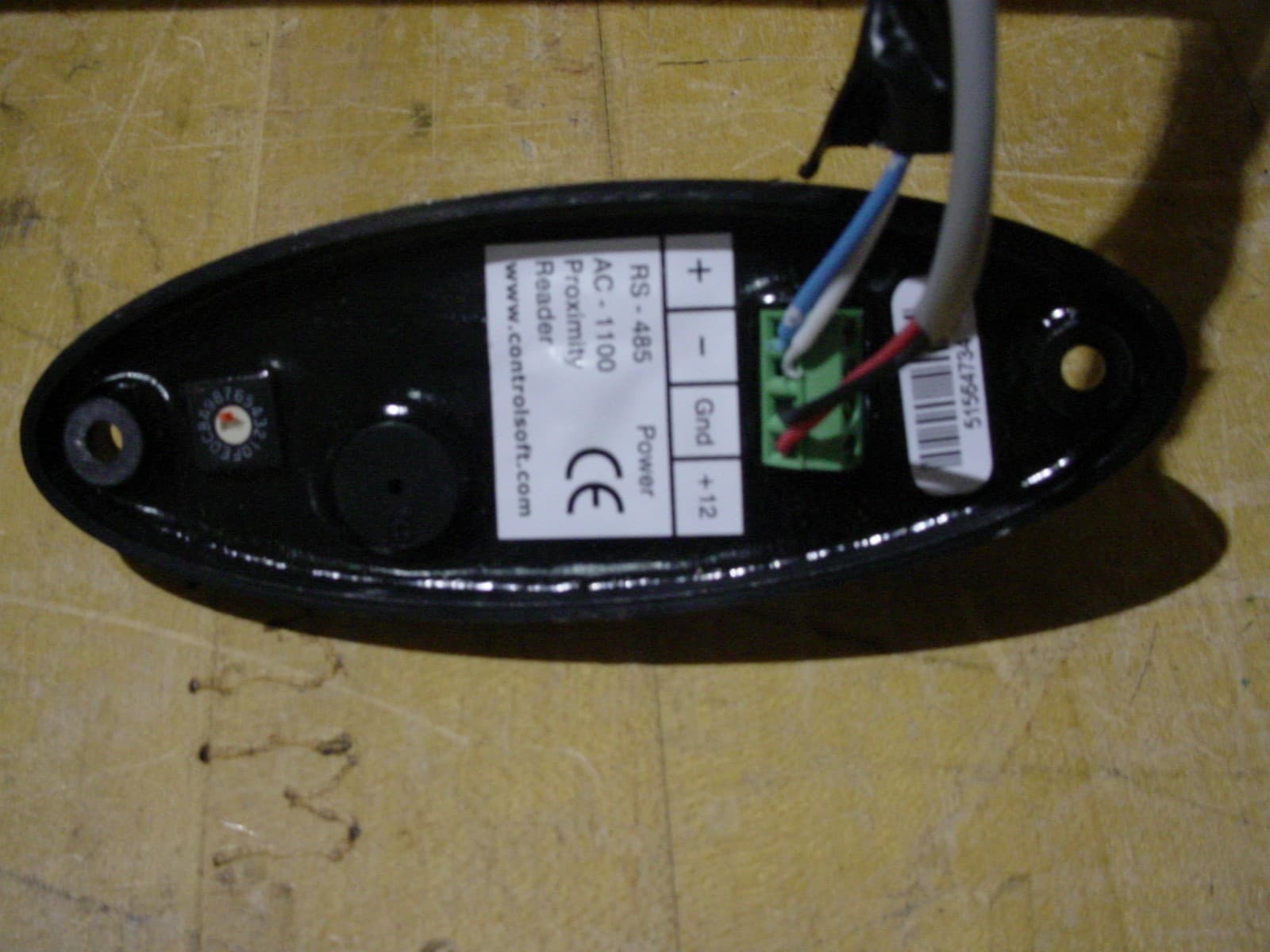

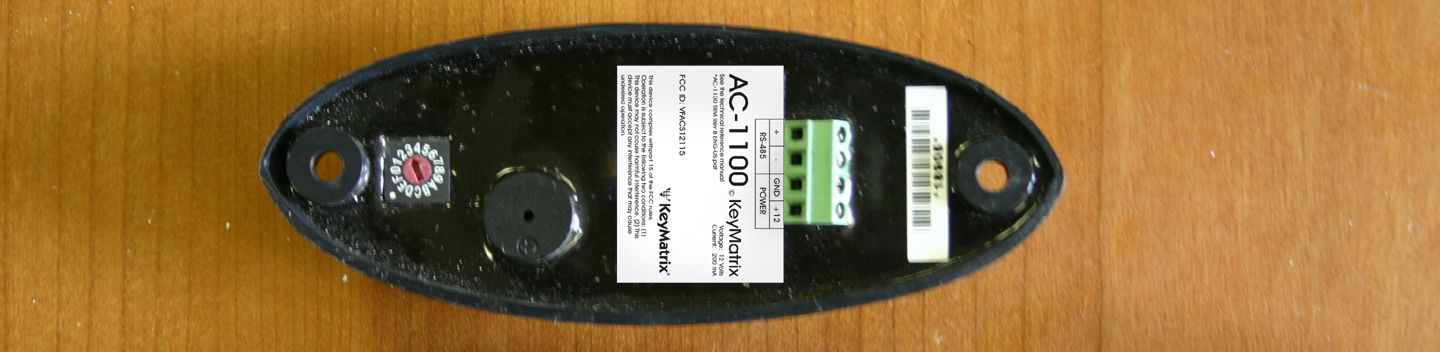

VFACS1215RFID reader

AC-1100 Proximity Card Reader (RS-485) Technical Reference Manual Revision C 2005-11-04 [AC-1100 TRM Rev C ENG-US] ® SMART BUILDING SOLUTIONS SMART BUILDING SOLUTIONS www.controlsoft.com www.aamatrix.com Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual Proximity Card Reader (RS-485) C C o o n n t t e e n n t t s s Contents 2 Diagrams 3 Tables 3 Introduction 4 Features 4 Information regarding UL evaluation of this product 5 Card and tag technologies 5 PCB Layout 6 Installation 7 Mounting 8 Addressing 9 Connecting the RS-485 scanner network 10 DC power supply 11 Diagnostic Status Indicators 12 Product Specifications 13 FCC Compliance Statement 14 Copyright KeyMatrix Inc.. All rights reserved. Revision C [2005-11-04] p. 2 Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual Diagrams AC-1100 proximity card reader--------------------------------------------------------------------------------------4 Circuit layout-----------------------------------------------------------------------------------------------------------6 Labeled terminal block------------------------------------------------------------------------------------------------7 Card reader dimensions-----------------------------------------------------------------------------------------------8 Address selection (address 2 shown)-------------------------------------------------------------------------------9 Scanner network cabling---------------------------------------------------------------------------------------------10 Power supply wiring--------------------------------------------------------------------------------------------------11 Tables Tag formats-------------------------------------------------------------------------------------------------------------5 AC-1100 diagnostics--------------------------------------------------------------------------------------------------12 AC-1100 specifications-----------------------------------------------------------------------------------------------13 Copyright KeyMatrix Inc.. All rights reserved. Revision C [2005-11-04] p. 3 Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual I I n n t t r r o o d d u u c c t t i i o o n n The KeyMaster AC-1100 is a slimline proximity card reader/writer for a range of contactless identification and transaction applications, including access control, time & attendance reporting, membership cards, electronic keys, parking systems and prepaid card systems. The AC-1100 employs very large scale integration (VLSI) surface-mount components, and utilizes the I/O capability of the system controllers to deliver a compact, flexible proximity solution. A single tri-color LED and an internal piezo buzzer indicate status and error information. This document forms part of a set covering the installation of KeyMaster Systems and should be read in conjunction with the master document, entitled ‘KeyMaster Systems Hardware Installation Guidelines’, which is distributed as AC-6000 HIG Rev B ENG-US.pdf. Features „ Supports Hitag™ 1, Hitag™ 2 and H4102 (a.k.a. EM4102) transponder technologies „ Industry standard 125 kHz operation „ Can be mounted directly on metal surfaces „ Up to 4” reading distance (transponder dependent) „ RS-485 host interface „ Tri-color LED indicator „ Piezo audio buzzer „ 12 V dc operation „ Compact size - (w) 1.77” x (h) 4.92” x (d) 0.98” „ Weather resistant housing AC-1100 proximity card reader Copyright KeyMatrix Inc.. All rights reserved. Revision C [2005-11-04] p. 4 Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual Information regarding UL evaluation of this product This product meets the UL Listing requirements for the United States of America and Canada. Please refer to the document entitled ‘KeyMaster System Hardware Installation Guidelines’ for detailed information on the UL Listing of KeyMaster system components. Card and tag technologies The AC-1200 reader can read Hitag 1, Hitag 2, H4001 and H4102 (EM4102) proximity tags and cards. The following table lists the tag formats. Tag formats Tag type Data size AC-1100 output EM4102 32 bits KeyMaster proprietary encoded 32 bits H4001 32 bits KeyMaster proprietary encoded 32 bits H4002 32 bits KeyMaster proprietary encoded 32 bits Hitag 1 32 bits KeyMaster proprietary encoded 32 bits Hitag 2 32 bits KeyMaster proprietary encoded 32 bits Copyright KeyMatrix Inc.. All rights reserved. Revision C [2005-11-04] p. 5 Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual P P C C B B L L a a y y o o u u t t The circuitry of the AC-1100 Proximity Reader is sealed within a protective resin potting inside the nylon housing. The fixed 4-way terminal block provides connection for power and the RS- 485 scanner network. The AC-1100 Proximity Reader is addressed using a rotary switch. You will need to re-power the AC-1100 proximity reader if you change the address setting of the rotary switch. The following diagram shows the rear of the AC-1100 unit: + AC-1100 Circuit layout Copyright KeyMatrix Inc.. All rights reserved. Revision C [2005-11-04] p. 6 Proximity Card Reader (RS-485) AC-1100 Technical Reference Manual I I n n s s t t a a l l l l a a t t i i o o n n Installation of the AC-1100 includes the following tasks, which are detailed in the sections to follow: • Prepare to mount the reader • Set the network address of the reader • Connect the RS-485 network cable • Connect the power supply cabling • Mount the reader The power supply and network cabling are connected to a four position terminal block fixed in the resin potting at the rear of the AC-1100 reader. The terminals can accept wiring up to 1 mm 2 in cross section, which is equivalent to 18 AWG. The conductors used should not exceed this size. Please refer to the KeyMaster System Hardware Installation Guidelines, file name ‘AC-6000 HIG Rev B ENG-US.pdf’ for more comprehensive installation information. Note: To Prevent EMI between readers, ensure the readers are mounted at le…

Text truncated - open the document above for the full version.

® One Technology Lane . Export, PA 15632 . Phone (724) 733-2000 . Fax (724) 327-6124 www.aamatrix.com www.controlsoft.com Request for Confidentiality Federal Communication Commission Equipment Authorization Divison Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE : Certification Application FCC ID: VFACS1215 Please be advised that the following information is to be held in confidential and behalf of KeyMatrix Inc. refereeing to the FCC rules 0.457 and 0.459 Block Diagram Schematics Theory of Operation The application contains technical information, which KeyMatrix Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Paul Romanko Manufacturing Support Engineer

® One Technology Lane . Export, PA 15632 . Phone (724) 733-2000 . Fax (724) 327-6124 www.aamatrix.com www.controlsoft.com Request for Short-Term Confidentiality Federal Communication Commission Equipment Authorization Divison Application Processing Branch 7435 Oakland Mills Road Columbia, Maryland 21046 RE :Certification Application FCC ID: VFACS1215 Please be advised that the following information is to be held in confidence for 45 days from the date of the Grant of Equipment Authorization on behalf of KeyMatrix Inc. refereeing to the FCC rules 0.457 and 0.459 External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which KeyMatrix Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Paul Romanko Manufacturing Support Engineer

Parts List CS1215 Rev 1.4 CS1215 Rev 1.4 Parts List This document contains a list of parts required for the CS1215 Rev 1.4 PCB !"CS1215 Rev 1.4 Parts List o IC’s o Diodes o Crystals o Resistors o Capacitors o Jumpers o Switches o Buzzers o Inductors !"Note to Manufacturer Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 2 of 8 CS1215 Rev 1.4 Parts List Part # Description KeyMatrix Outline/Package Industry Outline/Package Manufacturer + C ode Mounti ng Side Mounting Method IC1 78M05 369A-DPAK DPAK – Case 369A ON Semiconductor - MC 78M05 Motorola – MC28M05DT Component Direct IC2 AT89C4051 DIL20 DIP20 – 20 Pin Dual Inline Package Atmel – AT89C4051-24PC Solder Direct IC3 SN75176 DIL8 DIP8 – 8 Pin Dual Inline Package Texas Instruments – SN75176BP Solder Direct IC4 HTRC110 SO14 SOIC14 – 14 Pin Small Outline Package Philips – HTRC110 Component Direct IC5 DS1814B-10 SOT23-5 SOT23 – 5 Pin Dallas - DS1814B-10 Maxi m – MAX824-EXK-L Component Direct D1 HLMP-4000 LED2 C T-1 3/4 – Spread Pin – 5mm HLMP-4000 Solder D2 S1M DO-214AC DO-214AC 1N4007 Component D3 Bipo lar TranZorb SMBJ6.5CA SMBJ DO-214AA (SMB J-Bend) General Semi conductor – SMBJ6.5CA - Bipolar Component D4 Bipo lar TranZorb SMBJ6.5CA SMBJ DO-214AA (SMB J-Bend) General Semi conductor – SMBJ6.5CA – Bipolar Component Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 3 of 8 CS1215 Rev 1.4 Parts List Part # Description KeyMatrix Outline/Package Industry Outline/Package Manufacturer + C ode Mounti ng Side Mounting Method D5 TranZorb, SMBJ5.0A SMBJ DO-214AA (SMB J-Bend ) General Semi conductor – SMBJ5.0A - Unipolar Component D6 TranZorb, SMBJ15A SMBJ DO-214AA (SMB J-Bend ) General Semi conductor – SMBJ15A – Unipolar Component XT1 XTALH, 16MHz XTAL_LP HC-49/S 16MHz Crystal Oscillator Solder R1 R0805, 4K7 #5% 0805 0805 Component R2 R0805, 1k5 #5% 0805 0805 Component R3 R0805, 4K7 #5% 0805 0805 Component R4 R0805, 330R #5% 0805 0805 Component R5 R0805, 330R #5% 0805 0805 Component R6 R0805, 27R #5% 0805 0805 Component R7 R0805, 1k5 #5% 0805 0805 Component R8 R0805, 120K #5% 0805 0805 Component R9 R0805, 27R #5% 0805 0805 Component Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 4 of 8 CS1215 Rev 1.4 Parts List Part # Description Key Matrix Outline/Package Industry Outline/Package Manufacturer + C ode Mounti ng Side Mounting Method C1 CAP0805, 470nF #5%, 16v 0805 0805 Component C2 CAP0805, 1nF #1%, 16v 0805 0805 Component C3 CAPTANT, 10uF #5% 25v SMD_TANT_C SM D Tantalum Case C (EIA Code 6032) Component C4 CAP0805, 470nF #5%, 16V 0805 0805 Component C5 CAPTANT, 10uF #5% 25v SMD_TANT_C SM D Tantalum Case C (EIA Code 6032) Component C6 CAP0805, 470nF #5%, 16V 0805 0805 Component C7 CAP0805, 3.3nF #1% 100v 0805 0805 Component C8 CAP0805, 100nF #5%, 16V 0805 0805 Component C9 CAP0805, 100nF #5%, 16V 0805 0805 Component Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 5 of 8 CS1215 Rev 1.4 Parts List Part # Description KeyMatrix Outline/Package Industry Outline/Package Manufacturer + Code Mounting Side Mounting Method C10 CAP0805, 33pF #1%, 16V 0805 0805 Component C11 CAP0805, 33pF #1%, 16V 0805 0805 Component C12 CAP0805, 470nF #5%, 16V 0805 0805 Component C13 CAP0805, 1nF #1%, 16V 0805 0805 Component C14 CAP0805, 1nF #1%, 16V 0805 0805 Component J1 TBSIL2_1_5A TBSIL4_1_5A SMKDS 1/4-3.81 Phoenix Contact - SMKDS 1/4- 3.81 Solder J3*** Antennae Antennae Component SW1 16 Way Rotary Dip Switch SMD_ROTDS Surface Mount Type 16 Way Rotary Switch Solder BZ1 BUZZER BUZZER_SM SoundTech SEP-2220 Solder Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 6 of 8 CS1215 Rev 1.4 Parts List Part # Description KeyMatrix Outline/Package Industry Outline/Package Manufacturer + Code Mounting Side Mounting Method F1 BLM21A, 471SG 0805 0805 mUrata BLM21A Component F3 BLM21A, 471SG 0805 0805 mUrata BLM21A Component Copyri ght © 2 000 KeyMatrix. All rights reserved. www.controlsoft.com Page 7 of 8 CS1215 Rev 1.4 Parts List Note to Manufacturer: 1. Part #: Refers to the Silk Screen Label On the PCB 2. Description: Is an informal description of the Component 3. KeyMatrix Outline/Package: Specifies the package and footprint name of the Component used internally at KeyMatri x. 4. Industry Outline/Package: Specifies the package/outline (case) code the component must be ordered in. Blank fields indicate that there is only one option for t hat component. 5. Manufacturer + Code: Specifies which manufacturer produces a component, and the code used by that manufacturer to refer to the component. When several m anufacturers that produce the same component are listed, the component may be ordered from any one of them. When no manufacturer is speci fied for pr oduction of a certain component, any reputable manufacturer may be used. 6. Mounting Side: Indicates the following: !"Component indicates that the Component is to be mounted on the Component side of the PCB !"Solder in dicates that the Component i s to be mounted on the solder side of the PCB 7. Mounting Method: Indicates the following !"Direct indicates that the Component i s soldered directly onto the PCB. Components that have neither Direct nor Socket specified are mounted directly onto the PCB !"Socket indicates that the Component requires a n IC socket. !"Upside Down indicates that the component is mounted such that the top of the component faces the board. Usually applies to LED’s that are mounted across a hole in the PCB , so that the illuminating side of the LED can be seen from the other side of the board. Copyright © 2000 KeyMatrix. All rights reserved. www.controlsoft.com Page 8 of 8

Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 www.ul.com/emc (631) 271-6200 Job Number: 712047 File Number: MC15667 Date: 28 June 2007 Model: AC-1100 FCC ID: VFACS1215 Electromagnetic Compatibility Test Report For KEYMATRIX Copyright © 2007 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Underwriters Laboratories Inc. A not-for-profit organization dedicated 1285 Walt Whitman Rd. Melville, NY 11747 Tel: (631) 271-6200 Fax: (631)439-6095 to public safety and committed to quality service for over 100 years Job Number: 712047 File Number: MC15667 Page 2 of 39 Model Number: AC-1100 Client Name: KEYMATRIX FCC ID: VFACS1215 Test Report Details Tests Performed By: Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, NY 11747 Tests Performed For: KEYMATRIX 1 TECHNOLOGY LANE EXPORT, PA 15632 Applicant Contact: PAUL ROMANKO Phone: (724) 733-2000 E-mail: [email protected] Test Report Date: 28 June 2007 Product Type: Low Power Transmitter – 125kHz RFID Reader Product standards FCC Part 15, Subpart C Model Number: AC-1100 Sample Serial Number: Not provided EUT Category: Low Power Transmitter Testing Start Date: 22 June 2007 Date Testing Complete: 22 June 2007 Overall Results: Compliant Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA websites referenced at the end of this report. Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007 Job Number: 712047 File Number: MC15667 Page 3 of 39 Model Number: AC-1100 Client Name: KEYMATRIX FCC ID: VFACS1215 Report Directory 1.0 G E N E R A L - Product Description..................................................................................................................4 1.1 Equipment Description...................................................................................................................................4 1.2 Equipment Marking Plate...............................................................................................................................5 1.3 Device Configuration During Test..................................................................................................................6 1.3.1 Equipment Used During Test:....................................................................................................................6 1.3.2 Input/Output Ports:.....................................................................................................................................6 1.3.3 EUT Internal Operating Frequencies:........................................................................................................7 1.3.4 Power Interface:.........................................................................................................................................7 1.4 Block Diagram:...............................................................................................................................................8 1.5 EUT Operation Modes....................................................................................................................................9 1.6 EUT Configurations........................................................................................................................................9 2.0 Summary.........................................................................................................................................................10 2.1 Deviations from standard test methods.......................................................................................................10 2.2 Device Modifications Necessary for Compliance........................................................................................10 2.3 Reference Standards.................................................................................................................................. 11 2.4 Results Summary........................................................................................................................................11 3.0 Calibration of Equipment Used for Measurement...........................................................................................12 4.0 EMISSIONS TEST RESULTS.........................................................................................................................12 4.1 Test Conditions and Results – MAINS TERMINAL – CONDUCTED EMISSIONS....................................13 4.2 Test Conditions and Results – RADIATED EMISSIONS............................................................................29 4.3 Example Calculations.................................................................................................................................. 37 Appendix A...................................................................................................................................................................38 Accreditations and Authorizations............................…

Text truncated - open the document above for the full version.

Job Number: 712047 File Number: MC15667 Page 13 of 38 Model Number: AC-1100 Client Name: KEYMATRIX FCC ID: VFACS1215 Figure 1 Test Setup for Conducted Emissions Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007 Job Number: 712047 File Number: MC15667 Page 30 of 38 Model Number: AC-1100 Client Name: KEYMATRIX FCC ID: VFACS1215 Figure 6 Test setup for Radiated Emissions – 9kHz-30MHz (Front and Rear Views) Figure 7 Test setup for Radiated Emissions – 30-1000MHz (Front and Rear Views) Underwriters Laboratories Inc. 1285 Walt Whitman Rd. Melville, New York 11747 USA Tel.: 631 271-6200 Fax: 631 439-6095 Rev. No 1.0 EMC Report 2007
