VFB-NT5723SDHD5G8Camera Back Transmitter

Broadcast Microwave Services Europe GmbH & Co. KG
Camera  Back Transmitter - FCC ID VFB-NT5723SDHD5G8 - Broadcast Microwave Services Europe GmbH & Co. KG
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Sep 27, 2011
Application Purpose
Original Equipment
Date of Application
Sep 27, 2011
Equipment Note
Camera Back Transmitter
Frequency Range
5729.00000000 - 5746.00000000
Company
Broadcast Microwave Services Europe GmbH & Co. KG
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

NT5723SDHD CAMERA-BACK TRANSMITTER Operation Manual Doc. No. 605 Rev. – 2.0 Broadcast Microwave Services, Inc. ▪ 12367 Crosthwaite Circle, Dock 10 ▪ Poway, CA 92064 ▪ USA Tel: +1 (858) 391-3050 ▪ Toll-free (US): 800-669-9667 ▪ Fax: +1 (858) 391-3049 ▪ [email protected] ▪ www.bms-inc.com Broadcast Microwave Services Europe GmbH ▪ Schwalbacher Str. 12 ▪ 65321 Heidenrod Germany Tel: +49-6124-72 39-00 ▪ Fax: +49-6124-72 39-29  2010 Broadcast Microwave Services. All rights reserved. This document and the information contained in it is the property of Broadcast Microwaves Services, Inc. and may be the subject of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced, stored in a retrieval system or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), whether in whole or in part, without BMS prior written agreement. NTxx23SDHD Camera-back Transmitter Operation Manual Broadcast Microwave Services i Document Revision History Initial release March 2011 Rev. - Pin assignement for data interface added August 2011 Rev. 2.0 Conventions Used in This Manual NOTE: Notes provide supplementary information. They are highlighted for emphasis, as in this example, and are placed immediately after the relevant text. CAUTION: Cautions give information which, if strictly followed, will prevent damage to equipment or other goods. They are boxed for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. WARNING: Warnings give information which, if strictly observed, will prevent personal injury or death, or damage to personal property or the environment. They are boxed and shaded for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. ATTENTION! DO NOT use right-angle connectors or adapters on the RF Power Out cable assemblies. Right- angle connectors may have significant RF power loss at the operating frequencies of this system. FOR ALL BMS TRANSMITTERS – Operation of a BMS transmitter product generally requires a license. It is the responsibility of the user to obtain all required operating licenses. ONLY FOR PRODUCTS AWAITING FCC CERTIFICATION – This device has not been authorized as required by the rules of the US Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, in the US until authorization is obtained. Acceptance Test Procedure (ATP) test data results by product serial number are typically shipped with all units and indicate the equipment to be operating within advertised specifications. Contact BMS to request this data. Read and Follow Instructions! All safety and operating instructions should be read before this product is operated. All operating and use instructions should be followed. This manual should be retained for future reference. EMC Compliance – This equipment is certified to the EMC requirements detailed in the technical specifications. To maintain this certification, only use the cables supplied or if in doubt contact BMS Customer Service. Compliance – This device complies with several standards. Please refer to the chapter 1.5 Specifications, in this manual for a complete list of standards. NTxx23SDHD Camera-back Transmitter Operation Manual Broadcast Microwave Services ii This device is designed to be used in mobile configurations only. It must be used only when the distance between antenna and body/head is at least 20 cm (see picture 1). Registered and General Trademarks Best endeavours have been made to acknowledge registered trademarks and trademarks used throughout this Reference Guide. Any notified omissions will be rectified in the next issue of this Reference Guide. Some trademarks may be registered in some countries, but not in others. Registered trademarks and trademarks used are acknowledged below and marked with their respective symbols. They are not referenced within the text of this Reference Guide. • AC-3®, Dolby Digital® and Pro Logic® are registered trademarks of Dolby Laboratories Licensing Corporation. • Musicam® is a registered trademark of Thomson and Télédiffusion de France (TDF), Europe, and is a registered trademark of CCS (now Musicam USA Incorporated), USA. • Ethernet® is a registered trademark of Xerox Corporation. • XILINX® is a registered trademark of Xilinx Inc. • Pozidriv™ is a trademark of European Industrial Services. • Windows NT®, Windows XP, Windows 7 are registered trademarks of Microsoft Corporation. • NDS™ is a trademark of NDS Limited. About This Manual This product manual provides instructions and information on the installation and operation of the indicated BMS product. The manual should be stored in a safe place and remain readily available during the operational lifetime of the unit. It is not intended for this manual to be revised by issuing and replacing individual pages. Any revision will be done by a complete reissue. Additional copies of this manual can be ordered from BMS. The equipment should only be passed on to a third party together with the relevant documentation. For further information please visit our website at www.bms-inc.com. Minimum 20cm Picture 1 NTxx23SDHD Camera-back Transmitter Operation Manual Broadcast Microwave Services iii Contents 1 INTRODUCTION ..............................................................................................................................................1 1.1 Display and Control buttons .....................................................................................................................1 1.2 Using the transmitter ................................................................................................................................1 1.3 Configuring the transmitter .......................................................................................................................2 …

Text truncated - open the document above for the full version.

Cover Letter(s)

Autor/Author: CRothe Version/Release: 1.0 Rel.Date : 17.06..2011 CONFIDENTIALITY REQUEST Rev. 1.0 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Dear Sir/Madam: Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Broadcast Microwave Service Europe GmbH (BMS Europe) requests confidentiality for the following products: FCC ID Number Product Title/Model VFB-NT5723SDHD5G8 NT5723SDHD For the product stated above, we request that the following information be held confidential: 1. Schematics and BOM submitted as Equipment Authorization Electronic Filing attachment: "11_2531_000_schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “11_2531_000_BlockDiagram.pdf”. 3. Tune-up procedure and partlist submitted as “11_2531_000_PartList_TuneUpInfo.pdf” The above exhibits contain BMS Europe trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Signature of authorized person: Rainer Horn Sincerely, Name: Rainer Horn Company: Broadcast Microwave Services Europe GmbH Address: Schwalbacher Str.12, D-65321 Heidenrod Kemel Phone: +49 06124 7239 15 Email: [email protected]

External Photos

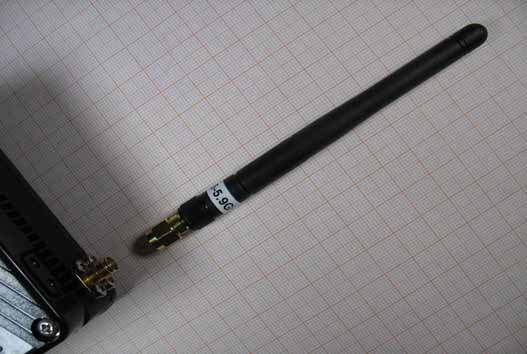

Test report no.: 1-2628-01-02/10 2011-09-01 Page 115 of 131 Annex B External photographs of the EUT Photo documentation: Photo 1: Photo 2: Test report no.: 1-2628-01-02/10 2011-09-01 Page 116 of 131 Photo 3: Photo 4: Test report no.: 1-2628-01-02/10 2011-09-01 Page 117 of 131 Photo 5: Photo 6: Test report no.: 1-2628-01-02/10 2011-09-01 Page 118 of 131 Photo 7: Photo 8: Test report no.: 1-2628-01-02/10 2011-09-01 Page 119 of 131 Photo 9: Photo 10:

ID Label/Location Info

Broadcast Microwave Services Europe GmbH Schwalbacher Str. 12 D-65321 Heidenrod-Kemel 28.09.2011Date: Name: C.Rothe NT5723SDHD - 11.2531.000Labelling Position

Internal Photos

Test report no.: 1-2628-01-02/10 2011-09-01 Page 120 of 131 Annex C Internal photographs of the EUT Photo documentation: Photo 1: Photo 2: Test report no.: 1-2628-01-02/10 2011-09-01 Page 121 of 131 Photo 3: Photo 4: Test report no.: 1-2628-01-02/10 2011-09-01 Page 122 of 131 Photo 5: Photo 6: Test report no.: 1-2628-01-02/10 2011-09-01 Page 123 of 131 Photo 7: Photo 8: Test report no.: 1-2628-01-02/10 2011-09-01 Page 124 of 131 Photo 9: Photo 10: Test report no.: 1-2628-01-02/10 2011-09-01 Page 125 of 131 Photo 11: Photo 12: Test report no.: 1-2628-01-02/10 2011-09-01 Page 126 of 131 Photo 13: Photo 14: Test report no.: 1-2628-01-02/10 2011-09-01 Page 127 of 131 Photo 15: Photo 16: Test report no.: 1-2628-01-02/10 2011-09-01 Page 128 of 131 Photo 17: Photo 18: Test report no.: 1-2628-01-02/10 2011-09-01 Page 129 of 131 Photo 19: Photo 20: Test report no.: 1-2628-01-02/10 2011-09-01 Page 130 of 131 Photo 21: Photo 22:

RF Exposure Info

Autor/Author: CRothe Version/Release: 1.0 Rel.Date : 22.09..2011 Title/Model: NT5723SDHD – 11.2531.000 FCC ID Number Product: VFB-NT5723SDHD5G8 Intended use NT5723SDHD Transmitters are designed for use with mobile camera systems. Easy mounting with the integrated quick mount adapter to the back side of cameras. Antenna mounting An Omni directional antenna with SMA reverse (f) connector can be mounted to the RF out connector. RF Exposure Info Autor/Author: CRothe Version/Release: 1.0 Rel.Date : 22.09..2011 MPE calculation Frequency of operation: 5800 MHz Average power at antenna: 200 mW Antenna Gain: 3 dBi Min. Distance acc. Manual: 7.9 ” (20 cm) Autor/Author: CRothe Version/Release: 1.0 Rel.Date : 22.09..2011

Test Report

2011-09-01 Page 1 of 131 TEST REPORT Test report no.: 1-2628-01-02/10 Testing laboratory Applicant CETECOM ICT Services GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: http://www.cetecom.com e-mail: [email protected] Accredited test laboratory: The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 DAkkS registration number: D-PL-12076-01-01 Area of Testing: Radio/Satellite Communications Broadcast Microwave Services Europe GmbH Schwalbacherstrasse 12 65321 Heidenrod-Kemel / GERMANY Phone: Fax: +49 6124 7239-29 Contact: Christian Rothe e-mail: [email protected] Phone: +49 6124 7239-27 Manufacturer Broadcast Microwave Services Europe GmbH Schwalbacherstrasse 12 65321 Heidenrod-Kemel / GERMANY Test standard/s 47 CFR Part 15 Title 47 of the Code of Federal Regulations; Chapter I Part 15 - Radio frequency devices For further applied test standards please refer to section 3 of this test report. Test item Kind of test item: CAMERA-BACK TRANSMITTER Model name: NT5723SD-HD FCC ID: VFB-NT5723SDHD5G8 Frequency [MHz]: 5725 MHz – 5850 MHz (lowest channel 5728 MHz, highest channel 5847 MHz) Power supply: 12 V DC Temperature range: -/- °C to -/- °C This test report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test performed: Test report authorised: Andreas Keller Stefan Bös Test report no.: 1-2628-01-02/10 2011-09-01 Page 2 of 131 1 Table of contents 1 Table of contents ..................................................................................................................................... 2 2 General information ................................................................................................................................. 3 2.1 Notes .............................................................................................................................................. 3 2.2 Application details ......................................................................................................................... 3 3 Test standard/s ........................................................................................................................................ 3 4 Test environment ..................................................................................................................................... 3 5 Test item ................................................................................................................................................... 4 6 Test laboratories sub-contracted ............................................................................................................ 4 7 Summary of measurement results .......................................................................................................... 5 8 RF measurements .................................................................................................................................... 6 8.1 Description of test setup ............................................................................................................... 6 8.1.1 Radiated measurements ....................................................................................................... 6 8.1.2 Conducted measurements .................................................................................................... 7 8.2 Additional comments .................................................................................................................... 7 9 Measurement results ............................................................................................................................... 8 9.1 Maximum output power (conducted) ............................................................................................ 8 9.2 Antenna gain................................................................................................................................ 15 9.3 Power spectral density ................................................................................................................ 16 9.4 Spectrum bandwidth – 6 dB bandwidth...................................................................................... 23 9.5 Spectrum bandwidth – 20 dB bandwidth.................................................................................... 30 9.6 Maximum output power............................................................................................................... 36 9.7 Band edge compliance conducted ............................................................................................. 43 9.8 Band edge compliance radiated ................................................................................................. 47 9.9 TX spurious emissions conducted ............................................................................................. 48 9.10 TX spurious emissions radiated.............................................................................................. 67 9.11 RX spurious emissions radiated ........................................................................................... 105 9.12 TX spurious emissions radiated < 30 MHz ............................................................................ 106 9.13 TX spurious emissions conducted < 30 MHz ........................................................................ 109 10 Test equipment and ancillaries used for tests ............................................................................. 111 Annex A Photographs of the test setup ............................................................................................... 113 Annex B External photographs of the EUT .......................................................................................... 115 Annex C Internal photographs of th…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report no.: 1-2628-01-02/10 2011-09-01 Page 113 of 131 Annex A Photographs of the test setup Photo documentation Photo 1: Photo 2: Test report no.: 1-2628-01-02/10 2011-09-01 Page 114 of 131 Photo 3:

Contact Information

Applicant

Reinhard Kuehn(Managing Director)
[email protected]+496124723922Fax: +496124723929

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]49-681-598-0Fax: 49-681-598-8775

Technical Specifications

#Rule PartsFrequency RangePower Output
215C5.73 GHz - 5.75 GHz743.00 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
