VFIBW95121805Controller Side Radio

Guitar Hero™ Wireless Les Paul Controller for PLAYSTATION ® 3 system INSTRUCTION MANUAL Guitar Hero™ games © 2005-2007 Activision Publishing, Inc. Guitar Hero is a trademark and Activision and RedOctane are register ed trademarks of Activision Publishing, Inc. Covered by one or more of the following patents: U.S. Patent Nos. 5,739,457, 6,018,121, 6,225,547, 6,347,998, 6,369,313, 6 ,390,923, 6,425,822, 6,645,067 and 6,835,887; patents pending. “PlayStation”, “PLAYSTATION”, and the “PS” Family logo are registered trademarks of Sony Computer E ntertainment Inc. The Guitar Hero™ controller shapes are trademarks of Gibson Guitar Corp. All Gibson marks, logos, trade dress, guitar models, controller shapes and related rights provided pursuant to exclusive license from Gibson Guitar Corp. All other trademarks and trade names are the properties of their respective owners. All rights reserved. ACTIVISION AUTHORIZES USE OF THIS GUITAR HERO™ CONTROLLER ONLY WITH A GUITAR HERO™ GAME PRODUCT OR OTHER ACTIVISION BRANDED PRO DUCT. ACTIVISION EXPRESSLY PROHIBITS THE USE OF tHIS GUITAR HERO™ CONTROLLER WITH ANY OTHER GAME. NO OTHER LICENSE, EXPRESS OR IMPLIE D, IS GRANTED. Thank you for purchasing the Guitar Hero™ Wireless Les Paul Controller for PLAYSTATION ® 3 computer entertainment system. For your personal safety and the safety of others, before using this product please carefully read the instruction manual. USING THE GUITAR HERO WIRELESS LES PAUL CONTROLLERPlease read the following precautions before using the controller.WARNING: Do not use the controller if you have heart, respiratory or other physical impairments that limit your physical activity. If you have any doubts, consult with a physician.• The controller must be used with care to avoid injury. RedOctane will not be liable from injuries resulting from improper use of the controller.• The controller is for indoor use only and should be kept away from open flames or other heat sources.• Do not leave the controller in a dusty or humid place.• Small children should be monitored at all times when using the controller.• Do not modify or disassemble the controller under any circumstances.• When not in use, make sure the controller is removed from playing area and properly stored.• Excessive or improper use of the whammy bar can cause it to break.• Never get the controller wet.• Never stand on the controller.• Use a dry cloth to clean the controller, never use chemicalsBATTERY SAFETYIncorrect use of batteries may result in battery leakage, overheating or explosion. When using batteries, be sure to follow these instructions:• Make sure the positive (+) and negative (-) ends of the batteries are inserted in the correct directions.• Keep batteries out of reach of children.• Do not mix old and new or different types of batteries. Use only AA (LR6) type batteries.• Do not attempt to recharge non-rechargeable type batteries.• Remove the batteries when the product will not be used for an extended period of time.• If the battery has leaked, be sure to carefully remove all fluid with a paper towel before inserting new batteries. Take care to keep all leaked fluid from touching your skin or clothes. If fluid comes into contact with the skin, flush with water immediately.• Dispose of batteries in accordance with local and national disposal regulations. FCC INFORMATION FOR THE CONSUMERThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.IC INFORMATION FOR THE CONSUMERThis device complies with RSS 210 of Industry Canada (IC). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. GUITAR HERO WIRELESS LES PAUL CONTROLLER LAYOUT1. Strum bar2. Fret buttons3. Whammy bar4. Start and Select buttons5. PS button6. Directional pad7. Expansion Port8. Controller status lights9. Detachable neck lever10. Detachable faceplate lever11. Battery compartment12. Strap button13. Wireless receiver 14. Connect button and receiver status light 8 3 1 2 5 6 4 7 14 9 12 13 10 12 12 11 SETTING UPConnect the neck to the controller body.Slide the neck into the controller body and push in to lock. Make sure the lever on the rear of the controller body rotates fully to the locked position.To detach the neck, rotate the lever on the rear of the controller body to the unlocked symbol and hold in this position. Carefully slide the neck out from the controller body taking care not to twist the neck.Connect the strap t…

Text truncated - open the document above for the full version.

September 4, 2007 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Audix Technology (Shenzhen) Co., Ltd, No. 6, Ke Feng Road, Block 52, Shenzhen Science & Industry Park, Nantou, Shenzhen to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with RedOctane, Inc., 955 Benecia Avenue, Sunnyvale, CA94085. Dated this 6 Day of September, 2007 Agency agreement expiration date: September 3, 2008 By: Stephen Withers Signature Printed Title: Product Manager On behalf of : RedOctane Inc. Telephone: +1 408 481 9121

September 4, 2007 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: VFIBW95121805 Product Name: PS3/Les Paul Wireless Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 4 Day of September 2007 Agency agreement expiration date: September 3, 2008 By: Stephen Withers Signature Printed Title: Product Manager On behalf of : RedOctane Inc. Telephone: +1 408 481 9121

Page 6 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Photographs Figure 1 General Appearance Figure 2 General Appearance Label Location

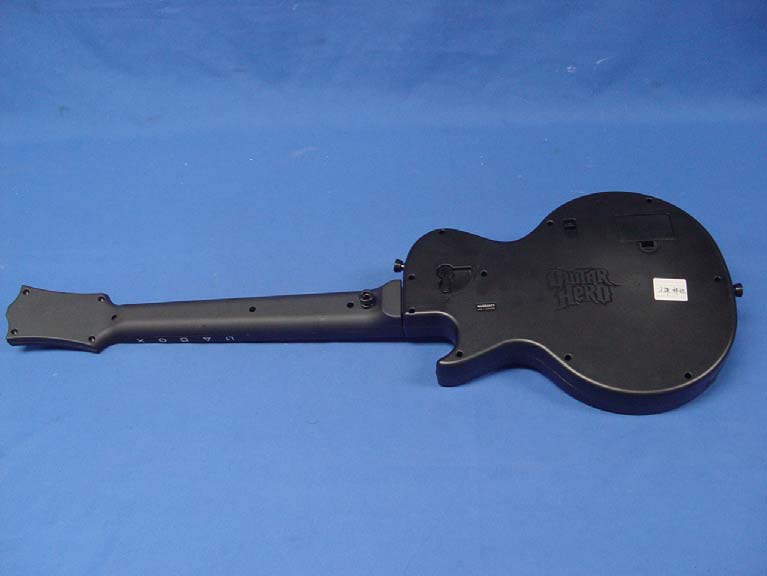

Page 7 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 IC ID: VFIBW95121805 Figure 3 General Appearance Label Location

Page 7 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 3 Inside of the EUT Figure 4 Inside of the EUT Page 8 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 5 Component Side of the PCB Figure 6 Component Side of the PCB Page 9 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 7 Component Side of the PCB Figure 8 Component Side of the PCB Page 10 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 9 Component Side of the PCB Figure 10 Component Side of the PCB Page 11 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 11 Component Side of the PCB Figure 12 Component Side of the PCB Page 12 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 13 Component Side of the PCB Figure 14 Component Side of the PCB Page 13 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 15 Component Side of the PCB Figure 16 Component Side of the PCB Page 14 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 17 Component Side of the PCB Figure 18 Component Side of the PCB Page 15 RedOctane, Inc. PS3/Les Paul Wireless FCC ID: VFIBW95121805 Figure 19 Component Side of the PCB Figure 20 Component Side of the PCB

PS3 Wireless Guitar Operation Principle 2007-8-27 1. Controller Side Radio The radio system is mainly composed of three parts: radio modem, frequency synthesizer and baseband microprocessor. The radio modem is a MSK modem running at 250 kbps. The antenna is an embedded PCB antenna matching is done by using lumped inductors and capacitors. The microcontroller scans keystrokes on the joypad, then packs the data by adding preambles, frame information, and error checking bytes. The radio system uses one of 75 channels (the frequency range is 2.410-2.470GHz) to send signal in random, and the channels change frequency is 62.5HZ per second. The Guitar radio is powered by 2-AAA side batteries and regulated to 3.0V. The power consumption of RF module is about 4mA, the total power consumption of the Guitar side radio system is about 8mA in normal working mode. It will enter sleep mode if no key be pressed after 5 minutes, in this mode the total power consumption of Guitar is only about 40uA*. 2. Station Side Radio Station side radio will always send RF signal at intervals, and it also receives, un- packs, and sends the data to playstation2 Console. Station side radio system will send sync packets after being powered on, and then search Guitar’s responses. This is search mode. If any responses-packets be received, the Station side radio system will enter normal working mode. Then, if station side radio system loses synchronization, it will enter search mode. Station side radio system is powered by console (5V(USB)), power consumption is about 12 mA in normal working mode.

FCC ID:VFIBW95121805 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 APPLICATION FOR CERTIFICATION On Behalf of RedOctane, Inc. PS3/Les Paul Wireless Model Number: 95121.805 Prepared for : RedOctane, Inc. 955 Benecia Avenue Sunnyvale, CA 94085, United States Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07432 Date of Test ： Aug.31~Sep.14, 2007 Date of Report ： Sep.25, 2007 FCC ID:VFIBW95121805 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 TABLE OF CONTENTS Description Page Test Report Declaration 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Tested Supporting System Details .................................................................................................2-1 2.3. Test Facility....................................................................................................................................2-2 2.4. Measurement Uncertainty ..............................................................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit Standard: FCC 15.249 ...........................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-4 5. PULSE DESENSITIZATION CORRECTION FACTOR ................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ..................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Information .............................................................................................................................6-1 6.3. Test Results ....................................................................................................................................6-1 7. 20DB BANDWIDTH TEST ..................................................................................................... 7-1 7.1. Test Equipment ..............................................................................................................................7-1 7.2. Test Information .............................................................................................................................7-1 7.3. Test Results ....................................................................................................................................7-1 8. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 8-1 9. PHOTOGRAPH........................................................................................................................ 9-1 9.1. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................9-1 FCC ID:VFIBW95121805 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.209 ANSI C63.4-2003 N/A Radiated Emission Test FCC Part 15C: 15.249 ANSI C63.4-2003 PASS Band Edge Compliance Test FCC Part 15: 15.249 PASS 20dB Bandwidth Test FCC Part 15: 15.215 PASS N/A is an abbreviation for Not Applicable. FCC ID:VFIBW95121805 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product name : PS3/Les Paul Wireless Model Number : 95121.805 Operation frequency : 2410MHz~2470MHz Modulation : MSK Power : DC 3V Applicant : RedOctane, Inc. 955 Benecia Avenue Sunnyvale, CA 94085, United States Manufacturer : Berway Technology Ltd. Unit 1801-02, 18/F., No.88 Kwai Cheong Road, Kwai Chung, N.T., H.K. Receiver : Manufacture: Berway, M/N: 95121.806 Date of Test : Aug.31~Sep.14, 2007 Date of Receipt : Aug.30, 2007 Sample Type : Series production 2.2. Tested Supporting System Details 2.2.1. TV 2.2.2. PS3 EMC CODE : ACS-EMC-TV01T M/N : 1419A Manufacturer : TCL Power cord : Unshielded, Undetachabled, 1.8m FCC ID : By Verification M/N : CECHC04 Manufacturer : SONY FCC ID:VFIBW95121805 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 2-2 2.3. Test Fac…

Text truncated - open the document above for the full version.

FCC ID:VFIBW95121805 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 9-1 9. PHOTOGRAPH 9.1. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz FCC ID:VFIBW95121805 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07432 9-2 above 1000MHz
