VFR19091Wii Wireless Guitar

FR Il existe d’importantes consignes de sécurité et des avertissements relatifs à ce produit ainsi que, selon le cas, des informations sur le système de déblocage et/ou sur le positionnement des piles à lire impérativement avant d’utiliser le produit. Vous trouverez le texte complet de ces avertissements dans votre langue sur le site : http://rockbandservice.ea.com DE Es gibt wichtige Hinweise zur Sicherheit und Handhabung dieses Produkts sowie, sofern zutreffend, Sicherheitsinfor- mationen zum Stolperschutz und/oder zur Entsorgung von Batterien, die du vor dem Gebrauch dieses Produkts lesen solltest. Die gesamten Hinweise in deiner Sprache findest du unter http://rockbandservice.ea.com IT Ci sono importanti istruzioni sulla sicurezza e avvertimenti in merito a questo prodotto e, quando applicabili, allo smaltimento sicuro delle batterie che dovresti leggere prima di utilizzare il prodotto. Per i testi completi di questi avvertimenti nella tua lingua, visita il sito http://rockbandservice.ea.com ES Se incluyen instrucciones y precauciones importantes referentes a la seguridad de este producto así como, si procede, al conector de la desconexión de seguridad o a la manera de desechar las pilas que deberías leer antes de usar este producto. Para ver el texto completo de estas precauciones en tu idioma, visita la página web http://rockbandservice.ea.com PT Este produto inclui instruções e avisos importantes sobre segurança e, se for o caso, a patilha de segurança e/ou como deitar fora as pilhas gastas que deve ler antes de começar a usar este produto. Para obter o texto completo dos avisos no seu idioma, visite o website http://rockbandservice.ea.com NL Er zijn belangrijke productveiligheidsinstructies en waarschuwingen voor dit product en, waar van toepassing, de inline veiligheidsgrendel en/of de verwijdering van batterijen die je moet lezen voordat je gebruik maakt van dit product. Om de volledige tekst met waarschuwingen in je eigen taal te raadplegen, vragen we je de volgende website te bezoeken: http://rockbandservice.ea.com SE Det finns viktiga produktsäkerhetsinstruktioner och varningar för denna produkt och, där så är tillämpligt, den inbyg- gda utlösaren, och/eller avfallshantering för batterier som du bör läsa innan du använder denna produkt. Du kan läsa den fullständiga varningstexten på ditt språk genom att besöka webbplatsen http://rockbandservice.ea.com DK Der er vigtige sikkerhedsinformationer og –advarsler knyttet til dette produkt og, hvis disse følger med, inline-sikker- hedsanordningen og/eller korrekt udsmidning af batterier, som du bør læse før brug af produktet. For at læse disse advarsler i fuld udstrækning på dit sprog skal du besøge websiden http://rockbandservice.ea.com NO Det finnes viktig informasjon om produktsikkerhet og advarsler for dette produktet, kabelutløseren og/eller avhending av batterier som du må lese før du bruker dette produktet. Du kan finne hele teksten i disse advarslene på ditt språk hvis du går inn på nettstedet http://rockbandservice.ea.com PL CZ HU FI Ennen kuin käytät tuotetta, lue sitä koskevat turvallisuusohjeet ja varoitukset sekä johdon turvasalvan ja/tai paristojen käyttöä ja hävittämistä mahdollisesti koskevat ohjeet. Suomenkieliset ohjeet ja varoitukset voi lukea kokonaisu- udessaan osoitteessa http://rockbandservice.ea.com GR Using your wireless Guitar for Nintendo ® Wii ™ Rock Band™ Wireless Guitar Model Number 19091 CAUTION! Please comply with ALL safety warnings and instructions. Changes or modifications to this Rock Band Wireless Guitar (“controller” or “device”) that are not expressly approved by the manufacturer could void the user’s authority to operate this controller and will void all warranties. • WARNING NO CHILD uNDER 36 mONtHS OF AGE SHOuLD uSE OR PLAy WItH tHIS DEVICE AND yOu SHOuLD kEEP It Out OF REACH OF VERy yOuNG CHILDREN. this Device is suitable and intended for adults and children who are at least 12 years of age. Children who are permitted to use this Rock Band Controller should ALWAyS be supervised by an adult when using it. • CAUTION - Please make sure players using this Rock Band Controller have enough space to avoid others being hit with the Controller or by other players. this Rock Band Controller must be used with care to avoid injury. Neither EA nor mtV Games will be held liable for injuries resulting from improper use of this Rock Band Controller. • WARNING - Device is to be used only with adult supervision, where sufficient space is available to prevent injury or damage. there is a potential risk of epileptic attacks that may be caused by video games. CAUTION - In order to avoid potential radio frequency interference with other games or household items, it is recommended that you turn off Rock Band controllers when not in use. Important Information About Safety & Proper Care • Do not modify, disassemble or attempt to open the controller. • Do not expose the controller to extreme conditions, including direct sunlight and excessive humidity. • Do not expose the controller to liquids. • If cleaning is necessary, use a dry cloth to clean the affected area. Never use chemicals. If the controller does cause harmful interference to radio or television reception, (you can determine this by turning the controller off and on), the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the controller’s receiving antenna, if applicable. • Increase the separation between the controller and the game console. • Contact Electronic Arts at http://rockbandservice.ea.com. Eu Declaration of Conformity: this device has been tested and conforms to the requirements of the European union Directives 1999/5/EC and 2004/108/EC. Authorized signatory of the manufacturer is Harmonix music Systems, Inc., 625 massachusetts Ave., Cambridge, massachusetts 02139. united States and Canada: this class B digital device (the Rock Band Game Controller - model Number 822151) has b…

Text truncated - open the document above for the full version.

Page 6 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Photographs Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT Label Location

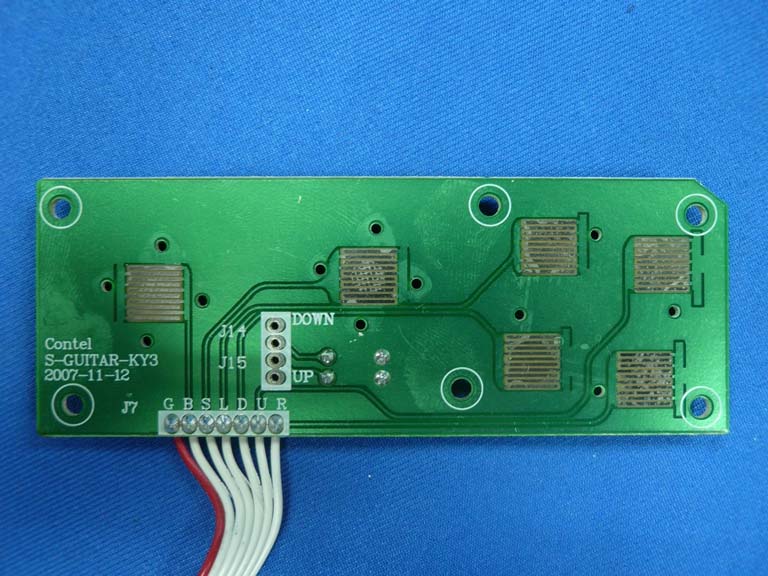

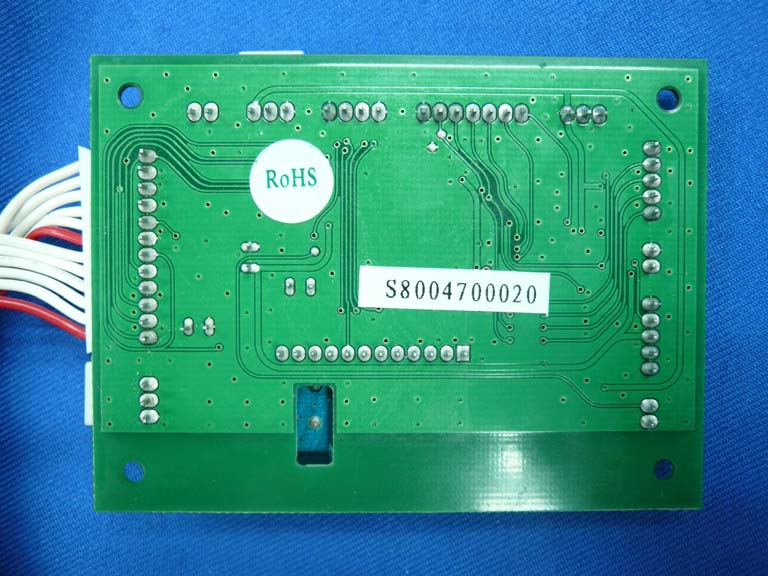

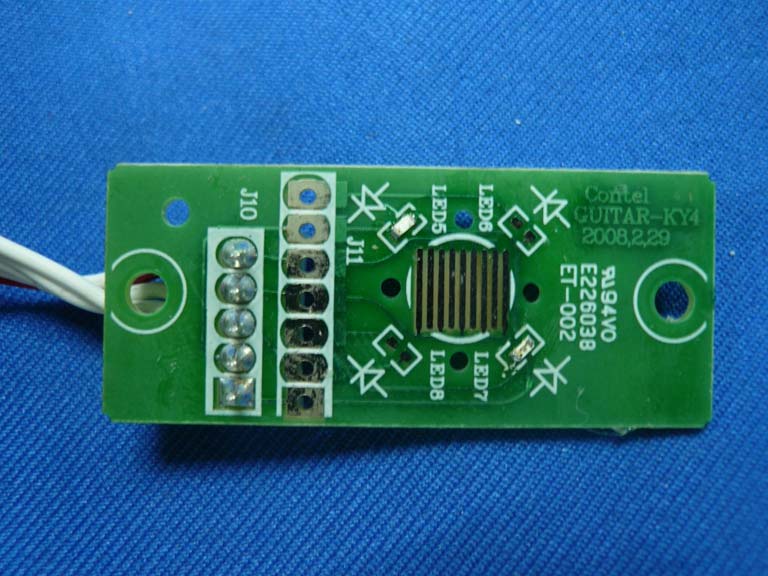

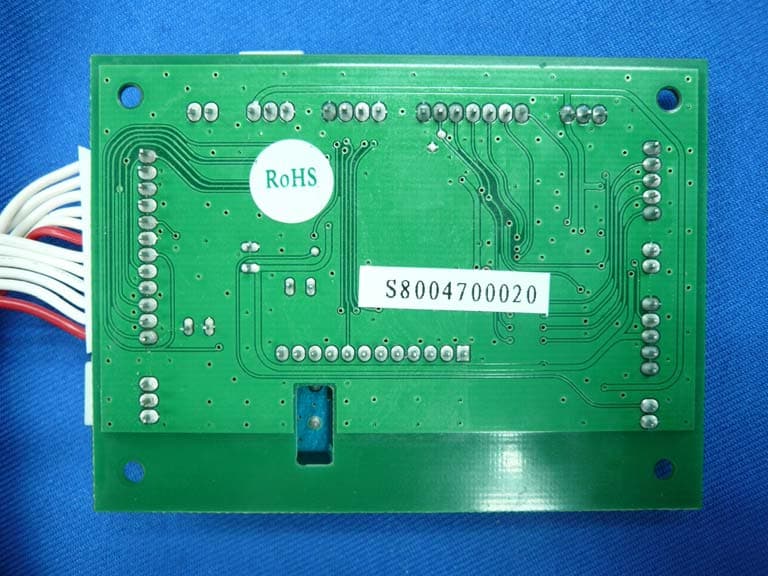

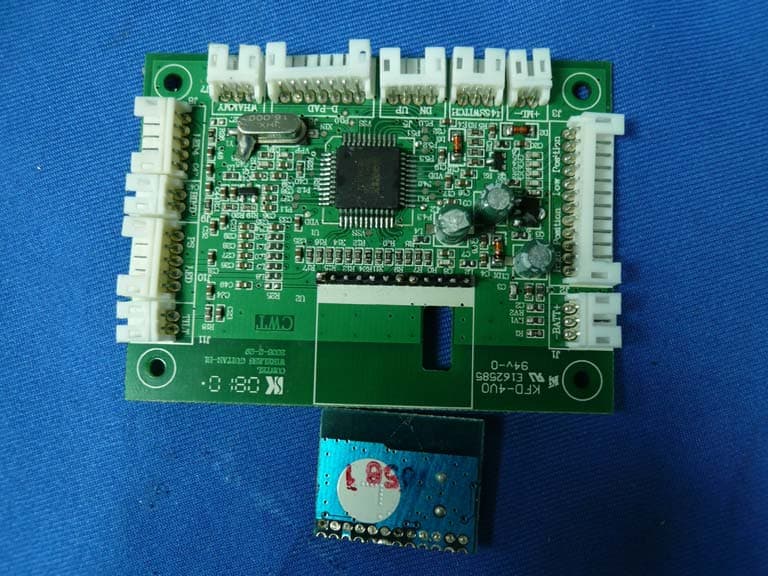

Page 7 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 3 Inside of the EUT Figure 4 Component Side of the PCB Page 8 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 5 Component Side of the PCB Figure 6 Component Side of the PCB Page 9 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 7 Component Side of the PCB Figure 8 Component Side of the PCB Page 10 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 9 Component Side of the PCB Figure 10 Component Side of the PCB RF Module Page 11 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 11 Component Side of the PCB Figure 12 Component Side of the PCB Page 12 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 13 Component Side of the PCB Figure 14 Component Side of the PCB Page 13 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 15 Component Side of the PCB Figure 16 Component Side of the PCB Page 14 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 17 Component Side of the PCB Figure 18 Component Side of the PCB Page 15 Harmonix Music Systems, Inc. Wii Wireless Guitar FCC ID: VFR19091 Figure 19 Component Side of the PCB Figure 20 Component Side of the PCB

FCC ID:VFR19091 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 APPLICATION FOR CERTIFICATION On Behalf of Harmonix Music Systems, Inc. Wii Wireless Guitar Model Number: 19091 Prepared for : Harmonix Music Systems, Inc. 625 Massachusetts Ave 2nd Floor Cambridge, MA 02139 United States Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F08179 Date of Test ： Mar.21~23, 2008 Date of Report ： Mar.31, 2008 FCC ID:VFR19091 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 TABLE OF CONTENTS Description Page Test Report Declaration 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Measurement Uncertainty ..............................................................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit ................................................................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 4.8. Duty Cycle ...................................................................................................................................4-20 5. BANDEDGE COMPLIANCE TEST .................................................................................... 5-21 5.1. Test Equipment ............................................................................................................................5-21 5.2. Test Information ...........................................................................................................................5-21 5.3. Test Results ..................................................................................................................................5-21 6. 20DB BANDWIDTH TEST ..................................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Information .............................................................................................................................6-1 6.3. Test Results ....................................................................................................................................6-1 7. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 7-1 8. PHOTOGRAPH........................................................................................................................ 8-1 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................8-1 FCC ID:VFR19091 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.207 ANSI C63.4-2003 N/A Radiated Emission Test FCC Part 15C: 15.249 ANSI C63.4-2003 PASS Band Edge Compliance Test FCC Part 15: 15.249 PASS 20dB Bandwidth Test FCC Part 15: 15.215 PASS N/A is an abbreviation for Not Applicable. FCC ID:VFR19091 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product name : Wii Wireless Guitar Model Number : 19091 Operation frequency : 2408MHz~2474MHz Modulation : GFSK Applicant : Harmonix Music Systems, Inc. 625 Massachusetts Ave 2nd Floor Cambridge, MA 02139 United States Manufacturer : Dong Guan Contel Electronics Co., Ltd. 2 nd Industrial Park, DiChong District, GaoBu Town, Dong Guan City, Guang Dong Province, China Date of Test : Mar.21~23, 2008 Date of Receipt : Mar.20, 2008 Sample Type : Prototype production FCC ID:VFR19091 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 2-2 2.2. Test Facility Site Description Name of Firm : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park,Nantou, Shenzhen, Guangdong, China 3m Anechoic Chamber : Jun. 13, 2006 File on Federal Communication Commission Registration Number: 90454 3m & 10m …

Text truncated - open the document above for the full version.

FCC ID:VFR19091 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F08179 8-1 8. PHOTOGRAPH 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz above 1000MHz
