VFR822151Rock Band Wireless Guitar

Page 26 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 15, 2007 RE: ATCB005428 FCC ID: VFR822151 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. It is also required to provide the measurement plots for 20dB bandwidth of the emission according to FCC part 15.215(C) when the device is tested under FCC Part 15.249. Below please see the FCC part 15.215 on 20dB bandwidth requirement: “Radiated Emission Limits, Additional Provisions Section 15.215 Additional provisions to the general radiated emission limitations. (c) Intentional radiators operating under the alternative provisions to the general emission limits, as contained in §§ 15.217 through 15.257 and in Subpart E of this part, must be designed to ensure that the 20 dB bandwidth of the emission, or whatever bandwidth may otherwise be specified in the specific rule section under which the equipment operates, is contained within the frequency band designated in the rule section under which the equipment is operated. The requirement to contain the designated bandwidth of the emission within the specified frequency band includes the effects from frequency sweeping, frequency hopping and other modulation techniques that may be employed as well as the frequency stability of the transmitter over expected variations in temperature and supply voltage. If a frequency stability is not specified in the regulations, it is recommended that the fundamental emission be kept within at least the central 80% of the permitted band in order to minimize the possibility of out-of-band operation.” 2. FCC ID and FCC logo both were shown at your label. You need to remove the FCC logo from the label if this device was not tested under FCC part 15B. According to FCC rule part, FCC logo is used at the condition that FCC part 15B is applicable to this device. If you want to put the FCC logo, please update us the revised report showing that this device has been tested under FCC Part 15B. 3. The operational description does not explain anything about the circuitry involved (i.e., please provide operational description, circuitry description of this device). 4. I could not find 2.4G transmitter portion in your schematic. Please provide a revised schematic with 2.4G transmitter circuit. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 z Page 2 September 15, 2007 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

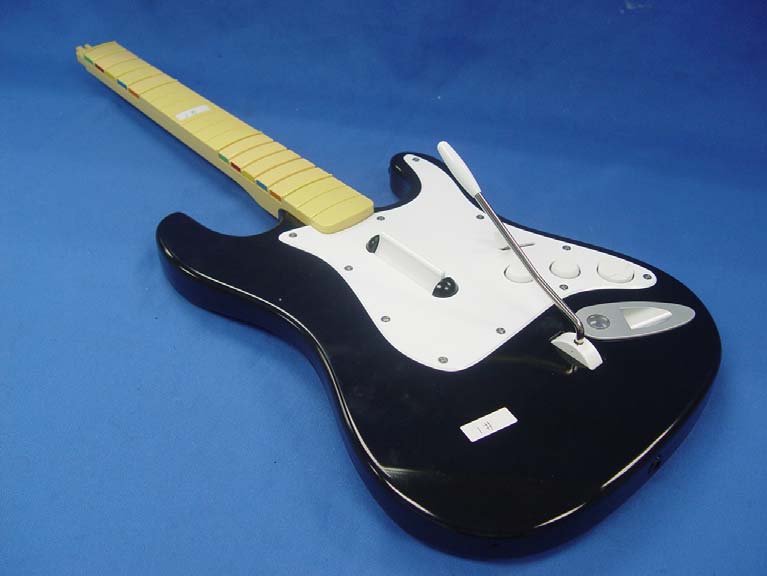

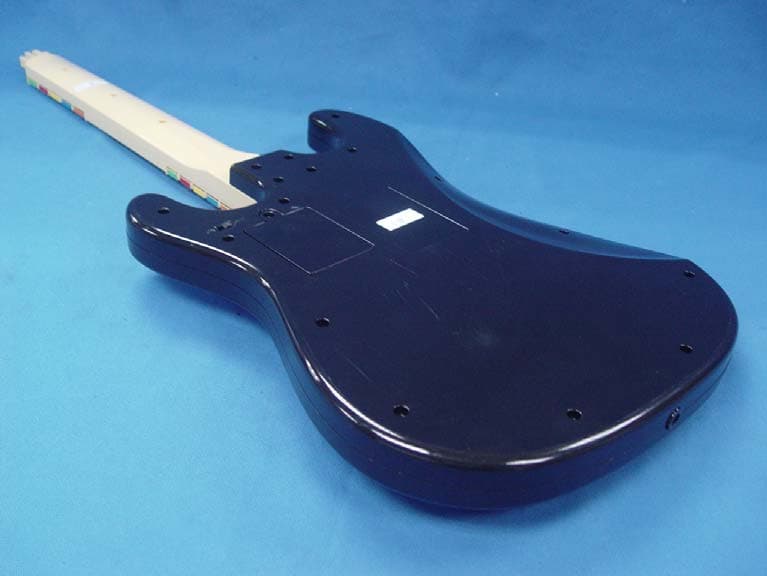

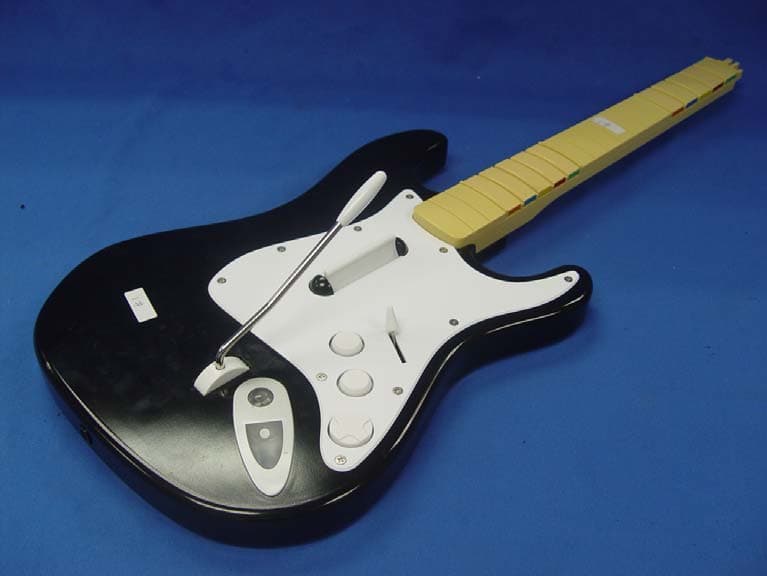

Page 6 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Photographs Figure 1 General Appearance Figure 2 General Appearance Label Location Page 7 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 3 General Appearance Figure 4 General Appearance

Page 4 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Label Drawing Please refer Exhibit 2 Figure 2 for Label Placement Location

Page 8 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 5 Inside of the EUT Figure 6 Inside of the EUT Page 9 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 7 Inside of the EUT Figure 8 Component Side of the PCB Page 10 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 9 Component Side of the PCB Figure 10 Component Side of the PCB Page 11 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 11 Component Side of the PCB Figure 12 Component Side of the PCB Page 12 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 13 Component Side of the PCB Figure 14 Component Side of the PCB Page 13 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 15 Component Side of the PCB Figure 16 Component Side of the PCB Page 14 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 17 Component Side of the PCB Figure 18 Component Side of the PCB Page 15 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 19 Component Side of the PCB Figure 20 Component Side of the PCB Page 16 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 21 Component Side of the PCB Figure 22 Component Side of the PCB Page 17 Harmonix Music Systems, Inc. PS3 Guitar Controller FCC ID: VFR822151 Figure 23 Component Side of the PCB

FCC ID:VFR822151 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 APPLICATION FOR CERTIFICATION On Behalf of Harmonix Music Systems, Inc. PS3 Guitar Controller Model Number: #822151 Rock band wireless guitar for PS3 Prepared for : Harmonix Music Systems, Inc. 625 Massachusetts Ave 2nd Floor Cambridge, MA 02139 United States Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F07408 Date of Test ： Aug.06~10, 2007 Date of Report ： Sep.07, 2007 FCC ID:VFR822151 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 TABLE OF CONTENTS Description Page Test Report Declaration 1. SUMMARY OF STANDARDS AND RESULTS .................................................................. 1-1 1.1. Description of Standards and Results.............................................................................................1-1 2. GENERAL INFORMATION .................................................................................................. 2-1 2.1. Description of Device (EUT) .........................................................................................................2-1 2.2. Test Facility....................................................................................................................................2-2 2.3. Measurement Uncertainty ..............................................................................................................2-2 3. POWER LINE CONDUCTED EMISSION TEST................................................................ 3-1 4. RADIATED EMISSION TEST ............................................................................................... 4-1 4.1. Test Equipment ..............................................................................................................................4-1 4.2. Block Diagram of Test Setup .........................................................................................................4-1 4.3. Radiated Emission Limit Standard: FCC 15.249 ...........................................................................4-2 4.4. EUT Configuration on Test............................................................................................................4-2 4.5. Operating Condition of EUT..........................................................................................................4-3 4.6. Test Procedure................................................................................................................................4-3 4.7. Radiated Emission Test Results .....................................................................................................4-3 5. BAND EDGE COMPLIANCE TEST ..................................................................................... 5-1 5.1. Test Equipment ..............................................................................................................................5-1 5.2. Test Information .............................................................................................................................5-1 5.3. Test Results ....................................................................................................................................5-1 6. 20DB BANDWIDTH TEST ..................................................................................................... 6-1 6.1. Test Equipment ..............................................................................................................................6-1 6.2. Test Information .............................................................................................................................6-1 6.3. Test Results ....................................................................................................................................6-1 7. DEVIATION TO TEST SPECIFICATIONS ........................................................................ 7-1 8. PHOTOGRAPH........................................................................................................................ 8-1 8.1. Photos of Radiated Emission Test (In Anechoic Chamber) ...........................................................8-1 FCC ID:VFR822151 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Power Line Conducted Emission Test FCC Part 15C: 15.209 ANSI C63.4-2003 N/A Radiated Emission Test FCC Part 15C: 15.249 ANSI C63.4-2003 PASS Band Edge Compliance Test FCC Part 15: 15.249 PASS 20dB Bandwidth Test FCC Part 15: 15.215 PASS N/A is an abbreviation for Not Applicable. FCC ID:VFR822151 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product name : PS3 Guitar Controller Model Number : #822151 Rock band wireless guitar for PS3 Operation frequency : 2408MHz~2474MHz Modulation : GFSK Power : DC 4.5V Applicant : Harmonix Music Systems, Inc. 625 Massachusetts Ave 2nd Floor Cambridge, MA 02139 United States Manufacturer : Dong Guan Contel Electronics Co., Ltd. 2 nd Industrial Park, DiChong District, GaoBu Town, Dong Guan City, Guang Dong Province, China Date of Test : Aug.06~10, 2007 FCC ID:VFR822151 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 2-2 2.2. Test Facility Site Description 3m Anechoic Chamber : Jun. 13, 2006 File on Federal Communication Commission Registration Number: 90454 3m & 10m Anechoic Chamber : Jan.31, 2007 File on Federal Communication Commission Registration Number: 794232 EMC Lab. : Accredited by DATech, German Registration Number: DAT-P-091/99-01 Feb. 02, 2004 Accredited by NVLAP, USA NVLAP Code: 200372-0 Apr.01, 2006 2.3. Measurement Uncertainty No. It…

Text truncated - open the document above for the full version.

FCC ID:VFR822151 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 7-1 7. PHOTOGRAPH 7.1. Photos of Radiated Emission Test (In Anechoic Chamber) 30~1000MHz FCC ID:VFR822151 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F07408 7-2 above 1000MHz
