VGUZWP1Z3 Wireless Messenger 3

Zipit Wireless, Inc. – Confidential – Rev. .92 December 30, 2010 – Page 1 of 33 Zipit Now User’s Guide Dual Mode Messenger (Wi-Fi & Cellular) Model Z3 Zipit Wireless, Inc. – Confidential – Rev. .92 December 30, 2010 – Page 2 of 33 Table of Contents I. Important Information ................................................................................................................................... 3 Operating Temperature ................................................................................................................................. 3 Battery Pack CAUTION ............................................................................................................................... 3 FCC Regulations ........................................................................................................................................... 3 RF Exposure Information (SAR) .................................................................................................................. 3 II. Device Functional Requirements ................................................................................................................. 5 Design Requirements .................................................................................................................................... 5 Power On / Off.............................................................................................................................................. 5 Charging / AC Adapter ................................................................................................................................. 5 III. User Interface.............................................................................................................................................. 6 Menu Structure: ............................................................................................................................................ 6 Messaging: .................................................................................................................................................... 9 Contacts: ..................................................................................................................................................... 11 Call Log: ..................................................................................................................................................... 13 Tools: .......................................................................................................................................................... 14 Keyboard and Volume Controls ................................................................................................................. 19 Interrupts – Incoming Call / Call in Progress ............................................................................................. 22 Interrupts – Incoming Zipit Direct Alert (Priority 1 or 2) .......................................................................... 23 Interrupts – Incoming Message Notifications (Bubbles) ............................................................................ 24 Interrupts – No Network Available / Network Lost ................................................................................... 25 Interrupts – New Wi-Fi Connections / Manual Connections...................................................................... 26 Interrupts – Battery Level Critically Low................................................................................................... 26 One Time Interrupt – Initial Authorization Screen (CAC) ......................................................................... 27 Interrupts - Enter Lock Code (after Power-up or inactivity time out) ........................................................ 28 Interrupts – Find Device Feature ................................................................................................................ 29 On-Screen Indicators, Icons, and LED ....................................................................................................... 29 Message Types and Icons ........................................................................................................................... 30 On Call Function.........................................................................................................................................30 Initiate call or conversation from keyboard (from Home Menu) ............................................................... 31 Initiate a Critical Alert from the Device ..................................................................................................... 33 Zipit Wireless, Inc. – Confidential – Rev. .92 December 30, 2010 – Page 3 of 33 I. Important Information Operating Temperature - Operate the Zipit Now in temperatures between 0° and 50° C (32° to 155° F). Battery Pack CAUTION - RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. - DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS - DO NOT INCINERATE - DO NOT DISASSEMBLE - DO NOT EXPOSE TO HIGH TEMPERATURES (113° F/45° C) FCC Regulations - This mobile device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - This mobile device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular ins…

Text truncated - open the document above for the full version.

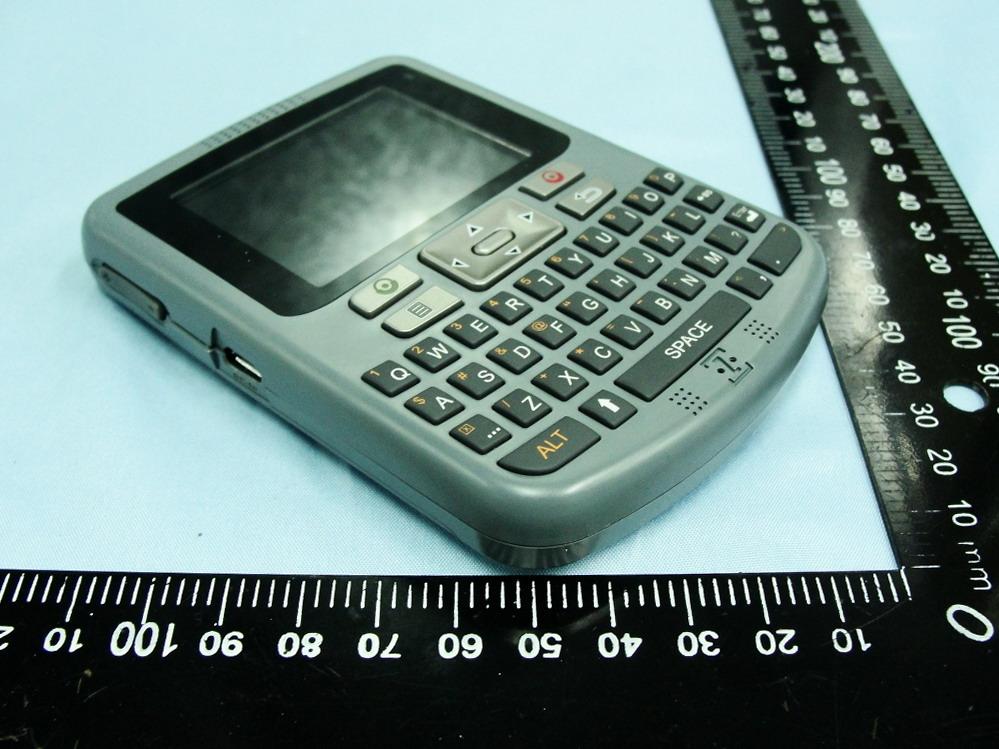

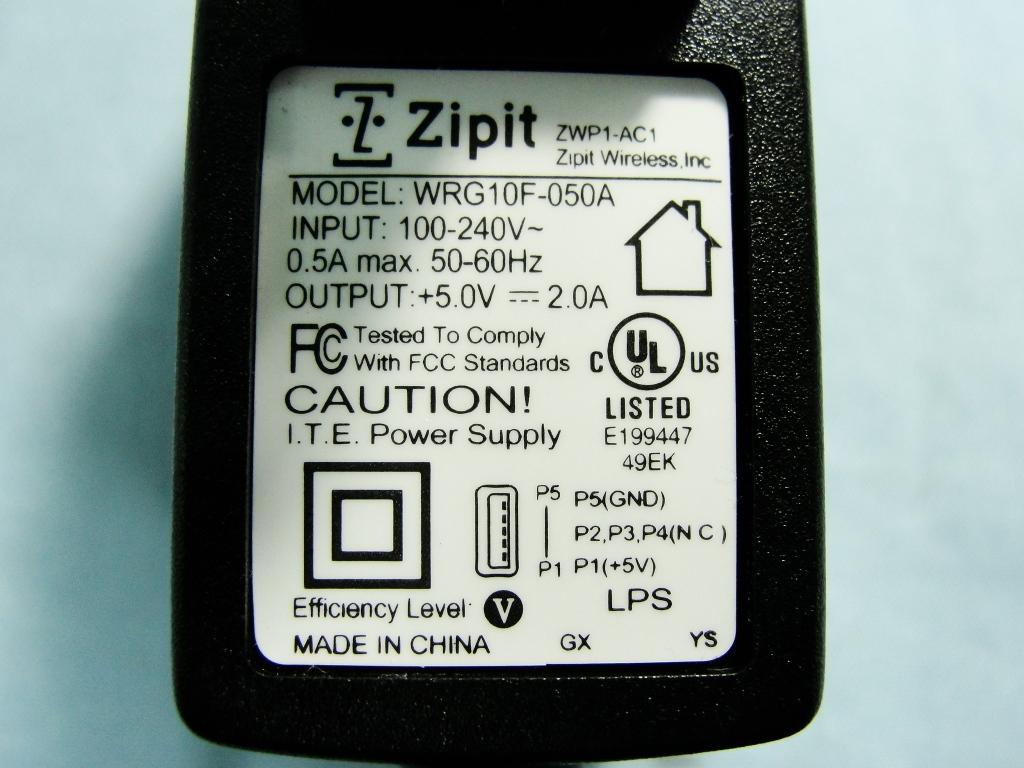

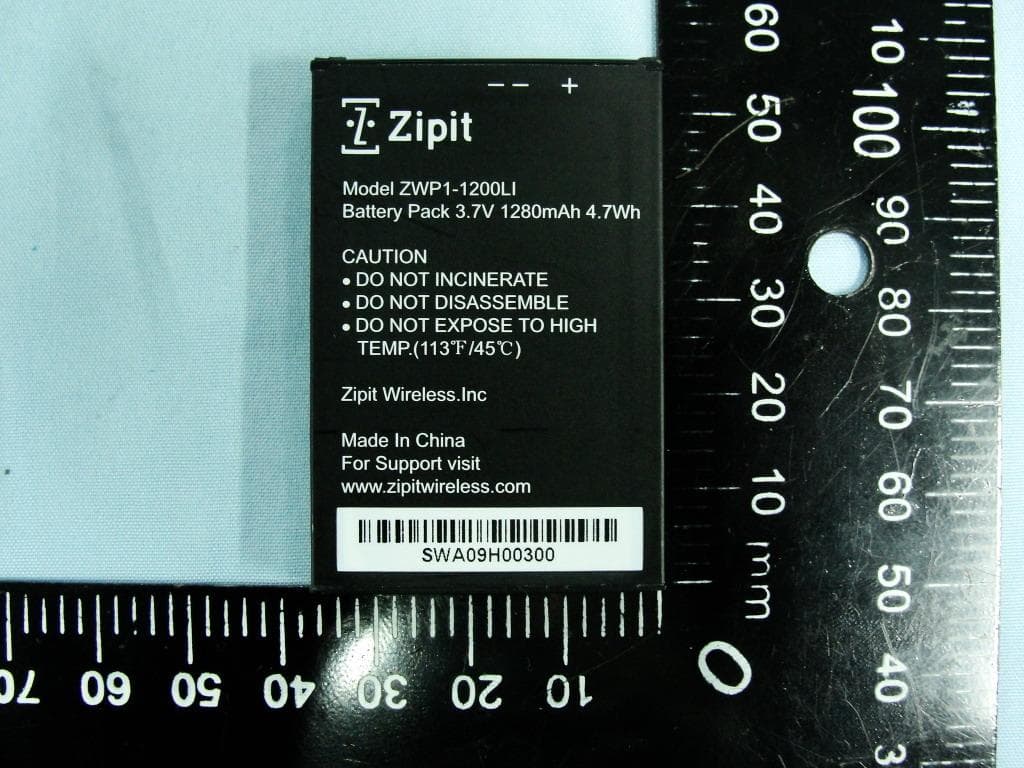

Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 1 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 1. External Photograph of EUT Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 2 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 720510 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 3 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 List of Accessory: Specification of Accessory AC Adapter Brand Name Zipit Model Name WRG10F-050A Battery Brand Name Zipit Model Name ZWP1-1200LI Holster Brand Name N/A Model Name N/A Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 4 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 5 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 6 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 7 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 8 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 720510

FCC ID:VGUZWP1

Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 9 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 10 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 720510 Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 11 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WWAN Module Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 12 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WWAN Module Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 13 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WWAN Main Antenna Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 14 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WWAN Main Antenna Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 15 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WWAN Aux. Antenna Photographs of EUT Report No.: EP0D0647 Brand Name: Zipit / Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 16 of 16 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WLAN Antenna

Photographs of EUT Report No.: EP0D0647 Model Name: Z3 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Dec. 15, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 WLAN WWAN_Main WWAN_Aux 8.6 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 29 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A FCC SAR Test Report APPLICANT : Zipit Wireless, Inc. EQUIPMENT : Z3 Wireless Messenger 3 BRAND NAME : Zipit MODEL NAME : Z3 FCC ID : VGUZWP1 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Dec. 06, 2010 and completely tested on Dec. 06, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 29 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Manufacturer .................................................................................................................................................... 5 2.4 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 6 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage ......................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 System Check_Body_835MHz_101206 DUT: Dipole 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 835 MHz; σ = 0.963 mho/m; ε r = 54.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.07 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 34.5 V/m; Power Drift = 0.000246 dB Peak SAR (extrapolated) = 1.41 W/kg SAR(1 g) = 0.985 mW/g; SAR(10 g) = 0.649 mW/g Maximum value of SAR (measured) = 1.07 mW/ g 0 dB = 1.07mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 System Check_Body_1900MHz_101206 DUT: Dipole 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_101206 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 52.8; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(4.39, 4.39, 4.39); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM-Back; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Pin=100mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 4.82 mW/g Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.7 V/m; Power Drift = 0.041 dB Peak SAR (extrapolated) = 6.48 W/kg SAR(1 g) = 4.17 mW/g; SAR(10 g) = 2.25 mW/g Maximum value of SAR (measured) = 4.77 mW/ g 0 dB = 4.77mW/g

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #01 CDMA2000 BC0_1XEVDO_153.6K_Face_1.5cm_Ch1013 DUT: 0D0647 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 825 MHz; σ = 0.954 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1013/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.897 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.3 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 1.4 W/kg SAR(1 g) = 0.886 mW/g; SAR(10 g) = 0.579 mW/g Maximum value of SAR (measured) = 0.961 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.3 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 0.953 W/kg SAR(1 g) = 0.662 mW/g; SAR(10 g) = 0.460 mW/g Maximum value of SAR (measured) = 0.932 mW/g 0 dB = 0.932mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #02 CDMA2000 BC0_1XEVDO_153.6K_Bottom_1.5cm_Ch1013 DUT: 0D0647 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 825 MHz; σ = 0.954 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1013/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.22 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 1.24 mW/g; SAR(10 g) = 0.764 mW/g Maximum value of SAR (measured) = 1.33 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 3.43 W/kg SAR(1 g) = 0.865 mW/g; SAR(10 g) = 0.517 mW/g Maximum value of SAR (measured) = 1.01 mW/g 0 dB = 1.01mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #02 CDMA2000 BC0_1XEVDO_153.6K_Bottom_1.5cm_Ch1013_2D DUT: 0D0647 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 825 MHz; σ = 0.954 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1013/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 1.22 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 3.26 W/kg SAR(1 g) = 1.24 mW/g; SAR(10 g) = 0.764 mW/g Maximum value of SAR (measured) = 1.33 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 34.1 V/m; Power Drift = -0.107 dB Peak SAR (extrapolated) = 3.43 W/kg SAR(1 g) = 0.865 mW/g; SAR(10 g) = 0.517 mW/g Maximum value of SAR (measured) = 1.01 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #07 CDMA2000 BC0_1XEVDO_153.6K_Face_0cm_Ch1013_Holster 1 DUT: 0D0647 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 825 MHz; σ = 0.954 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1013/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.638 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = 0.175 dB Peak SAR (extrapolated) = 2.91 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.383 mW/g Maximum value of SAR (measured) = 0.613 mW/g 0 dB = 0.613mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #07 CDMA2000 BC0_1XEVDO_153.6K_Face_0cm_Ch1013_Holster 1_2D DUT: 0D0647 Communication System: CDMA ; Frequency: 824.7 MHz;Duty Cycle: 1:1 Medium: MSL_850_101206 Medium parameters used: f = 825 MHz; σ = 0.954 mho/m; ε r = 54.6; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: ET3DV6 - SN1788; ConvF(5.99, 5.99, 5.99); Calibrated: 2010/9/21 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2010/10/22 - Phantom: SAM - Front; Type: SAM; Serial: TP-1446 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch1013/Area Scan (71x81x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.638 mW/g Ch1013/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = 0.175 dB Peak SAR (extrapolated) = 2.91 W/kg SAR(1 g) = 0.597 mW/g; SAR(10 g) = 0.383 mW/g Maximum value of SAR (measured) = 0.613 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/12/6 #08 CDMA2000 BC0_1XEVDO_153.6K_Bottom_0cm_Ch1013_Holster 1 DUT: 0D0647 Communication System: CDMA ; Frequ…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY

SPORTON INTERNATIONAL INC. Page Number : F1 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A Appendix F. FCC 3G SAR Measurement Procedures Conducted Output Power: The EUT was tested according to the requirements of the FCC 3G procedures and the 3.1.2.3.4. A detailed analysis of the output power verification is provided as the table below: Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 1013 384 777 CDMA2000 Cellular FCH 1 1 1 55 Full All Up 24.51 24.40 24.41 3 3 3 55 Full All Up 24.50 24.37 24.50 3 3 3 32 Full All Up 24.49 24.39 24.51 SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 24.45 24.34 24.41 EVDO Rev.0* Subtype:0 RTAP 153.6 All Up 24.61 24.50 24.52 EVDO Rev.A* Subtype:0 RETAP 4096 All Up 24.58 24.46 24.49 Function Type Reverse Traffic Channel Test Mode Radio Configuration Service Option Data Rates (kbps) Power Control Low Ch Mid. Ch High Ch Forward Traffic Channel (Fwd) Reverse Traffic Channel (Rvs) 25 600 1175 CDMA2000 PCS FCH 1 1 1 55 Full All Up 24.28 24.36 24.22 3 3 3 55 Full All Up 24.29 24.42 24.25 3 3 3 32 Full All Up 24.20 24.34 24.15 SCH 3 3 3 32 FCH:Full,SCH 9.6 All Up 24.23 24.36 24.19 EVDO Rev.0* Subtype:0 RTAP 153.6 All Up 24.32 24.44 24.27 EVDO Rev.A* Subtype:0 RETAP 4096 All Up 24.38 24.41 24.28 SPORTON INTERNATIONAL INC. Page Number : F2 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A CDMA2000 Setup Configuration: Setup Configuration 1. The EUT was connected to System Simulator, Agilent 8960. Refer to the drawing of Setup Configuration. 2. The RF path losses were compensated into the measurements. 3. A call was established between EUT and System Simulator with following setting: a. For 1xRTT, set the Radio Configuration and the Service Option b. For 1xEV-DO, set the Protocol Release and Data Rate c. Set the Power Control to All Up Bits 4. The transmitted maximum output power was recorded. 1xRTT setting for Radio Configuration 1 with Service Option 55 SPORTON INTERNATIONAL INC. Page Number : F3 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A 1xRTT setting for Radio Configuration 3 with Service Option 55 1xRTT setting for Radio Configuration 3 with Service Option 32 SPORTON INTERNATIONAL INC. Page Number : F4 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A 1xEV-DO setting for Protocol Release (Rev.0 or Rev.A) 1xEV-DO setting for RTAP data rate (9.6 or 38.4 or 153.6 kbps) SPORTON INTERNATIONAL INC. Page Number : F5 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : VGUZWP1 FCC SAR Test Report Report No. : FA0D0647A 1xEV-DO setting for RETAP data rate (128 or 2048 or 12288 kbps) SPORTON INTERNATIONAL INC. Page Number : F6 of F6 TEL : 886-3-327-3456 Report Issued Date : Dec. 16, 2010 FAX : 886-3-328-4978 Re…

Text truncated - open the document above for the full version.
