VGYAP1062C802.11ax Ceiling-mount AP

i VigorAP 1062C 802.11ax Ceiling-mount Access Point Quick Start Guide Version: 1.0_(draft) Firmware Version: V1.4.0 (For future update, please visit DrayTek web site) Date: July 12, 2022 i Intellectual Property Rights (IPR) Information Copyrights © All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. Trademarks The following trademarks are used in this document:  Microsoft is a registered trademark of Microsoft Corp.  Windows, Windows 8, 10, 11 and Explorer are trademarks of Microsoft Corp.  Apple and Mac OS are registered trademarks of Apple Inc.  Other products may be trademarks or registered trademarks of their respective manufacturers. Safety Instructions and Approval Safety Instructions  Read the installation guide thoroughly before you set up the device.  The device is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the device yourself.  Do not place the device in a damp or humid place, e.g. a bathroom.  Do not stack the devices.  The device should be used in a sheltered area, within a temperature range of 0 to +45 Celsius.  Do not expose the device to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources.  Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.  Keep the package out of reach of children.  When you want to dispose of the device, please follow local regulations on conservation of the environment. Warranty We warrant to the original end user (purchaser) that the device will be free from any defects in workmanship or materials for a period of one (1) year from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. ii Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type VigorAP 1062C is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://fw.draytek.com.tw/VigorAP 1062C/Document/CE/ Manufacturer: DrayTek Corp. Address: No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan Product: VigorAP 1062C Frequency Information for Europe area: 2.4G WLAN 2412MHz - 2472 MHz, max. TX power: 19.95 dBm 5G WLAN 5160MHz - 5340 MHz, max. TX power: 22.84 dBm ; 5480MHz - 5720 MHz, max. TX power: 28.14 dBm Requirements in AT/BE/BG/CZ/DZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/ CY/LV/LI/LT/ LU/HU/MT/NL/NO/PL/PT/RO/SI/SK/TR/FI/SE/CH/ UK/HR. 5150MHz~5350MHz is for indoor use only. This product is designed for 2.4GHz and 5GHz WLAN network throughout the EC region. Declaration of Conformity Hereby, DrayTek Corporation declares that the radio equipment type VigorAP 1062C is in compliance with Regulation SI 2017 No. 1206. The full text of the UKCA Declaration of Conformity is available at the following internet address: https://fw.draytek.com.tw/VigorAP 1062C/Document/UKCA/ Manufacturer: DrayTek Corp. Address: No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan Product: VigorAP 1062C Importer: CMS Distribution Ltd: Bohola Road, Kiltimagh, Co Mayo, Ireland Frequency Information for UK area: 2.4G WLAN 2412MHz - 2472 MHz, max. TX power: 19.98dBm 5G WLAN 5160MHz - 5340 MHz, max. TX power: 22 dBm 5480MHz - 5720 MHz, max. TX power: 27 dBm Requirements in UK. 5150MHz~5350MHz is for indoor use only. This product is designed 2.4GHz and 5GHz WLAN network use in the UK & Ireland. iii Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rule…

Text truncated - open the document above for the full version.

Agent letter FCC attestation statement KiwaPage 1 RF_753, Issue 215-02-2023 DrayTek Corp. No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Kiwa Nederland B.V. Wilmersdorf 50 7327 AC Apeldoorn Postbus 137 7300 AC Apeldoorn Netherlands ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company name: ABP International, Inc. FRN: 0023377534 Contact person name: Mr Henry N Castillo Street address: 13988 Diplomat Dr. #180 ZIP/City/State 75234/ Dallas/TX Telephone number: 19728311600 Email address: [email protected] Signature: Date: This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission- related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Draytek Corporation Grantee Code: VGY Contact person name: Abbott Yu Street address: No.26, Fu Shing Rd., HuKou County, Hsinchu Industrial Park ZIP/City/State 303, Hsinchu Telephone number: +886-3-5972727 Email address: [email protected] Signature: Date: March 3, 2023 03/09/2023

Covered list attestation FCC application letter KiwaPage 1 of 2 RF_755_0215-02-2023 Certification Application Attestation Statements Draytek Corporation No.26, Fu Shing Rd., HuKou County, Hsinchu Industrial Park 303 Hsinchu, Taiwan Subject: FCC ID: VGYAP1062C To Whom It May Concern: Statement for 47 CFR section 2.911(d)(5)(i) [Draytek Corporation] certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) [Draytek Corporation] (“the applicant”) certifies that, as of the date of the filing of this application, the applicant - is / - is not (3) identified on the Covered List as an entity producing “covered” equipment. Date: March 3, 2023 City: Hsinchu Name (2) : Abbott Yu Function: HW Manager Telephone number: +886-3-5972727 Email address: [email protected] Signature: 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . (2): For FCC it must be the Grantee Code “owner” or the authorized agent. (3): double click on the appropriate box and select ‘’checked” then “OK”

RF_160_05 Declaration of Authorisation Date of issue 02-01-2023 Declaration of Authorization We Name:Draytek Corporation Address:No.26, Fu Shing Rd., HuKou County, Hsinchu Industrial Park City:Hsinchu Country:Taiwan Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name:Cerpass Technology Corporation Address:No.10, Lane 2, Lianfu Street, Luzhu District City:Taoyuan City CountryTaiwan R.O.C. is authorized to apply for Certification of the following product(s): Product description: 802.11ax Ceiling-mount AP Type designation: VigorAP 1062C Trademark:DrayTek Validity/ expiry date on our behalf. Date:March 3, 2023 City:Hsinchu Name:Abbott Yu. (2) Function: HW Manager Signature: . Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosureDate: 02-01-2022 RF_501, Issue 10 Company Name:Draytek Corporation Address:No.26, Fu Shing Rd., HuKou County, Hsinchu Industrial Park City:Hsinchu Country:Taiwan To: Kiwa Netherlands B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID: VGYAP1062C Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Date: March 3, 2023Name and signature of applicant: Abbott Yu Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should state in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Kiwa NL B.V. at least 7 days before date of actual marketing or before expiration of the STC period

Label & Location Label Here: Rear side of EUT

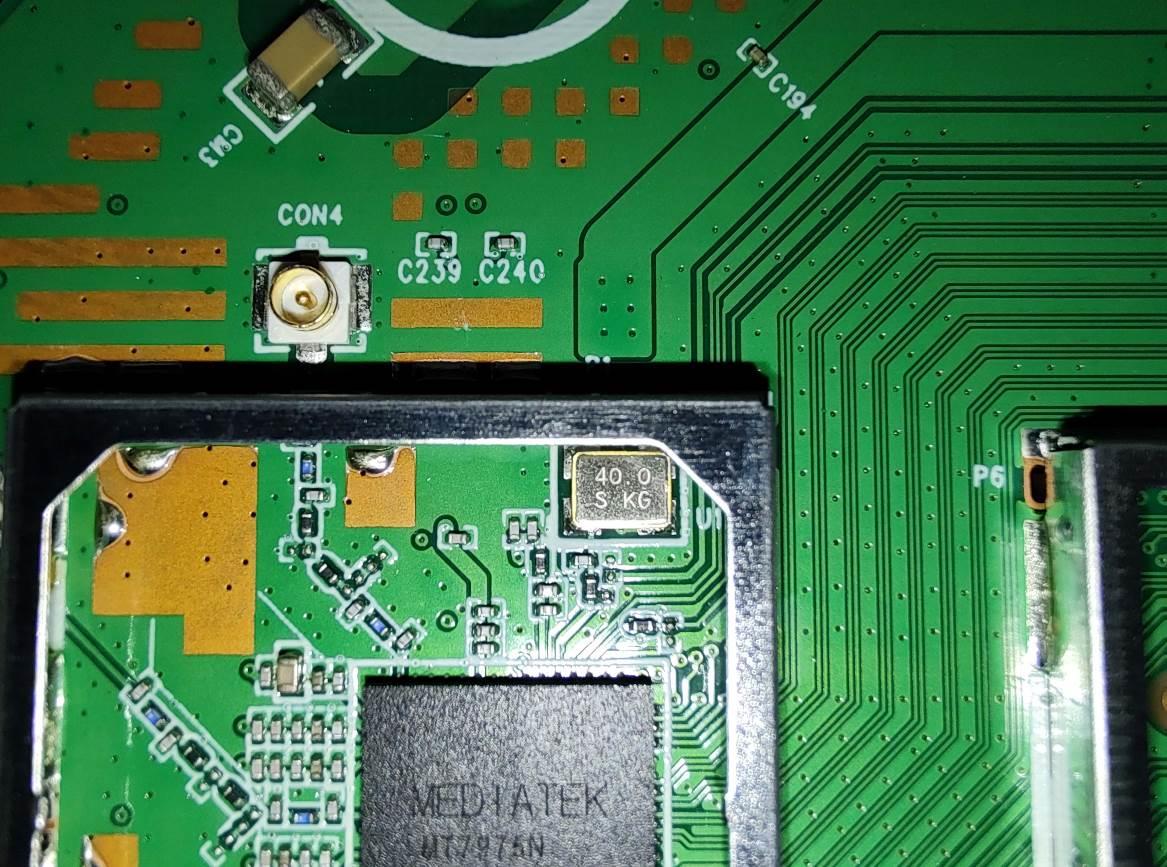

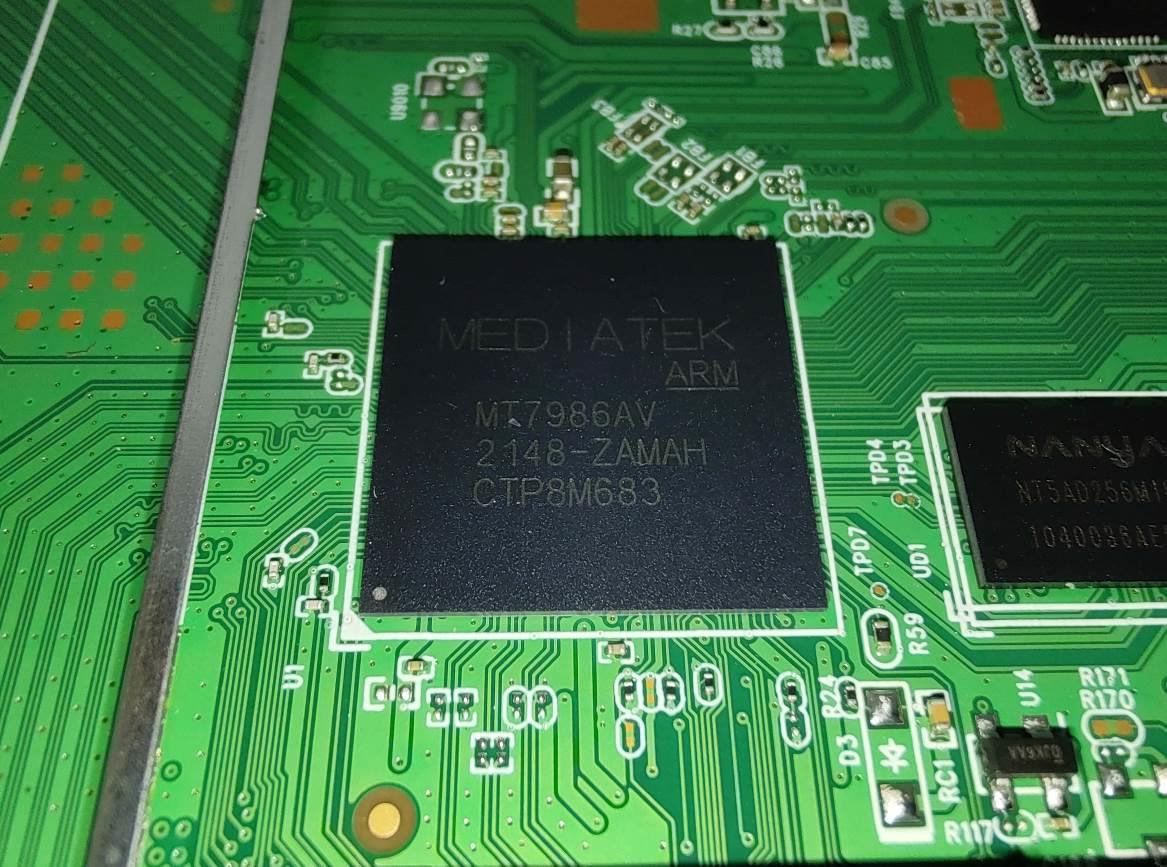

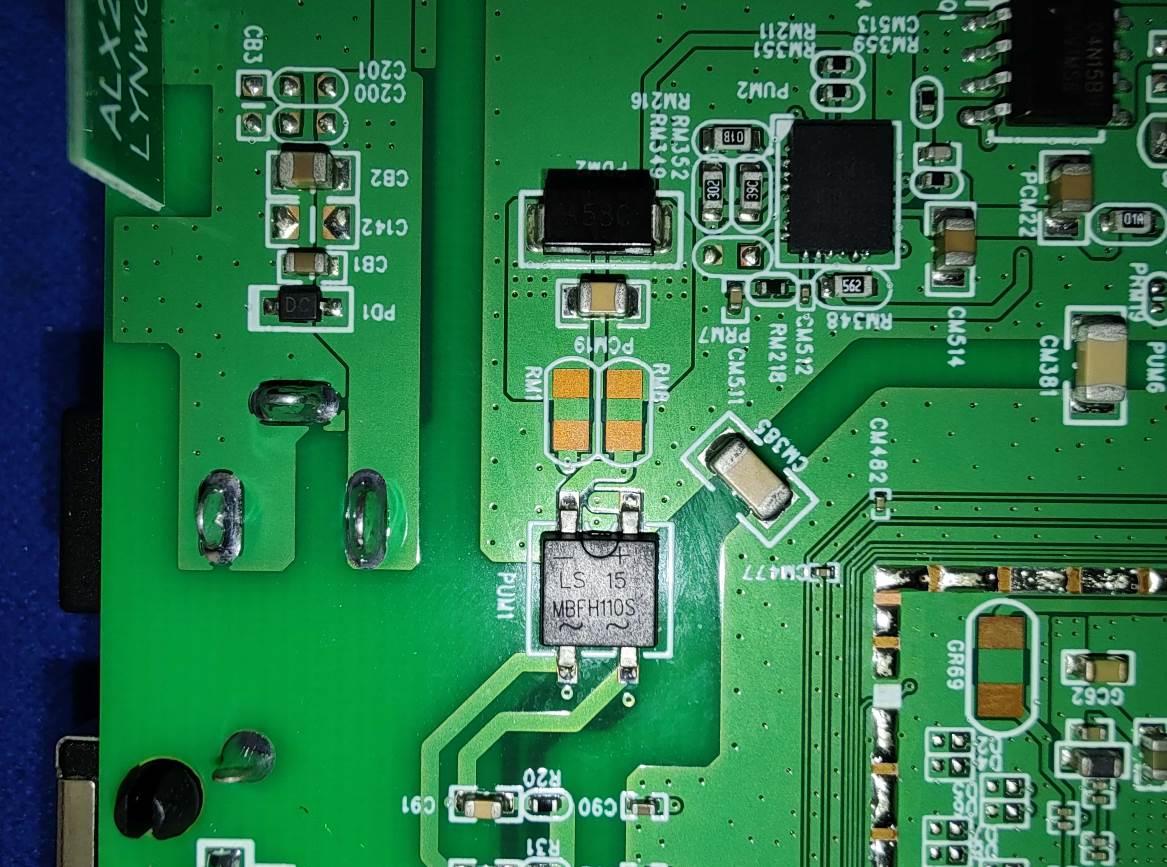

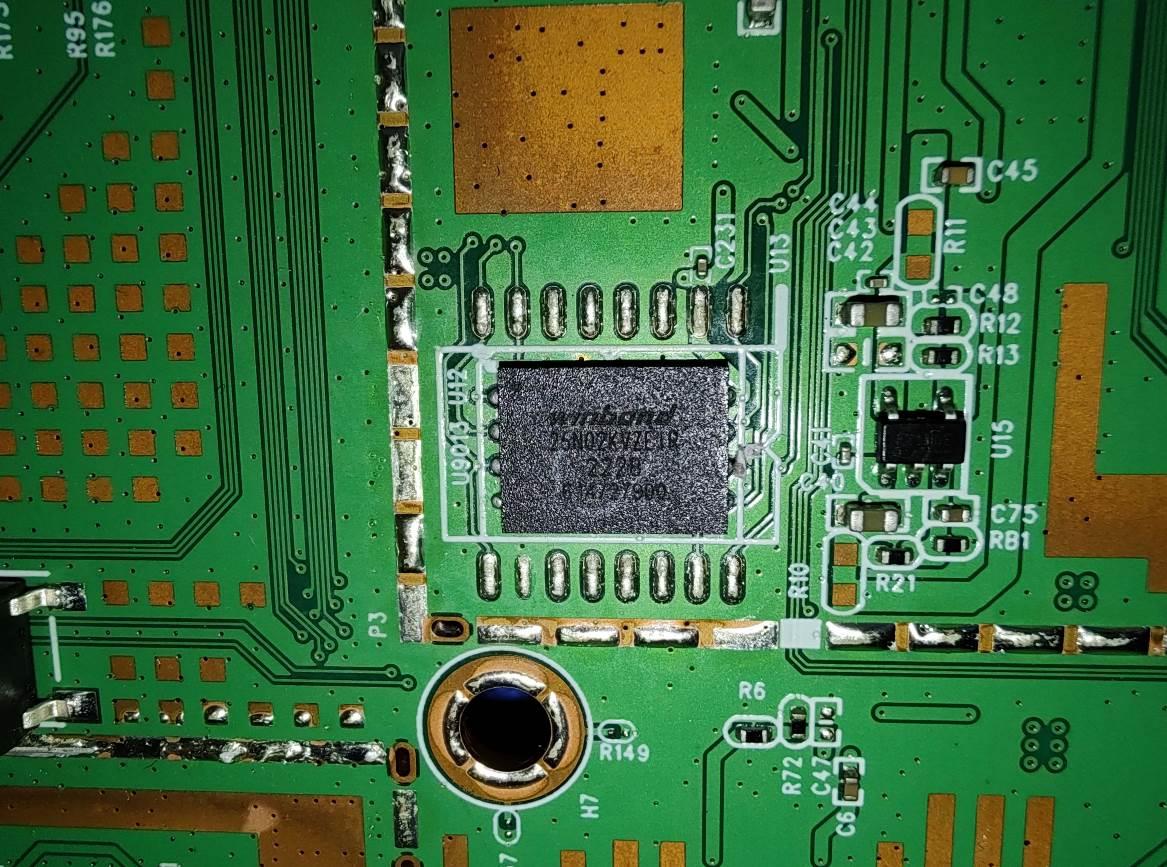

CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 4 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 5 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 6 of 24 Ant D For Wifi 2.G Ant C For Wifi 2.G Ant B For Wifi 2.G Ant A For Wifi 2.G Ant B For Wifi 5G Ant C For Wifi 5G Ant A For Wifi 5G Ant D For Wifi 5G Ant B For Wifi 2.4&5G Ant C For Wifi 2.4&5G Ant D For Wifi 2.4&5G Ant A For Wifi 2.4&5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 7 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 8 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 9 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 10 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 11 of 24 RF Chip For Wifi 2.4G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 12 of 24 RF Chip For Wifi 5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 13 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 14 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 15 of 24 Ant A For Wifi 2.4&5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 16 of 24 Ant B For Wifi 2.4&5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 17 of 24 Ant C For Wifi 2.4&5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 18 of 24 Ant D For Wifi 2.4&5G CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 19 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 20 of 24 CERPASS TECHNOLOGY CORP. Report No.: 22030270 Cerpass Technology Corp. Issued Date : Mar. 07, 2023 Page No. : 21 of 24

CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 213 of 215 FCC ID : VGYAP1062C 12. Radio Frequency Exposure 12.1. Applicable Standards §1.1307(b)(3)(i)(A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. §1.1307(b)(3)(i)(c) ERP is below a threshold calculated based on the distance , R between the person and the antenna / radiating structure, where R > λ / 2 π. § 1.1307(b)(3)(i)(B). Device operates between 300 MHz and 6 GHz and the maximum time-averaged power or effective radiated power (ERP), whichever is greater, <= Pth CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 214 of 215 FCC ID : VGYAP1062C 12.2. EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: Non-Beamforming The maximum conducted output power is 26.92dBm (492.459mW) at 5795MHz (with 4.40dBi antenna gain.) Beamforming The maximum conducted output power is 25.34dBm (342.031mW) at 5775MHz (with 6.49dBi antenna gain.) CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 215 of 215 FCC ID : VGYAP1062C 12.3. Test Results Non-BeamForming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p Power (mW) Limit (mW) 5230 26.74 27.24 3.52 28.61 726.11 3060 5795 26.92 27.42 4.40 29.67 927.62 3060 BeamForming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p Power (mW) Limit (mW) 5180-5240 23.45 23.95 5.01 26.81 479.73 3060 5745-5825 25.34 25.84 6.49 30.18 1042.32 3060 No non-compliance noted. Maximum Permissible Exposure (Co-location) Non-Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Max. Tune up e.r.p. Power (mW) Limit (mW) MPE Ratio 11ax HE20 2437 26.70 27.20 6.03 20 1282.073 3060 0.419 11ax HE40 5795 26.92 27.42 4.40 20 927.620 3060 0.303 Co-location Total 0.722 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 1 of 215 FCC ID : VGYAP1062C FCC RADIO TEST REPORT Applicant : DrayTek Corp. Address : No.26 Fu Shing Rd., HuKou County,Hsin-Chu Industrial Park,Hsin-Chu,Taiwan 303 R.O.C Equipment : 802.11ax Ceiling-mount AP Model No. : VigorAP 1062C Trade Name : DrayTek FCC ID : VGYAP1062C I HEREBY CERTIFY THAT : The sample was received on Aug. 31, 2022 and the testing was completed on Dec. 13, 2022 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 2 of 215 FCC ID : VGYAP1062C CONTENTS 1. Summary of Test Procedure and Test Results ...................................................................................... 5 1.1. Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ......................................................................................... 6 2.1. Feature of Equipment under Test ............................................................................................... 6 2.2. Carrier Frequency of Channels .................................................................................................. 7 2.3. Test Mode and Test Software ..................................................................................................... 8 2.4. Description of Test System ....................................................................................................... 10 2.5. General Information of Test ...................................................................................................... 12 2.6. Measurement Uncertainty ........................................................................................................ 13 3. Test Equipment and Ancillaries Used for Tests ................................................................................... 14 4. Antenna Requirements ....................................................................................................................... 17 4.1. Standard Applicable ................................................................................................................. 17 4.2. Antenna Construction and Directional Gain ............................................................................. 17 5. Test of AC Power Line Conducted Emission ...................................................................................... 17 5.1. Test Limit .................................................................................................................................. 18 5.2. Test Procedures ....................................................................................................................... 18 5.3. Typical Test Setup .................................................................................................................... 19 5.4. Test Result and Data ................................................................................................................ 20 5.5. Test Photographs ..................................................................................................................... 24 6. Test of Spurious Emission (Radiated) ................................................................................................. 26 6.1. Test Limit .................................................................................................................................. 26 6.2. Test Procedures ....................................................................................................................... 27 6.3. Typical Test Setup .................................................................................................................... 28 6.4. Test Result and Data (9kHz ~ 30MHz)..................................................................................... 29 6.5. Test Result and Data (30MHz ~ 1GHz) ................................................................................... 29 6.6. Test Result and Data (1GHz ~ 40GHz) .................................................................................... 33 6.7. Restricted Bands of Operation ................................................................................................. 93 6.8. Test Photographs (30MHz ~ 1GHz) ......................................................................................... 94 6.9. Test Photographs (1GHz ~ 40GHz) ......................................................................................... 96 7. On Time, Duty Cycle and Measurement methods ............................................................................ 100 7.1. Test Limit ................................................................................................................................ 100 7.2. Test Procedure ....................................................................................................................... 100 7.3. Test Setup Layout .................................................................................................................. 100 7.4. Test Result and Data .............................................................................................................. 101 7.5. Measurement Methods .......................................................................................................... 101 8. 6dB Bandwidth & 99% Occupied Bandwidth .................................................................................... 104 8…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 104 of 215 FCC ID : VGYAP1062C 8. 6dB Bandwidth & 99% Occupied Bandwidth 8.1. Test Limit FCC §15.407 The minimum 6 dB bandwidth shall be at least 500 kHz. 8.2. Test Procedure Reference to 789033 D02 General UNII Test Procedures New Rules v01: The transmitter output is connected to a spectrum analyzer with the RBW set to100KHz, the VBW >= 3 x RBW, peak detector and max hold. 8.3. Test Setup Layout EUT Cable Spectrum Analyzer Attenuators CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 105 of 215 FCC ID : VGYAP1062C 8.4. Test Result and Data Non BeamForming In the 5.8G Band Modulation Type Channel Frequency (MHz) 6dB Bandwidth(MHz) Minimum Limit (MHz) ANT A ANT B ANT C ANT D 11a 149 5745 16.41 16.38 16.38 16.38 0.50 11a 157 5785 16.38 16.38 16.38 16.38 0.50 11a 165 5825 16.38 16.38 16.38 16.38 0.50 11ax HE20 149 5745 19.08 19.08 18.96 19.08 0.50 11ax HE20 157 5785 19.08 19.08 19.08 19.11 0.50 11ax HE20 165 5825 19.05 19.08 19.05 19.11 0.50 11ax HE40 151 5755 37.56 37.32 36.00 37.50 0.50 11ax HE40 159 5795 37.32 37.02 36.54 36.96 0.50 11ax HE80 155 5775 75.84 75.00 75.00 75.12 0.50 In the 5.8G Band Modulation Type Channel Frequency (MHz) 99% Bandwidth(MHz) ANT A ANT B ANT C ANT D 11a 149 5745 16.98 16.92 16.90 16.91 11a 157 5785 16.90 16.85 16.84 16.90 11a 165 5825 16.98 16.88 16.85 16.88 11ax HE20 149 5745 19.22 19.21 19.20 19.25 11ax HE20 157 5785 19.20 19.21 19.22 19.20 11ax HE20 165 5825 19.22 19.20 19.22 19.22 11ax HE40 151 5755 37.85 37.81 37.93 37.83 11ax HE40 159 5795 37.88 37.85 37.89 37.86 11ax HE80 155 5775 76.98 76.95 76.96 76.97 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 106 of 215 FCC ID : VGYAP1062C BeamForming In the 5.8G Band Modulation Type Channel Frequency (MHz) 6dB Bandwidth(MHz) Minimum Limit (MHz) ANT A ANT B ANT C ANT D 11ax HE20 149 5745 18.97 18.97 18.70 19.10 0.50 11ax HE20 157 5785 18.97 18.86 18.74 17.00 0.50 11ax HE20 165 5825 18.75 18.70 18.95 18.98 0.50 11ax HE40 151 5755 37.95 37.55 37.89 36.64 0.50 11ax HE40 159 5795 37.98 37.75 37.47 37.97 0.50 11ax HE80 155 5775 77.90 77.89 77.76 76.68 0.50 In the 5.8G Band Modulation Type Channel Frequency (MHz) 99% Bandwidth(MHz) ANT A ANT B ANT C ANT D 11ax HE20 149 5745 19.09 19.11 19.03 19.16 11ax HE20 157 5785 19.04 19.02 19.02 18.88 11ax HE20 165 5825 19.06 19.05 19.12 19.12 11ax HE40 151 5755 38.07 38.14 38.11 37.83 11ax HE40 159 5795 37.90 37.82 37.70 38.03 11ax HE80 155 5775 77.28 77.26 77.38 77.02 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 107 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Non BeamForming ANT A Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax, HE20 (7.3Mbps) CH149 CH149 CH157 CH157 CH165 CH165 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 108 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Modulation Type: 802.11ax, HE40 (14.6Mbps) Modulation Type: 802.11ax, HE80 (30.6Mbps) CH151 CH155 CH159 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 109 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Non BeamForming ANT B Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax, HE20 (7.3Mbps) CH149 CH149 CH157 CH157 CH165 CH165 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 110 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Modulation Type: 802.11ax, HE40 (14.6Mbps) Modulation Type: 802.11ax, HE80 (30.6Mbps) CH151 CH155 CH159 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 111 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Non BeamForming ANT C Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax, HE20 (7.3Mbps) CH149 CH149 CH157 CH157 CH165 CH165 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 112 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Modulation Type: 802.11ax, HE40 (14.6Mbps) Modulation Type: 802.11ax, HE80 (30.6Mbps) CH151 CH155 CH159 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 113 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Non BeamForming ANT D Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax, HE20 (7.3Mbps) CH149 CH149 CH157 CH157 CH165 CH165 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 114 of 215 FCC ID : VGYAP1062C 6dB Bandwidth Modulation Type: 802.11ax, HE40 (14.6Mbps) Modulation Type: 802.11ax, HE80 (30.6Mbps) CH151 CH155 CH159 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 115 of 215 FCC ID : VGYAP1062C 99% Occupied Bandwidth Non BeamForming ANT A Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax HE20 (7.3Mbps) CH149 CH149 CH157 CH157 CH165 CH165 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 116 of 215 FCC ID : VGYAP1062C 99% Occupied Bandwidth Modulation Type: 802.11ax HE40 (14.6Mbps) Modulation Type: 802.11ax HE80 (30.6Mbps) CH151 CH155 CH159 CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 117 of 215 FCC ID : VGYAP1062C 99% Occupied Bandwidth Non BeamForming ANT B Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ax HE20 (7.3Mbps)…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22030270-TRFCC07 CERPASS TECHNOLOGY CORP. Issued date : Mar. 07, 2023 T-FD-511-0 V1.5 Page No. : 154 of 215 FCC ID : VGYAP1062C 99% Occupied Bandwidth Non BeamForming ANT C Modulation Type: 802.11a (6Mbps) Modulation Type: 802.11ac VHT20 (6.5Mbps) CH36 CH36 CH40 CH40 CH48 CH48 CERPASS TECHNOLOGY CORP. Report…
