Instruction manual Model No: MDESLBR30/15W-E26 1. The compact florescent energy saving lamp fit easily into any socket. But the voltage must be AC120V. 2. It uses 5 times less energy than incandescent bulb. 3. Risk of electric shock; use in dry location only. 4. When the line power is applied, don’t touch the glass bulb with your fingers, otherwise the hot blob may burn your fingers. 5. The CFL not for use with dimmer. 6. Not for use in totally enclosed recessed fixture. 7. Please hold the plastic encl sure fit the lamp into any standard lighting socket, because the long bulb may be broken by holding force. 8. Usage environmental temperature :-10°C～50°C 9. Usage Circumstance: Be suitable for family, hotel, restaurant, office, supermarket etc. 10. Warning: This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating between 0.45–30 MHz. Variations of this language are permitted provided all the points of the statement are addressed and may be presented in any legible font or text style.

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

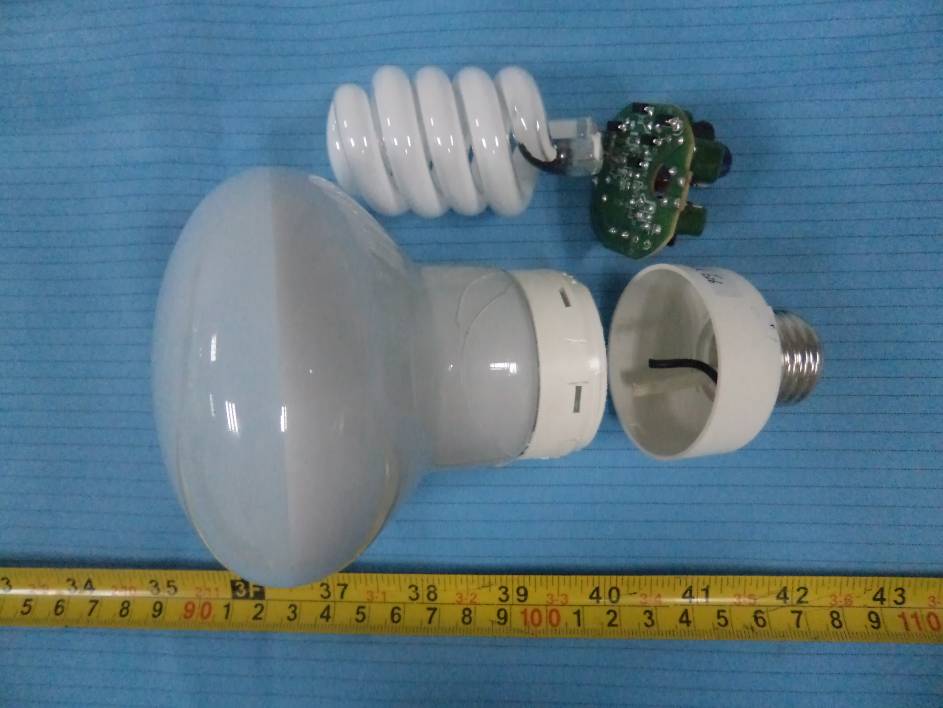

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View

MODEL MDESLBR30/15W-E26 COMPONENT MANUFACTURER MODEL RATINGS UL FILE NO. 1 PCB DONG YANG BIDA ENTERPRISE ELECTRONICS CO LTD S01 120°C V-1 E304228 2 FUSE (L) SHENZHEN GREAT ELECTRONICS CO LT D RXF-1W 0.47Ω φ3.5×9 E301541 3 Resistor R1,R2 fenghua-advanced TECHNOLOGY HOLDING co., ltd 1206 SMD 510KΩ / 4 Resistor R3,R4 fenghua-advanced TECHNOLOGY HOLDING co., ltd 1206 SMD 22Ω / 5 Capacitor C1, C3, C5,C6,C7 Changing zaichuang electronic co.,ltd Changing qixing electronic co.,ltd C1,C6: CL11 C5,C7: CH11 C3: CL11 C1: 473/400V CL11 C6:473/400V CL11 C7:272/1200V CH11 C5:222/1200V CH11 C3:223/100V CL11 / 6 Electrolytic Capacitor C2 Yiyang zijiang electronic element co., ltd Nantong yipinjixie Electronic Co., Ltd 105°C 200V/15μF / Voltage:1000V 7 Diode D1-D5 Changzhou galaxy electrical co., ltd. M7 Current:1 A / Voltage:28-36V 8 Diode D6 Changzhou galaxy electrical co., ltd. DB3 Current:2 A / 9 Transistor (Q1,Q2) Shenzhen SYS semiconductors co., ltd 13003 TO-126 Vceo＞200V / Boody magnetoelectricity technology co.,ltd.EE16 1.4-1.6mH / Changshu south-east plastic co.,ltd PF2A5-151J(b) V-0 150C E136137 Suzhou jingyi special adhesive tape co ltd Adhesive Tape JY312(#) 130C E188295 Shangrao wire factory of Jiangxi xinxin industrial co.,ltd Magnet wire QAL/155 @# 155°C E229727 10 Choke trans (L2) JINGJIANG JINGYI ADHESIVE PRODUCT CO LTD JY25-A# 130°C E246950 Boody magnetoelectricity technology co.,ltd Main trans. Pattern:φ8*10 1mH±0.06mH / Shangrao wire factory of Jiangxi xinxin industrial co.,ltd Magnet wire QAL/155 @# 155°C E229727 11 Main trans. (L1) Suzhou jingyi special adhesive tape co ltd Adhesive Tape JY312(#) 130°C E188295 shanghai plastic wire factory 1015 24# 105°C 600 V ac E109819 Wuhan jingweiELECTRONICS WIRE & CABLE CO LTD 1015 24# 105°C 600 V ac E323810 12 Lead wire(L) SUZHOU JINJIU WIRE & CABLE CO LTD 1015 24# 105°C 600 V ac E230305 haining xinghuo Electronic Co., Ltd 4:8:4 φ10*6*2.8 1.0-1.3μH / 13 O trans (T1) Shangrao wire factory of Jiangxi xinxin industrial co.,ltd Magnet wire QAL/155 φ0.35 @# 155°C E229727 Jiang yin yongtong chemical co ltd PBT-4308G30 0.9mm 130°C E139063 14 Plastics GUANGZHOU KINGFA SCIENCE & TECHNOLOGY CO LTD PBT-RG301(r1) V-0 130°C E171666 Shenzhen wahchangwei ind ustrialco.,ltd SGS-15 UL VW-1 1mm 200°C E233804 15 Glassfiber SHENZHEN FUNGLI GLASS PRODUCTS CO LTD FSG φ1mm E238355 16 H-Heat shinkable tubing Shenzhen WOER heat-shrinkable material co., ltd RSFR-H 125°C VW-1 H E203950 17 Lamp Jiangxi Midea Guiya Lighting Co.,Ltd R30 15W φ10/4.5T/D39mm / 18 Lamp cover Hangzhou Penggong Glass Lamp Co., Ltd.Reflector shape D94 Φ45 L80 /

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Jiangxi Midea Guiya Green Lighting Electrical Co., Ltd Guixi Industrial District, Guixi, Jiangxi, China FCC ID: VGZBR30-15W Report Type: Original Report Product Type: CFL Test Engineer: Phase Zhang Report Number: RSZ110921532-00 Report Date: 2011-09-27 Reviewed By: Suny Sun EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ110921532-00 FCC Part 18 Page 2 of 13 TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL I/O CABLE................................................................................................................................................. 5 CONFIGURATION OF TEST SETUP................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST PROCEDURE........................................................................................................................................................ 8 TEST RESULTS SUMMARY........................................................................................................................................... 8 TEST DATA.................................................................................................................................................................. 9 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 11 MEASUREMENT UNCERTAINTY................................................................................................................................. 11 EUT SETUP............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 12 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 12 TEST PROCEDURE...................................................................................................................................................... 12 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 12 TEST RESULTS SUMMARY......................................................................................................................................... 12 TEST DATA.......................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Radiated Emissions - Front View Radiated Emissions - Rear View
