VH9-KDC250Barcode Scanner(Bluetooth)

AISOLUTION CO., LTD.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Jul 25, 2011
Application Purpose: Original Equipment
Date of Application: Jul 25, 2011
Equipment Note: Barcode Scanner(Bluetooth)
Frequency Range: 2402.00000000 - 2480.00000000
Company: AISOLUTION CO., LTD.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

UserManualKDC250 March,2011 REVISION 2.85(6).L A New Wave in Auto ID A New Wave in Auto-ID The KDC250 enables diverse mobile Auto-Identification applications for collecting and storing barcode data. A built in display eliminates blind erroneous data collections and enables interactive data collection processes. An easy-to-replace rechargeable battery that can recharge from any USB port allows more than 15,000,000 barcode scans. With 4MB of on-board memory that stores over 100,000 product records, memory shortages are also no longer a problem. All KDC ® products come with FREE KTSync ® software (includes keyboard wedging, application generation, DB look up and inventory management features) and FREE SDK (includes technical support from our top engineers and development staff). ADVANCED FEATURES q48 Channel GPS Receiver qClass2Bluetooth ® with HID/SPP/ MFi (250i model only) Profiles qBright 1” OLED Display qRechargeable Li-Ion Battery qStores 100,000+ Product Records qKTSync ® with Keyboard Wedging, Application Generation, DB Look up and Inventory Management features. GPS © 2011 KoamTac, Inc. KDC250-110101 116 Village Boulevard, Suite 200, Princeton, NJ 08540, USA Tel +1-609-734-4335 Fax +1-609-228-4373 E-mail [email protected] www.koamtac.com qTransportation qLogistics qHealthcare Services qField Services qDistribution & Retail qProperty Management KDC250 Laser Barcode Data Collector A New Wave in Auto ID KDC250 Specifications Hardware Specifications Physical Characteristics Size : 1.45”x 3.26”x 0.82” (37mmx83mmx21mm) Weight : 2.0 oz. (57 grams) Electrical Characteristics Battery : Lithium-Ion (3.7V DC, 650mAh) Charging : Via USB connector Typical Operating Current : [email protected] Scanning Performance Scan Rate : 100 scans/sec GPS PT9250 48 channel GPS Receiver User Environment Drop Spec : 4 feet (1.22m) with Rubber Case Operating( % `( % Storage( % `( % Humidity` PQPEQPFGPUKPI Interfaces Bluetooth ® V2.1+EDR, Class 2, HID/SPP/MFi(i model only) USB to Serial (Ultra mini USB port) Functionality Memory Flash ROM : 256KB Program, 4MB User Data Memory RAM : 64KB Microprocessor : ARM7, 32 bits Real-time Clock : Quartz RTC for timestamp Symbologies EAN, UPC, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, GS1-128, Code 3 of 5 Wedging & Synchronization q Store to a file or transfer to the application q Keyboard wedge function q Add-on prefixes and suffixes q Barcode option selection Application Generation q SDK for PC, Pad and Smartphone application q Application generation tool q Database lookup feature q Inventory management feature Regulatory Conformance Laser Safety - IEC Class I, CDRH Class II EMC - CE, FCC, MIC, TELEC Models KDC250 – USB & Bluetooth ® HID/SPP KDC250i – USB & Bluetooth ® HID/SPP/MFi Package Contents 1 Data Collector with rechargeable battery 1 USB cable, 1 Lanyard, 1 Software CD, 1 Protective Boot, optional Finger Trigger Glove For more information, contact us at: KoamTac, Inc. 116 Village Boulevard, Suite 200 Princeton, NJ 08540, USA Tel +1-609-734-4335 Fax +1-609-228-4373 E-mail info @koamtac.com www.koamtac.com © 2011 KoamTac, Inc. KDC250-110101 116 Village Boulevard, Suite 200, Princeton, NJ 08540, USA Tel +1-609-734-4335 Fax +1-609-228-4373 E-mail [email protected] www.koamtac.com Bluetooth Spec Operating Freq : 2 402 MHz ~ 2 480 MHz Freq Channel : 79 (CH space : 1 MHz ) Modulation method : GFSK, PSK(EDR) Oscillation method : PLL KDC250 User Manual 2 TABLEOFCONTENTS 1.1 KDC Package ...................................................................................................................................... 10 1.2 KDC Characteristics ............................................................................................................................ 11 2.1 KoamTac Installation Wizard ............................................................................................................... 13 Windows XP .......................................................................................................................................... 13 Vista and Windows 7 ............................................................................................................................. 18 Windows Mobile 5.0+ ............................................................................................................................ 21 Android .................................................................................................................................................. 23 Blackberry .............................................................................................................................................. 23 iPad/iPhone/iPod touch ......................................................................................................................... 23 2.2 Manual Installation ............................................................................................................................... 24 Windows XP, Vista, and 7 ..................................................................................................................... 24 Windows Mobile 5.0+ ............................................................................................................................ 24 3.1 Getting Started ..................................................................................................................................... 25 Attach Neck Strap to KDC ..................................................................................................................... 25 Charge KDC Battery .............................................................................................................................. 25 Configure KDC ...................................................................................................................................... 26 3.2 Basics ....................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 July 18, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, AISOLUTION CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Barcode Scanner(Bluetooth/GPS) / KDC250 (FCC ID: VH9-KDC250) We affirm that between SIEMIC and AISOLUTION CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Hanjin Lee / CEO AISOLUTION CO., LTD. Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 July 18, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VH9-KDC250 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hanjin Lee / CEO AISOLUTION CO., LTD. Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea

External Photos

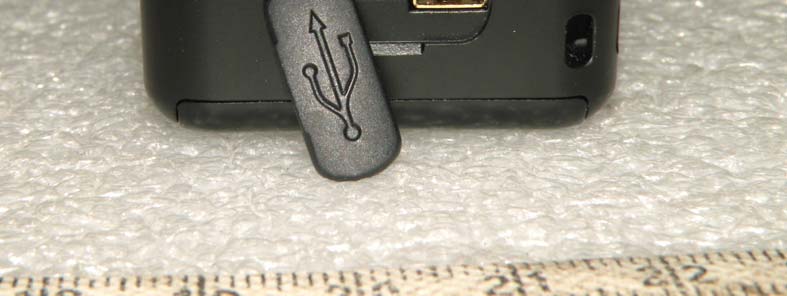

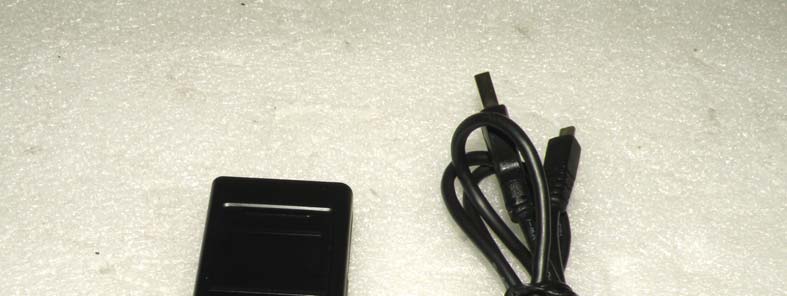

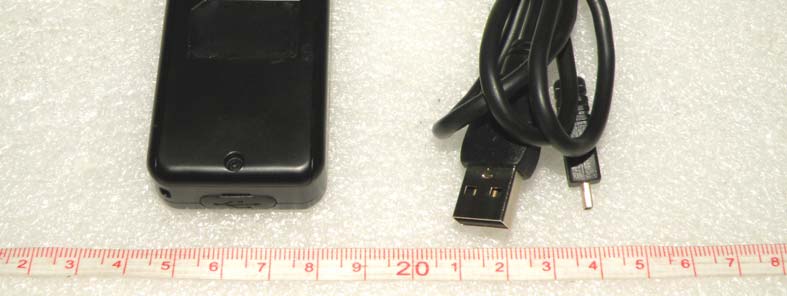

Appendix C. External Photographs Report no. ETLE110513.0406, Page C1 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 View of total construct Appendix C. External Photographs Report no. ETLE110513.0406, Page C2 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE110513.0406, Page C3 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE110513.0406, Page C4 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Side view of EUT Appendix C. External Photographs Report no. ETLE110513.0406, Page C5 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 View of port

ID Label/Location Info

Appendix A. FCC ID Label and Location Report no. ETLE110513.0406, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. AISOLUTION CO., LTD. Barcode Scanner(Bluetooth/GPS) FCC ID : VH9-KDC250 Model No. : KDC250 Serial No. : Proto type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: AISOLUTION CO., LTD. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Internal Photos

Appendix D. Internal Photographs Report no. ETLE110513.0406, Page D1 of D5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Inside view of EUT (with battery) Appendix D. Internal Photographs Report no. ETLE110513.0406, Page D2 of D5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Top side view of main board Appendix D. Internal Photographs Report no. ETLE110513.0406, Page D3 of D5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Bottom side view of main board 1-1 Appendix D. Internal Photographs Report no. ETLE110513.0406, Page D4 of D5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Bottom side view of main board 1-2 Appendix D. Internal Photographs Report no. ETLE110513.0406, Page D5 of D5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9-KDC250 Top side view of BT chip antenna

RF Exposure Info

Appendix J. Radio Frequency Exposure Report no. ETLE110513.0406, Page J1 of J1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VH9-KDC250FCC ID: VH9-KDC250 According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: BT Frequency Range Low Frequency [MHz] High Frequency [MHz] Center Frequency [MHz] 60/f SAR Limitation [mW] 2 402 2 480 2 441 24.58 Maximum measured transmitter power: Output Power Type of Modulation [dBm] [mW] Max Antenna Gain [dBi] EIRP [mW] GFSK -1.370 0.729 2.700 1.358 8DPSK -7.810 0.091 2.700 0.308 Conclusion: No Stand Alone SAR is required.

Test Report

Report no. ETLE110513.0406, Page 2 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Channel Bandwidth and Frequency Separation 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Number of Hopping Channels 5.6 Time of Occupancy (Dwell time) 5.7 Spurious Emissions 5.8 Conducted Emissions Test 5.9 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE110513.0406, Page 3 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Barcode Scanner(Bluetooth/GPS)  Model Number : KDC250  S/N : Proto type  Freq. Range : 2 402 MHz - 2 480 MHz  Number of Channels : 79  Modulation Technique : FHSS (GFSK (Normal), PSK (EDR))  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 1 MHz (79 Ch)  Air Data Rate : Normal (1 Mbps), EDR (3 Mbps)  Antenna Type : Chip Antenna (Integral)  Antenna Gain : 2.70 dBi max  RF Power : 0.729 mW  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : DSS (Part 15 Spread Spectrum Transmitter)  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : AISOLUTION CO., LTD. Address : Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea Attention : Hanjin Lee / CEO Report no. ETLE110513.0406, Page 4 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the AISOLUTION CO., LTD. Model: KDC250 Report no. ETLE110513.0406, Page 5 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Barcode Scanner(Bluetooth/GPS) (model: KDC250). 2.2 General Specification - General Specification Item Specification Size: 1.45” x 3.26” x 0.82” (37 mm x 83 mm x 21 mm) Physical Characteristics Weight: 2.0 oz. (57 g) Battery: Lithium-Ion (3.7 V DC, 650 mAh) Charging: Via USB connector Electrical Characteristics Typical Operating Current: 170 mA @ 3.3 V Scanning Performance Scan Rate: 100 scans/sec GPS PT9250 48 channel GPS Receiver Drop Spec: 4 feet (1.22 m) with Rubber Case Operating: (72.5 ± 40.5) °F ((22.5 ± 22.5) °C) Storage: (54.5 ± 58.5) °F (12.5 ± 32.5) °C) User Environment Humidity: (45 ± 40) % R.H. (noncondensing) Bluetooth®V2.1+EDR, Class 2, HID/SPP/MFi(i model only) Interfaces USB to Serial (Ultra mini USB port) Memory Flash ROM: 256 kB Program, 4 MB User Data Memory RAM: 64 kB Microprocessor: ARM7, 32 bit Hardware Specification Functionality Real-time Clock: Quartz RTC for timestamp Symbologies EAN, UPC, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, GS1-128, Code 3 of 5 Store to a file or transfer to the application Keyboard wedge function Add-on prefixes and suffixes Wedging & Synchronization Barcode option selection Report no. ETLE110513.0406, Page 6 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 Item Specification SDK for PC, Pad and Smartphone application Application generation tool Database lookup feature Application Generation Inventory management feature - Bluetooth Specification Item Specification Operating Freq.: 2 402 MHz ~ 2 480 MHz Freq. Channel: 79 (CH space: 1 MHz) Modulation method: GFSK, PSK (EDR) Bluetooth Oscillation method: PLL - Frequency Channel Table Report no. ETLE110513.0406, Page 7 of 48 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9-KDC250 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2003 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emissio…
