VH9KDC20Barcode Scanner

KDC User Manual Rev 2.85.R6 / 2.86.R6 / 3.05.R6 February 2014 KDC User Manual 2 Revision 3.05.R6 Copyright ® 2014, KoamTac, Inc. Table of Contents Listing of figures ................................................................................................. 8 Listing of tables .................................................................................................. 9 1. Introduction ................................................................................................ 14 KDC Package ...................................................................................................................... 15 1.1 KDC Characteristics ............................................................................................................ 16 1.2 2. Installation .................................................................................................. 17 Bluetooth Pairing ............................................................................................................... 17 2.1 2.1.1 Preparing for Pairing ............................................................................................. 17 2.1.2 Pairing ................................................................................................................... 18 KoamTac Installation Wizard ............................................................................................. 21 2.2 2.2.1 Windows 7 and 8 .................................................................................................. 21 2.2.2 Windows Mobile 5.0+ ........................................................................................... 24 2.2.3 Android ................................................................................................................. 26 2.2.4 Blackberry ............................................................................................................. 26 2.2.5 iPad/iPhone/iPod touch ........................................................................................ 26 Manual Installation............................................................................................................ 27 2.3 2.3.1 Windows XP/Vista7/8 ........................................................................................... 27 2.3.2 Windows Mobile 5.0+ ........................................................................................... 27 3. Operating the KDC ...................................................................................... 28 Getting Started .................................................................................................................. 28 3.1 3.1.1 Attach Lanyard/Hand strap to KDC ....................................................................... 28 3.1.2 Charge KDC Battery ............................................................................................... 28 3.1.3 Configure KDC ....................................................................................................... 28 Basics ................................................................................................................................. 30 3.2 3.2.1 Reading Barcodes .................................................................................................. 30 3.2.2 Delete Data Function in KDC20 ............................................................................. 31 3.2.3 Synchronizing Data to the host device ................................................................. 31 KDC Menus ......................................................................................................................... 32 3.3 3.3.1 Set Barcodes Menu ............................................................................................... 35 KDC User Manual 3 Revision 3.05.R6 Copyright ® 2014, KoamTac, Inc. 3.3.2 Code Options Menu .............................................................................................. 35 3.3.3 Scan Options Menu ............................................................................................... 35 3.3.4 Data Process Menu ............................................................................................... 36 3.3.5 BT Config Menu ..................................................................................................... 40 3.3.6 BT Service .............................................................................................................. 41 3.3.7 System Menu ........................................................................................................ 42 3.3.8 Pair and connect KDC20iand iOS4.0+ in HID mode .............................................. 43 3.3.9 iOS Soft Keyboard toggling using BT Toggle option .............................................. 44 LED Status .......................................................................................................................... 45 3.4 Empty Battery .................................................................................................................... 45 3.5 Buffer Full........................................................................................................................... 46 3.6 Power-on/off...................................................................................................................... 46 3.7 Replace Battery .................................................................................................................. 46 3.8 4. BLUETOOTH ................................................................................................ 48 Bluetooth Config ................................................................................................................ 48 4.1 4.1.1 ConnectDevice ....................................................................................................... 48 4.1.2 Auto Connect ....................................................................................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 March 20, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, AISOLUTION CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Barcode Scanner / KDC20 (FCC ID: VH9KDC20) We affirm that between SIEMIC and AISOLUTION CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, HYOIN, LEE / Manager AISOLUTION CO., LTD. 691-4, Mia-dong, Gangbuk-gu, Seoul, 137-896, Republic of Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 March 20, 2014 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VH9KDC20 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, HYOIN, LEE / Manager AISOLUTION CO., LTD. 691-4, Mia-dong, Gangbuk-gu, Seoul, 137-896, Republic of Korea

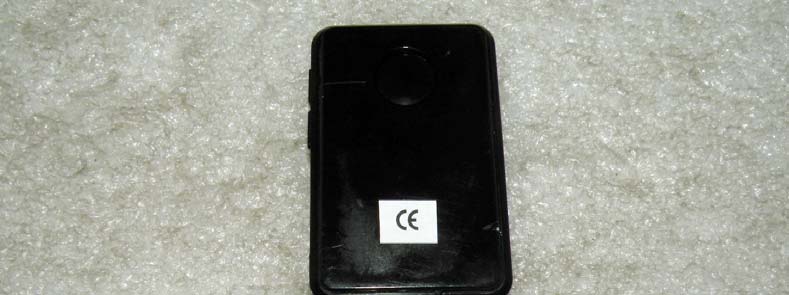

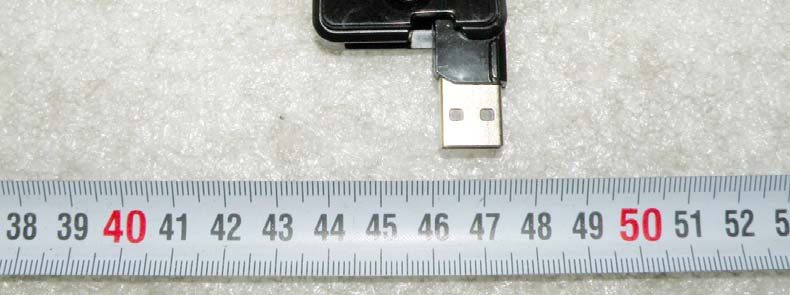

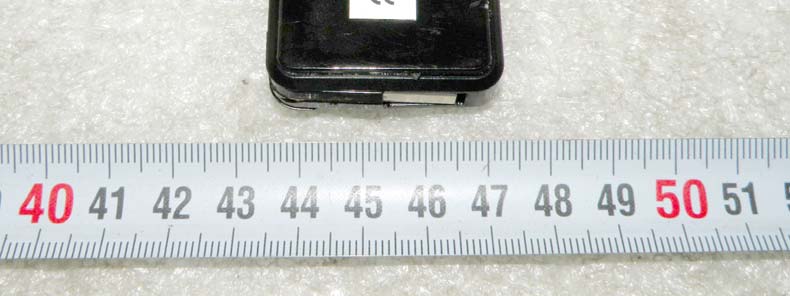

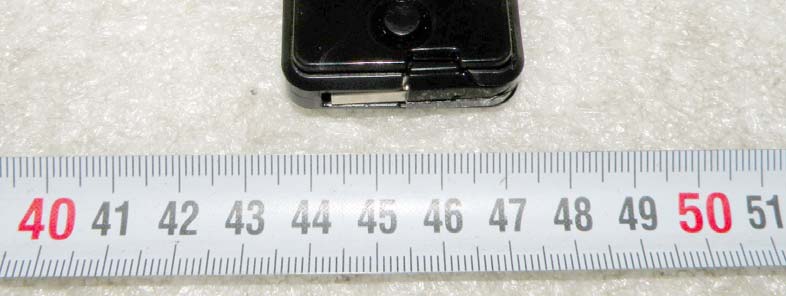

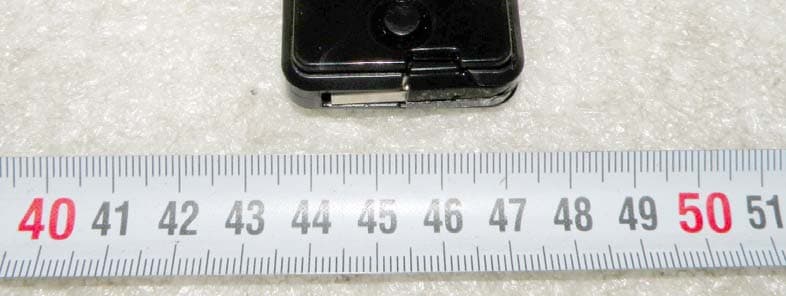

Appendix C. External Photographs Report no. ETLE140205.0166, Page C1 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Front view of EUT Appendix C. External Photographs Report no. ETLE140205.0166, Page C2 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Rear view of EUT Appendix C. External Photographs Report no. ETLE140205.0166, Page C3 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Top view of EUT Appendix C. External Photographs Report no. ETLE140205.0166, Page C4 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Bottom view of EUT Appendix C. External Photographs Report no. ETLE140205.0166, Page C5 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Side view of EUT Appendix C. External Photographs Report no. ETLE140205.0166, Page C6 of C6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE140205.0166, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCCID:VH9KDC20 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. AISOLUTION CO., LTD. Barcode Scanner FCC ID : VH9KDC20 Model No. : KDC20 Serial No. : NONE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: AISOLUTION CO., LTD. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D1 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D2 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D3 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D4 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Top side view of main board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D5 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D6 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Top side view of Chip Antenna Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D7 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Top side view of laser board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D8 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Bottom side view of laser board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D9 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Top side view of USB board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D10 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Bottom side view of USB board Appendix D. Internal Photographs Report no. ETLE140205.0166, Page D11 of D11 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 View of Li-Polymer battery

Appendix J. Radio Frequency Exposure Report no. ETLE140205.0166, Page J1 of J1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20 cm. As per KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Measurement Result: This is a portable device and the Max peak output power is (3.030 mW) lower than the threshold given and derived as above, where = 3.030 (mW) / 5 (mm) * √2.402 (GHz) = 0.939 < 3.0 As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC.

Report no. ETLE140205.0166, Page 2 of 51 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC20 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Channel Bandwidth and Frequency Separation 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Number of Hopping Channels 5.6 Time of Occupancy (Dwell time) 5.7 Spurious Emissions 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE140205.0166, Page 3 of 51 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC20 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Barcode Scanner  Model Number : KDC20  S/N : NONE  Freq. Range : 2 402 MHz - 2 480 MHz  Number of Channels : 79  Modulation Technique : FHSS (GFSK (BDR), 8DPSK (EDR))  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 1 MHz (79 Ch)  Air Data Rate : BDR (1 Mbps), EDR (3 Mbps)  Antenna Type : Chip Antenna (Integral)  Antenna Gain : 3.14 dBi max  RF Power : 3.03 mW : Temperature: (15.8 ± 6.1) °C Humidity: (40.0 ± 5.0) % R.H.  Environmental of Tests Atmospheric Pressure: (102.6 ± 0.1) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2009  FCC Classification : DSS (Part 15 Spread Spectrum Transmitter)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : AISOLUTION CO., LTD. Address : 691-4, Mia-dong, Gangbuk-gu, Seoul,137-896, Republic of Korea Attention : HYOIN, LEE / Manager Report no. ETLE140205.0166, Page 4 of 51 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC20 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2009) was used in determining radiated and conducted emissions from the AISOLUTION CO., LTD. Model: KDC20 Report no. ETLE140205.0166, Page 5 of 51 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC20 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Barcode Scanner (model: KDC20). The model KDC20 is basic model that was tested. 2.2 General Specification Item Specification Barcode Scanner Compliant with Class II Bluetooth v2.0 and v2.1 Feature Enhanced Data Rate (EDR) support AT91SAM7S256-AU (ARM7 32 bits Processor) F122 (Bluetooth module) Major Parts VLM4122 (Scan Engine) Class II Bluetooth v2.1 + EDR 2.4 000 GHz – 2.4 835 GHz SPP, HID profile Bluetooth Standards Internal chip Antenna Interface USB 2.0/1.1 (A-type connector) Lithium-Polymer Battery (Typ. 3.7 V, 200 mAh) Power Max. 110 mA consumption @ 3.3 V Physical Dimensions 1.50” x 2.40” x 0.56” (38.00 mm x 61.00 mm x 14.25 mm) Weight 1.25 oz. (35.5 g) High Internal Frequency X-tal  26.000 MHz Report no. ETLE140205.0166, Page 6 of 51 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC20 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2009 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.4-2009 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 MHz to 1 000 MHz using Log-Bicon antenna. Above 1 GHz, linearly po…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE140205.0166, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE140205.0166, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE140205.0166, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC20 Radiated Emission Test Setup (Above 1 GHz)
