VH9KDC400Barcode Scanner(Bluetooth)

KDC400 User Manual November,2011 COPYRIGHT, LICENSE, and WARNING PAGE Copyright  2011 by KoamTac, Inc. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from KoamTac, Inc. The material in this manual is subject to change without notices. KoamTac reserves the right to make changes to any product to improve reliability, function, or design. KoamTac doesn’t assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. Follow all warnings and instructions marked on manual and units. Use only the power source specified in this manual or marked on the units. May be covered under one or more pending and/or US Patents, including US Pat. No. 7,769,917; 7,954,710. KDC ® is a registered trademark and property of KoamTac, Inc. KoamTac ® is a registered trademark and property of KoamTac, Inc. KTSync ® is a registered trademark and property of KoamTac, Inc. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO ANY TYPE OF MOISTURE. DO NOT LOOK DIRECTLY INTO LASER OR POINT THE LASER INTO ANOTHER PERSON’S EYES. EXPOSURE TO THE BEAM MAY CAUSE EYE DAMAGE. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. WARNING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: This equipment has been tested and found to comply with the limit of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user, is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. WARNING: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS. 1. INTRODUCTION Congratulations on purchasing KoamTac’s revolutionary barcode scanner and data collector. Lightweight and compact, with a user-friendly design and superior functionality, KoamTac’s KDC works in a variety of portable applications. Use it independently or as an accessory to your PC, PDA, or smartphone. To find out more about KoamTac, Inc. and our family of products, visit us at www.koamtac.com. Table 1 - Features of KDC FEATURES KDC100KDC200 KDC250 KDC300 KDC400 USB CONNECTIONS 2 1 1 1 1 RECHARGEABLE BATTERY YES YES YES YES YES SCAN ENGINE Laser Laser Laser Imager Laser/ Imager AUTOMATIC DATA UPLOAD YES YES YES YES YES STORES10,000+ BARCODES YES YES YES YES No KTSYNC ® SOFTWARE YES YES YES YES YES SDK FOR DEVELOPERS YES YES YES YES YES SUPPORTS MICROSOFT © WINDOWS XP, VISTA, 7 & MOBILE 5.0+ YES YES YES YES YES ANDROID, BLACKBERRY, IOS NO YES YES YES YES BLUETOOTH NO YES YES YES YES GPS NO NO YES NO NO 1.1 KDC Package The standard KDC package contains: 1. One KDC Barcode Data Collector 2. One USB Cable 3. One Lanyard (KDC100/200/250/300) or One Hand Strap (KDC400) 4. KoamTac Installation CD with  KTSync © for Microsoft Windows XP, Vista, 7 and Mobile 5.0+  KDC Device Driver  User Manual 5. One Protective KDC Rubber Case (KDC100/200/250/300) or One Smartphone Protective Rubber Case (KDC400) NOTE: Depending on your region or distributor, package contents may vary. KDC100/200/250/300 KDC400 Figure 1 – KDC Package 1.2 KDC Characteristics Before you use your KDC, please become familiar with its physical characteristics. Refer to Figure 2 and Figure 3 below which indicate placement of scan and scroll buttons, OLED display, LEDs, and ports on your KDC. All KDC models are similar except for the KDC100 which includes an additional USB connector. KDC100 Barcode Reader and Data Collector KDC200 / KDC250 / KDC300 Barcode Reader and Data Collector KDC200 Figure 2 - Characteristics of KDC100 KDC250/300 KDC400 Figure 3 - Characteristics of KDC200 / KDC250 / KDC300 2. INSTALLATION 2.1 KoamTac Installation Wizard Windows XP WARNING: DO NOT CONNECT KDC TO USB PORT PRIOR TO INSTALLATION 1. Insert KoamTac Installation CD into your computer’s CD drive. 2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed including the disk drive containing the KoamTac Installation CD. 3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the PC_Setup.exe file which executes the KTSync Setup Wizard. NOTES  If KTSync Setup Wizard locates an older version of KTSync on your computer, you will be prompted to remove the older program before installing the new version. Select Remove KTSync then click Finish. When removal is complete, click Close. Go to Step 2 to run KTSync Setup Wizard.  If you have any problems, please refer to the Manual Installation section. KTSync Setup Wizard Below are the screen images you will see during the installation of KTSync.  Click Next icon in KTSync Setup Wizard window  Click Next icon in KTSync Confirm Installation window  Within…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 November 10, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, AISOLUTION CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Barcode Scanner(Bluetooth) / KDC400 (FCC ID: VH9KDC400) We affirm that between SIEMIC and AISOLUTION CO., LTD., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Hanjin Lee / CEO AISOLUTION CO., LTD. Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 November 10, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VH9KDC400 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hanjin Lee / CEO AISOLUTION CO., LTD. Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea

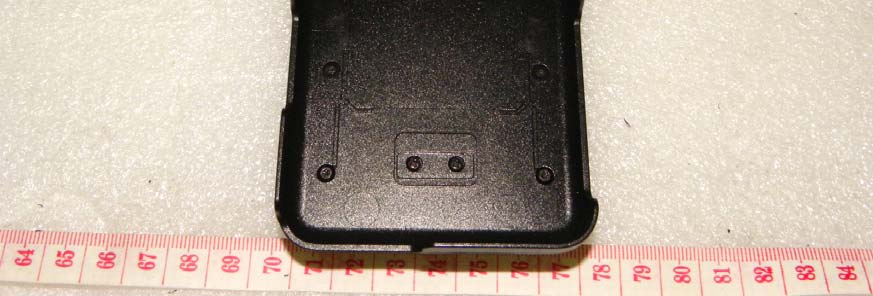

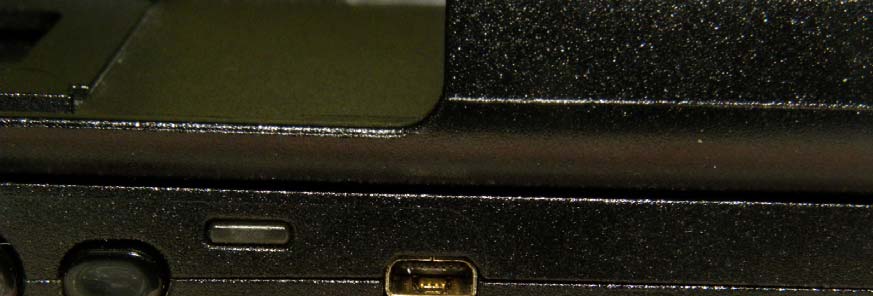

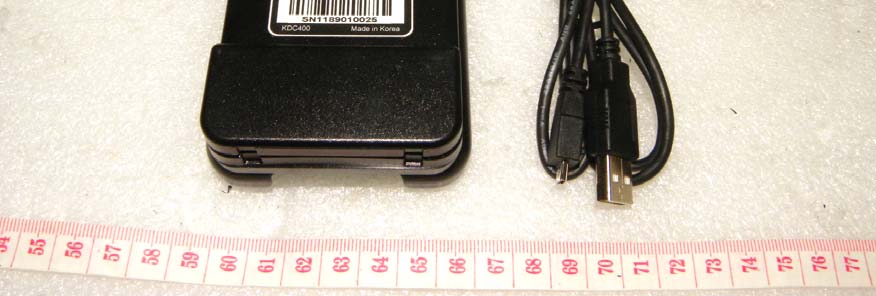

Appendix C. External Photographs Report no. ETLE110926.0884, Page C1 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 View of total construct Appendix C. External Photographs Report no. ETLE110926.0884, Page C2 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE110926.0884, Page C3 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE110926.0884, Page C4 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Side view of EUT Appendix C. External Photographs Report no. ETLE110926.0884, Page C5 of C5 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 View of port

Appendix A. FCC ID Label and Location Report no. ETLE110926.0884, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. AISOLUTION CO., LTD. Barcode Scanner(Bluetooth) FCC ID : VH9KDC400 Model No. : KDC400 Serial No. : 1189010025 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: AISOLUTION CO., LTD. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D1 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Inside view of EUT with battery Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D2 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Inside view of EUT with battery (Cover open #1) Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D3 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Inside view of EUT (Cover open #2) Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D4 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Top side view of main board Bluetooth module Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D5 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Bottom side view of main board Chip Antenna Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D6 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Top side view of Bluetooth module Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D7 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Top side view of Chip antenna Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D8 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Top side view of barcode sensor Appendix D. Internal Photographs Report no. ETLE110926.0884, Page D9 of D9 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 Bottom side view of barcode sensor

Appendix J. Radio Frequency Exposure Report no. ETLE110926.0884, Page J1 of J1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID: VH9KDC400 According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: BT Frequency Range Low Frequency [MHz] High Frequency [MHz] Center Frequency [MHz] 60/f SAR Limitation [mW] 2 402 2 480 2 441 24.580 Maximum measured transmitter power: Output Power Type of Modulation [dBm] [mW] Max Antenna Gain [dBi] EIRP [mW] GFSK 0.380 1.091 2.700 1.862 8DPSK 0.420 1.102 2.700 1.862 Conclusion: No Stand Alone SAR is required.

Report no. ETLE110926.0884, Page 2 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Channel Bandwidth and Frequency Separation 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Number of Hopping Channels 5.6 Time of Occupancy (Dwell time) 5.7 Spurious Emissions 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Appendix J. Radio Frequency Exposure Report no. ETLE110926.0884, Page 3 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Barcode Scanner(Bluetooth)  Model Number : KDC400  S/N : 1189010025  Freq. Range : 2 402 MHz - 2 480 MHz  Number of Channels : 79  Modulation Technique : FHSS (GFSK (Normal), PSK (EDR))  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 1 MHz (79 Ch)  Air Data Rate : Normal (1 Mbps), EDR (3 Mbps)  Antenna Type : Chip Antenna (Integral)  Antenna Gain : 2.70 dBi max  RF Power : 1.102 mW  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : DSS (Part 15 Spread Spectrum Transmitter)  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : AISOLUTION CO., LTD. Address : Astar Bldg., 1F, 318-3 Yangjae-Dong, Seocho-Gu, Seoul, Korea Attention : Hanjin Lee / CEO Report no. ETLE110926.0884, Page 4 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the AISOLUTION CO., LTD. Model: KDC400 Report no. ETLE110926.0884, Page 5 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Barcode Scanner(Bluetooth) (model: KDC400). 2.2 General Specification - General Specification Item Specification Size: 2.4” x 3.7” x 0.4” ~ 0.7” (62 mm x 95 mm x 10 mm ~ 19 mm) Barcode Model (Basic) Weight: 3.3 oz. (94 g) Size: 2.4” x 4.7” x 0.4” ~ 0.7” (62 mm x 120 mm x 10 mm ~ 19 mm) Physical Characteristics Barcode/MSR Model (Basic) Weight: 4.0 oz. (115 g) Battery: Lithium-Ion (3.7 V DC, 1 200 mAh) Charging: Via USB connector Electrical Characteristics Typical Operating Current: 300 mA @ 3.3 V 1D Laser: 100 scans/sec Scanning Performance 2D Image: 752 x 480 CMOS sensor Drop Spec: 5 feet (1.5 m) Operating: (72.5 ± 40.5) °F ((22.5 ± 22.5) °C) Storage: (54.5 ± 58.5) °F (12.5 ± 32.5) °C) User Environment Humidity: (45 ± 40) % R.H. (noncondensing) Bluetooth® V2.1+EDR, Class 2, Interfaces HID/SPP/MFi (Optional 2 ports) Memory Flash ROM: 256 Kb Memory RAM: 64 kB Microprocessor: ARM7, 32 bit Real-time Clock: Quartz RTC Buzzer: 92 dB Button: 2 Scan, 1 Up, 1 Down Hardware Specification Functionality LED: 1 1 Dimensional: EAN, UPC, Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5, GS1-128, Code 3 of 5 Barcode Symbologies 2 Dimensional: All major 1D, 2D, Postal, OCR-A/B codes Report no. ETLE110926.0884, Page 6 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 Item Specification Comply with ISO7810/7811/7812 (Triple track) or JIS6220 (Japan double sided track) Life: Minimum 500 000 swipes MSR Swipe speed: (3.9 to 50) inch/sec ((10 to 150) cm/sec) Keyboard wedge function Add-on prefixes and suffixes Wedging & Synchronization Barcode option selection - Bluetooth Specification Item Specification Operating Freq.: 2 402 MHz ~ 2 480 MHz Freq. Channel: 79 (CH space: 1 MHz) Modulation method: FHSS (GFSK (Normal), PSK (EDR)) Bluetooth Oscillation method: PLL - Frequency Channel Table Report no. ETLE110926.0884, Page 7 of 45 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:VH9KDC400 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C63.4-2003 and FCC C…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE110926.0884, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC400 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE110926.0884, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC400 Radiated Emission Test Setup (Above 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE110926.0884, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:VH9KDC400 Radiated Emission Test Setup (Below 30 MHz)
