VHC-AAI-AS121R-00900 MHz Wireless Speaker (Receiver)

900 MHz WIRELESS SPEAKER BD-9787-N INSTRUCTION MANUAL INTRODUCTION This stereo wireless speaker system applies the latest 900Mhz wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the transmitter with any audio source such as i-pod, TV, DVD, Hi-Fi and CD/MP3 player. A. PACKAGING 1. RF transmitter 2. RF speakers, 2 pcs. 3. AC adapter for transmitter 4. AC adapters for speaker, 2 pcs. 5. Remote Control 6. 3.5mm to 3.5mm audio cable 7. 3.5mm plug to 2 X RCA audio cable（YCABLE） B. FEATURES 1. 900 MHz RF technology 2. Auto Tuning System on speakers 3. Phase Lock Loop (PLL) transmission system on transmitter 4. Water-proof Speakers 5. Stereo Effect on Speakers 6. Operating distance up to 50 meter. 7. No line of sight limitation. 8. Auto ON/OFF control on Transmitter 9. Auto Shut-Off on Speakers 10. Bass boost function 11. Remote control unit 12. Optional battery operation for Transmitter and Speakers C. COMPONENT IDENTIFICATION 1. TRANSMITTER 2. SPEAKER Power “ON” indicator DC Jack 3. REMOTE CONTROL UNIT D. INSTALLATION 1. TRANSMITTER A. Connect the supplied AC power adapter to an electrical wall outlet. B. Plug the AC power adapter in the DC jack located on the rear of the transmitter. C. Or you can insert 4 X “AA” size ALKALINE batteries into the battery compartment at the bottom of the transmitter with correct polarity. D. The rear of the transmitter has one audio cord that can be connected to audio output jack of TV, i-pod, DVD, and CD/MP3 players or to headphone/earphone jack with the connector provided. E. USB jack at side panel for audio input as well as recharging of iPhone & iPod. When the power adapter connection is finished, the LED of transmitter will light up in Green. When the audio cable connection is finished and turn on the audio source, the LED will turn from Green to Blue. 2. SPEAKER A. Insert 8 ‘C’ size ALKALINE batteries into the battery compartment with correct polarity at the bottom of the speakers or connect the 12V power adapter to the DC input jack on the bottom of each speaker, then plug it to the wall AC outlet. Battery Compartment B. Press Power button and turn the speakers ON. The Power/Standby LED will light up in Blue. 3. REMOTE CONTROL A. Remove the battery cover at the rear of the remote control unit and insert 2 pcs “AAA” size batteries (not included) into the battery compartment with the correct polarity. B. Place back the cover and close the battery compartment. E. OPERATION 1. Connect the power adapter between wall jack and transmitter. The LED will turn to Green. 2. Turn on the audio source (TV or audio component) to which the transmitter is connected with. The LED will turn from Green to Blue. 3. Select the channel 1, 2 or 3 of the transmitter for best performance in your location. 4. Turn on the Power button on the speaker and adjust the volume by pressing “+” and “-“ for desired listening level. Volume can also be adjusted by pressing “+” and “-” button located on the remote control unit. 5. Push the “AUTO TUNE” button to get the best tuning reception in the speakers. When the button is pressed, frequency tuning starts automatically and it stops when a signal is detected. 6. Select the L/M/R selector on the speaker receivers, one to L and the other to R for the best stereo reception. In case the audio device only provides Mono audio signal, switch to MONO for the best mono reception. 7. You should now be able to place the speakers freely inside or out within 150 feet from transmitter. DC Jack SWITCHING OFF 1. If there is no audio input signal to transmitter in 4 minutes, transmitter will go to standby mode and LED will change from Blue to Green. 2. If the power adapter is unplugged, the LED on transmitter will turn off. 3. Speaker will turn to standby mode if there is no input signal to transmitter and LED will become Green. Speaker will automatically shut off when standby mode continues for 5 minutes. 4. Speaker will also turn to standby model if you press the POWER button on the remote control to Green LED. Speaker will automatically shut off after 5 minutes. 5. At standby mode, speaker will turn to On automatically after getting signal from transmitter. OTHER CONTROL 1. Select volume up and down on Speakers or Remote Control Unit. 2. Select Bass Boost On/OFF by pressing the “BASS BOOST” button on Speakers or Remote Control Unit. A Blue LED underneath the Bass Boost button will on. 3. If you hear interference from other components, re-adjust the tuning control by moving channel knob to 1, 2 or 3 of the transmitter, then pressing “AUTO TUNE” button on speaker or remote unit for best reception. F. TROUBLE SHOOTING NO SOUND - Ensure the AC adapter is fully inserted into the AC outlet and the power connection input on the transmitter. - Ensure the speaker is switch ON. - Speaker’s battery capacity is too low, replace with new batteries or connect the AC adapters to the speakers. - Ensure the TV or audio component is ON. - The connected audio / video equipment is not playing. Start playing the equipment. - The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED - Press the “AUTO TUNE” button on the speakers until matching the frequency of the transmitter. - Change the position of the channel selector on the transmitter. You must then press the “AUTO TUNE” button on the speakers. - Battery capacity is too low. Replace with the new battery. - Ensure the volume level of speakers is adjusted properly. - The speaker is too far from transmitter, move closer. - The input level of the audio signal is too low. Turn up the volume of the audio source equipment. G. TECHNICAL SPECIFICATIONS Transmission Mode : UHF stereo Carrier Frequency : 900 MHz Operation Voltage : Transmitter, DC 6V 2A adapter or 4 X “AA” size Alkaline batteries (not included) Speaker, DC 12V 1.2A adapter or 8 X “C” size Alkaline batteries (not included) Remote Control Unit, 2 X ‘AAA’ size bat…

Text truncated - open the document above for the full version.

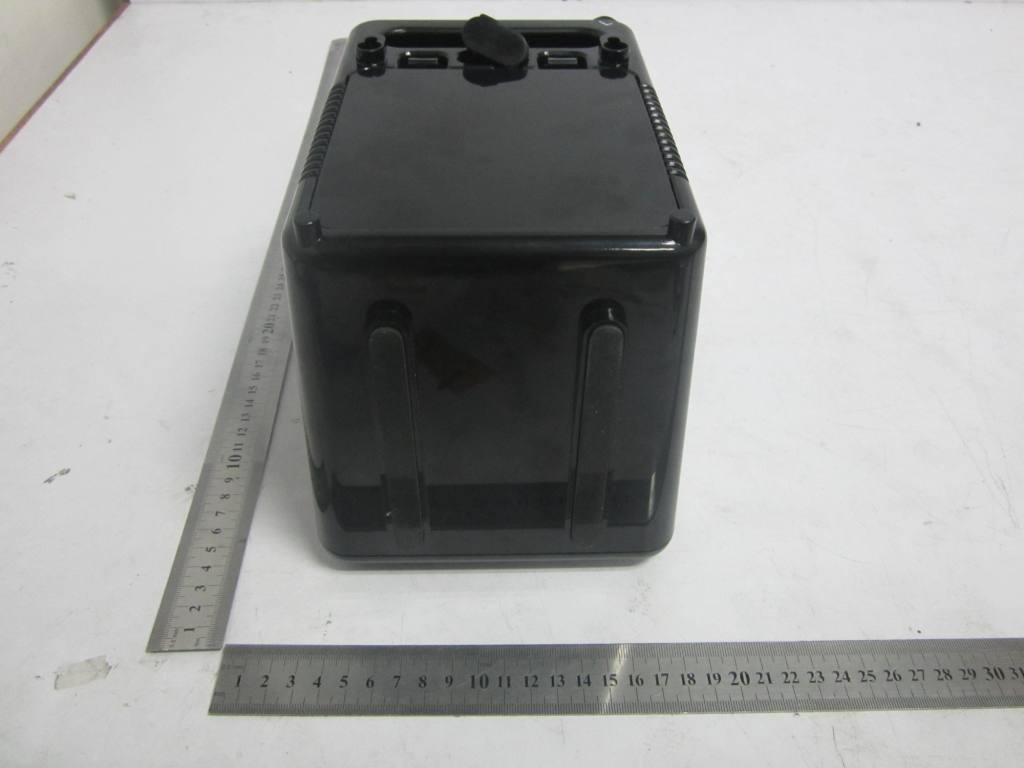

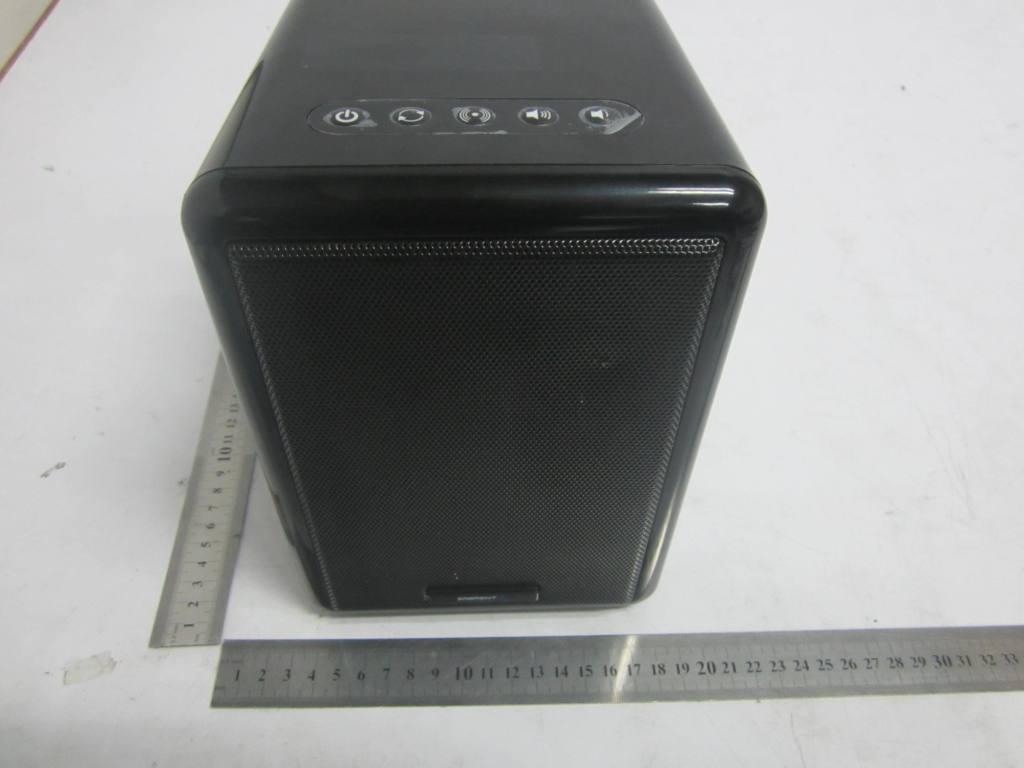

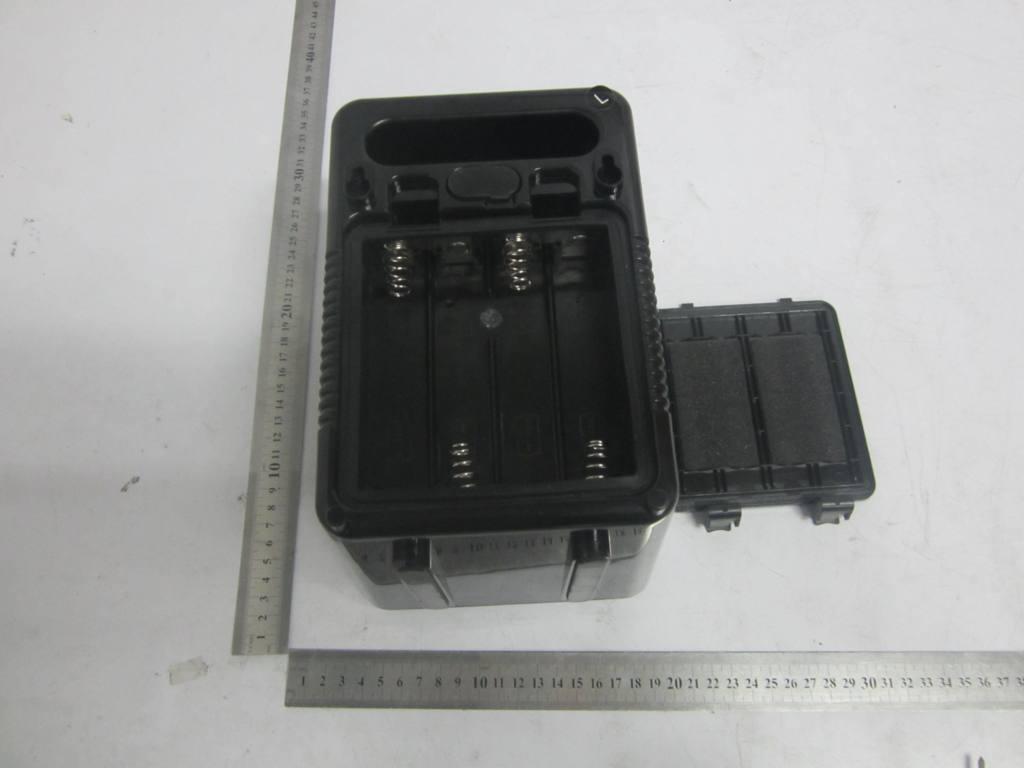

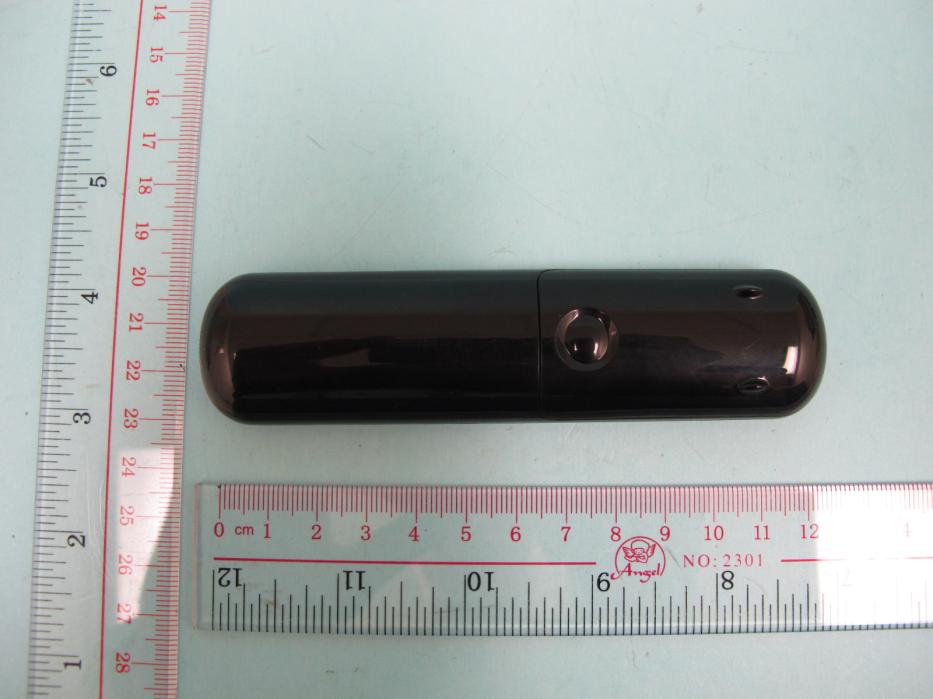

Appendix B Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – External EUT Photos Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – External EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – External EUT Photos Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – External EUT Photos Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Remote Control Appendix B Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – External EUT Photos Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

AS1210 authentication Rating Label Artwork 900MHz Wireless Speaker Transmitter Model: BD-9787-NT Input: 6V 2A Adapter or 4 X AA Batteries FCC ID: VHC-AAI-AS1210-00 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. 80.0 2 8 . 0 Transmitter bottom view Transmitter rating label Size: 80x28mm Black background, white front, cover matte lm+ back glue. Unit: mm Scale 1:1 Receiver rating label Size: 40x40mm Black background, white front, cover matte lm+ back glue. Unit: mm Scale 1:1 Receiver Speaker bottom view 40.0 4 0 . 0 Manufacture : Acoustic Arc International Ltd. 9 0 0 M H z W i r e l e s s S p e a k e r Tr a n s m i t t e r M o d e l : B D - 9 7 8 7 - N T I n p u t : 6 V 2 A A d a p t e r o r 4 X A A B a t t e r i e s F C C I D : V H C - A A I - A S 1 2 1 0 - 0 0 T h i s d e v i c e c o m p l i e s w i t h p a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) T h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . M a n u f a c t u r e : A c o u s t i c A r c I n t e r n a t i o n a l L t d . Input: 12V 1.2A Adapter or 8 X C Batteries FCC ID: VHC-AAI-AS121R-00 900MHz Wireless Speaker Receiver Model: BD-9787-NR Manufacture : Acoustic Arc International Ltd. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation. Input: 12V 1.2A Adapter or 8 X C Batteries FCC ID: VHC-AAI-AS121R-00 900MHz Wireless Speaker Receiver Model: BD-9787-NR Manufacture : Acoustic Arc International Ltd. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and(2)this device must accept any interference received, including interference that may cause undesired operation.

Appendix C Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – Internal EUT Photos Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – Internal EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – Internal EUT Photos Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – Internal EUT Photos Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-09-28 Report No.: 60.870.12.027.02F Model No.: BD-9787-NR Photo of EUT – Internal EUT Photos Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2012-09-28 Report No.: 60.870.12.027.02F Page 1 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Acoustic Arc international Limited. Unit 311B, 3/F, IC Development Centre, No.6, Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong Description of Samples:Model name: 900MHz Wireless Speakers (Receiver) Brand name: SABRENT Model no.:BD-9787-NR FCC ID:VHC-AAI-AS121R-00 Date Samples Received:2012-09-24 Date Tested:2012-09-25 to 2011-09-27 Investigation Requested:FCC Part 15 Subpart B Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:--- Checked by:Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom departmentWireless & Telecom department ReportNo.: 60.870.12.027.02F Page 2 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 14 Content Page 2 of 14 1.0General Details 1.1Test Laboratory Page 3 of 14 1.2Applicant Details Page 3 of 14 1.3Equipment Under Test [EUT] Page 4 of 14 1.4Equipment Modification Page 4 of 14 1.5Related Submittal(s) Grants Page 4 of 14 2.0Technical Details 2.1Investigations Requested Page 5 of 14 2.2Test Standards and Results Summary Page 5 of 14 3.0Test Methodology 3.1Radiated Emission Page 6 of 14 3.2Field Strength Calculation Page 6 of 14 3.3Conducted Emission Page 6 of 14 4.0Test Result 4.1Spurious Radiated Emission Page 7-10of 14 4.2Conducted Emission Page 10-13 of 14 5.0List of Equipment Page 14 of 14 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.027.02F Page 3 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co. Ltd 3/F, Jinbao Commerce Building Xin’an Fanshen Road, Bao’an District, Shenzhen Registration Number:994117 Tested by: John Zhi 1.2Applicant Details Applicant Acoustic Arc international Ltd. Unit 311B, 3/F, IC Development Centre, No.6, Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong Manufacturer Acoustic Arc international Ltd. Unit 311B, 3/F, IC Development Centre, No.6, Science Park West Avenue, Hong Kong Science Park, Shatin, N.T., Hong Kong ReportNo.: 60.870.12.027.02F Page 4 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3Equipment Under Test [EUT] Description of Sample Model Name:900MHz Wireless Speakers (Receiver) Brand Name: SABRENT Manufacturer:Acoustic Arc international ltd. Model Number: BD-9787-NR FCCID:VHC-AAI-AS121R-00 Rating:DC 12.0V 1200mA powered by AC/DC adaptor OR 12 VDC (8 x “C” size batteries) Operated Frequency:912.5-913.5MHz No. of Channel:3 Antenna Type:Integral Manufacture of Antenna:Acoustic Arc International Ltd. Antenna Gain:0 dBi Accessories and Auxiliary Equipment:iPod EUT Exercising Software:None Description of EUT The Equipment Under Test (EUT) is a receiver of Wireless Speakers which operated at 912 MHz – 914 MHz to receive the audio signal from the associated transmitter. 1.4 Equipment Modification No modification was conducted on the tested sample by TUV SUD Hong Kong Ltd. 1.5 Related Submittal(s) Grants This is a single application for certification of the receiver. ReportNo.: 60.870.12.027.02F Page 5 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC Test Requirement Class / Severity Test Result PassFailedN/A Radiated Emissions, 30 MHz to 10 GHz Part 15.109Class B Conducted Emissions on AC, 0.15MHz to 30MHz Part 15.107Class B Note: N/A - Not Applicable ReportNo.: 60.870.12.027.02F Page 6 of 14 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on astandard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF + FA – PA Where FS = Net Field Strength in dBuV/m at 3 meters. R = Reading of Spectrum Analyzer / Test Receiver in dBuV. AF = Antenna Factor in dB. CF = Cable Attenuation Factor in dB. FA = Filter Attenuation Factor in dB. PA = Preamplifier Factor in dB. FA and PA are only be used for the measuring frequency above 1 GHz. 3.3Conducted Emissions The EUT was placed on a non-metallic table 0.8m above the horizontal metal reference place and 0.4m from a vertical ground plane which is connected to the horizontal metal ground plane. Meanwhile, the AC main of EUT was connected to the distance of 0.8m line impedance stabilization network (LISN) during measurement. Initial measurements were performed in quasi-peak a…
