Bluetooth Waterproof Speaker BS0950US / 8007332 Instruction Manual A.INTRODUCTION This Bluetooth wireless speaker system applies the latest BT 3.0 wireless technology platform that enables you to enjoy music, video everywhere you want. B.FEATURES 1. Bluetooth 3.0 Platform 2. Operating distance up to 10 meters / 33 feet (open area) 3. Powered by 6x AA alkaline batteries (included) 4. IPX 3 Water-proof feature 5. Floating feature 6. Blue mood light C.PACKIANG 1 X Bluetooth speaker 1 X User manual 6 X AA size alkaline batteries D.COMPONENT IDENTIFICATION 1. Power On/Off Control 2. Power LED Indicator 3. Pair 4. Mood Light 5. Volume + 6. Volume – 7. Batteries door E.PAIRING 1. Press the power button for 3 seconds to turn the speaker on, the Blue LED light will flash slowly. 2.Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and make sure it is in searching mode. 3.The Blue tooth speaker will automatically search your Bluetooth device and pair it up. 4.If no auto pairing connection is made, press the Pair button and hold for 5 seconds until the 1 2 3 4 5 7 6 Insert batteries in correct direction Blue LED flashes quickly. 5. Select “inStudio8007332” in the list shown in the Bluetooth device. 6. Enter “0000” if password is required. 7. When Bluetooth connection is made, the Blue LED will be solid. 8. Listen to your music. CAUTION: Your speaker will operate best and loudest with no water resting on top of the speaker. Periodically draining the speaker by inverting it will ensure that not too much water remains standing on top of the speaker driver. Turn the speaker over and lightly shake it to let the water drain out quickly for best audio performance and when storing the speaker between uses. When you find the floater with low volume or no volume in the water, it might because the floater fills in with too much water on top of the speaker driver, which prevents the driver from producing sound. Reverse the floater, drain out the water. After that, the floater will work properly again. “PAIR” Water outlet F. TECHNICAL SPECIFICATIONS Carrier Frequency : Bluetooth 3.0 Power Requirements: By 6x AA alkaline batteries (included) Frequency Response: 30Hz – 18KHz Distortion : <0.5% S/N Ratio : 65dB (typical) Operation Distance : Up to 10 meters / 33 feet (open area) Output Power : 5W (Max) NOTES: This speaker is in compliance with the specified Bluetooth version. It does not guarantee compatibility of all functions on every Bluetooth enabled device. Please check with your mobile phone's user manual for compatibility and functionality. G. TROUBLE SHOOTING NO SOUND - The speaker’s battery charge is too low. Replace with the new batteries. - Ensure the speaker is ON. - Ensure Bluetooth device is ON. - The volume of speaker is too low, adjust the volume to an appropriate level. - Unable to connect with Bluetooth device, restart the pairing process. - The speaker may be too far away from the Bluetooth device，move closer to it. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: Clean the speaker with soft, lint - free, dry cloth. Never use detergents or abrasive cleaners to clean. THE FCC WANTS YOU TO KNOW This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. IC STATEMENT This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. The Bluetooth word, mark and logo are owned by Bluetooth SIG, Inc. Any and all other trademarks and trade names are those of their respective owners. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

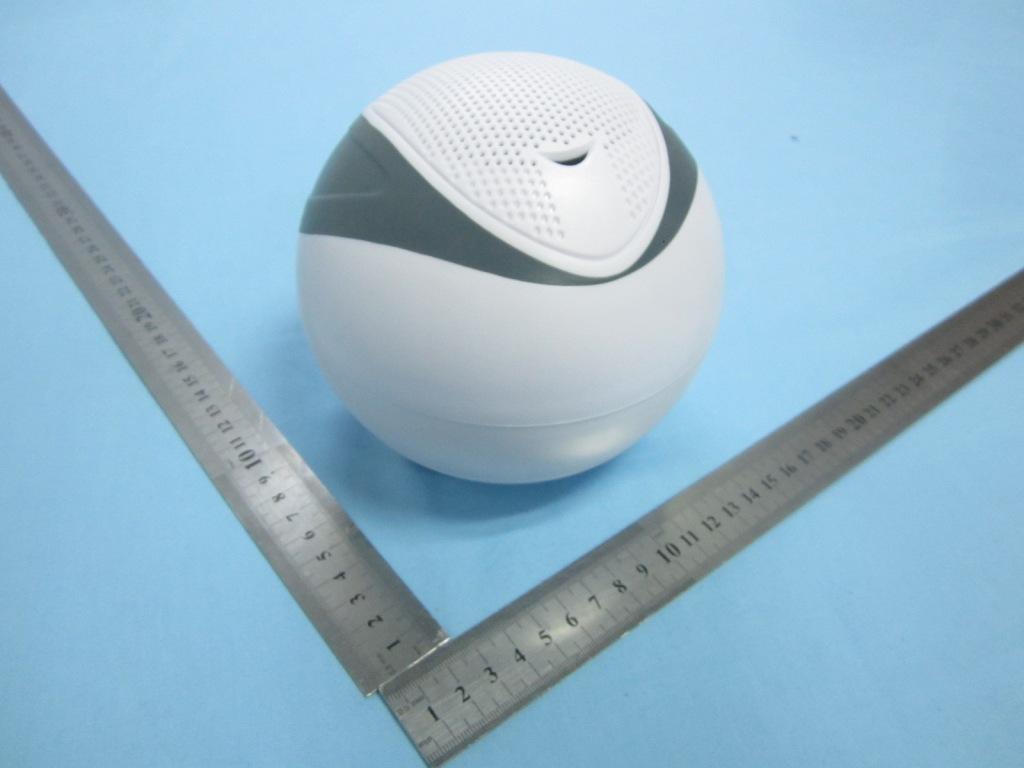

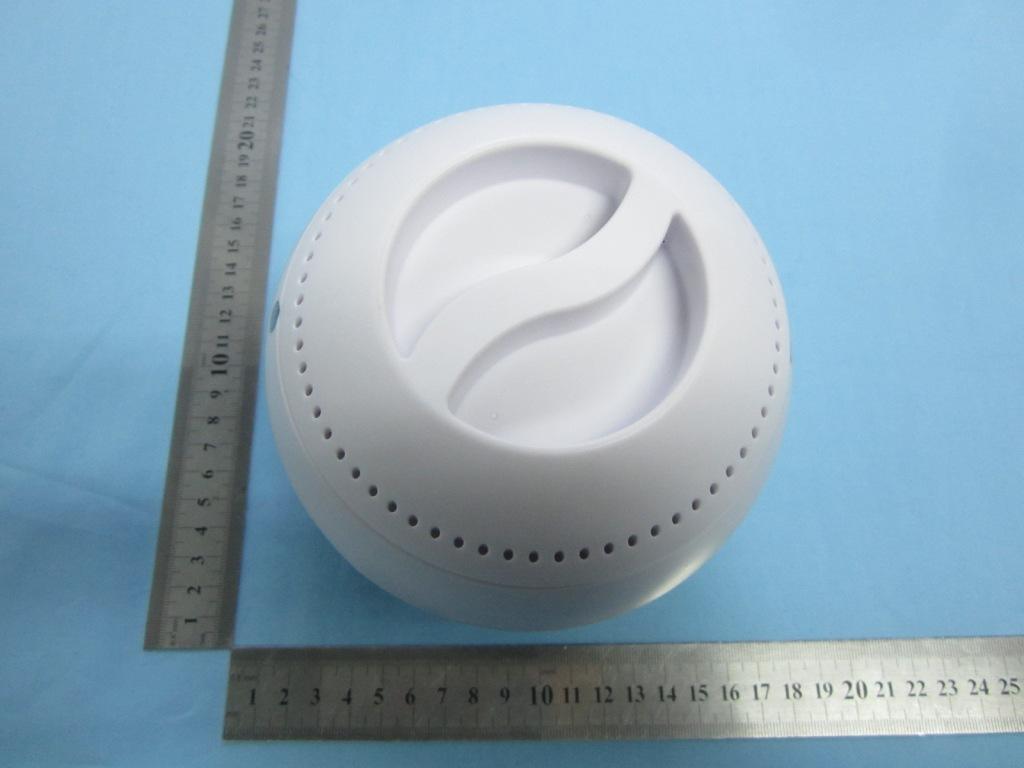

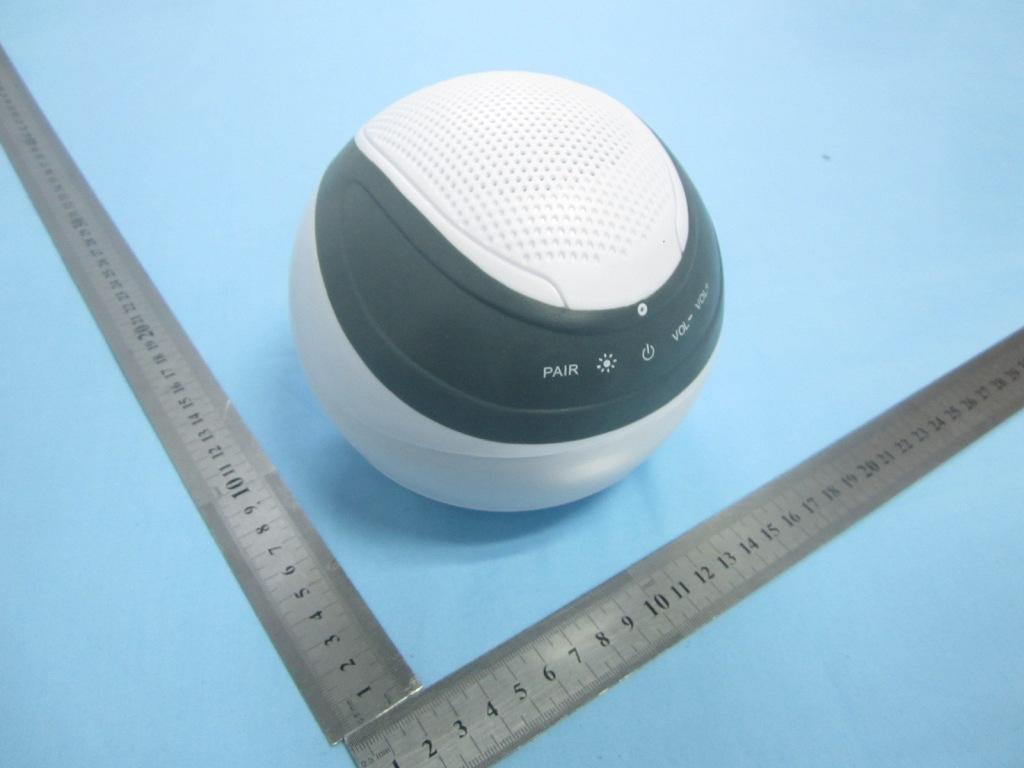

Appendix B Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.: BS0950US Photo of EUT – External EUT Photos Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.: BS0950US Photo of EUT – External EUT Photos Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

Appendix C Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.: BS0950US Photo of EUT – Internal EUT Photos Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.: BS0950US Photo of EUT – Internal EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.: BS0950US Photo of EUT – Internal EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2013-01-17 Report No.: 60.870.12.044.01F Page 1 of 38 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Acoustic Arc international Ltd. Unit 311B, 3/F., IC Development Centre, 6 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Description of Samples:Model name: Bluetooth Waterproof Speaker Brand name: aai Model no.:BS0950US FCCID:VHC-AAI-BS0950-00 Date Samples Received:2012-12-20 Date Tested:2012-12-20 to 2013-01-15 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by: Approved by:- Ray Cheung Project Engineer Wireless & Telecom Department Jeff Pong Operation Manager Wireless & Telecom Department ReportNo.: 60.870.12.044.01F Page 2 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 38 Content Page 2-3 of 38 1.0General Details 1.1Test Laboratory Page 4 of 38 1.2Applicant Details Page 4 of 38 1.3Equipment Under Test [EUT] Page 5 of 38 1.4 Related Submittal(s) Grants Page 5 of 38 2.0Technical Details 2.1Investigations Requested Page 6 of 38 2.2Test Standards and Results Summary Page 6 of 38 3.0Test Methodology 3.1Radiated Emission Page 7 of 38 3.2Field Strength Calculation Page 7 of 38 3.3Conducted Emission Page 7 of 38 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 38 4.2 20dB Bandwidth Measurement Page 9-12of 38 4.3 Hopping Channel Carrier Frequency Separation Page 13 of 38 4.4 Average Time of Occupancy Page 14-26 of 38 4.5 Band Edge Measurement Page 27-28 of 38 4.6 Maximum Output Power Page 29-31 of 38 4.7 Out ofBand Emissionsand Emissions in Restricted Bands Page 32-35 of 38 4.8 Conducted Emission on AC Mains Page 36 of 38 ReportNo.: 60.870.12.044.01F Page 3 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 37 of 38 6.0List of Measurement Equipments Page 38 of 38 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.044.01F Page 4 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co. Ltd 3/, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen. Registration Number: 994117 Tested by: John Zhi 1.2Applicant Details Applicant Acoustic Arc international Ltd. Unit 311B, 3/F., IC Development Centre, 6 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Manufacturer Acoustic Arc international Ltd Unit 311B, 3/F., IC Development Centre, 6 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong ReportNo.: 60.870.12.044.01F Page 5 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Bluetooth Waterproof Speaker Model No.:BS0950US Brand Name: aai FCCID:VHC-AAI-BS0950-00 Rating:9VDC( 6 x “AA” size batteries) Operated Frequency:2402 - 2480 MHz No. of Operated Channel:79 Accessories and Auxiliary Equipments: - Mobile phone Antenna Type:Integral Manufacture of Antenna:Acoustic Arc International Ltd. Antenna Gain:0 dBi Antenna Model:N/A General Operation of EUT The EUT is the BluetoothSpeakerwith Waterproof function. FHSS Operation Principle: This module is controlled by Bluetooth microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 79 hopping channels. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.044.01F Page 6 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.044.01F Page 7 of 38 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by a…

Text truncated - open the document above for the full version.

Appendix A Date: 2013-01-17 Report No.: 60.870.12.044.01F Model No.:BS0950US Photo of Test Setup: Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Radiated Emissions
