VHC-AAI-BS1250-00Bluetooth Speaker

iSplash BLUTOOTH SPEAKER BD-9816B / iSplash Instruction Manual A.INTRODUCTION This Bluetooth wireless speaker system applies the latest BT 3.0 wireless technology platform that enables you to enjoy music, video everywhere you want. B.FEATURES 1. Bluetooth 3.0 Platform 2. Operating distance up to 10 meters / 33 feet (open area) 3. Powered by 6x AA alkaline batteries (not included) 4. IPX 7 Water-proof feature 5. Floating feature 6. Blue mood light C.PACKIANG 1 X Bluetooth speaker 1 X User manual D.COMPONENT IDENTIFICATION 1. Power On/Off Control 2. Power LED Indicator 3. Pair 4. Mood Light 5. Volume + 6. Volume – 7. Batteries door E.PAIRING 1.Press the power button for 3 seconds to turn the speaker on, the Blue LED light will flash quickly. 2.Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media, and make sure it is in searching mode. 3.The Bluetooth speaker will automatically search your Bluetooth device, pair it up when 'BD- 9816B' appears on your Bluetooth device. 4.If no auto pairing connection is made, press the Pair button and hold for 5 seconds until the Blue LED flashes quickly. 1 2 34 5 6 7 5. Select “BD-9816B” in the list shown in the Bluetooth device. 6. Enter “0000” if password is required. 7. When Bluetooth connection is made, the Blue LED will solid. 8. Listen to your music or make. CAUTION: Your speaker will operate best and loudest with no water resting on top of the speaker. Periodically draining the speaker by inverting it will ensure that not too much water remains standing on top of the speaker driver. Turn the speaker over and lightly shake it to let the water drain out quickly for best audio performance and when storing the speaker between uses. When you find the floater with low volume or no volume in the water, it might because the floater fills in with too much water on top of the speaker driver, which prevents the driver from producing sound. Simply open the speaker cover to release the water out. You can use your finger thumb to press the edge of speaker cover (as below figure) and open the cover, pour out the water. After that, close the speaker cover with correct position, the floater will work properly again. “PAIR” F.TECHNICAL SPECIFICATIONS Carrier Frequency : Bluetooth 3.0 Power Requirements: By 6x AA alkaline batteries (not included) Frequency Response: 30Hz – 18KHz Distortion : <0.5% S/N Ratio : 65dB (typical) Operation Distance : Up to 10 meters / 33 feet (open area) Output Power : 5W (Max) NOTES: This speaker is in compliance with the specified Bluetooth version. It does not guarantee compatibility of all functions on every Bluetooth enabled device. Please check with your mobile phone's user manual for compatibility and functionality. G.TROUBLE SHOOTING NO SOUND - The speaker’s battery charge is too low. Replace with the new batteries. - Ensure the speaker is ON. - Ensure Bluetooth device is ON. - The volume of speaker is too low, adjust the volume to an appropriate level. - Unable to connect with Bluetooth device, restart the pairing process. - The speaker may be too far away from the Bluetooth device，move closer to it. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: Clean the speaker with soft, lint - free, dry cloth. Never use detergents or abrasive cleaners to clean. H.FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two con- ditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause un- desired operation. Important: Changes or modifications to this product not authorized and could void the FCC com- pliance and negate your authority to operate the product. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. The Bluetooth word, mark and logo are owned by Bluetooth SIG, Inc. Any and all other trademarks and trade names are those of their respective owners.

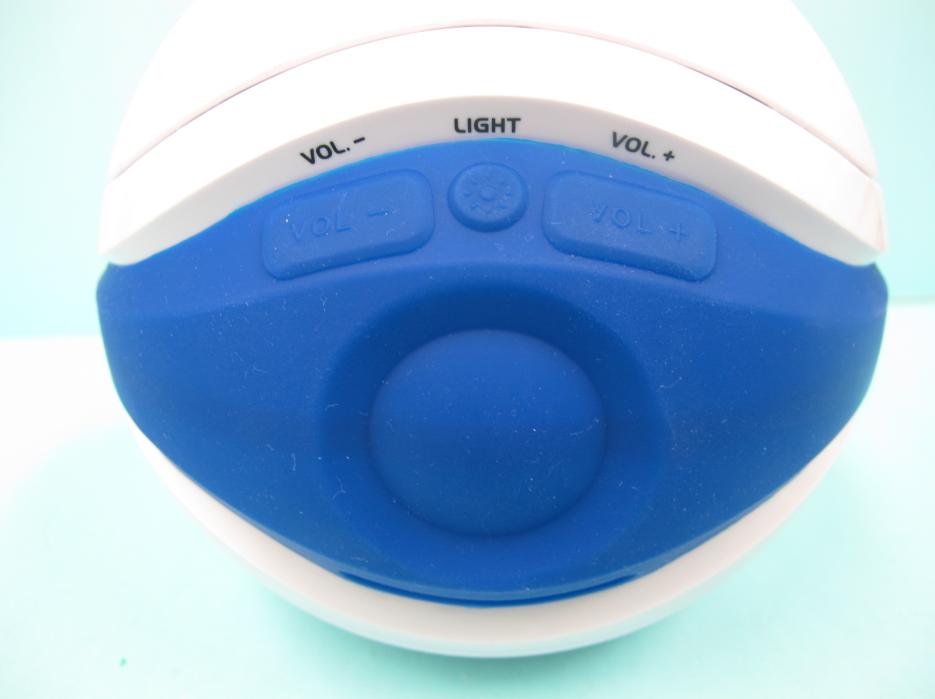

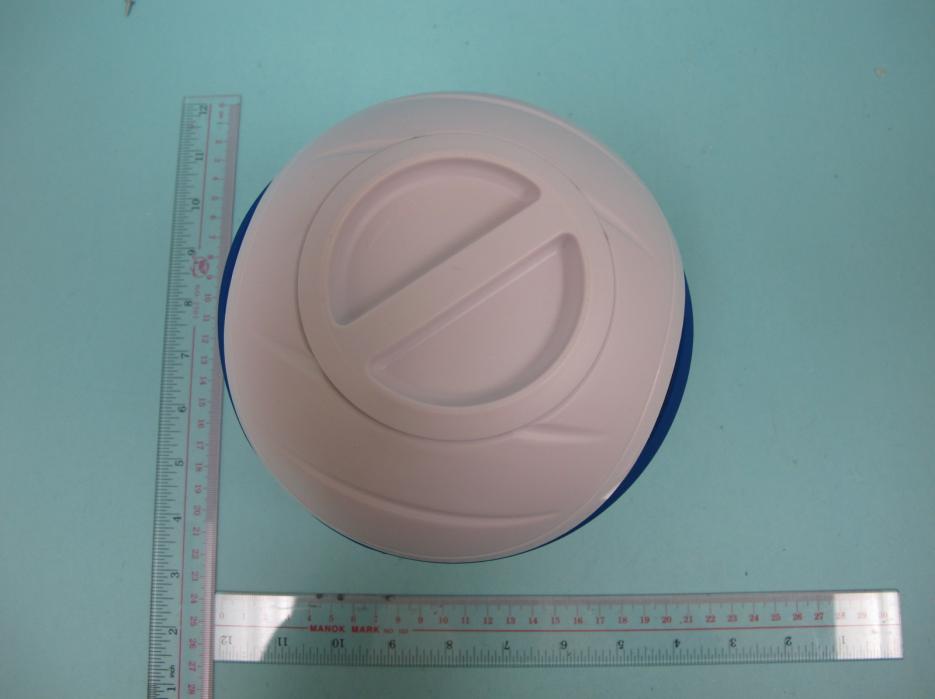

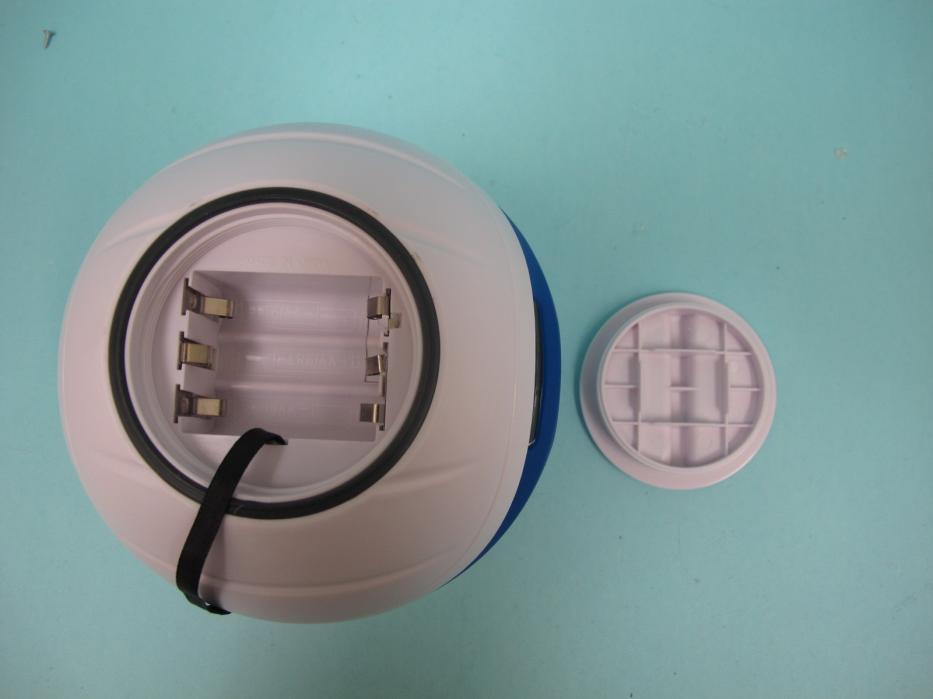

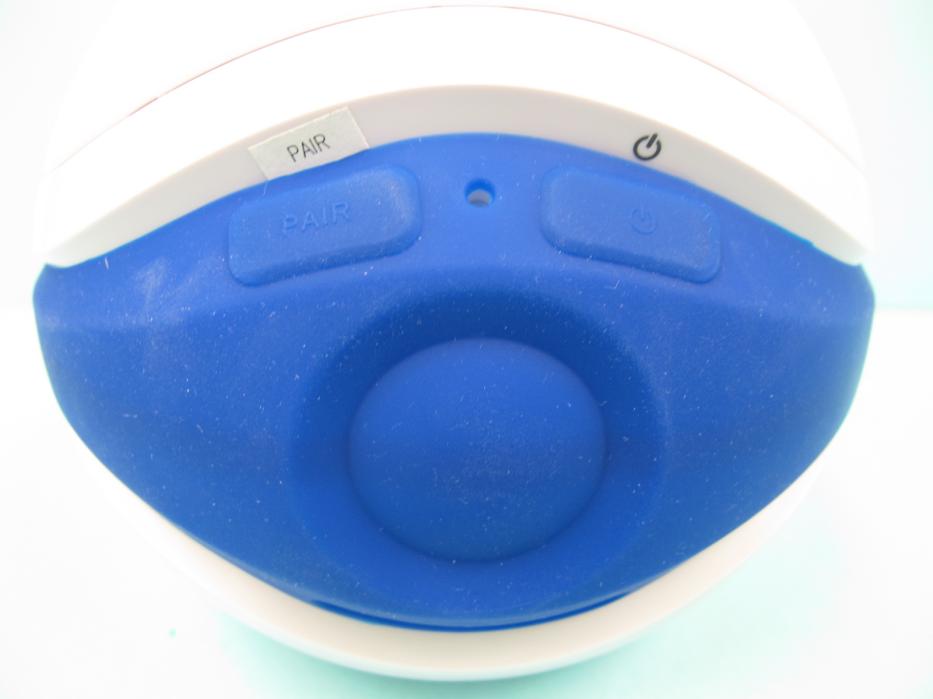

Appendix B Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.: BD-9816B, iSplash Photo of EUT – External EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.: BD-9816B, iSplash Photo of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.: BD-9816B, iSplash Photo of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.: BD-9816B, iSplash Photo of EUT – External EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

FCC ID: VHC-AAI-BS1250-00 iSplash / Bluetooth Speaker. BD-9816B 6 X AA Batteries FCC ID: VHC-AAI-BS1250-00 iSplash Bluetooth Speaker. BD-9816B 6 X AA Batteries 9 . 5 30.2 1 0 . 8 30.8 Printing: Pantone 429C Printing: Pantone 429C BS1250 RATING SILK-SCREEN ARTWORK

FCC ID: VHC-AAI-BS1250-00 iSplash / Bluetooth Speaker. iSplash 6 X AA Batteries FCC ID: VHC-AAI-BS1250-00 iSplash Bluetooth Speaker. iSplash 6 X AA Batteries 9 . 5 30.2 1 0 . 8 30.8 Printing: Pantone 429C Printing: Pantone 429C BS1250 RATING SILK-SCREEN ARTWORK

Appendix C Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.:BD-9816B, iSplash Photo of EUT – Internal EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.:BD-9816B, iSplash Photo of EUT – Internal EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.:BD-9816B, iSplash Photo of EUT – Internal EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.:BD-9816B, iSplash Photo of EUT – Internal EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2012-12-19 Report No.: 60.870.12.041.01F Page 1 of 40 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant:Eric Beare Associates Ltd. Unit 1202-1204, New Kowloon Plaza, 38 Tai Kok Tsui Road, Kowloon, Hong Kong Description of Samples:Model name: iSplash/ Bluetooth Speaker Brand name: --- Model no.:BD-9816B, iSplash FCCID:VHC-AAI-BS1250-00 Date Samples Received:2012-11-26 Date Tested:2012-12-05 to 2012-12-17 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray Cheung Project Engineer Wireless & Telecom Department Jeff Pong Operation Manager Wireless & Telecom Department ReportNo.: 60.870.12.042.01F Page 2 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 40 Content Page 2-3 of 40 1.0General Details 1.1Test Laboratory Page 4 of 40 1.2Applicant Details Page 4 of 40 1.3Equipment Under Test [EUT] Page 5 of 40 1.4 Related Submittal(s) Grants Page 5 of 40 2.0Technical Details 2.1Investigations Requested Page 6 of 40 2.2Test Standards and Results Summary Page 6 of 40 3.0Test Methodology 3.1Radiated Emission Page 7 of 40 3.2Field Strength Calculation Page 7 of 40 3.3Conducted Emission Page 7 of 40 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 40 4.2 20dB Bandwidth Measurement Page 9-12of 40 4.3 Hopping Channel Carrier Frequency Separation Page 13 of 40 4.4 Average Time of Occupancy Page 14-26 of 40 4.5 Band Edge Measurement Page 27-29 of 40 4.6 Maximum Output Power Page 30-32 of 40 4.7 Out ofBand Emissionsand Emissions in Restricted Bands Page 33-37 of 40 4.8 Conducted Emission on AC Mains Page 38 of 40 ReportNo.: 60.870.12.042.01F Page 3 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 39 of 40 6.0List of Measurement Equipments Page 40 of 40 Appendix A Photosof Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.042.01F Page 4 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co. Ltd 3/, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen. Registration Number: 994117 Tested by: John Zhi 1.2Applicant Details Applicant Eric Beare Associates Ltd. Unit 1202-1204, New Kowloon Plaza, 38 Tai Kok Tsui Road, Kowloon, Hong Kong Manufacturer Acoustic Arc international Ltd Unit 311B, 3/F., IC Development Centre, 6 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong ReportNo.: 60.870.12.042.01F Page 5 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test[EUT] Description of EUT Product Description:iSplash/ Bluetooth Speaker Model No.:BD-9816B, iSplash Brand Name: aai FCCID:VHC-AAI-BS1250-00 Rating:9VDC( 6 x “AA” size batteries) Operated Frequency:2402 - 2480 MHz No. of Operated Channel:79 Accessories and Auxiliary Equipments: - iPhone - AC/DC power adaptor Antenna Type:Integral Manufacture of Antenna:Acoustic Arc International Ltd. Antenna Gain:0 dBi Antenna Model:N/A General Operation of EUT The EUT is the BluetoothSpeaker. As per Client Declaration, the circuit design, PCB Layout, shielding and interface of BD-9816B and iSplash are identical. So we use BD-9816B as a representative model to perform all testing FHSS Operation Principle: This module is controlled byBluetoothmicrochip to generate Pseudorandom Frequency Hopping Sequence, this module support 79 hopping channels. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.042.01F Page 6 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.042.01F Page 7 of 40 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following page…

Text truncated - open the document above for the full version.

Appendix A Date: 2012-12-19 Report No.: 60.870.12.041.01F Model No.:BD-8916B, iSplash Photo of Test Setup: Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Radiated Emissions
