Solar Power Bluetooth Car Kit BT0820 Solar Powere Bluetooth Car Kit BT0820 OPERATIONAL MANUAL TABLE OF CONTENTS INTRODUCTION Included in the Package PRODUCT DIAGRAM OPERATION Installation Charging the BT 0820 Low Battery Power On/Off Pairing Dialing a Call Receiving a Call Volume Control Auto Reconnect Auto Shut-Off Pairing Memory IMPORTANT INFORMATION Precautions Warnings Important Safety Information FCC Statement 1 1 2 3 3 3 4 4 4 5 5 5 5 5 5 6 6 6 7 7 INTRODUCTION Thank you for purchasing the AAi BT0820 Solar Hands-free Bluetooth Car Kit. Please read this manual carefully to familarize yourself with its many features and to ensure years of reliable operation. The BT0820 is a wireless, solar powered, hands-free device that uses Bluetooth technology that supports hands-free Bluetooth profiles. It can be powered by the sun (solar), by the USB cable (included) or by the car charger (included) so you can charge it however or wherever you need to. The BT0820 features two internal batteries with a patented auto switch mechanism that allows one battery to charge while the second battery is in use. When one battery runs low, it will automatically switch to the charged one. This will provide longer conversation time and less charging time. INCLUDED IN THE PACKAGE: BT 0820 Solar Bluetooth Car Kit User Manual Car Charger USB Cable for Charging Suction Cups Windshield Mount 1 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 8 1 1 1 1 1 2 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. If you have questions please feel free to our website : http://www.acousticarc.com PRODUCT DIAGRAM FRONTBACK 1 Talk/On/Off Button6Solar Panel 2Speaker7Suction cups 3Microphone8Windshield Mount 4Volume Down Button 5Volume Up Button SIDEBOTTOM 9Charge Status Indicator11 USB Port 10On/Off Indicator 1 2 4 3 5 6 7 8 9 10 11 27 manner in which drivers may mount devices to their windshields. Consult your local laws to determine whether any of the previous regulations mentioned apply to you. IMPORTANT SAFETY INFORMATION Permanent hearing loss may occur if you continually use your device at a high volume, so set the volume to a safe level. Over time you can become accustomed to a higher volume that may sound normal but can be damaging to your hearing. If you experience ringing in your ears or muffled speech, stop the use of your device and have your hearing checked. Hearing experts suggest the following to protect your hearing: Limit the amount of time you use the device at high volume. Avoid turning up the volume to block out noisy background sounds. Turn the volume down if you can’t hear people speaking near you. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. Federal Communication Commission Interference driver’s view of the road. OPERATION INSTALLATION: For the best performance, we suggest the AAi BT0820 be installed in the middle of the far left-hand side of the windshield in front of the drivers seat. Make sure it does not obstruct the CHARGING THE BT0820: Warning: Do not use any chargers other than what is included in this package to charge your BT0820. Doing so will damage the unit and void your warranty. Using the Car Charger: 1.Open the cover of the USB port on the BT0820. 2.Plug the car charger into the DC outlet in your car. 3.Use the USB cable to connect the car charger to the BT0820 port. 4.A red LED light will illuminate indicating the unit is charging. 5.When the charge is complete (about 4 hours), the red LED light will turn off. Using the USB Cable: 1.Open the cover of the USB port on the BT0820. 2.Plug the USB cable into the USB port of your PC. 3.Connect the other end of the USB cable to the BT0820 port. 4.A red LED light will illuminate indicating the unit is charging. 5.When the charge is complete (about 4 hours), the red LED light will turn off. Using Solar Power: 1.Direct the solar panel on the back of the BT0820 toward the sun. 3 IMPORTANT INFORMATION PRECAUTIONS: 1.Avoid dropping the device. 2.Do not attempt to modify or repair the device yourself. Doing so may da…

Text truncated - open the document above for the full version.

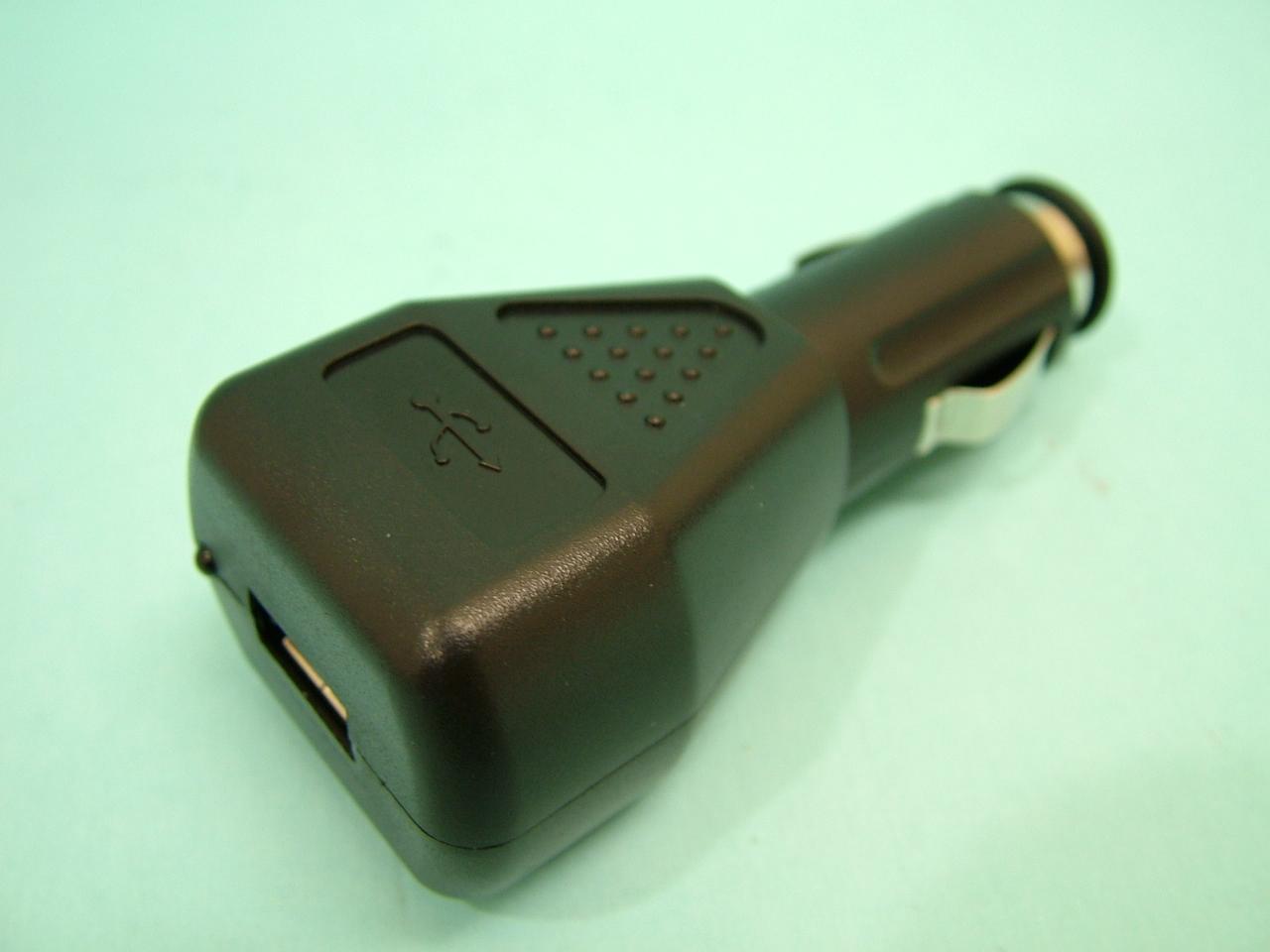

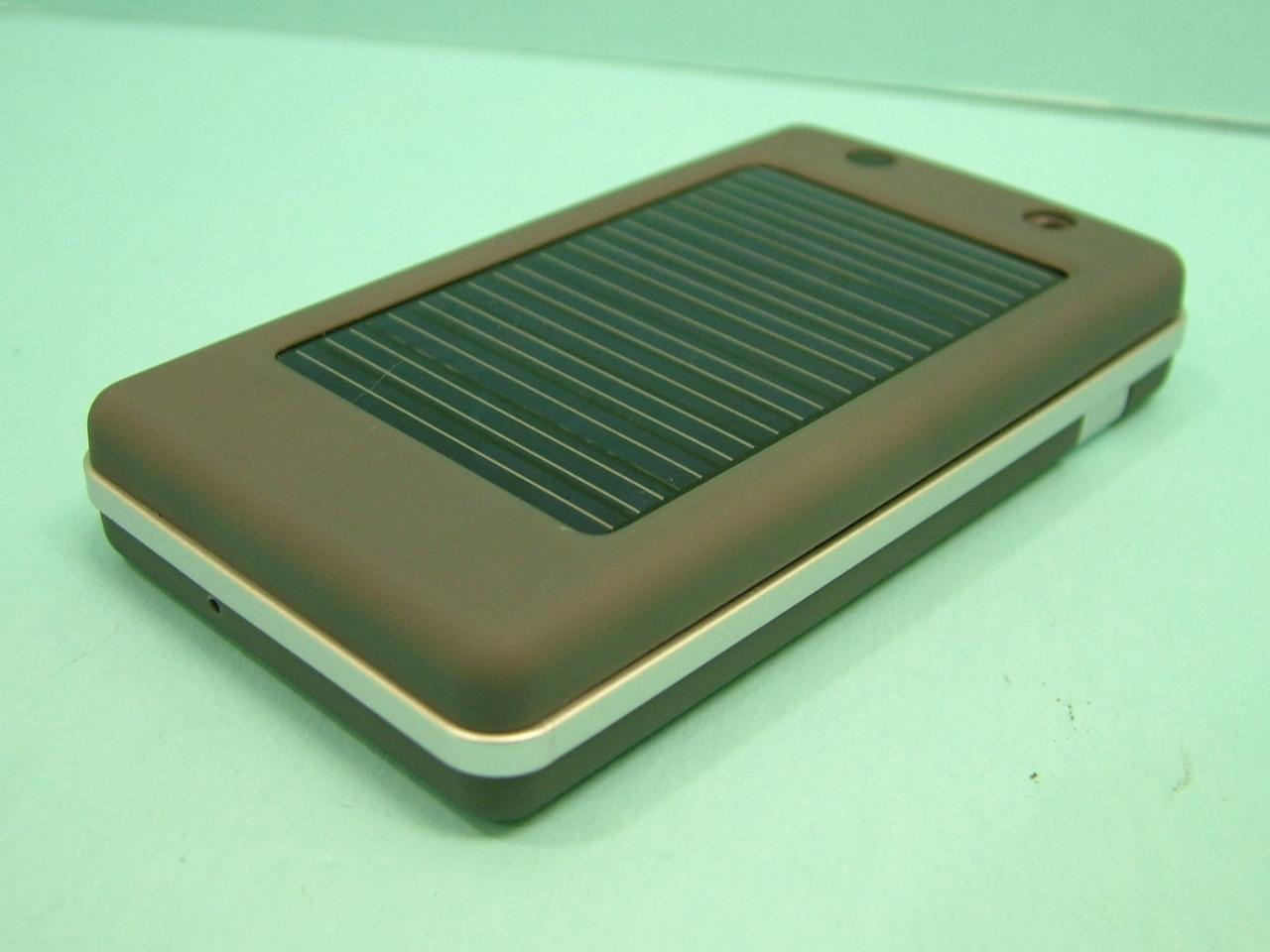

Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2009-12-18 Test report no.: 60.870.9.016.01F Model no.: BT0820 Photos of EUT – External EUT Photos Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Accessories _ Car Charger

Page 1 of 8 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2009-12-18 Test report no.: 60.870.9.016.01F Model no.: BT0820 Photos of EUT – Internal EUT Photos Page 2 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Page 3 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Page 4 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Page 5 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Page 6 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820 Page 7 of 7 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.9.016.01F Model no.: BT0820

Date: 2009-12-18TEST REPORT No.: 60.870.9.016.01F Page 1 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Applicant: Acoustic Arc International Ltd. Unit 207, 2/F, Photonics Centre, No.2, Science Park East Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong. Description of Samples: Model name: Solar Power Bluetooth Car Kit Brand name: aai Model no.:BT0820, BT-500 FCCID:VHC-AAI-BT0820-00 Date Samples Received: 2009-11-19 Date Tested: 2009-12-02 to 2009-12-16 Investigation Requested: FCC Part 15 Subpart C, Section 15.249 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Checked by:Approved by:- Prudence PoonVictor Kwan Project ManagerManager Telecom departmentTelecom department Page 2 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. CONTENT: Cover Page 1 of 22 Content Page 2 of 22 1.0 General Details 1.1Test Laboratory Page 3 of 22 1.2Applicant Details Page 3 of 22 1.3Equipment Under Test [EUT] Page 4 of 22 1.4 Equipment Modification Page 4 of 22 1.5 Related Submittal(s) Grants Page 4 of 22 2.0 Technical Details 2.1Investigations Requested Page 5 of 22 2.2Test Standards and Results Summary Page 5 of 22 3.0 Test Methodology 3.1Radiated Emission Page 6 of 22 3.2Field Strength Calculation Page 6 of 22 3.3Conducted Emission Page 6 of 22 4.0 Test Results 4.1Field Strength of Fundamental and Harmonics Page 7-9 of 22 4.2Spurious Radiated Emission Page 10-13 of 22 4.3Out of Band Emissions Page 14-15 of 22 4.4Bandwidth Measurement Page 16-18 of 22 4.5Conducted Emission Page 19 of 21 5.0 List of Measurement Equipments Page 22 of 22 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Page 3 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.0 General Details 1.1 Test Laboratory EMC Laboratory registered by FCC with FCC Registration Number: 607756 1.2 Applicant Details Applicant Acoustic Arc International Ltd. Unit 207, 2/F, Photonics Centre, No.2, Science Park East Avenue, Hong Kong Science Park, Shatin N.T. Hong Kong. Manufacturer Acoustic Arc International Ltd. Unit 207, 2/F, Photonics Centre, No.2, Science Park East Avenue, Hong Kong Science Park, Shatin N.T. Hong Kong. Page 4 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 1.3 Equipment Under Test [EUT] Description of EUT Model Name:Solar Power Bluetooth Car Kit Brand Name: Nil Model Number: BT0820, BT-500 FCCID:VHC-AAI-BT0820-00 Rating:5Vdc Antenna Type:Integral Operated Frequency:2402 - 2480MHz No. of Channel:79 Accessories and Auxiliary Equipment:Cigarette car power charger EUT Exercising Software:None As per Client Declaration, circuit design, PCB Layout, shielding and interface of BT0820 and BT- 500 are identical, only the cosmetic is different. So, BT0820 is selected to be a representative model to perform all testing. General Operation of EUT The Equipment Under Test (EUT) is a solar wireless speaker operated at 2400 – 2483.5MHz. It can be powered by the sun (solar), by the USB cable or by the car charger. The USB port of EUT is only for internal battery charging purpose, it cannot be communicated with computer. The BT0820 is a wireless, solar powered, hands-free device that uses Bluetooth technology to support the hands-free Bluetooth profiles. Frequency Table (MHz) 2402.02403.02404.02405.02406.02407.02408.0 2409.02410.02411.02412.02413.02414.02415.0 2416.02417.02418.02419.02420.02421.02422.0 2423.02424.02425.02426.02427.02428.02429.0 2430.02431.02432.02432.02433.02434.02435.0 2437.02438.02439.02440.02441.02442.02443.0 2444.02445.02446.02447.02448.02449.02450.0 2451.02452.02453.02454.02455.02456.02457.0 2458.02459.02460.02461.02462.02463.02464.0 2465.02466.02467.02468.02469.02470.02471.0 2472.02473.02474.02475.02476.02477.02478.0 2479.02480.0 1.4Equipment Modification No modification was made to the tested unit by TÜV SÜD Hong Kong Ltd. 1.5Related Submittal(s) Grants This is a single application of certification for this transmitter. Page 5 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4: 2003 for FCC Verification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionFCC Test RequirementTest Result PassFailedN/A Field Strength of Fundamental and Harmonics Part 15.249 (a),(e) Spurious Radiated Emission Part 15.249 (d) Part 15.209 Part 15.205 Out of Band Emissions Part 15.249 (d) Bandwidth Measurement Part 15.215 (c) Conducted Emission Part 15.207 Note: N/A - Not Applicable Page 6 of 22 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. 3.0 Test Methodology 3.1 Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On a standard emission test site with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 607756. 3.2 Field Strength Calculation The field stren…

Text truncated - open the document above for the full version.

Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Date: 2009-12-18 Test report no.: 60.870.9.016.01F Model no.: BT0820 Photo of Test Setup – Radiated Emission Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Date: 2009-12-18 Test report no.: 60.870.9.016.01F Model no.: BT0820 Photo of Test Setup – Conducted Emission
