Instruction Manual MODEL: BT1130CUS/ BT1140CUS Bluetooth Speaker This Bluetooth wireless speaker system applies the latest BT 2.1 wireless technology platform that enables you to enjoy music, video and cell phone handsfree calling everywhere you want. 1. Power On/O Control 2. Battery Check / Bluetooth Pair Button 3. Power LED Indicators 4. Battery charging LED Indicator 5. 3.5mm Audio input jack 6. Micro USB charge input jack 7. Telephone call button 8. Volume + 9. Volume – 10. USB Charging out jack(to external portable devices) 11. Microphone 12. Speaker 13. Passive Woofer (located on back panel of unit) 1. Bluetooth stereo speaker 2. USB to Micro USB charging cable 3. 3.5mm to 3.5mm audio cable INTRODUCTION C. COMPONENT IDENTIFICATION A. PACKAGING 1. Bluetooth 2.1 Platform 2. A2DP prole 3. Handsfree telephone calling 4. Stereo music 5. Battery status checking 6. Operating distance up to 10 meters / 33 feet (open area) 7. Charging external cell phones or other electronic devices 8. Operation time up to 18 hours (medium volume level) 1 B. FEATURES 2 1. If there is an incoming call when streaming music on the speaker, the music will be muted and ring tone will be heard. 2. Take your call by pressing the talk button. Press once again when ending the call. Music will resume again automatically. 3. To make a call, simply dial your cell phone and talk to the speaker. Note: Check the instruction manual for your cell phones, if getting any process dierent from the above. 1. Connect the speaker to your audio device directly with the 3.5mm cable provided. 2. The Bluetooth wireless music will be by pass after line-in connection is made. 1. Make sure the speaker is On. 2. Enable your Bluetooth device such as cell phones, tablets or other BT media, and make sure it is in searching mode. 3. Press the Pair/Battery Check button and hold for 5 seconds until the 4 LEDs ash. 4. Select “BeatsBar” in the list shown in the Bluetooth device. 5. Enter “0000” if password is required. 6. When Bluetooth connection is made, the rst LED will ash slowly. 7. Listen to your music or make/receive your telephone call on the speaker. 1. Make sure the speaker is fully charge before initial use. 2. Connect speaker with your PC by the supplied USB to Micro USB cable for charging. 3. Charging is workable to connect with other power adapter with USB jack at 5V 1A specications. 4. The charging LED will illuminate in Red when charging . Charging is nished when LED turns Green. F. TELEPHONE CALL G. LINE-IN D. PAIRING E. CHARGING 3 4 Carrier Frequency : Bluetooth 2.1 Battery Capacity : 3.7V 1500mA Frequency Response : 20Hz – 20KHz Distortion : <0.5% S/N Ratio : 65dB (typical) Channel Separation : 50dB (Typical) Operation Distance : Up to 10 meters / 33 feet (open area) Output Power : 2 x 1.5W (Max) NOTES: This speaker is in compliance with the specied Bluetooth version. It does not guarantee compatibility of all functions on every Bluetooth enabled device. Please check with your mobile phone's user manual for compatibility and functionality. J. TECHNICAL SPECIFICATIONS 1. The speaker is designed with a smart battery check feature, so that user knows clearly the battery status of the battery. 2. Press the battery check button and note the battery status. a/ 4x LED light up = approx. 100% full b/ 3x LED light up = approx. 75% c/ 2x LED light up = approx. 50% d/ 1x LED light up = approx. 25% (charging is needed) H. BATTERY CHECK 1. The speaker has a charging output feature to support your portable devices with back-up power supply. 2. Connect your portable devices charging cable to the USB jack on the speaker. *The speaker is designed for charging portable devices with charging current lower than 1A. Charging tablets or other high power portable devices are not recommended. I. CHARGING OUTPUT 56 NO SOUND - Ensure the speaker is charged and with enough power for operation - Ensure the speaker is ON. - Ensure BT device is ON. - The volume of speaker is too low, adjust the volume to an appropriate level. - Unable to connect with Bluetooth device, RESET the speaker by pressing and holding the Pair/Battery Check button for 12 seconds. WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: Clean the speaker with soft, lint - free, dry cloth. Never use detergents or abrasive cleaners to clean. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2)this device must accept any interference received, including interference that may cause undesired operation. Important: Changes or modifications to this product not authorized and could void the FCC compliance and negate your authority to operate the product. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit differen…

Text truncated - open the document above for the full version.

Model difference Letter We， declare that the two models BT1130CUS and BT1140CUS are electrical identical, except BT1130CUS with integral dipole antenna，but BT1140CUS with integral PCB antenna。 Photo of integral PCB antenna： Photo of integral dipole antenna

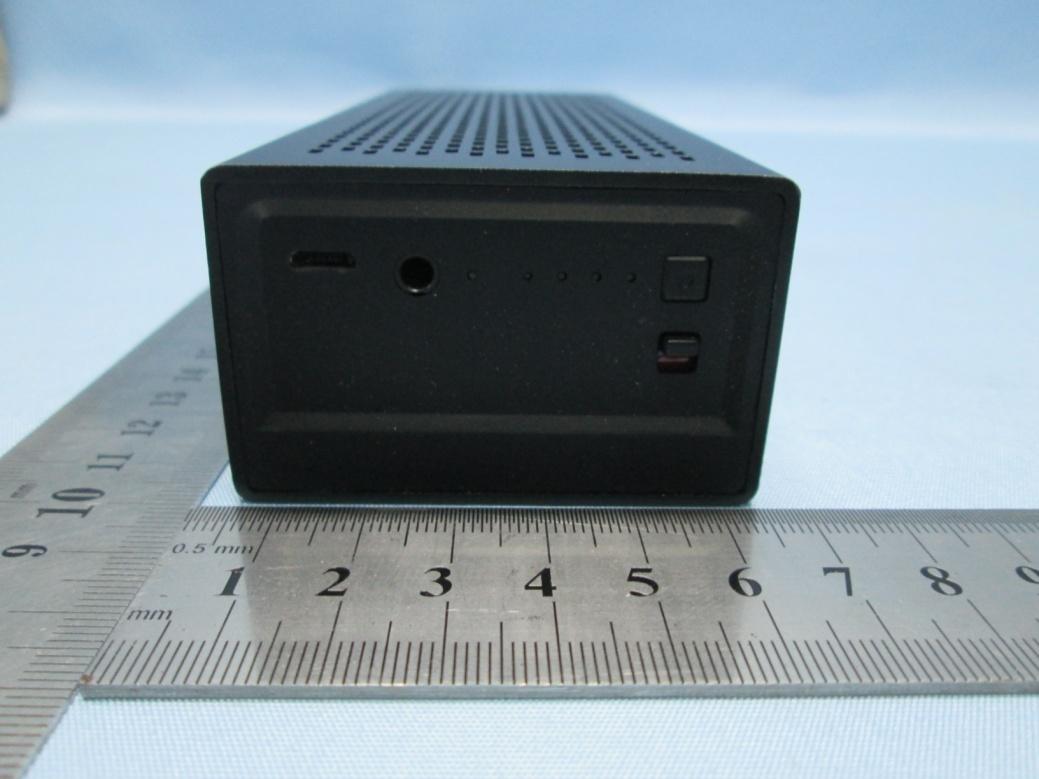

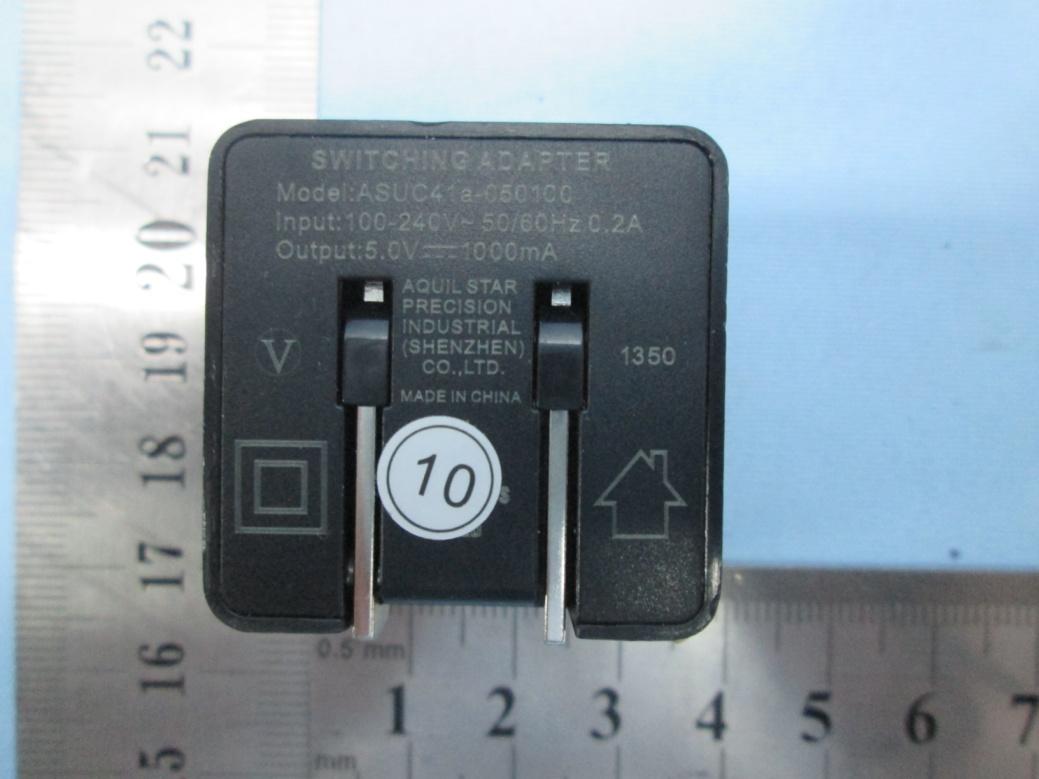

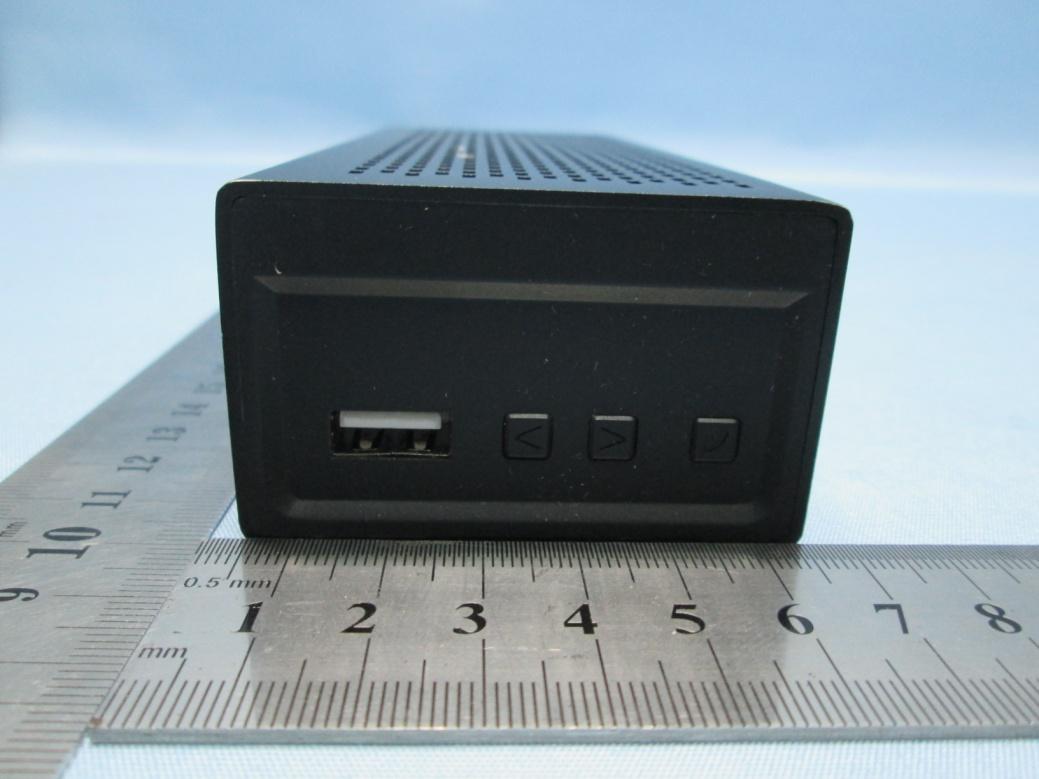

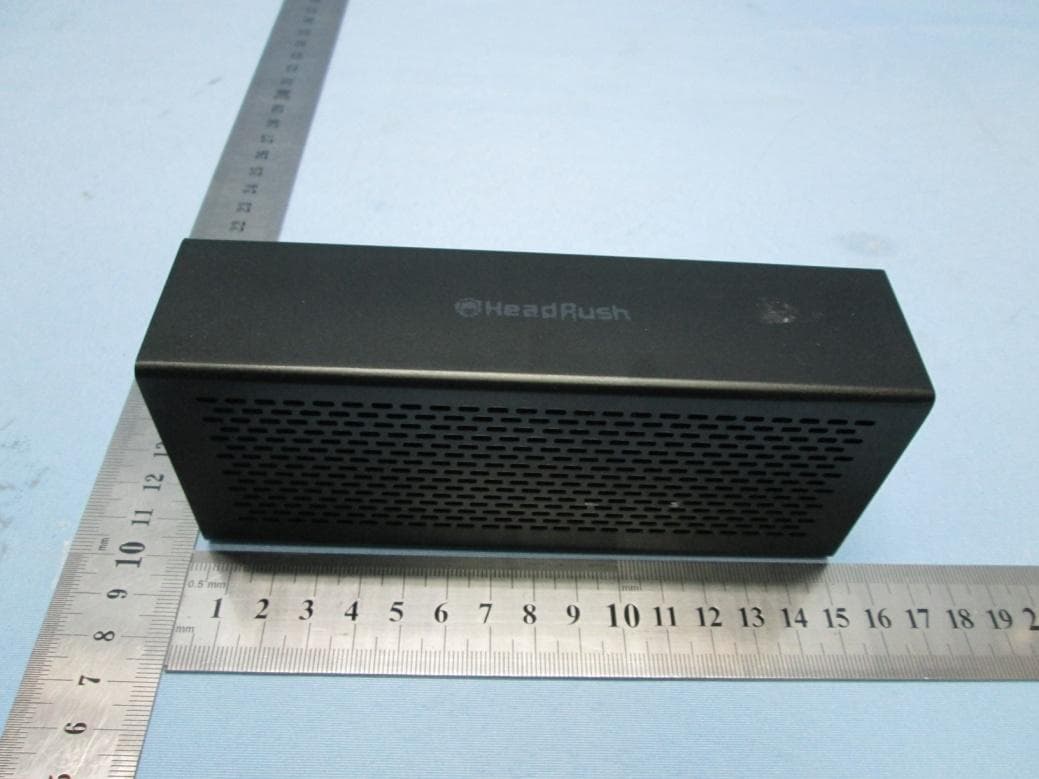

EUT photo -details- Figure 1 EUT External Photo Figure 2 EUT External Photo Figure 3 EUT External Photo Figure 4 EUT External Photo Figure 5 EUT External Photo (Adapter 1#) Figure 6 EUT External Photo (Adapter 2#)

SCALE 11 UNIT MM BT1140CUS FCC RATING ARTWORK Bottom view . 30.0 98.0 AI-BT1130C-0 Bluetooth Speaker Model No.: BT1140CUS I Input:5V 1A FCC ID: VHC-A Made in China This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Manufacture : Acoustic Arc International Ltd. AI-BT1130C-0 Bluetooth Speaker Model No.: BT1140CUS I Input:5V 1A FCC ID: VHC-A Made in China This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Manufacture : Acoustic Arc International Ltd.

TOP VIEW SCALE 11 UNIT MM BT1130CUS HEADRUSH LOGO SILK-SCREEN ARTWORK (Black) Aluminum housing version BT1130CUS FCCRATING LABEL ARTWORK Bottom view 96.0 30.0 Rating label size: 110x32mm Material: 80g art paper Printing: black background, white font, matte film, back glue Unit: mm Scale 1:1 Emboss button key Inject Pantone 432C Emboss button key Inject Pantone 432C “R”side panel inject Black color “L”side panel inject Black color Aluminum Sleeve Black color PRINTING PANTONE 432C 10.0 24.3 Bluetooth Speaker Model No.: BT1130CUS Input:5V 1A Power output: 1.5W X 2 Power bank output: 5V 1A Manufacture : Acoustic Arc International Ltd. Made in China This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:VHC-AAI-BT1130C-0 Bluetooth Speaker Model No.: BT1130CUS Input:5V 1A Power output: 1.5W X 2 Power bank output: 5V 1A Manufacture : Acoustic Arc International Ltd. Made in China This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:VHC-AAI-BT1130C-0

EUT photo -details- Figure 1 EUT Internal Photo Figure 2 EUT Internal Photo Figure 3 EUT Internal Photo Figure 4 EUT Internal Photo Figure 5 EUT Internal Photo Figure 6 EUT Internal Photo Figure 7 EUT Internal Photo (for model BT1140CUS) Figure 8 EUT Internal Photo (for model BT1140CUS) Figure 9 EUT Internal Photo (for model BT1130CUS) Figure 10 EUT Internal Photo (for model BT1130CUS)

RF Exposure evaluation According to KDB 447498 D01 General RF Exposure Guidance v05r02 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz 6.00dBm( 3.981mW) output power] ( 3.981mW /5mm) ·[√2.402(GHz)]= 1.23 <3.0 for 1-g SAR Then SAR evaluation is not required

Acoustic Arc International Ltd. Page 1 of 98 FCC ID: VHC-AAI-BT1130C-0 Reference No.: 249785 FCC Test Report FCC EVALUATION REPORT FOR CERTIFICATION Project Reference No. 249785 Product Bluetooth Speaker Brand Name Model BT1130CUS Alternate Model BT1140CUS (The two models are electrical identical, except BT1130CUS with integral dipole antenna，but BT1140CUS with integral PCB antenna) Tested according to FCC Rules and Regulations Part 15 Subpart C 2013 15.247, ANSI C63.4-2009 Tested in period 2013.02.20 to 2013.03.06 Issued date 2014.03.07 Name and address of the Test House Nemko Shanghai Ltd. Shenzhen Branch Unit CD, Floor 10, Tower 2, Kefa Road 8#, Hi-Technology Park, Nanshan District, Shenzhen, China Phone : +86 755 8221 0420 Fax : +86 755 8221 3363 Tested by 2014/03/07 Zone Peng date Verified by 2014/03/07 Daria Liu date This form is only for use by Nemko, or by others according to special agreement with Nemko. The report may be reproduced infull. Partial reproduction may only be made with the written content of Nemko Shanghai. This report applies only to the sample(s) tested. It is the manufacturer’s responsibility to assure the additional production units of this product are manufactured with identical electrical and mechanical components. Acoustic Arc International Ltd. Page 2 of 98 FCC ID: VHC-AAI-BT1130C-0 Reference No.: 249785 Contents of This Report 1. Client Information ............................................................................................................................... 5 1.1 Applicant .................................................................................................................................... 5 1.2 Manufacturer .............................................................................................................................. 5 1.3 Scope ......................................................................................................................................... 5 2. Equipment under Test (EUT) .............................................................................................................. 6 2.1 Identification of EUT .................................................................................................................. 6 2.2 Detail spec: ................................................................................................................................ 6 2.3 Additional Information Related to Testing .................................................................................. 7 3. General Test Conditions ...................................................................................................................... 7 3.1 Location ..................................................................................................................................... 7 3.2 Operating Environment .............................................................................................................. 7 3.3 Operating During Test ................................................................................................................ 7 3.4 Test Equipment .......................................................................................................................... 7 4. Measurement Uncertainty ................................................................................................................... 8 5. Radiated Electromagnetic Disturbances ............................................................................................. 9 5.1 Test Procedure ........................................................................................................................... 9 5.2 Measurement Equipment ........................................................................................................... 9 5.3 Test Result ................................................................................................................................. 9 5.3.1 Diagram 5-1 ................................................................................................................................. 12 5.3.2 Diagram 5-2 ................................................................................................................................. 13 5.3.3 Diagram 5-3 ................................................................................................................................. 14 5.3.4 Diagram 5-4 ................................................................................................................................. 15 5.3.5 Diagram 5-5 ................................................................................................................................. 16 5.3.6 Diagram 5-6 ................................................................................................................................. 17 5.3.8 Diagram 5-8 ................................................................................................................................. 19 5.3.9 Diagram 5-9 ................................................................................................................................. 20 5.3.10 Diagram 5-10 ............................................................................................................................. 21 5.3.11 Diagram 5-11 .............................................................................................................................. 22 5.3.12 Diagram 5-12 ............................................................................................................................. 23 5.3.13 Diagram 5-13 ............................................................................................................................. 24 5.3.14 Diagram 5-14 ............................................................................................................................. 25 5.3.15 Diagram 5-15 ...................................................…

Text truncated - open the document above for the full version.

EUT setup photo- Figure 1 Conducted emission Figure 2 Radiated emission Figure 3 Radiated emission
