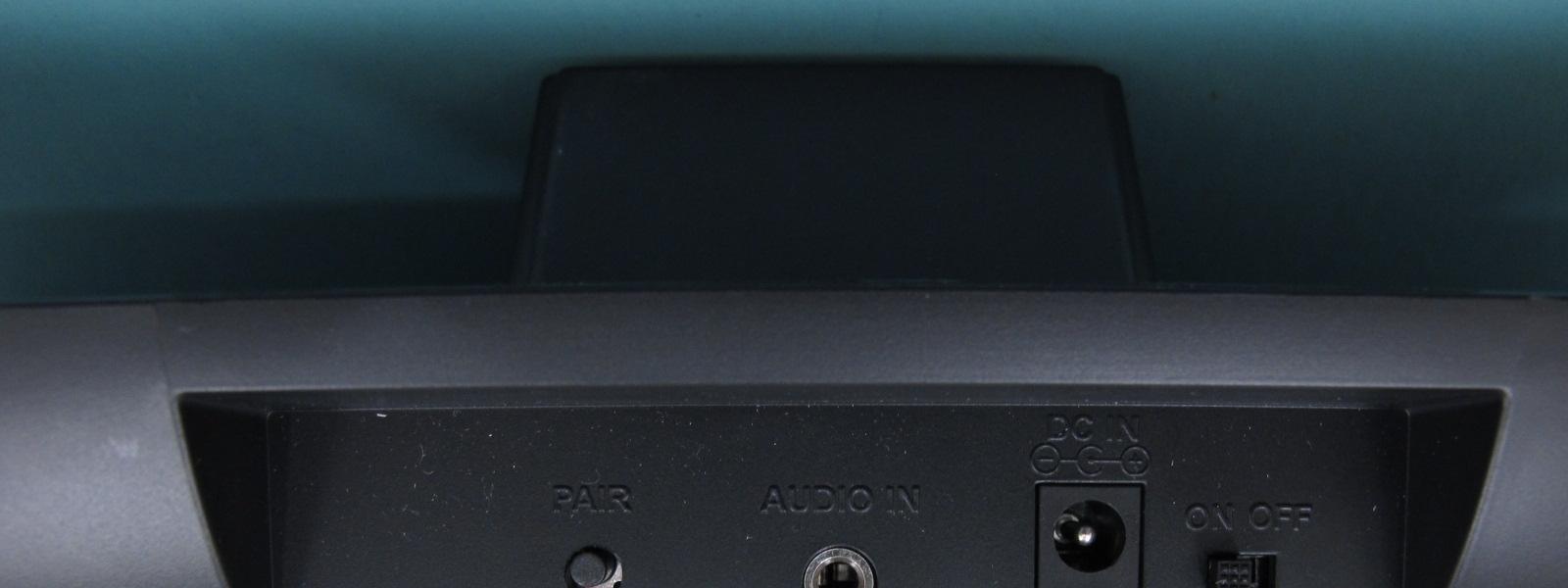

2.4GHz Wireless Stereo Speaker System User's Manual Please read before using the equipment P.2 INTRODUCTION This stereo wireless speaker system applies the latest 2.4GHz wireless technology that enables you to enjoy music and TV sound anywhere inside your home. You can simply connect the transmitter with any audio source such as iPod, iPhone, TV, DVD, Hi-Fi and CD/MP3 player. FEATURES 1.2.4GHz digital RF technology 2.Auto Paring System on speakers 3.Stereo Effect on Speakers 4.Auto Pin Charging System for speaker. 5.30 pin docking station for iPhone/iPod 6.. Auto 30 pin Charging System for iPhone/iPod. 7.Built-in Rechargeable Battery Pack 8.Operating distance up to 50 meters. 9.No line of sight limitation. 10.Auto ON/OFF control on Transmitter P.3 TRANSMITTER 1.Connect the supplied AC power adapter to an electrical wall outlet. 2.Plug the AC power adapter in the DC jack located on the rear of the transmitter. 3.The rear of the transmitter has one audio jack that can be connected to audio output jack of TV, iPod, iPhone, DVD, and CD/MP3 players or to headphone/earphone jack with the connector provided. 4.The transmitter has one 30 pins dock connecting socket for iPhone/iPod. Plug the iPhone/iPod to the socket for audio output and charging. Power/Signal Indicator (Green/Blue) 30 pin dock connecting socket P.4 When the power adapter connection is finished, the LED of transmitter will light up in Green. When the audio cable connection is finished or the iPhone/iPod is plugged to the 30 pins dock connecting socket, turn on the audio source and the LED will turn from Green to Blue. SPEAKERS 1. Charge the speakers by placing them on the transmitter station for 12 hours before initial use. Alternatively, the built-in rechargeable battery pack can be replaced by 8 x “AAA” size ALKALINE batteries. 2. Switch the Power button and turn the speakers ON. The Power/Standby LED will light up in Blue. OPERATION 1.Connect the power adapter between wall jack and transmitter. The LED will turn to Green. 2.Turn on the audio source (TV or audio component) to which the transmitter isconnected with. The LED will turn from Green to Blue. 3. Turn on the transmitter by switching the ON/OFF button on the rear of transmitter. P.5 4.Turn on the Power button on the speaker and adjust the volume by tuning the volume button for desired listening level. 5.You should now be able to place the speakers freely from room to room without disruption. 6.When the battery is low, the light on the speaker will blink and there is a “du du” sound notification to alert the user to charge the speaker. 7.If no music is detected from speakers, a paring process is required. Paring is not necessary if the system works properly. Paring 1.Press “Pair” button for 3 seconds on transmitter, the paring process will continue and LED will flash for about 15 seconds. 2.Press “Pair” button for 3 seconds on speaker when LED on transmitter is flashing. 3.Once the Pairing process is finished, LED on transmitter and speaker turn to solid blue. Music will stream out. 4.When Pairing is matched once, there is no need to do further at next applicatons. P.6 Charging the iPhone/iPod 1. Connect the power adapter between wall jack and transmitter. The LED will turn to Green. 2. Plug the AC power adapter in the DC jack located on the rear of the transmitter. 3. Plug the iPhone/iPod to the 30 pins dock connecting socket to charge the iPhone/iPod. SWITCHNG OFF 1.If there is no audio input signal to transmitter in 4 minutes, transmitter will P.7 go to standby mode and LED will change from Blue to Green. 2.Turn the switch on the rear of transmitter to OFF. 3.If the power adapter is unplugged, the LED on transmitter will turn off. 4.Speaker will turn to standby mode if there is no input signal to transmitter and LED will become Green. At standby mode, speaker will turn to On automatically after getting signal from transmitter. Charging the speakers 1. Make sure the switch in the battery compartments is at charging condition. 2. Turn your speakers to off. 3. Place your speakers to the right positions of the cradle on the transmitter. 4. The LEDs on speakers will light up in Red if the charging is under process. Charge Normal REMARK: For better rechargeable battery life performance, speakers should be turned off when charging. TROUBLE SHOOTING NO SOUND -Ensure the AC adapter is fully inserted into the AC outlet and the power connection input on the transmitter. -Ensure the speaker is switched ON. -Speaker’s battery capacity is too low, turn off the spearkers and recharge the speakers by placing them on transmitter station. -Ensure the TV or audio component is ON. -The connected audio / video equipment is not playing. Start playing C h a r g e N o r m a l P.8 the equipment. -The volume of speaker is too low, adjust the volume to an appropriate level. DISTORTED -Battery capacity is too low. Recharge the speakers. -Ensure the volume level of speakers is adjusted properly. -The speaker is too far from transmitter, move closer. -The input level of the audio signal is too low. Turn up the volume of the audio source equipment TECHNICAL SPECIFICATIONS Transmission Mode: UHF stereo Carrier Frequency: 2.4GHz Operation Voltage: Transmitter, DC 15V 2.0A Frequency Response:20Hz–20KHz Distortion:1.5% S/N Ratio: 80dB (typical) Channel Separation: 50dB (typical) Operation Distance: Up to 50 meters Output Power: 2 x 5W (Max) Canada Statement This device complies with RSS-210 of Industry and Science Canada. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference that may cause undesired operation of the device. WARNING : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must…

Text truncated - open the document above for the full version.

Date :23/03/2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Acoustic Arc International Ltd., hereby authorize Maki Li (TUV SUD HK LTD) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 23 Sep 2012. Sincerely, Company Officer: George Chan Telephone Number: 852-26074015 Email: [email protected]

Date : 23/03/2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: VHC-AAI-DS0980USI Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commi ssion’s Rules, Acoustic Arc International Ltd. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Model : DS0980USI Description : 2.4GHz digital wireless speaker Acou stic Arc International Ltd. also hereb y reque sts short-term confidential treatment of information accompanying this application as outlined below for a period of 6 months: Internal Photos External Photos User Manual Test Set-up Photographs The above materials contain trade secrets and proprietary informati on not cu stomarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.45 7(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: George Chan Telephone Number: 852-26074015 Email: [email protected]

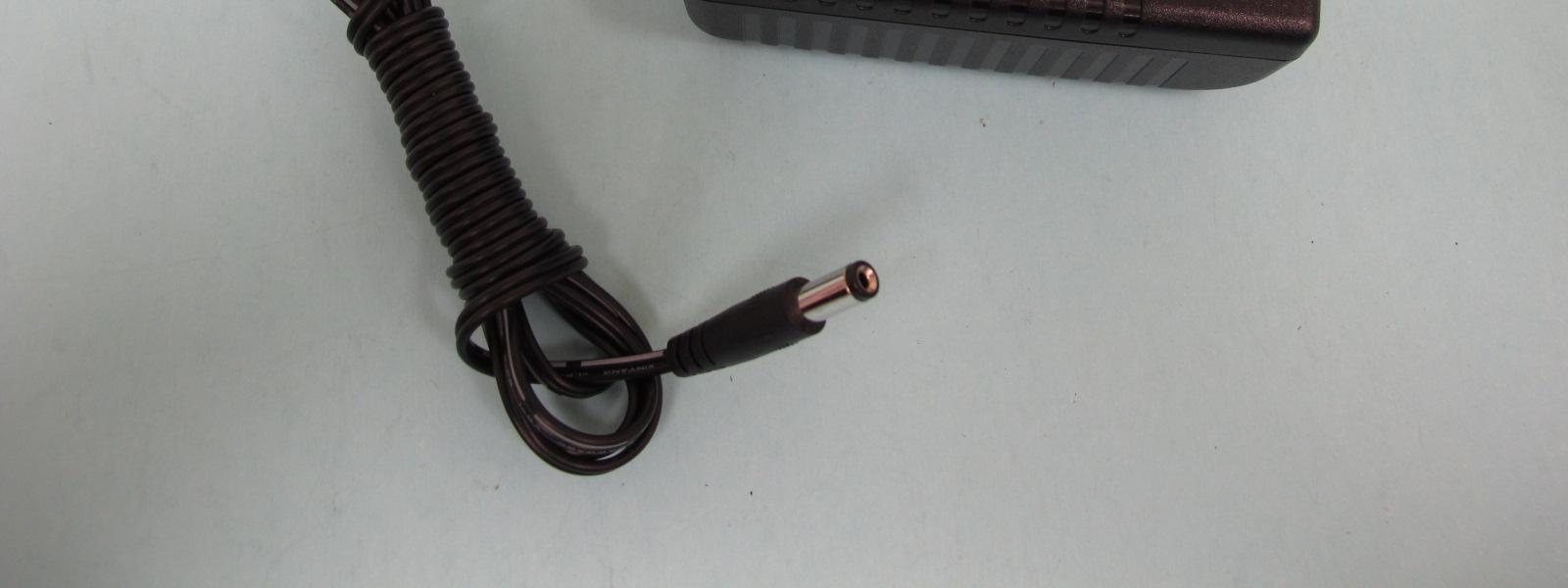

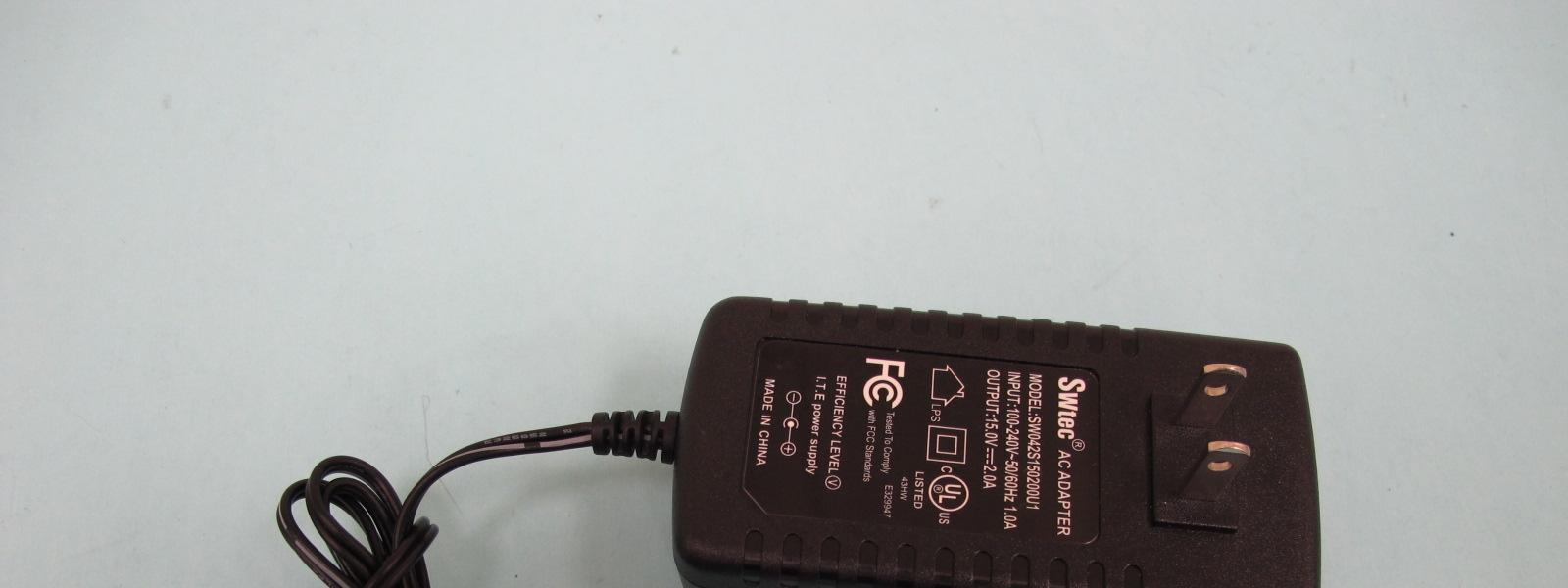

Appendix B Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – External EUT Photos Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – External EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix B Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – External EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

DS0980USI AAI rating label artwork Transmitter Wireless speaker 5 4 . 0 65.0 Note: Transmitter Rating Label Size: 65x54mm Printing: black background, white font back glue, matte UV Note: Wireless Speaker Rating Label Size: 60x40mm Printing: black background, white font back glue, matte UV Scale 1:1 Scale 1:1 FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that might cause undesired operation. Information de la FCC Ce dispositif est conforme à la section 15 des règlements FCC. Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne peut causer aucune interférence nuisible et (2) Ce dispositif doit accepter toute interférence reçue, y compris une interférence pouvant causer un fonctionnement non désiré. Acoustic Arc International Ltd., Made in China DC in: 15V 2A Power consumption: 30W Model: DS0980USI FCC ID: VHC-AAI-DS0980USI 2.4GHz Digital Wireless Transmitter FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that might cause undesired operation. Information de la FCC Ce dispositif est conforme à la section 15 des règlements FCC. Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne peut causer aucune interférence nuisible et (2) Ce dispositif doit accepter toute interférence reçue, y compris une interférence pouvant causer un fonctionnement non désiré. Acoustic Arc International Ltd., Made in China DC in: 15V 2A Power consumption: 30W Model: DS0980USI FCC ID: VHC-AAI-DS0980USI 2.4GHz Digital Wireless Transmitter FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that might cause undesired operation. Information de la FCC Ce dispositif est conforme à la section 15 des règlements FCC. Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne peut causer aucune interférence nuisible et (2) Ce dispositif doit accepter toute interférence reçue, y compris une interférence pouvant causer un fonctionnement non désiré. Acoustic Arc International Ltd., Made in China Model: DS0980USI Batteries: 9.6V 900mA Power consumption: 8.6W 2.4GHz Digital Wireless Speakers FCC Information This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that might cause undesired operation. Information de la FCC Ce dispositif est conforme à la section 15 des règlements FCC. Son fonctionnement est soumis aux deux conditions suivantes: (1) Ce dispositif ne peut causer aucune interférence nuisible et (2) Ce dispositif doit accepter toute interférence reçue, y compris une interférence pouvant causer un fonctionnement non désiré. Acoustic Arc International Ltd., Made in China Model: DS0980USI Batteries: 9.6V 900mA Power consumption: 8.6W 2.4GHz Digital Wireless Speakers PAIR 60.0 4 0 . 0

Appendix C Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – Internal EUT Photos Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – Internal EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – Internal EUT Photos Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – Internal EUT Photos Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Appendix C Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transmitter) Photo of EUT – Internal EUT Photos Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2012-03-09 Report No.: 60.870.12.005.01F Page 1 of 31 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Acoustic Arc International Ltd. Unit 311B, 3/F, IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Description of Samples:Model name: 2.4GHzDigitalWireless Speaker (Transmitter) Brand name: aai Model no.:DS0980USI FCCID:VHC-AAI-DS0980USI Date Samples Received:2012-02-07 Date Tested:2012-02-07 to 2012-03-02 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by: Approved by:- Ray CheungJeff Pong Project EngineerOperation Manager Wireless & Telecom DepartmentWireless & Telecom Department ReportNo.: 60.870.12.005.01F Page 2 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 31 Content Page 2-3 of 31 1.0General Details 1.1Test Laboratory Page 4 of 31 1.2Applicant Details Page 4 of 31 1.3Equipment Under Test [EUT] Page 5 of 31 1.4 Related Submittal(s) Grants Page 5 of 31 2.0Technical Details 2.1Investigations Requested Page 6 of 31 2.2Test Standards and Results Summary Page 6 of 31 3.0Test Methodology 3.1Radiated Emission Page 7 of 31 3.2Field Strength Calculation Page 7 of 31 3.3Conducted Emission Page 7 of 31 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 31 4.2 20dB Bandwidth Measurement Page 9-10 of 31 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 31 4.4 Average Time of Occupancy Page 12-14 of 31 4.5 Pseudorandom Hopping Algorithm Page 15 of 31 4.6 Band Edge Measurement Page 16-17 of 31 4.7 Maximum Output Power Page 18-19 of 31 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 20-24 of 31 4.9 Conducted Emission on AC Mains Page 25-29 of 31 ReportNo.: 60.870.12.005.01F Page 3 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 30 of 31 6.0List of Measurement Equipments Page 31 of 31 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.005.01F Page 4 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0GeneralDetails 1.1Test Laboratory Neutron Engineering Inc. No 3, Jinshagang 1 st Road, ShiXia, Dalang Town, Dong Guan, China. Registration Number: 319330 Tested by: John Zhi 1.2Applicant Details Applicant Acoustic Arc InternationalLtd. Unit 311B, 3/F., IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Manufacturer Acoustic Arc InternationalLtd. Unit 311B, 3/F., IC Development Centre, No.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong ReportNo.: 60.870.12.005.01F Page 5 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:2.4GHz Digital Wireless Speaker (Transmitter) Model No.:DS0980USI Brand Name: aai FCCID:VHC-AAI-DS0980USI Rating:- DC 15V, 2000mA powered by AC/DC power adaptor Operated Frequency:2406 -2472 MHz No. of Operated Channel:31 Accessories and Auxiliary Equipments:- iPod - AC/DC power adaptor AntennaType:Integral Manufacture of Antenna:Acoustic Arc International Ltd. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is aTransmitterofthe Wireless Speaker Systemoperated at 2.4GHz. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 31 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.005.01F Page 6 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15:2010 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.005.01F Page 7 of 31 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizon…

Text truncated - open the document above for the full version.

Appendix A Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transimtter) Photo of Test Setup: Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Radiated Emissions Front side Back side Appendix A Date: 2012-03-09 Report No.: 60.870.12.005.01F Model No.:DS0980USI–(Transimtter) Photo of Test Setup: Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Conducted Emissions Front side Back side
