VICPAT700TOCTOC Analyzer

ANATEL PAT700 TOC ANALYZER ANATEL PAT700 TOC ANALYZER Published in the United States of America. Hach Ultra P/N: FG7005001 Edition 1-dC, 20 June 2007 Copyright © 2007 by Hach Ultra Analytics, Inc. All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without the written permission of Hach Ultra. Anatel is a registered trademark of Danaher Corporation. All other trademarks and registered trademarks are the properties of their respective owners. For customer service: • Voice:US: 1.970.663.9760 or 1.800.373.0531 EU: 41.22.594.6400 • FAX:US: 1.970.663.9761 EU: 41.22.594.6488 • Support hot line: US: 1.877.4 ANATEL (1.877.426.2835) • Email:www.hachultra.com WGM - 26 July 2007 - Edition 01-d4 PAT700 Total Organic Carbon Analyzer – Table of Contents Page i AnatelOperator Manual Table of Contents Chapter 1Before You Begin 1.1About this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.2Anatel ® PAT700 analyzer overview . . . . . . . . . . . . . . . . . . 1 1.3RFID technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.4Reading and following instructions . . . . . . . . . . . . . . . . . . . 3 1.5Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.6Caution and warning statements . . . . . . . . . . . . . . . . . . . . 4 1.7FCC conformance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.8Definitions of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1.9Customer service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Chapter 2Installation 2.1Installation requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.2Orientation and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Mounting general considerations . . . . . . . . . . . . . . . . . . . . 9 Mounting to a wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Mounting to dual instrument poles . . . . . . . . . . . . . . . . . . . 10 2.3Plumbing connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Isolation valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Water inlet and outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.4Wiring connections for PAT700 with conduit openings . . . 14 Power supply wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 I/O wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.5Wiring connections for PAT700 with quick-connect fittings 18 Power supply wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 I/O wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.6Serial communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Mode set commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Parameter set commands . . . . . . . . . . . . . . . . . . . . . . . . . 23 Data read commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Log commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Data history commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Page ii Table of Contents – PAT700 Total Organic Carbon Analyzer Operator ManualAnatel WGM - 26 July 2007 - Edition 01-d4 Chapter 3Startup 3.1Startup sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 3.2Logging on and off the analyzer . . . . . . . . . . . . . . . . . . . . . 27 Lock and unlock icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Auto logoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3.3Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Sliding toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Toolbar icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Home screen data views . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Current tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Log view tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Graph tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Chapter 4Run modes 4.1The analysis cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4.2Conductivity mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Standby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4.3Clean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 Chapter 5Setup 5.1Setup dialog box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 5.2TOC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Idle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 5.3System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 5.4Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 5.5Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 TOC . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Note: The integrated antenna is approximately 1" diameter Trace. Length = 3.1"Width = 0.04" Thickness = 0.0014" 8/14/2007 PAT700, RFID BLOCK DIAGRAM Hach Company 5Vdc Power & Serial Interface Port Connector RS232 Serial Communication Driver IC RS232 Serial Communication Driver IC Micro- Processor IC 13.56Mhz 5Vdc to 3Vdc Level Translator Interface IC 5Vdc to 3Vdc Level Translator Interface IC Multi-Protocol Transciever IC 13.56Mhz Integrated Antenna 1" Diameter 13.56Mhz Crystal Oscillator 13.56Mhz Voltage Reg. 3.0Vdc Micro- Processor IC 13.56Mhz Multi-Protocol Transciever IC 13.56Mhz Integrated Antenna 1" Diameter 13.56Mhz Crystal Oscillator 13.56Mhz Voltage Reg. 3.0Vdc Micro- Processor IC 13.56Mhz Multi-Protocol Transciever IC 13.56Mhz Integrated Antenna 1" Diameter 13.56Mhz Crystal Oscillator 13.56Mhz Voltage Reg. 3.0Vdc Micro- Processor IC 13.56Mhz Multi-Protocol Transciever IC 13.56Mhz Integrated Antenna 1" Diameter 13.56Mhz Crystal Oscillator 13.56Mhz Voltage Reg. 3.0Vdc +5Vdc Tx/Rx Impedance Matching Network Impedance Matching Network Impedance Matching Network Impedance Matching Network

Aug 4, 2007 To: Federal Communications Commission 7435 Oakland Mills Road Colubia, MD FCC ID: VICPAT700TOC To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project Authorization Letter We, _______Hach Company_______hereby authorize SIEMIC, INC. to act as a laboratory for testing and test report generation for the following project(s): Product description: TOC Analyzer Model name: PAT 700 We affirm that between SIEMIC and Hach Company, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Sincerely, Michael Taylor Sr. Compliance Eng. Hach Company 5600 Lindberg Drive PO Box 389 Loveland, Colorado USA 80539-0389

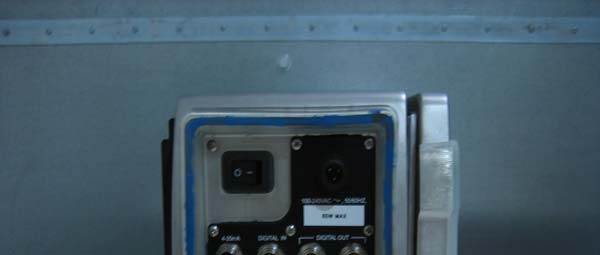

EUT External Photo EUT Front View EUT Back View EUT Left Side View EUT Right Side View

This is the label that we need to produce & put on the instrument This information also needs to be placed in the user manual FCC ID: VICPAT700TOC IC: 6149A-PT700TOC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation Manufacturer: Hach Company – Loveland, Colorado Trade Name: Hach Ultra Analytics Band name Anatel Model number: PAT 700

FCC and IC Label Location

EUT Internal Photo Cover Off View LCD Module Front View LCD Module Back View Main Board Top View Daughter Card 1 Top View Daughter Card 1 Bottom View Daughter Card 2 Top View Daughter Card 1 Bottom View Voltage Regulator Board Top View Voltage Regulator Board Bottom View RFID Radio Module Top View RFID Radio Module Bottom View Radio Close View Antenna Close View Radio Module Location View

Operational Description The Aantel PAT700 on-line TOC analyzer Onboard Automated Standards Introduction System (OASIS™) employs Radio Frequency Identification (RFID) technology, a registered radio frequency device. The RFID system in the PAT700 operates over a very short distance to eliminate any interference with other wireless communications. The term RFID describes a system that transmits data wirelessly, using radio waves, over a very short distance. An RFID system is comprised of a “tag” and a “reader/writer”. In the PAT700 analyzer, the tag is attached to the standards bottles used in calibrations (conductivity and TOC), validations, and system suitability tests. The RFID tag consists of a microchip attached to a radio antenna mounted on a substrate. The RFID tag is attached to the bottom of the standards bottle. The microchip contains data about the standard contained in the bottle. The PAT700 OASIS system contains four RFID reader/writers permanently mounted inside the analyzer that align with the bottle RFID tags when the bottles are fully loaded in the analyzer. The reader/writer retrieves the data stored on the RFID tags located on the bottom of the standards bottles. The RFID reader/writers have antennas that emit radio waves and receive signals back from the tags on the standards bottles. The information provided from the tag includes the identity of the standard, the standard’s concentration, date of expiration and other pertinent data. The reader/writer takes the data received from the tag and passes the information in digital form to the PAT700 processor. The RFID system in the PAT700 can read and write to the RFID tags attached to the standards bottle. The writing feature allows the PAT700 to write data to the bottles showing that the bottle has been used and provides for writing of data for the exclusive excursion sampling feature. The RFID system in the PAT700 does not require any user intervention to operate. The system operates automatically when bottle tests are performed. The system automatically turns on and off to read and write data only when necessary. When enabled, the radio frequency modulation emitted from the antennas is fixed at 13.56 Mhz. There are no user serviceable parts associated with the RFID system. The RFID reader/writer board assembly should only be serviced by a Hach Ultra certified service representative. Since the RFID labels on the standards bottles contain the data necessary for each standard, the labels must not be removed from the bottle. Without the label, the RFID reader/writer has no data to read and will not operate as intended. The PAT700 utilizes RFID technology as an integral part of its system. This RFID system allows the ability to read and write information to four individual bottles containing calibrated reagent fluids. These bottles also contain transponders directly mounted to their bottom surfaces. To complete the RFID system, Diamond contains an RFID circuit board with four 1- inch diameter antennas. When enabled, the radio frequency modulation emitted from these antennas is fixed at 13.56MHz.

Anatel TOC Analyzer, Model: PAT 700 VICPAT700TOC 47 CFR 1.1307(b) 47 CFR 1.1310 FCC OST/OET Bullentin Number 65 13.56MHz 50.1dBuV/m (Field strength @ 3 meter) 3.00E-08Watts 0dBi 20cm Limit for General Population / Uncontrolled Exposure : =180 / f**2 (MHz) ==>0.978933 mW/cm2or 9.789334 W/m2 = P*G/ (4 * 3.141 * R**2) Where, S= power density P = Power inoput to Antenna G = Antenna Gain R = distance to the center of radiated antenna EUT Power density =5.96944E-05 W/m2 The EUT Complied with 20cm distance exposure. Calculated By :Benjamin Date :Aug 05 2007 Power density Calculation : For : FCCID : RF Radiation Exposure Limit : RF Radiation Exposure Guideline : EUT Frequnecyt Band : EUT Measured Output power or EIRP : MPE Calculation RF Exposure Requirement : Eut Antenna Gain : Distance from Antenna to Human Body:

55 44 33 22 11 D D C C B B A A TXD_COM1RXD_COM1CTS_COM1TXD_COM3RXD_COM3CTS_COM3DIN2DIN1 PCBD10PCBD9PCBD8PCBD15PCBD14PCBD13PCBD12PCBD11 PCBD2PCBD1PCBD0PCBD7PCBD6PCBD5PCBD4PCBD3PCBA1PCBA2PCBA3PCBA4PCBA5PCBA6PCBA7PCBA8PCBA9 CARDB_STSCARDB_SPK/CARDB_REG/CARDB_WAITCARDB_RESCARDB_IRQ/CARDB_MWR/CARDB_IOWR/CARDB_IORD/CARDB_CE2 /CARDB_MRD/CARDB_CE1/CARDB_16 /EXT_IRQ1 /EXT_IRQ1 CARDB_VCC CARDB_VCC CARDB_STS CARDB_SPK /CARDB_REG CARDB_IRQ /CARDB_IOWR /CARDB_IORD /CARDB_WAIT /CARDB_MWR /CARDB_MRD CARDB_RES /CARDB_CE1 /CARDB_CE2 /CARDB_16 USB_RECONN /EXT_IRQ2 +USB_CLIENT -USB_CLIENT +USB_HOST -USB_HOST USB_PWR_SENSEUSB_PWR_CTRL USB_RECONN USB_PWR_SENSE USB_PWR_CTRL -USB_HOST+USB_HOST +USB_CLIENT -USB_CLIENT /EXT_IRQ2 BATT_A/D_SEL DIN2DIN1DIN_SP1DIN_SP2 BATT_A/D_SELANA_SENSE PA1PA2PA3 LOOP_ENABLE RFID_SEL0RFID_SEL1BKLT_PWM RTC_BATT SOL7SOL6SOL5SOL4SOL3SOL2SOL1UV_LAMP2SPI_MISO_BUFSPI_MOSI_BUF SPI_MISO SPI_MOSI SPI_SCLK SPI_MOSISPI_SCLK SPI_CLK_iLOOP3SPI_MOSI_iLOOPSPI_CLK_iLOOP1SPI_CLK_iLOOP2CS_iLOOP1CS_CPLD_TOCCS_ADC1_TOCCS_ADC2_TOCCS_ADC3_TOCCS_ADC4_TOCCS_ADC5_TOCUV_LAMP1 LOOP_ENABLE TSPXTSMYTSMXTSPY TSPXTSPYTSMXTSMYBKLT_PWM CS_ADCCS_DAC1CS_DAC2RFID1_TXRFID2_TXRFID3_TXSOL8SOL_LOCKFANDOUT1DOUT2DOUT3DOUT4 RI_COM1 DCD_COM1DSR_COM1DTR_COM1RXD_COM1TXD_COM1CTS_COM1RTS_COM1 CTS_COM3RTS_COM3 TXD_COM3RXD_COM3 RTS_COM1DCD_COM1DSR_COM1DTR_COM1RI_COM1RTS_COM3 TXD_COM2 RXD_COM2 TXD_COM2RXD_COM2 RFID1_RXRFID2_RXRFID3_RX SPI_SS SPI_SS EOC_INT_TOC SPI_CS_MUX3SPI_CS_MUX2SPI_CS_MUX1SPI_CS_MUX0 RFID_SEL0RFID_SEL1 SPI_SCLK_BUF RESET_TOC EOC_INT_TOC SPI_SCLK_BUF CS_CPLD_TOCCS_ADC1_TOCCS_ADC2_TOCCS_ADC3_TOCCS_ADC4_TOCCS_ADC5_TOC SPARE1_TOCSPARE2_TOC UV_DAC UV_CAL UV_LAMP1UV_LAMP2 SPI_MISO CS_ADCCS_DAC1CS_DAC2SPI_MOSISPI_MISOSPI_SCLKRTC_BATT ANA_SENSE CS_iLOOP2CS_iLOOP3RFID4_TXRFID4_RX RESET_TOC SPARE1_TOCSPARE2_TOC +12Vsol-12VsolFANDIN_SP1DIN_SP2 /CARDB_CE2/CARDB_CE1CARDB_RES/CARDB_MRD/CARDB_MWR/CARDB_WAIT RESET_INRESET_OUTRESET_MAN RESET_VSS SOL1SOL2SOL3SOL4SOL5SOL6SOL7PUMP_PWMPUMP_ENA PA1PA2PA3EIO4/PWMEIO8PUMP_PWMPUMP_ENA EIO8 EIO4/PWM PNL_UDPNL_RL PCBA10 UV_VOLT PCBA[1..10]PCBD[0..15] SOL8SOL_LOCK +3.3V 2 +5Vloop +5V+3.3V +5V VDDX VDDXVCC VCC VDDX VDDX VDDX VCC VCC +3.3V +3.3V +3.3V +12Vbklt +5V 2 2 +12Vbklt +3.3V +5Vloop +5V +12Vbklt VDDX VDDX +3.3V +12Vext 2 -10V +5Vuv +5V +10V 3S +12Vext 2 S3 +5Vuv +10V -10V +3.3V +12V +3.3V +5Vana +5Vana +12V +12V +12V +5V+3.3V VDDX 11 REVISION HISTORY REV DESCRIPTION DATE APPROVAL REVISION HISTORY REV DESCRIPTION DATE APPROVAL REVISION HISTORY REV DESCRIPTION DATE APPROVAL SIZE SCALE DWG NO Rev SHEET of INFORMATION THAT IS THE SOLE PROPERTY THIS DOCUMENT CONTAINS PROPRIETARY OF HACH ULTRA ANALYTICS. RECEIPT ORPOSSESSION DOES NOT ALLOW ANY RIGHTSTO REPRODUCE, MANUFACTURE, DISCLOSE HACH ULTRA ANALYTICS. Drawn:Checked:Engineer: APPROVALS DATE TITLE 481 California Avenue, Grants Pass, OR 97526 ITS CONTENTS, USE OR SELL ANYTHING ITMAY DESCRIBE WITHOUT THE EXPRESSEDWRITTEN PERMISSION OF 14 AS4002101-98 Tuesday, July 03, 2007 1 9 C I/O Interface (BitsyXB) SIZE SCALE DWG NO Rev SHEET of INFORMATION THAT IS THE SOLE PROPERTY THIS DOCUMENT CONTAINS PROPRIETARY OF HACH ULTRA ANALYTICS. RECEIPT ORPOSSESSION DOES NOT ALLOW ANY RIGHTSTO REPRODUCE, MANUFACTURE, DISCLOSE HACH ULTRA ANALYTICS. Drawn:Checked:Engineer: APPROVALS DATE TITLE 481 California Avenue, Grants Pass, OR 97526 ITS CONTENTS, USE OR SELL ANYTHING ITMAY DESCRIBE WITHOUT THE EXPRESSEDWRITTEN PERMISSION OF 14 AS4002101-98 Tuesday, July 03, 2007 1 9 C I/O Interface (BitsyXB) SIZE SCALE DWG NO Rev SHEET of INFORMATION THAT IS THE SOLE PROPERTY THIS DOCUMENT CONTAINS PROPRIETARY OF HACH ULTRA ANALYTICS. RECEIPT ORPOSSESSION DOES NOT ALLOW ANY RIGHTSTO REPRODUCE, MANUFACTURE, DISCLOSE HACH ULTRA ANALYTICS. Drawn:Checked:Engineer: APPROVALS DATE TITLE 481 California Avenue, Grants Pass, OR 97526 ITS CONTENTS, USE OR SELL ANYTHING ITMAY DESCRIBE WITHOUT THE EXPRESSEDWRITTEN PERMISSION OF 14 AS4002101-98 Tuesday, July 03, 2007 1 9 C I/O Interface (BitsyXB) 14 Initial Design 7/3/07 BCM BRAD MEYEROTT 8/23/06 RESET L-L+R-R+ SPEAKERLEFTSPEAKERRIGHT ISP Not Installed (RST) TMSTDITDOTCKGNDVCC Normal Mode R/LU/DVIDEO Reversed Mode Not Installed (CLK) (+B) (-B) NotInstalled NotInstalled Z2MI1206K601RZ2MI1206K601R CR3 V5.5MLA1206CR3 V5.5MLA1206 R2110KR2110K C 10 R1 1 R2 2 R3 3 R4 4 R5 6 R6 7 R7 8 R8 9 C 5 RP1 10K RP1 10K R1510KR1510K R12 10K R12 10K R22100KR22100K 2 1 3 Q5FDN340P (SI2301BDS) Q5FDN340P (SI2301BDS) C90.1uFC90.1uF 2 1 3 Q2 FDN340P Q2 FDN340P R1410KR1410K GND 1 PCBD10 3 PCBD9 5 PCBD8 7 CARDB_STS_CHG 9 CARDB_SPK 11 /CARDB_REG 13 VCC 15 /CARDB_WAIT 17 CARDB_RES 19 /CARDB_VS2 21 VDDX 23 /CARDB_ON 25 CARDB_IRQ 27 /CARDB_MWR 29 /CARDB_IOWR 31 /CARDB_IORD 33 /CARDB_VS1 35 /CARDB_CE2 37 PCBD15 39 PCBD14 41 PCBD13 43 PCBD12 45 PCBD11 47 /CARDB_DET1 49 /CARDB_DET2 2 /CARDB_16 4 PCBD2 6 PCBD1 8 PCBD0 10 PCBA0 12 PCBA1 14 PCBA2 16 PCBA3 18 PCBA4 20 PCBA5 22 PCBA6 24 CARDB_VCC 26 PCBA7 28 PCBA8 30 PCBA9 32 /CARDB_MRD 34 PCBA10 36 /CARDB_CE1 38 PCBD7 40 PCBD6 42 PCBD5 44 PCBD4 46 PCBD3 48 /CARDB_ON_3P3V 50 J9J9 C40.1uFC40.1uF TP6TP6 I/O 1 N/C 2 I/O/GTS1 3 I/O/GTS2 4 VCCINT 5 I/O 6 N/C 7 I/O 8 I/O 9 I/O 10 I/O 11 I/O 12 I/O 13 I/O 14 I/O 15 I/O 16 I/O 17 I/O 18 N/C 19 I/O 20 GND 21 I/O/GCK1 22 I/O/GCK2 23 N/C 24 I/O 25 VCCIO 26 I/O/GCK3 27 I/O 28 I/O 29 I/O 30 GND 31 I/O 32 I/O 33 N/C 34 I/O 35 I/O 36 I/O 37 VCCIO 38 I/O 39 I/O 40 I/O 41 I/O 42 N/C 43 GND 44 TDI 45 N/C 46 TMS 47 TCK 48 I/O 49 I/O 50 VCCIO 51 I/O 52 I/O 53 I/O 54 I/O 55 I/O 56 VCCINT 57 I/O 58 I/O 59 I/O 60 I/O 61 GND 62 I/O 63 I/O 64 I/O 65 I/O 66 I/O 67 I/O 68 GND 69 I/O 70 I/O 71 I/O 72 N/C 73 I/O 74 GND 75 I/O 76 I/O 77 I/O 78 I/O 79 N/C 80 I/O 81 I/O 82 TDO 83 GND 84 I/O 85 I/O 86 I/O 87 VCCIO 88 I/O 89 I/O 90 I/O 91 I/O 92 I/O 93 I/O 94 I/O 95 I/O 96 I/O 97 VCCINT 98 I/O/GSR 99 GND 100 U2 XC95144XL-TQ100 U2 XC95144XL-TQ100 TP1TP1 4 - 20mA +5Vloop IGND SPI_CLK_iLOOP1SPI_MOSI_iLOOPCS_iLOOP1CS_iLOOP2CS_iLOOP3 DGND +3.3VLOOP_ENABLESPI_CLK_iLOOP2SPI_CLK_iLOOP3 TP4TP4 32 1 Q7 2N7002…
