VIP-VX3012Car Multimedia Player

VX3012 Operation Manual 160 watts peak 40W x 4 2 CONTENTS 4 5 6 8 9 11 14 18 20 26 28 30 35 36 37 38 40 42 43 FCC STATEMENT SAFETY PRECAUTIONS FEATURES FRONT PANEL CONTROLS AND INDICATORS REMOTE CONTROL OPERATION QUICK START SYSTEM SETTINGS RADIO TUNER OPERATION PLAYBACK OF A UDIO FILES EQUALIZER CONTROLS MENU iPod®/iPhone® C ONTROLS BLUETOOTH OPERATION AV -In1/AV-In2 CONTROLS STEERING WHEEL C ONTROL (SWC) OPERATION REAR CAMERA OPERATION TROUBLESHOOTING SPECIFICATIONS CARE AND MAINTENANCE NOTES VX3012 COMMON REPLACEMENT PARTS (Back Cover) Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VX3012 Mobile Multimedia Receiver for maximum enjoyment. iPod® Control “iPod” is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Bluetooth® is a trade mark of Bluetooth Special Interest Group (SIG) Inc. VX3012 VX3012 FCC Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference in a residential installation. FCC Radiation Exposure Statement Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. h 4 VX3012 Never expose this unit, amplifier and speakers to moisture or water to prevent electric sparks or fire. Please don't change the fuse on the power cord without professional guidance, using an improper fuse may cause damage to this unit or even cause fire. Please contact your nearest dealer if one of the following symptoms is experienced: (a). Water or other objects enter the unit. (b). There is smoke. (c). Peculiar smell. Only connect the unit to a 12-volt power supply with negative grounding. Never install this unit where the operation & condition for safe driving is impaired. Never use the video display function in the front when driving to prevent the violation of laws & regulations and also to reduce the risk of traffiD accident except for using rear view video camera. Please read through these operating instructions so you will know how to operate your model properly. After you’ve finished reading the instructions, keep this manual in a safe place for future reference. To ensure safe driving, please adjust the volume to a safe and comfortable level in case of emergency situations. Safety Precautions 1.) Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2.) If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. Using a rough cloth and non-neutral detergent such as alcohol for cleaning may result in damage to the monitor. 3.) If any abnormal behavior of the unit is found, please refer to trouble shooting guide of this manual. If no relevant information is found, please press the [RESET] key on the front panel to resume factory default. 4.) If you have parked the car in hot or cold weather for a long time, please wait until the temperature in the car becomes normal before operating the unit. 5.) Using the car heater in low temperature environment may result in moisture inside the unit, DO NOT use the unit in this situation. Eject the disc and wipe off the moisture on the disc. If the unit still doesn't work after a few hours, please contact the service center. 6.) Do not impact the LCD monitor which could cause damage. 7.) To prevent damage to the screen, avoid touching it with sharp objects. 8.) To provide a clear demonstration and an alternative for easy understanding to the operation of this unit, graphic illustrations are used. However, some illustrations are different from the actual images displayed on the screen. 9.) Operate the unit correctly according to this manual to prevent unnecessary problem. The guarantee won't be valid if the problem is caused by inappropriate operation. 5 VX3012 FEATURES Please read the instruction manual for this product before using. The documentation provided will allow the user to fully enjoy all the features of your new Jensen VX3012 Mobile Multimedia Receiver. Please read all of the instructions before beginning the installation and save this manual for future reference. We recommend having your Jensen VX3012 installed by a reputable installation shop. DVD •Audio Equalizer •Next Chapter and Previous Chapter •Play/Pause •Track Direct Entry •Disc Menu •Selection Repeat / Track Repeat •Disc Audio •Disc Language •Pic Control CD / MP3 / WMA •CD-Text Compatible •ID3 Tag Compatible •Directory Search (MP3 / WMA Only) •Audible Forward / Reverse Track Search •Random, Repeat and Intro •Play, Pause, Stop, Next Track and Previous Track AM-FM •USA, Asia, Japan, Europe, Eur LW (Europe Long Wave), Oirt. •30 Station Presets (18 FM / 12 AM) •Auto Stereo / Mono •Local / Distance •Auto Store iPod®/iPhone® •iPod®/ iPhone® via USB • High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums and Songs. •Power Management Charges iPod®/ iPhone® while Connected 6 Chassis •1.0 DIN (Import / ISO-DIN Mountable) •Motorized Front Panel •7” High Definition TFT LCD WVGA •Resolution: 800w x 480h •Beep Tone Confirmation General •Built-In Bluetooth® providing Hands-Free operation for safety and convenience and A2DP for streaming music from your smartphone or other Bluetooth® device. •One Composite Video Output for Additional Screens •Front Panel Audio/Video Input •3 Band Parametric Equalizer - Bass, Mid-Range and Treble •Rear Panel Audio/Video RCA Input •Front, Rear and Sub RCA Line Output - 2VRMS •Rear Camera Input •Touch Screen Calibration Mode •Rotary Encoder Audio Control REAR CAMERA The VX3012 is “camera…

Text truncated - open the document above for the full version.

Grantee Code:VIP HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Declaration letter 2015.02.11 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, We, HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Apply for registration FRN and Grantee Code in July 24, 2007。Registration is the original address：NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China。 Because the factory relocation，so our current address is change. The new address is: North Shangxia Road, Dongjiang Hi-tech Industry Park, Huizhou, Guangdong Province, 516005, P R China. Because we lost FRN and Grantee Code register account and password, So we can't go to modify the change information. The above statement is true. Sincerely, Client’s signature Client’s name / title ：Joey.Zhang / Engineer Contact information / address ：NO.6 Zhongkai Songshan Industrial District, Huizhou, Guangdong, China FRN:0016737736

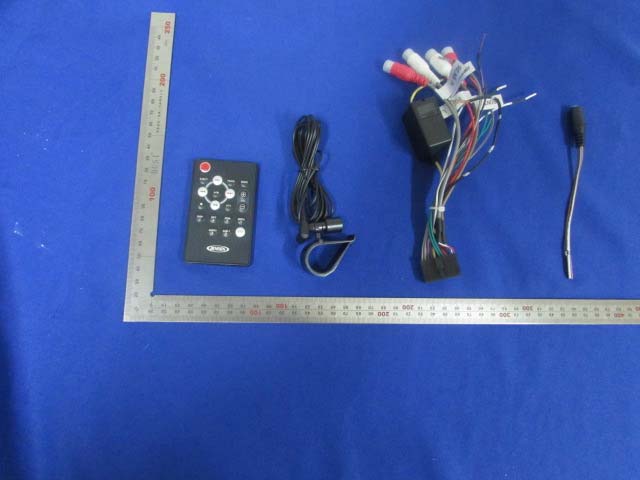

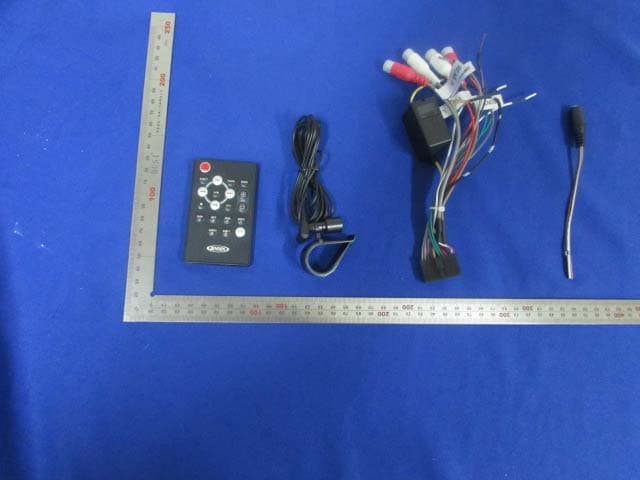

External Photos M/N: VX3012 External Photos M/N: VX3012 External Photos M/N: VX3012 External Photos M/N: VX3012

P/N.:127071008378 FCC ID:xxx-xxxxxx xxxxxxxxx 主机标贴

刘伟东 2015-1-7 2015-1-7 2015-1-7 2015-1-7 2015-1-7 2015-1-7 127071008378 DV7B02C165A,MODEL LABEL 9480DV7B02C165A P/N.:127071008378 FCC ID:VIP-VX3012

Internal Photos M/N: VX3012 Internal Photos M/N: VX3012 Bluetooth Antenna Internal Photos M/N: VX3012 Internal Photos M/N: VX3012 Internal Photos M/N: VX3012 Internal Photos M/N: VX3012 Internal Photos M/N: VX3012

FCC ID: VIP-VX3012 EST Technology Co.,Ltd Report No. ESTE-R1502007 Page 1 of 3 FCC 47 CFR MPE REPORT HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Car Multimedia Player Model Number: VX3012 FCC ID: VIP-VX3012 Prepared for : HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. North Shangxia Road, Dongjiang Hi-tech Industry Park, Huizhou, Guangdong Province, 516005, P R China Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1502007 Date of Test : January 18~February 07, 2015 Date of Report : February 09, 2015 FCC ID: VIP-VX3012 EST Technology Co.,Ltd Report No. ESTE-R1502007 Page 2 of 3 Maximum Permissible Exposure 1、Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a)、Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b)、Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2、MPE Calculation Method E (V/m) = (30*P*G) 0.5/d Power Density: Pd (W/m2) = E2/377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d2) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: VIP-VX3012 EST Technology Co.,Ltd Report No. ESTE-R1502007 Page 3 of 3 3、Calculated Result and Limit Antenna gain Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power （dBm） (dBi) (Linear) Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result 2402 0.340 1.081 0±2 0 1 0.00032 1 Compiles 2441 2.219 1.667 1±2 0 1 0.00040 1 Compiles GFSK 2480 2.451 1.758 1±2 0 1 0.00040 1 Compiles 2402 -0.753 0.841 -1±2 0 1 0.00025 1 Compiles 2441 1.527 1.421 0±2 0 1 0.00032 1 Compiles 8-DPSK 2480 1.700 1.478 0±2 0 1 0.00032 1 Compiles

FCC ID:VIP-VX3012 EST Technology Co.,Ltd Report No.ESTE-R1502006 Page 1 of 106 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. Car Multimedia Player Model Number: VX3012 FCC ID: VIP-VX3012 Prepared for : HUIZHOU FORYOU GENERAL ELECTRONICS CO.,LTD. North Shangxia Road, Dongjiang Hi-tech Industry Park, Huizhou, Guangdong Province, 516005, P R China Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1502006 Date of Test : January 18~February 07, 2015 Date of Report : February 09, 2015 FCC ID:VIP-VX3012 EST Technology Co.,Ltd Report No.ESTE-R1502006 Page 2 of 106 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION..........................................................................................................3 1. GENERAL INFORMATION...................................................................................................5 1.1. Description of Device (EUT) ........................................................................................... 5 2. SUMMARY OF TEST...........................................................................................................6 2.1. Summary of test result ...................................................................................................... 6 2.2. Test Facilities.................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................... 8 2.5. Block Diagram..................................................................................................................8 2.6. Test mode ......................................................................................................................... 9 2.7. Channel List for Bluetooth ............................................................................................... 9 2.8. Test Equipment............................................................................................................... 10 3. MAXIMUM PEAK OUTPUT POWER...................................................................................11 3.1. Limit ............................................................................................................................... 11 3.2. Test Procedure ................................................................................................................ 11 3.3. Test Result ...................................................................................................................... 11 3.4. Test Data......................................................................................................................... 12 4. 20 DB BANDWIDTH.........................................................................................................16 4.1. Limit ............................................................................................................................... 16 4.2. Test Procedure ................................................................................................................ 16 4.3. Test Result ...................................................................................................................... 16 4.4. Test Data......................................................................................................................... 17 5. CARRIER FREQUENCY SEPARATION................................................................................21 5.1. Limit ............................................................................................................................... 21 5.2. Test Procedure ................................................................................................................ 21 5.3. Test Result ...................................................................................................................... 21 5.4. Test Data......................................................................................................................... 22 6. NUMBER OF HOPPING CHANNEL....................................................................................26 6.1. Limit ............................................................................................................................... 26 6.2. Test Procedure ................................................................................................................ 26 6.3. Test Result ...................................................................................................................... 26 6.4. Test Data......................................................................................................................... 27 7. DWELL TIME...................................................................................................................29 7.1. Limit ............................................................................................................................... 29 7.2. Test Result ...................................................................................................................... 29 7.3. Test Data......................................................................................................................... 30 8. RADIATED EMISSIONS.....................................................................................................36 8.1. Limit ............................................................................................................................... 36 8.2. Block Diagram of Test setup .......................................................................................... 37 8.3. Test Procedure .............…

Text truncated - open the document above for the full version.

Radiated Test (30-1000 MHz) Radiated Test (1000-25000 MHz)
