2.4GHZ DIGITAL WIRELESS 2.1 S TEREO HEADPHONES OWNER’S MANUAL AWD211 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualifi ed service personnel. Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the model number in case you need it. These numbers are located on the product. Model No.: _____________________________________________________________________ Purchase Date: _________________________________________________________________ Dealer/Address/Phone: __________________________________________________________ WARNING: To reduce the risk of fi re or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing. No objects fi lled with liquids, such as vases, shall be placed on the apparatus. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat. 9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10.Unplug this apparatus during lightning storms or when unused for long periods of time. 11. Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. FCC Information FCC Regulations state that unauthorized changes or modifi cations to this equipment may void the user’s authority to operate it. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Warning: This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Industry Canada Regulatory Information Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that this device should be used only as specifi ed within this manual to meet RF exposure requirements. Use of this device in a manner inconsistent with this manual could lead to excessive RF exposure conditions. This Class B digital apparatus complies with Canadian ICES-003. This radiocommunication device complies with Industry Canada Standard RSS-210. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Ce dispositif de radiocommunication respecte la norme CNR-210 d’Industrie Canada. IMPORTANT INFORMATION INTRODUCTION 3 Welcome Congratulations on your purchase of the 2.4GHz Wireless Headphones with 2.1 Sound. The AWD211 uses the latest in wireless transmission, 2.4GHz digital technology, that lets you enjoy crystal clear, digital audio up to 150 feet away from the transmitter. The headphones also offer a 2.1 stereo listening experience, with a dual-speaker design in each ear cup providing your own “personal subwoofer”. The headphones’ compact design and comfortable ear cups let you enjoy music and TV sound just about anywhere inside or outside your home. Easy, push-button pairing makes it simple to get started, wirelessly. This manual covers various connection options and detailed operating instructions for setup and use of the AR wireless headphones. If, after having reviewed the instructions, you have any questions, please call toll-free 1-800-732-6866 or visit www.araccessories.com. Supplied Accessories This headphone system includes accessories that enable you to use your wireless headphone set in a number of ways. • Wireless headphones (AWD211RX) • 2.4GHz wireless transmitter (AWD211TX) • AC power adapter • Stereo audio cable (stereo pair to 3.5mm) • 2 AA rechargeable batteries • 3.5 mm to stereo (R/L) RCA jack adapter • Instruction manual GETTING STARTED 4 Installing the Headphone Batteries 1. Find the depression in the middle of the left headphone. Press down on this area to remove the headphones’ battery compartment cover. 2. Insert the two (2) rechargeable AA batteries (included) in the left headphone, following the polarity (+ and –) diagram inside the compartment. 3. Place the battery cover back on the left headphone. Make sure it locks back into place. Important: DO NOT mix batteries with different chemistry types (for example, a zinc battery with an alkaline battery). DO NOT mix new and used batteries. DO NOT leave batteries installed in the product when not in use for long periods. Always remove old, weak or worn-out batteries promptly and recycle or dispose of them in accordance with local and national regulations. Important: If you are using rechargeable batteries NiMH or NiCd (such as the batteries provided), the batteries will charge when the headphones are put on the charging cradle of the …

Text truncated - open the document above for the full version.

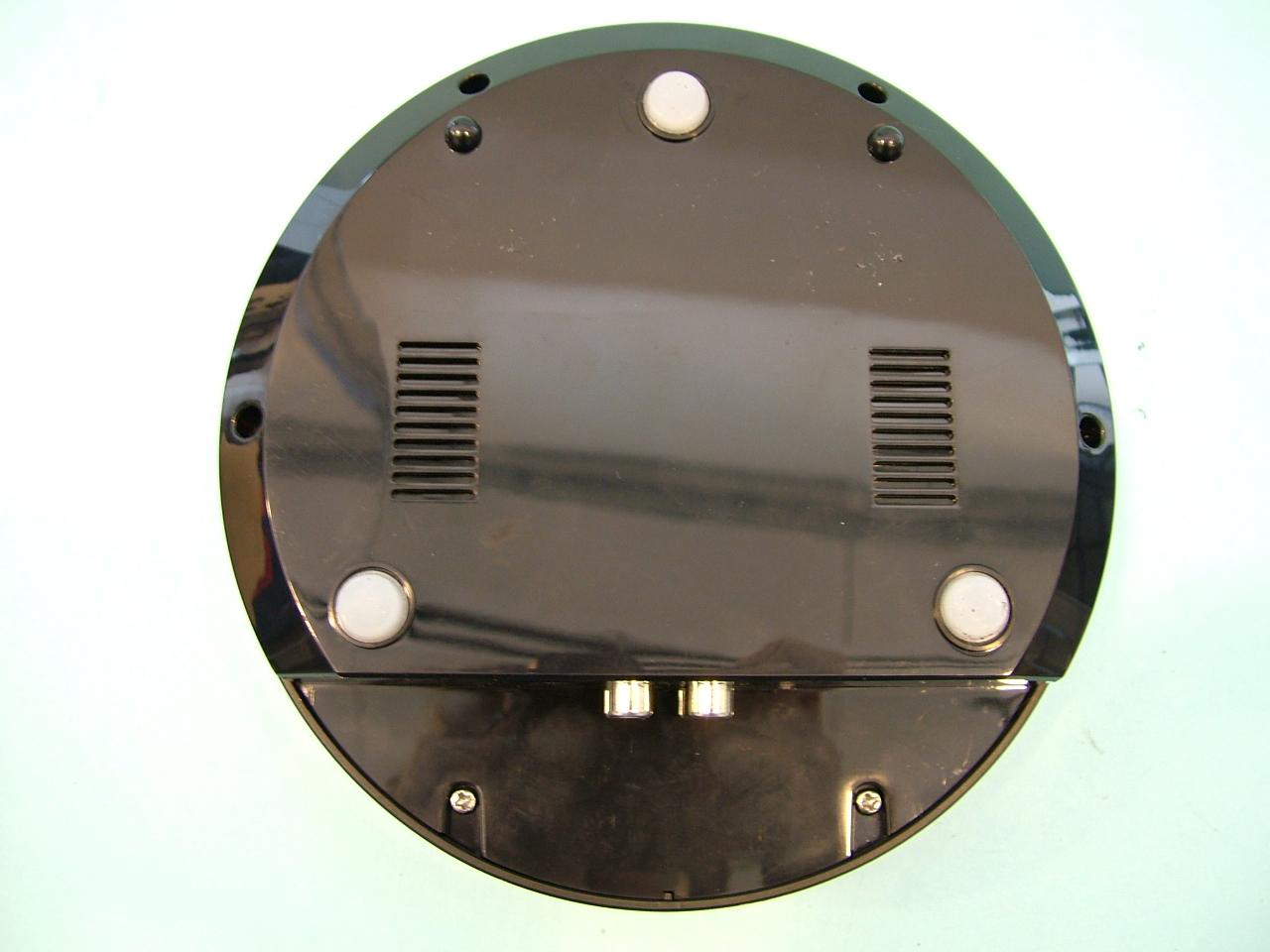

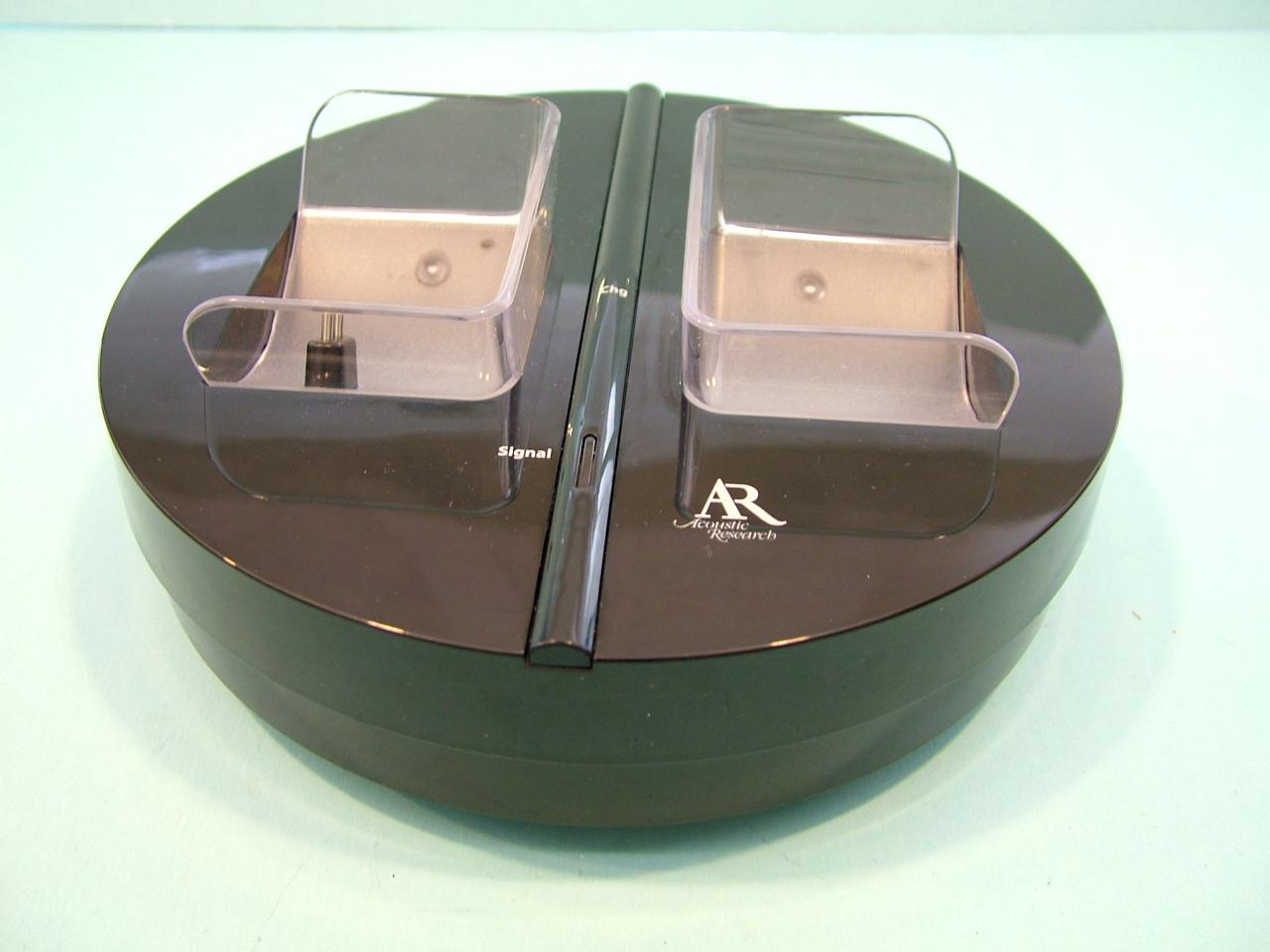

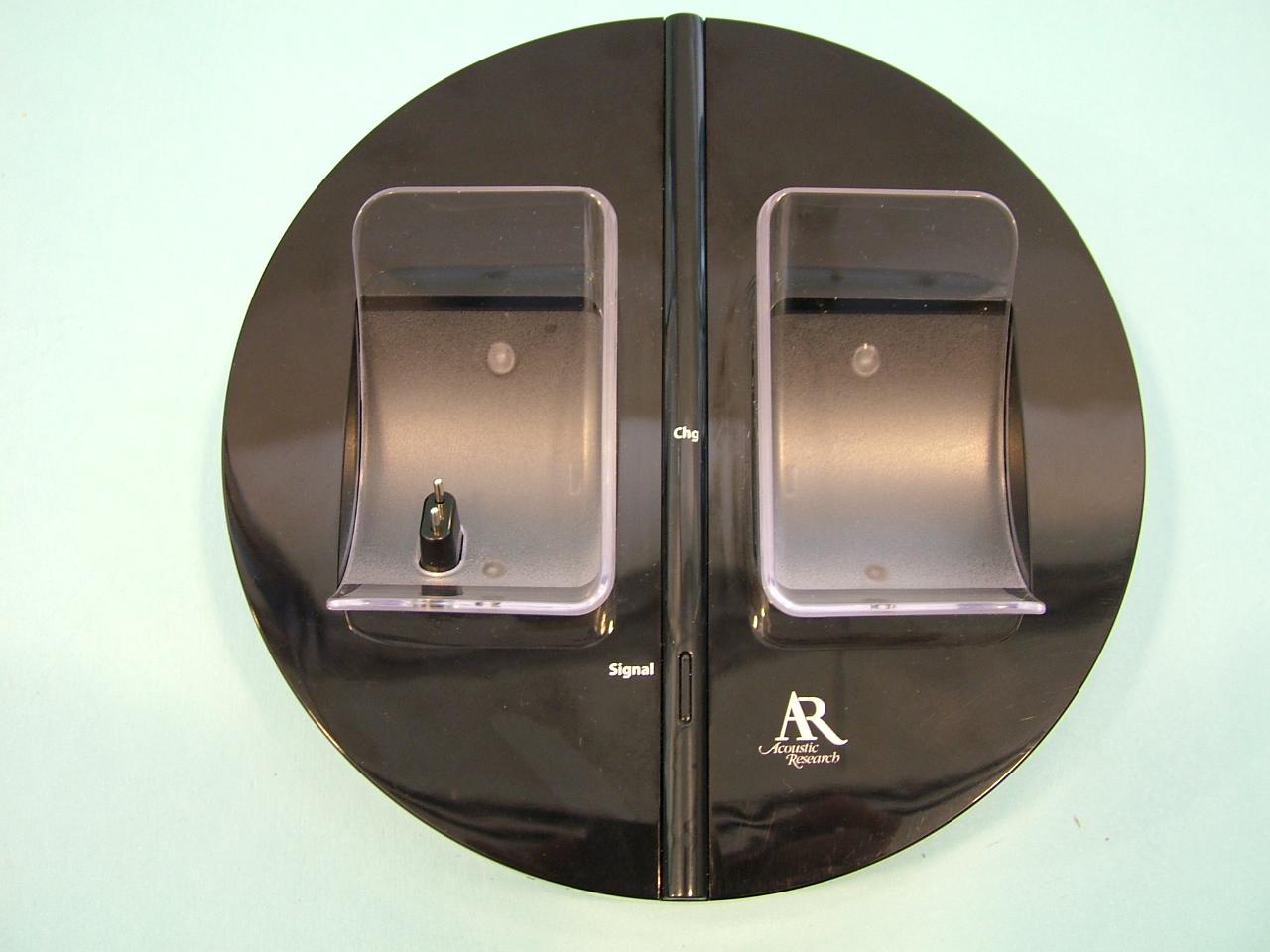

Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix B Date: 2010-08-18 Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – External EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – External EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – External EUT Photos Ancillary - AC/DC adaptor

Model No: AWD211 Power Source: 6V DC 300mA Power Consumption: 1.8W This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: VIX-24G-AWD211-TX IC: 342H-AWD211TX Wireless 2.4GHz Transmitter Made in China Model No: AWD211 Power Source: 6V DC 300mA Power Consumption: 1.8W This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: VIX-24G-AWD211-TX IC: 342H-AWD211TX Wireless 2.4GHz Transmitter Made in China Wireless 2.4GHz Receiver Model No: AWD211 2 X 1.2V Ni-MH(AA/HR06) Wireless 2.4GHz Receiver Model No: AWD211 2 X 1.2V Ni-MH(AA/HR06) 40 3 5 1 4 20 TX Rating label Size: 35x40mm Background: Black Font: White Logo Heigh: 6.4mm Bin Heigh: 8mm RX Rating label Size: 14x20mm Background: Black Font: White Logo Heigh: 6.4mm DH1060 RATING LABEL ARTWORK AAI 9-SEP-2010 Scale: 1:1 TX label position RX label position Headphone “L” side SPK- Cover-L

Page 1 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix C Date: 2010-08-18 Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – Internal EUT Photos Page 2 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – Internal EUT Photos Page 3 of 3 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of EUT – Internal EUT Photos

Report No.: 60.870.10.013.01F Page 29 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Test Requirement:FCC part 15 section 15.247 (i) Test Method:FCC part 15 section 1.1307 (b1) OET Bulletin 65, Edition 01-01 Results: PASS Systems operation under the provision of this section shall be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guideline, The EUT is considered as a mobile device according to OET Bulletin 65, Edition 01-01, therefore distance to human body of min. 20cm is determined. Frequency Band:2.402GHz ~2.479GHz Device Category: Portable (< 20cm separation ) Mobile ( >20cm separation ) Others : Exposure Classification: Occupational/ Controlled exposure General Population / Uncontrolled exposure Max. Output Power29.18mW Antenna Gain0dBi ( Numeric gain:1) Evaluation Applied: MPE Evaluation SAR Evaluation MPE calculation: The radiated ( EIRP) = 29.18 mW The power density at 20cm from the antenna : = EIRP / 4ʌ R² = 0.0058mW / cm² Limits for General Population/Uncontrolled Exposure [OET Bulletin 65, Edition 01-01]: FrequencyElectric FieldMagnetic FieldPower DensityAveraging Time RangeStrength (E)Strength (H)(S)|E| 2 , |H| 2 or S (MHz)(V/m)(A/m)(mW/cm 2 )(minutes) 0.3-1.346141.63(100)*30 1.34-30824/f2.19/f(180/f 2 )*30 30-30027.50.0730.230 300-1500----f/150030 1500-100,000----1.030

TEST REPORT Date: 2010-08-18 Report No.: 60.870.10.013.01F Page 1 of 30 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: Audiovox Accessories Corporation. 111 Congressional Blvd., Suite 350 Carmel, IN 46032, USA. Description of Samples:Model name: 2.4GHz Wireless2.1ch HeadphoneSystem (Transmitter) Brand name: --- Model no.:AWD211 FCCID:VIX-24G-AWD211-TX Date Samples Received:2010-07-08 Date Tested:2010-07-22 to 2010-08-16 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Sandy LeungNicolas Cheng Project EngineerAssistant Project Manager Wireless & Telecom departmentWireless & Telecom department Report No.: 60.870.10.013.01F Page 2 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 30 Content Page 2-3 of 30 1.0General Details 1.1 Test Laboratory Page 4 of 30 1.2 Applicant Details Page 4 of 30 1.3 Equipment Under Test [EUT] Page 5 of 30 1.4 Equipment Modification Page 5 of 30 1.5 Related Submittal(s) Grants Page 5 of 30 2.0Technical Details 2.1 Investigations Requested Page 6 of 30 2.2 Test Standards and Results Summary Page 6 of 30 3.0Test Methodology 3.1 Radiated Emission Page 7 of 30 3.2 Field Strength Calculation Page 7 of 30 3.3 Conducted Emission Page 7 of 30 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 30 4.2 20dB Bandwidth Measurement Page 9-10 of 30 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 30 4.4 Average Time of Occupancy Page 12-13 of 30 4.5 Pseudorandom Hopping Algorithm Page 14 of 30 4.6 Band Edge Measurement Page 15-16 of 30 4.7 Maximum Output Power Page 17-18 of 30 4.8 Out ofBand Emissionsand Emissions in Restricted Bands Page 19-25 of 30 4.9 Conducted Emission on AC Mains Page 26-28 of 30 Report No.: 60.870.10.013.01F Page 3 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 29 of 30 6.0List of Measurement Equipments Page 30 of 30 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Report No.: 60.870.10.013.01F Page 4 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory EMC Laboratoryregistered by FCC with FCCRegistration Number:90656 1.2Applicant Details Applicant AudiovoxAccessoriesCorporation. 111 Congressional Blvd., Suite 350 Carmel, IN 46032 USA. Manufacturer Acoustic Arc International Ltd. Unit 311B, 3/F., IC Development Centre, NO.6 Science Park West Avenue, Hong Kong Science Park, Shatin, N.T. Hong Kong Report No.: 60.870.10.013.01F Page 5 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:2.4GHz Wireless 2.1ch Headphone System (Transmitter) Model No.:AWD211 Brand Name: --- FCCID:VIX-24G-AWD211-TX Rating:-DC6.0V,300mApowered by AC/DC power adaptor Operated Frequency:2404 - 2478 MHz No. of Operated Channel:19 Accessories and Auxiliary Equipments:-AC/DC power adaptor. Antenna Type:Integral Manufacture of Antenna:Acoustic Arc International Ltd. Antenna Gain:0dBi Antenna Model:N/A General Operation of EUT The Equipment Under Test (EUT) is a transmitter of the wireless headphone system operated at 2.4GHz. FHSS Operation Principle: This module is controlled by microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 19 hopping channels. Refer to section 4.5 of this report to have more detail of Pseudorandom Hopping Algorithm. 1.4 Equipment Modification No modification was conducted on the tested sample by TUV SUD Hong Kong Ltd. 1.5Related Submittal(s) Grants RF transmitting function of this EUT is subjected to the application of FCC Certification. Report No.: 60.870.10.013.01F Page 6 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2008 and ANSI C63.4: 2003 for FCC Verification 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 (a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable Report No.: 60.870.10.013.01F Page 7 of 30 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height …

Text truncated - open the document above for the full version.

Page 1 of 1 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong. Appendix A Date: 2010-08-18 Test report no.: 60.870.10.013.01F Model no.: AWD211 (Transmitter) Photos of Test Setup – Radiated Emission Photos of Test Setup – Conducted Emission
