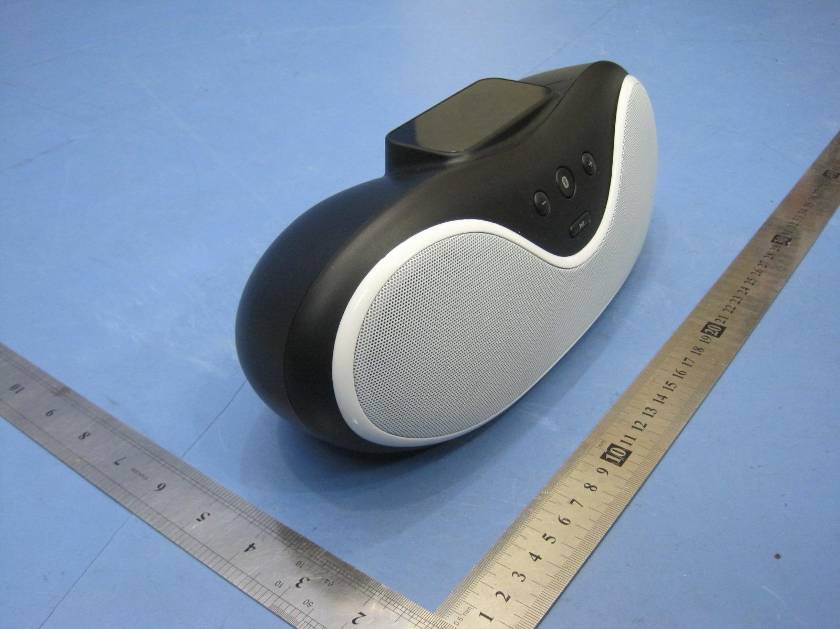

2.1 Product View 2.2 EUT – Appearance View

Page:57 of 57 Audiovox Accessories Corp. FCC ID: VIX-ARS50A The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12052841-S-S-F 17 FCC Label This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Bottom View/ proposed FCC Label Location FCC ID:VIX-ARS50A This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration.

FCC ID Label Sample for Models: ARS50 FCC ID:VIX-ARS50 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2.1 EUT – Open View 2.2 EUT – PCB1 View 2.3 EUT – PCB2 View

Operation Description • AUDIO SYSTEM WITH BLUETOOTH is a standard bluetooth stereo speaker, which plays music from Line in input or compatible Bluetooth audio devices. The output power is 3 watts per channel to 4 ohms speaker. Volume Control tact switches to control Bluetooth volume level. The speaker consist of several functional blocks (see block diagram). i.) Bluetooth module (57F68) • It is a Class 2 bluetooth module, the crystal frequency is 26MHz, Controls the behavior of the speaker. ii.) Interface controls • Connect or pair, volume tact switches to adjust Bluetooth volume and LED indications for user interface. iii.) Line in • Connect to music player. iv.) Differential /Summing amp • Differentiate Bluetooth module out audio signals, sum the Line in and Bluetooth signals together. v.) 5V regulation circuit • Provide power supply for operational amplifier. vi.) 3V3 regulation circuit • Provide power supply for Bluetooth Module. vii.) Power supply circuit • Filter and distribute out supply to other blocks. viii.) EQ • Control the frequency response. ix.) Power Amp • Amplify the signal The device is a standard bluetooth stereo speaker, The working frequency of RF module 57F68 is setted to 2402MHz ~ 2480MHz, the frequency separation is 1MHz and there are 79 channels. To make sure the communication stable, Bluetooth special design the fast acknowledge and frequency hopping plan to ensure that link stability. First link, between bluetooth devices will build a pseudorandom code, Only the pseudorandom code is same, the information transfer will be accepted. Other interference is not possible in the same sequence of interference. Bluetooth through the spread spectrum technology, Make the influence of interference may become very small. The working procedures are: 1. Power on, press and hold the button, when the indicator light flashes faster, the RS50 enter to pair mode.The ARS50 will do the frequency hopping according to a certain sequence, and then send the connection command. 2. If there is a Device response, the ARS50 will judge whether it can be permitted to connect. Prompt enter a passkey. 3. If the passkey is right, then can be permitted to connect, send the connection command to build up the connection. 4. While the connection build up successfully, the data transmission is beginning. At the same time, the ARS50 and device will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is 1600 times per second. 5. The bandwidth of the receiver, which is set to a fix width by the software, match the hopping channel bandwidth of their corresponding transmitter.

FORM NO: NUMBER THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF DHD. IT'S USE IS AUTHORIZED ONLY FOR REPONDING TO A REQUEST FOR QUOTATION. OR FOR THE PERFORMANCE OF WORK FOR DHD. ALL QUESTIONS MUST BE REFERRED TO THE LOCAL PURCHASING DEPARTMENT OF DHD. A MATERIAL SAFETY CDB SCALE SHEET MODEL PART NO. 8 7 6 5 4 3 2 ACDB 1 EF CHECKED BY APPROVED BY DRAWN BY ANGLE DHD MODE NAME mm UNIT VERSION PART NAME PART NO. DATE SIGNATURE DHD MODE NO. 1.0 6 MARK 1 2 3 TOTAL XXX DESCRIPTION 3 2 EF 1 1 1 CUSTOMER DHD AUDIO Co.,Ltd ANT SPKL- SPKL+ SPKR- SPKR+ INL INR 1.8V GND VCC LED1 LED0 SPI_MOSO SPI_CS SPI_CLK SPI_MOSI KEY6KEY5KEY4KEY3KEY2KEY1 123456 7 8 9 10 11 12 13 14 15 161718192021 22 BT BT1 + C1 2200uF/16V U3 IC-1117/3.3V + C4 330uF/16V C5C/104 L1 48 U4-C IC-4558 48 U5-C IC-4558 R15 10 C22 C/104 C23 C/104 R16 10K R17 10K + C24 4.7uF/16V 123 DC -+ 23 1 U4-A IC-4558 +- 56 7 U4-B IC-4558 12345 PH1 JK/5P/PHONE R5 1K R6 1K R7 47K R8 47K C16 C/102 C17 C/102 + C18 1uF/16V R9 10K R10 10K R11 10K + C19 1uF/16V R12 10K R13 10K R14 10K + C20 1uF/16V + C21 1uF/16V R36 10K R37 10K -+ 23 1 U5-A IC-4558 +- 56 7 U5-B IC-4558 R18 10K R19 10K R20 22K R21 22K + C25 2.2uF/16 + C26 2.2uF/16 R22 10K R23 10K R24 22K R25 22K + C27 2.2uF/16 + C28 2.2uF/16 + C29 1uF/16V + C30 1uF/16V R34 10K R35 10K S1-AS2-AS3-AS4-A R2 10K R3 10K R4 10K LED 1 2 3 4 5 P1 R26 68 123 4 567 P2 123 4 567 P3 12 SPL SPEAKER 12 SPR SPEAKER R44 10K 1 23 SW-A 4 56 SW-B 1 2 3 Q1 R1 470 R48 3.3K OUTR+ PGND OUTR- PVDD SD GND INR NCVREF INL VDD MUTE PVDD OUTL- PGND OUTL+ 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 U1 IC-AP8203 C2 102 R31 15K C6 M/272 C8 104 R32 10K C9 102 R33 15K C10 M/272 C11 104 R38 10K R39 20K R40 20K C12 105 C13 105 C14 105 C15 105 C31 106 C32 106 C3 106 C33 102 C34 102 C35 102 C36 102 C37 106 R41 560 + C38 33uF/16V 12 MIC R42 10K VREF VCC 3V3 LOUT ROUT VREFVREF VREF VREF LOUTROUT SPR- SPR+ SPL- SPL+ VREF VREF SPL+ SPL-SPR+SPR- 3V3 3V3 3.3V LOUT ROUT VCC VCC ABCD DCBA Title Number Revision Size B Date: 14-Jun-2012 Sheet of File: E:\ \ \bl uet oot h mo del.dd b Drawn By: VREGIN_L 1 VDD_ANA 2 XTAL_IN 3 XTAL_OUT 4 LO_REF 5 AIO_1 6 AIO_0 7 NC 8 UART_TX 9 UART_RX 10 UART_CTS 11 UART_RTS 12 VDD_UART 13 PIO_9 14 PIO_11 15 VDD_PADS 16 VDD_CORE 17 PIO_12 18 PIO_13 19 PIO_14 20 PIO_8 21 PIO_7 22 PIO_6 23 PIO_5 24 PIO_4 25 RST# 26 TEST_EN 27 SPI_MOSI 28 SPI_ CLK 29 SPI_CS# 30 SPI_MOSO 31 LED0 32 LED1 33 VDD_CORE 34 VREGENABLE_H 35 VDD_SMP_CORE 36 LX 37 BAT_P 38 VDD_CHG 39 NC 40 NC 41 NC 42 NC 43 NC 44 MIC_BAIS 45 VREGIN_AUDIO 46 VDD_AUDIO 47 MIC_B_P 48 NC 49 MIC_B_N 50 MIC_A_P 51 MIC_A_N 52 SPKR_B_N 53 SPKR_B_P 54 AU_REF_DCPL 55 SPKR_A_N 56 SPKR_A_P 57 PIO_3 58 PIO_2 59 PIO_1 60 PIO_0 61 VDD_PIO 62 VDD_RADIO 63 RF_P 64 RF_N 65 VDD_RADIO 66 VDD_LO 67 VREGENABLE_L 68 vss 69 Exposed pad U1 C3 1V5 C4 1V5 C25 R14 1V5 C17 1V51V8 1 2 L4 C27 1V8 C26 C28 VBUS R15 PWR1V8 C20 R13 C21 1V5_AUDIO C24 K4 K5 K1 K2 K3 C29 1V8 WP SDA SCL C18 SPI_MOSI SPI_CLK SPI_CS# SPI_MOSO LED C19 C6 C7 R1 MIC+ RO+RO- LO+ LO- C5 X1 C16 C15 UNBAL 1 DC 2 NC 3 GND 6 GND 4 GND 8 BAL 5 BAL 7 X2 1 2 L2 1V5 C2 C1 ANT K4 K1 K2 K3 K5 K6 BT_VCC33 R20 R21 R22 UART_TX UART_RX 1 1 T1 1 1 T4 1 1 T3 1 1 T2 R12 mic_bias mic_bias + 5 - 6 7 48 U2A C8 R3 C9 R2 R8 R6 VREF + 3 - 2 1 U2B C11 R5 C10 R4 R9 R7 VREF 9V C13C12 1 2 3 4 5 CN1 BT_VCC33 1V8 R10R11 9V VREF C14 OUT R OUT L OUT R OUT L 1 2 CN2 MIC+ 1 2 3 4 5 CN3 9V GND 2 VOUT 1 VIN 3 U3 BT_VCC33 EC1 C22 C23 Q1 R18 R17 R16 BT_VCC33 LED BT_VCC33 R19 KEYCOM 9V R23 PWR 1 2 3 4 5 CN4 1 2 3 4 CN5 CSR IC BTY1621 1 234 86 7 5

Page: 1 of 57 FCC TEST REPORT The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12052841-S-S-F FCC ID : VIX-ARS50A Applicant : Audiovox Accessories Corp. Address : 701 Congressional Blvd. suite 200, Carmel, Indiana, United States Equipment Under Test (EUT) : Product Name : AUDIO SYSTEM WITH BLUETOOTH Model No. : ARS50-A Standards : FCC CFR47 Part 15 Section 15.247:2010 Date of Test : May 16 ~ May 25, 2012 Date of Issue : June 1, 2012 Test Engineer : Zero Zhou / Engineer Reviewed By : Philo zhong / Manager Test Result : PASS Prepared By: Waltek Services (Shenzhen) Co., Ltd. 12B, West Tower, Aidi Building, No.5003, Binhe Road, Futian District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 — The sample detailed above has been tested to the requirements of Council Directives ANSI C63.4:2003. The test results have been reviewed against the Directives above and found to meet their essential requirements. Page:2 of 57 Audiovox Accessories Corp. FCC ID: VIX-ARS50A The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12052841-S-S-F 2 Test Summary Test Items Test Requirement Result Radiated Spurious Emissions (26MHz to 25GHz) 15.205(a) 15.209 15.247(d) PASS 20dB Bandwidth 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Page:3 of 57 Audiovox Accessories Corp. FCC ID: VIX-ARS50A The results shown in this test report refer only to the sample(s) tested , This Test report cannot be reproduced, except in full, without prior written permission of the Company. WALTEK SERVICES Reference No.: WT12052841-S-S-F 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY .................................................................................................................................................. 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION ................................................................................................................................ 5 4.1 CLIENT INFORMATION........................................................................................................................................... 5 4.2 GENERAL DESCRIPTION OF E.U.T. ........................................................................................................................ 5 4.3 DETAILS OF E.U.T................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.......................................................................................................................... 5 4.5 STANDARDS APPLICABLE FOR TESTING................................................................................................................ 5 4.6 TEST FACILITY...................................................................................................................................................... 6 4.7 TEST LOCATION.................................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST .................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION................................................................................................................................................ 8 6.2 EUT SETUP........................................................................................................................................................... 9 6.3 CONDUCTED EMISSION TEST RESULT................................................................................................................... 9 6.4 PHOTOGRAPH – CONDUCTED EMISSION TEST SETUP.......................................................................................... 12 7 RADIATED SPURIOUS EMISSIONS ............................................................................................................... 13 7.1 EUT OPERATION :............................................................................................................................................... 13 7.2 MEASUREMENT UNCERTAINTY........................................................................................................................... 13 7.3 TEST SETUP......................................................................................................................................................... 14 7.4 SPECTRUM ANALYZER SETUP............................................................................................................................. 16 7.5 TEST PROCEDURE................................................................................................................................................ 17 7.6 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................... 17 7.7 SUMMARY OF TEST RESULTS...........................................................…
