VIXAWSBT10Portable Bluetooth Speaker

Important Information for Acoustic Research AWSBT10 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Unplug this apparatus during lightning storms or when unused for long periods of time. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Care and Maintenance • Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents as they may damage the surface. • Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock. • If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to prevent possible damage. • Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC). Ecology Your product must be disposed of properly according to local laws and regulations. Because this product contains a rechargeable battery, the product must be disposed of separately from the household waste. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. The power unit for this device should be plugged in so that it stays vertical or lies flat. The apparatus shall not be exposed to dripping or splashing or placed near objects filled with liquids. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by VOXX Accessories Corporation could void the user’s authority to operate the equipment. RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. 12 Month Limited Warranty VOXX Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced (at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within the terms of this Warranty, the product along with any accessories included in the original packaging is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to the Company at the address shown below. Do not return this product to the Retailer. This Warranty is not transferable and does not cover product purchased, serviced or used outside the United States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to costs incurred for the installation, removal or reinstallation of the product. The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by leaving non-rechargeable batteries in the product while plugged into an AC outlet. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR…

Text truncated - open the document above for the full version.

portable wireless speaker PREMIER quick start guide Welcome Congratulations on your purchase of this Acoustic Research Premier Series speaker, the ultimate in stereo-capable wireless sound. This speaker offers two setup options: Status StatusStatus Single-Speaker setup for one Premier speaker Stereo setup for two Premier speakers This guide takes you through the steps for either setup option. AWSBT10BK Instructions en français ...........................9 Instrucciones en español .......................17 2 Status Status Getting to know Bluetooth Bluetooth wireless is a quick and easy way to connect a smartphone to a speaker or a headset. There are basically two steps to making Bluetooth work. PAIRING: “Hi. I’m a phone.” The two devices get to know each other. The two devices do something together (like play music). This guide takes you through the steps to get started. CONNECTING: “Hi. I’m a speaker.” Unpack Make sure the following items came in this package. Wireless speaker AC power adapter 3.5mm AUX in cable Status 3 Status Status Speaker back Single-Speaker Setup 1 Set the Left-Mono-Right switch to Mono. 2 Press the button on top of the speaker to turn it on. Speaker front The Status light on the front of the speaker blinks blue. Blinking blue 3 Enable Bluetooth on your device (if it isn’t already on). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Note: Even though this speaker comes from the factory charged, it’s a good idea to recharge it fully before using it for an extended period of time. See page 7 for info on recharging the speaker. Notes: Make sure the Status light on the front of the speaker is blinking blue. (If it isn’t, press and hold the Pair button on top of the speaker until the speaker gives an audio signal.) If you’ve previously paired a different Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, press and hold the Pair button on the speaker until the speaker gives an audio signal. Headset AR Speaker Computer 8:45 PM Blue tooth devices 4 Select AR Speaker from the list of Bluetooth devices available. Notes: If you don’t see AR Speaker in the list of Bluetooth devices on your phone, choose “Scan” from your phone’s Bluetooth menu. The process of enabling Bluetooth and connecting varies from device to device. See your device’s owners manual for more information and specific instructions. The speaker gives an audio signal when it’s finished connecting to your smartphone. The Status light on the front of the speaker turns solid blue. Status Status Speaker front Solid blue Continues on the next page... 4 5 Start playing music on your Bluetooth device. 8 :45 P M Status The speaker starts streaming your music wirelessly. To control the volume, press the + and – buttons on top of the speaker, or use the volume controls on your Bluetooth device. Bluetooth Wireless Connection Tips • Make sure the Bluetooth capability of your device is turned on. • Make sure there’s nothing plugged into the speaker’s Aux In jack when you’re trying to use Bluetooth. • The Bluetooth wireless connection works up to a range of roughly 33 feet (10 meters). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having problems connecting to the speaker, move closer to it. • If your device asks you for a password to connect, use “0000”. Single-Speaker Setup Note: Make sure your device’s volume is set to at least 75%. 5 LINKED Status Status Speaker back Stereo Setup Speaker back 1 Set the Left-Mono-Right switch on one speaker to Left. Set the Left-Mono-Right switch on the other speaker to Right. 2 Press the button on top of the left speaker to turn it on. Press the button on top of the right speaker to turn it on. Left speaker front The Status light on the front of the left speaker blinks white slowly. Slow blinking white The Status light on the front of the right speaker blinks white slowly. Status Right speaker front Status Slow blinking white 3 Wait for the Status light on the right speaker to turn solid white. Right speakerLeft speaker Status Solid white Status Fast blinking white The Status light on the left speaker will start blinking white faster. This means the two speakers are linked for stereo and ready to pair with your Bluetooth device. Status RIGHT Status LEFT Continues on the next page... If you have two speakers... 6 4 Enable Bluetooth on your device (if it isn’t already on). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Headset AR Stereo Computer 8:45 PM Blue tooth devices 5 Select AR Stereo from the list of Bluetooth devices available. Make sure the Status light on the front of the left speaker is fast-blinking white. (If it isn’t, press and hold the Pair button on top of the left speaker until the speaker gives an audio signal.) Note: If you’ve previously paired a different Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, press and hold the Pair button on the speaker until the speaker gives an audio signal. If you don’t see AR Stereo in the list of Bluetooth devices on your phone, choose “Scan” from your phone’s Bluetooth menu. Note: The process of enabling Bluetooth and connecting varies from device to device. See your device’s owners manual for more information and specific instructions. The left speaker gives an audio signal when it’s finished connecting to your smartphone. The Status light on the front of the speaker turns solid white. Left speaker Status Solid white 6 Start playing music on your Bluetooth device. 8 :45 P M StatusStatus The speakers start streaming your music wirelessly, in True Stereo. To control the volume, press the + and – buttons on top of the left speaker, or use the vol…

Text truncated - open the document above for the full version.

9 English instructions ..................................1 Instrucciones en español .......................17 Bienvenue Toutes nos félicitations pour l’achat de ce haut-parleur Série Première de Acoustic Research offrant les capacités inégalées d’un son stéréo sans fil. Ce haut-parleur offre deux options de configuration : Une configuration pour un seul haut-parleur Série Première Une configuration pour deux haut-parleurs Série Première Le présent guide présente les étapes à suivre pour chacune des configurations. AUDIO SÉRIE PREMIÈRE DISTINCTIF haut-parleur portable sans fil guide de démarrage rapide Status StatusStatus 10 Status Familiarisation avec Bluetooth La liaison sans fil Bluetooth est une solution rapide et facile pour connecter un téléphone intelligent à un haut-parleur ou à un casque d’écoute. Il y a deux étapes fondamentales pour faire fonctionner Bluetooth. « Bonjour. Je suis un téléphone. » APPARIEMENT : Les deux appareils apprennent à se connaître. CONNEXION : Les deux appareils font quelque chose ensemble (par exemple diffuser de la musique). Le présent guide présente les étapes permettant de commencer à utiliser le produit. Déballer Assurez-vous que les articles suivants sont inclus dans l’emballage. Haut-parleur sans filAdaptateur d’alimentation c.a. Câble AUX IN de 3,5 mm Status Status « Bonjour. Je suis un haut-parleur. » 11 Configuration pour un seul haut-parleur 1 Placez l’interrupteur Left-Mono- Right sur Mono. 2 Appuyez sur le bouton situé sur le dessus du haut-parleur pour l’allumer. Status Status Clignotement bleu Avant du haut-parleur Le voyant Status sur la partie avant du haut-parleur clignote en bleu. 3 Activez la fonction Bluetooth sur votre appareil (si ce n’est pas déjà fait). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Remarque : même si ce haut-parleur sort de l’usine chargé, il est préférable de le charger pleinement avant de l’utiliser pendant une longue période. Reportez-vous à la page 15 pour savoir comment recharger haut-parleur. Remarques : Vérifiez que le voyant Status situé à l’avant du haut-parleur clignote en bleu. (S’il ne clignote pas, appuyez sur le bouton Pair sur la partie supérieure du haut-parleur et maintenez-le appuyé jusqu’à ce que le haut-parleur émette un signal sonore.) Si votre téléphone ou tout autre appareil Bluetooth a été apparié antérieurement au haut-parleur, celui-ci, lorsqu’il est allumé, essaie automatiquement de se reconnecter à cet appareil. Si vous désirez apparier un nouvel appareil, appuyez sur le bouton Pair sur le haut-parleur et maintenez-le appuyé jusqu’à ce qu’il émette un signal sonore. 4 Sélectionnez AR Speaker sur la liste des appareils Bluetooth disponibles. Remarques : si AR Speaker ne s’affiche pas sur la liste des appareils Bluetooth de votre téléphone, sélectionnez « Scan » sur le menu Bluetooth du téléphone. Le processus d’activation Bluetooth et de connexion varie d’un appareil à l’autre. Reportez-vous au manuel du propriétaire de votre appareil pour obtenir des informations supplémentaires et des instructions spécifiques. Le haut-parleur émet un signal sonore lorsque la connexion au téléphone intelligent est terminée. Le voyant Status sur la partie avant du haut-parleur devient bleu en continu. Status Status Avant du haut-parleur Bleu en continu Suite à la page suivante... Arrière du haut-parleur Headset AR Speaker Computer 8:45 PM Blue tooth devices 12 5 Démarrez la lecture de musique sur votre appareil Bluetooth. 8 :45 P M Status Le haut-parleur diffuse la musique en continu grâce à la connexion sans fil. Pour contrôler le volume, appuyez sur les boutons + et – situés sur la partie supérieure du haut-parleur, ou utilisez les commandes de volume sur votre appareil Bluetooth. Conseils pour la connexion sans fil Bluetooth • Vérifiez que la fonction Bluetooth de votre appareil est activée. • Vérifiez que rien n’est branché dans la prise Aux In du haut-parleur lorsque vous essayez d’utiliser Bluetooth. • La connexion sans fil Bluetooth dispose d’une portée d’environ 10 mètres (33 pieds). Cependant, cette portée peut varier en fonction d’autres facteurs, tels que l’agencement de la pièce, le matériau des murs, les obstacles, la performance Bluetooth de l’appareil, etc. En cas de problème de connexion avec le haut-parleur, se rapprocher du haut-parleur. • Si l’appareil demande un mot de passe pour se connecter, utilisez « 0000 ». Configuration pour un seul haut-parleur Remarque : Veiller à régler le volume de votre appareil à 75 % au minimum. 13 LIAISON Status Status Arrière du haut-parleur Configuration stéréo Arrière du haut-parleur 1 Placez l’interrupteur Left-Mono- Right de l’un des haut-parleurs sur Left. Placez l’interrupteur Left-Mono-Right de l’autre haut-parleur sur Right. 2 Appuyez sur le bouton situé sur le dessus du haut-parleur gauche pour l’allumer. Appuyez sur le bouton situé sur le dessus du haut-parleur droit pour l’allumer. Avant du haut-parleur gauche Le voyant Status sur la partie avant du haut-parleur clignote lentement en blanc. Clignotement lent blanc Le voyant Status sur la partie avant du haut-parleur clignote lentement en blanc. Status Avant du haut-parleur droit Status Clignotement lent blanc 3 Attendez jusqu’à ce que le voyant Status sur le haut-parleur droit devienne blanc en continu. Haut-parleur droitHaut-parleur gauche Status Blanc en continu Status Clignotement rapide blanc Le voyant Status sur le haut- parleur gauche commence à clignoter plus rapidement en blanc. Cela indique que les deux haut-parleurs ont établi une liaison pour fonctionner en stéréo et sont prêts à être appariés avec l’appareil Bluetooth. Status DROIT Status GAUCHE Suite à la page suivante... Si vous avez deux haut-parleurs ... 14 4 Activez la fonction Bluetooth sur votre appareil (si ce n’est pas déjà fait). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Headset AR Stereo Computer 8:45 PM Blue tooth devices 5 Sélectionnez AR Stereo sur la liste des …

Text truncated - open the document above for the full version.

17 English instructions ..................................1 Instructions en français ...........................9 altavoz inalámbrico portátil SONIDO DISTINTIVO SERIE PREMIERE AUDIO guía de inicio rápido Bienvenido Felicidades por su adquisición de este altavoz Acoustic Research de la Serie Premier, lo último en sonido inalámbrico compatible con estéreo. Este altavoz ofrece dos opciones de configuración: Status StatusStatus Configuración de altavoz único, para un solo altavoz Premier Configuración de sonido estéreo para dos altavoces Premier Esta guía lo lleva a través de los pasos para cualquiera de las dos opciones de configuración. 18 Status Status Lo que usted debe saber sobre Bluetooth Bluetooth inalámbrico es una forma rápida y fácil de conectar un teléfono inteligente a un altavoz o un auricular. Básicamente, hay dos pasos para hacer que éste funcione. “Hola. Soy un teléfono”. SINCRONIZACIÓN: Los dos dispositivos se conocen entre sí. CONEXIÓN: Los dos dispositivos hacen algo conjuntamente (tal como reproducir música). Esta guía lo lleva a través de los pasos para poder comenzar. “Hola. Yo soy un altavoz”. Desempaque Asegúrese que los siguientes artículos estén incluidos en el empaque. Altavoz inalámbricoAdaptador de potencia de CA Cable AUX in de 3.5 mm Status 19 Vista posterior del altavoz Headset AR Speaker Computer 8:45 PM Blue tooth devices Configuración de altavoz único 1 Ajuste el interruptor Left-Mono- Right a Mono. 2 Oprima el botón ubicado en la parte superior del altavoz para encenderlo. La luz indicadora Status en la parte frontal del altavoz parpadea de color azul. 3 Active la función de Bluetooth en su dispositivo (si no está encendido). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Aviso: Aún cuando este altavoz viene cargado desde la fábrica, es una buena idea recargarlo por completo antes de usarlo por un periodo de tiempo prolongado. Consulte la página 23 para obtener información sobre cómo recargar el altavoz. Notas: Asegúrese que la luz indicadora Status en la parte frontal del altavoz esté parpadeando en color azul. (De lo contrario, oprima y no suelte el botón Pair ubicado en la parte superior del altavoz hasta que el altavoz emita un sonido.) Si anteriormente sincronizó un dispositivo Bluetooth diferente con este altavoz, el altavoz intentará automáticamente reconectarse a ese dispositivo cuando encienda el altavoz. Si desea sincronizarse a un nuevo dispositivo, mantenga oprimido el botón Pair del altavoz hasta que el altavoz emita un sonido. 4 Seleccione AR Speaker de la lista de dispositivos Bluetooth disponibles. Notas: Si no aparece AR Speaker en la lista de dispositivos Bluetooth en su teléfono, seleccione “Scan” en el menú de Bluetooth de su teléfono. El proceso de activación de Bluetooth y de la conexión varía según el dispositivo. Consulte el manual del usuario del dispositivo para obtener información adicional e instrucciones específicas. El altavoz emite un sonido cuando termina de sincronizar y conectarse al teléfono inteligente. La luz indicadora Status en la parte frontal del altavoz se enciende de color azul continuo. Status Status Vista frontal del altavoz Azul continuo Continúa en la siguiente página... Status Status Parpadeo en color azul Vista frontal del altavoz 20 5 Comience a reproducir música en su dispositivo Bluetooth. 8 :45 P M Status El altavoz canaliza la música inalámbricamente. Para controlar el volumen, oprima los botones + y – en la parte superior del altavoz, o utilice los controles de volumen en su dispositivo Bluetooth. Consejos para la conexión inalámbrica Bluetooth • Asegúrese que la función Bluetooth del dispositivo esté activada. • Asegúrese que no haya nada acoplado al conector Aux In del altavoz cuando esté intentando utilizar Bluetooth. • La conexión inalámbrica Bluetooth funciona a un alcance de aproximadamente 33 pies (10 metros). Sin embargo, este alcance puede variar dependiendo de otros factores, tales como el diseño de la habitación, el material de las paredes, obstáculos, el desempeño de Bluetooth de su dispositivo, etc. Si tiene problemas para conectarse con el altavoz, acérquese más. • Si su dispositivo le solicita un código para conectarse, utilice “0000”. Configuración de altavoz único Aviso: Asegúrese que el volumen de su dispositivo está ajustado al menos a un 75%. 21 VINCULADOS Status Status Vista posterior del altavoz Configuración de sonido estéreo Vista posterior del altavoz 1 Ajuste el interruptor Left-Mono- Right en un altavoz a Left. Ajuste el interruptor Left-Mono-Right en el otro altavoz a Right. 2 Oprima el botón ubicado en la parte superior del altavoz izquierdo para encenderlo. Oprima el botón ubicado en la parte superior del altavoz derecho para encenderlo. Altavoz frontal Izquierdo La luz indicadora Status en la parte frontal del altavoz izquierdo parpadea lento de color blanco. Parpadeo lento en color blanco La luz indicadora Status en la parte frontal del altavoz derecho parpadea lento de color blanco. Status Altavoz frontal derecho Status Parpadeo lento en color blanco 3 Espere a que la luz indicadora Status del altavoz derecho se encienda de color blanco continuo. Altavoz derechoAltavoz izquierdo Status Blanco continuo Status Parpadeo rápido de color blanco La luz indicadora Status del altavoz izquierdo comenzará a parpadear más rápido de color blanco. Esto significa que los dos altavoces están vinculados para estéreo y listos para sincronizarse con su dispositivo Bluetooth. Status DERECHO Status IZQUIERDO Continúa en la siguiente página... Si tiene dos altavoces ... 22 4 Active la función de Bluetooth en su dispositivo (si no está encendido). Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45 PM Headset AR Stereo Computer 8:45 PM Blue tooth devices 5 Seleccione AR Stereo de la lista de dispositivos Bluetooth disponibles. Asegúrese que la luz indicadora Status en la parte frontal del altavoz izquierdo esté parpadeando rápido en color blanco. (De…

Text truncated - open the document above for the full version.

FILE NAME:APPROVED BY: DRAWN BY: LiuDongHuaMATERIAL/THICKNESS: DATE: 3 Dec 2014DATE: DWG.NO: SHEET 1 OF 1 MODEL: BS1450PART NO:REV: A0 TITLE:CHECKED BY: DATE CHG.BY PART NO DESCRIPTION ECN NO REVISION REVISION RECORD BLOCK DIAGRAM OF BS1450 AAI Acoustic Arc International Ltd. DATE: BLOCK DIAGRAM OF BS1450 1.PART1: M1 MCU_SOC Contains RF Preamplifier, mixing, IF amplifier,Demodulation FUNCTIONAL DESCRIPTION 2.PART2: Line Input And U6 Bluetooth Input U2 Switch Function U5 Volume Control 5.PART5: LED1 KEY OPERATING And Working instructions LED AAi-E-BL-A-0318 M1 Bluetooth_MCU PART1 PART2 PART3 ANT PART4 3.PART3: U4 PAM8006A AUDIO AMPLIFIER IC4.PART4: BATTERY CHARGER& BATTERY SUPPLY AMP_VDD U1,3 Manostat 5.0V_3.3V U4 PAM8006A U2 S7201 3.5mm Line_IN XZ2107 Q4 AMP_VDD 7805_5.0V U1 DC14V INPUT POWER SUPPLY BATTEERY 11.1V/2000mAh SHUT_DOWN DC_SD U6 4558 LINE_SW PART5 2.400-2.483GHz XZ1803_3.6V U3 U5 M62429L I2C_CLKI2C_DATA HR6912 U7 BATTEERY CHARGER 16MHz LED1-A BLUE LED1-B WHITE VOL+ VOL- PAIR POWER 3.6V The Block Diagram

180

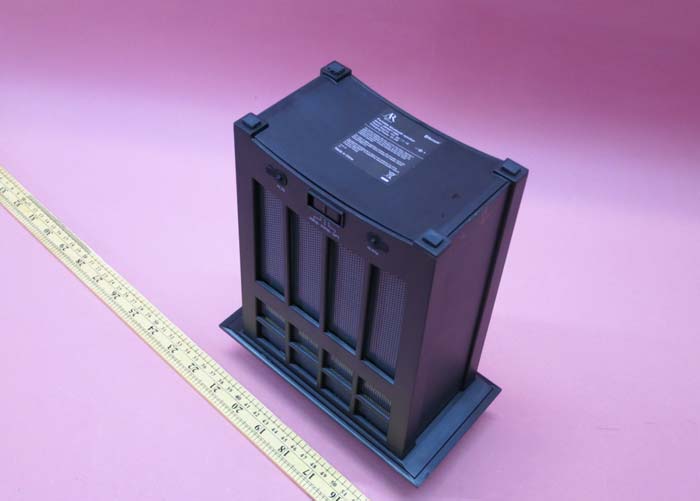

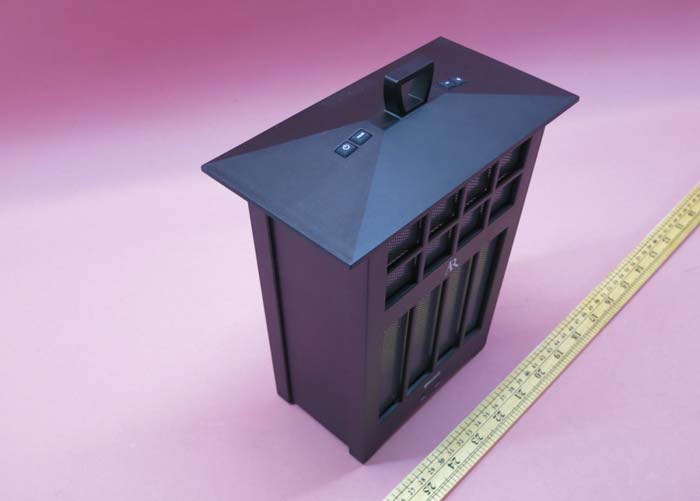

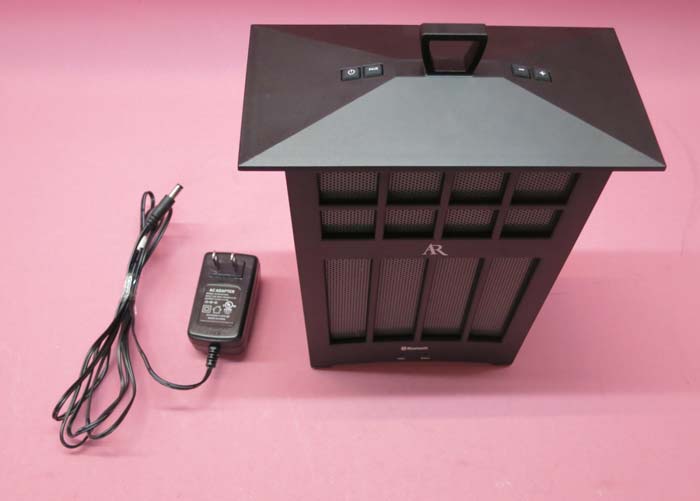

INTERTEK TESTING SERVICE Report: 14101206HKG-001 FCC ID: VIXAWSBT10 Equipment Photographs Model: AWSBT10 (External) IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 FCC ID: VIXAWSBT10 Equipment Photographs Model : AWSBT10 (External) IC: 342H-AWSBT10

Pasadena(BS1450) Bluetooth speaker rating label P/N: 95-09-BS1450-01 Portable bluetooth speaker rating label Note: Size: 40*40mm Print: White font,Black ground,back glue. Unit: mm Tolerance: +/-0.5mm Scale: 1:1 Model: AWSBT10 Power Source: 14V 1A FCC ID:
VIXAWSBT10 IC: 342H-AWSBT10 Portable Bluetooth speaker BC CAN ICES-3 (B)/NMB-3 (B) Model: AWSBT10 Power Source: 14V 1A FCC ID:
VIXAWSBT10 IC: 342H-AWSBT10 Portable Bluetooth speaker BC CAN ICES-3 (B)/NMB-3 (B) On
speaker
bottom

INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10 INTERTEK TESTING SERVICE Report: 14101206HKG-001 Equipment Photographs Model : AWSBT10 (Internal) FCC ID: VIXAWSBT10 IC: 342H-AWSBT10

Technical Description The brief circuit description is listed as below: 1) M1 acts as 2.4GHz RF Module (BT55). 2) U2 acts as Analog Switch CRT (S7201). 3) U4 acts as Audio Amplifier (PAM8006A). 4) U5 acts as Volume Controller (M62429L). 5) U7 acts as Switching Charger (HR6912). 6) X1 acts as a Crystal for M1. 7) U3 acts as voltage regulator 8) U6 acts as dual operational amplifier. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 97.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB

Analysis Report The Equipment Under Test (EUT) is a 2.4GHz Bluetooth 2.1 + EDR transceiver speaker. The EUT is power by an AC Adapter (Model: K15S140100U; Input 100-240V, 50/60Hz, 0.5A; Output: 14.0V, 1.0A) and also contains a 11.1V rechargeable battery. The Bluetooth module in the EUT is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). After pairing, the audio signal can be fed to the speaker. Also there is an Aux in for audio input. Antenna Type: Internal antenna Antenna Gain: 0dBi Nominal rated field strength: 97.3 dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 100.3dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 3.215mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power =3.215mW. The power density at 20cm = 3.215 *1.00/ 4πR 2 = 0.00064 mWcm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at Error! Reference source not found.cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum Error! Reference source not found.cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: RF Exposure Warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End- users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.”

R55 10K,+/-1% R56 7.5K,+/-1% R63 7.5K,+/-1% C51 10P R64 10K,+/-1% R11 15K,+/-1% R28 8.2K,+/-1% R29 10K,+/-1% C53 1UF X7R C54 1UF X7R C55 1UF X7R 32 1 U6-A D4558/8922 56 7 U6-B R30 4.7K R31 4.7K C56470UF/10V C57 104 C100 33P 84 U6-C R42 10R C63 10uF/10V C64 0.1uF C65 33P C59 10P C1020.33UF C49 2.2UF X5R C1210P C1510P C911UF C96 102 C97 105 C2472 C23 472 C861UF R27 10R C87 105 C85 105 R33 NC C90 105 R36 10K C98 105 C35 102 R37 0R R49 5.6K R51 10K L6 1206/Bead,1A L8 1206/Bead,1A SPKL WOOFER E4 220uF E5 220uF R52 NC Q3 NC C41 101 C50 101 C52 101 123 654 U2 S7201 C61 2.2uF C212.2uF SPK1WOOFER C26 4.7uF/50V C11 104 L2 2.2nH C13 1.2P C14 2.2P MOIS CLK MISO CSB ANT1 C3410uF/10V GND L9 4.7R C28 100NF 19 20 21 22 23 24 25 26…
