VIXAWSHTBWireless Speaker

Instructions en français ........................... 7 Instrucciones en español .......................13 wireless speaker quick start guide Welcome Congratulations on your purchase of this Acoustic Research Elite Series speaker, the ultimate in massive wireless sound. This guide takes you through the steps to get set up. AWSHTB 2 Getting to know Bluetooth Bluetooth wireless is a quick and easy way to connect a smartphone to a speaker or a headset. There are basically two steps to making Bluetooth work. PAIRING: “Hi. I’m a phone.” The two devices get to know each other. The two devices do something together (like play music). This guide takes you through the steps to get started. CONNECTING: “Hi. I’m a speaker.” Make sure the following items came in this package. • Wireless Speaker • Speaker Cover • 3.5mm AUX In Cable Unpack 1 3 Press the On/Off button on the top of the speaker to turn it on. The Pair light on the top of the speaker blinks blue. Power the speaker 2 Plug the speaker’s built-in power cord into a working outlet or surge protector. Turn the speaker on 3 Speaker top Blinking blue Enable Bluetooth on your device 4 Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Settings 8:45 P M If it isn’t already on, turn on the Bluetooth function of your device. Notes: Make sure the left Pair light on the top of the speaker is blinking. (If it isn’t, press and hold the Pair button on the top of the speaker until the speaker gives an audio signal.) If you’ve previously paired a different Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, press and hold the Pair button on the speaker until the speaker gives an audio signal. 4 Start playing music on your Bluetooth device. 8 :45 P M The speaker starts streaming your music wirelessly. To control the volume, press the + and – buttons on top of the speaker, or use the volume controls on your Bluetooth device. Select AR Hatteras from the list of devices 5 Headset AR Hatteras Computer 8:45PM Blue tooth devices Select AR Hatteras from the list of Bluetooth devices available. Notes: If you don’t see AR Hatteras in the list of Bluetooth devices on your phone, choose “Scan” from your phone’s Bluetooth menu. The process of enabling Bluetooth and connecting varies from device to device. See your device’s owners manual for more information and specific instructions. The speaker gives an audio signal when it’s finished connecting to your smartphone. The Pair light on the top of the speaker turns solid blue. Start playing music on your device 6 Note: Make sure your device’s volume is set to at least 75%. Speaker top Solid blue 5 Speaker top Bluetooth Wireless Connection Tips • Make sure the Bluetooth capability of your device is turned on. • Make sure there’s nothing plugged into the speaker’s Aux In jack when you’re trying to use Bluetooth. • The Bluetooth wireless connection works up to a range of roughly 33 feet (10 meters). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having problems connecting to the speaker, move closer to it. • If your device asks you for a password to connect, use “0000”. Using the AUX input Use the audio cable included with this speaker to connect the audio output from your device to the Aux In audio input on the top of the speaker (you’ll need to open the rubber flap protecting the jack). The speaker automatically switches to the Aux In audio. The Pair light on the top of the speaker turns white. To listen to Bluetooth audio again, unplug the cable from the speaker’s Aux In jack. Speaker top With flap open Using the built-in lighting This Elite Series wireless speaker offers two modes of adjustable lighting, to suit different settings and situations. Dimmer Mode provides adjustable area lighting. Music Pulse Mode provides a visible pulse to your music, with light that accompanies the beat. The speaker’s lighting is controlled via the AREA LIGHT ADJUSTMENT dial on top of the speaker. To turn on the light: press the dial once. To adjust the light: turn the dial. To use Music Pulse Mode: press the dial a second time. Then start playing music. To turn the light off: press the dial a third time. 6 Tour of the Elite Series wireless speaker Top Pair indicator shows the connection status of the speaker. Solid blue means the speaker is connected via Bluetooth. Fast blinking blue means the speaker is ready to pair via Bluetooth. Slow blinking blue means the speaker is reconnecting via Bluetooth. Solid white means an audio cable is plugged into the Aux In jack. On/Off button turns the speaker on and off. Pair button initiates pairing with a Bluetooth device. Volume – and + buttons increase or decrease the volume of the speaker’s audio. Aux In jack lets you connect directly to the speaker to listen to an audio source. AREA LIGHT ADJUSTMENT lets you set the speaker’s built-in light to Dimmer Mode or Music Pulse Mode. To turn on the light: press the dial once. To adjust the light: turn the dial. To use Music Pulse Mode: press the dial a second time. Then start playing music. To turn the light off: press the dial a third time. © 2014 Voxx Accessories Corp AWSHTB QSG 00 7 English instructions .................................. 1 Instrucciones en español .......................13 Bienvenue Toutes nos félicitations pour l’achat de ce haut- parleur Série Elite de Acoustic Research offrant les capacités inégalées et imposantes d’un son sans fil. Ce guide présente les étapes permettant de commencer à utiliser le produit. haut-parleur sans fil guide de démarrage rapide 40 WATTS SYSTÈME 4 VOIES SÉRIE ELITE 8 Familiarisation avec Bluetooth La liaison sans fil Bluetooth est une solution rapide et facile pour connecter un téléphone intelligent à un haut-parleur ou à un casque d’écoute. Il y a deux étapes fondamentales pour fai…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 Voxx Accessories Corp. 2014.12.18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, ______ Voxx Accessories Corp.______hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description： Wireless Speaker model name: AWSHTB FCC ID: VIXAWSHTB Sincerely, Client’s signature Client’s name / title ： Milan Phillabaum / Quality Director Contact information / address ：3502 Woodview Trace, Suite 220, Indianapolis,IN 46268

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 Voxx Accessories Corp. 2014/12/18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: VIXAWSHTB We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Milan Phillabaum / Quality Director Contact information / address: 3502 Woodview Trace, Suite 220, Indianapolis,IN 46268

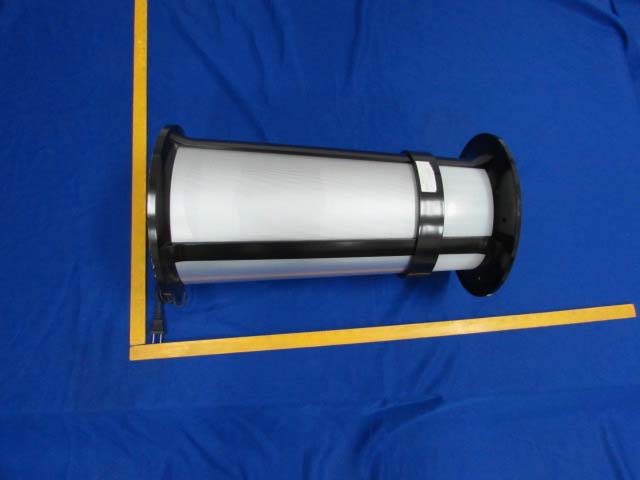

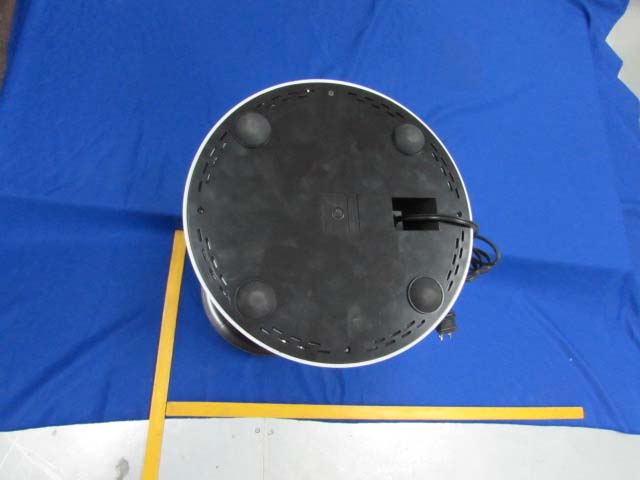

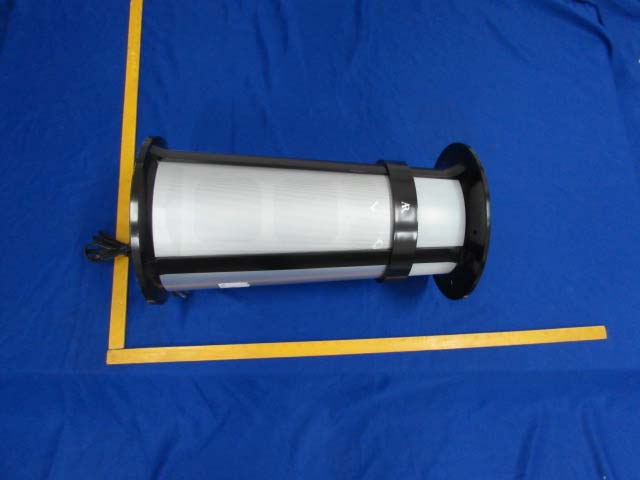

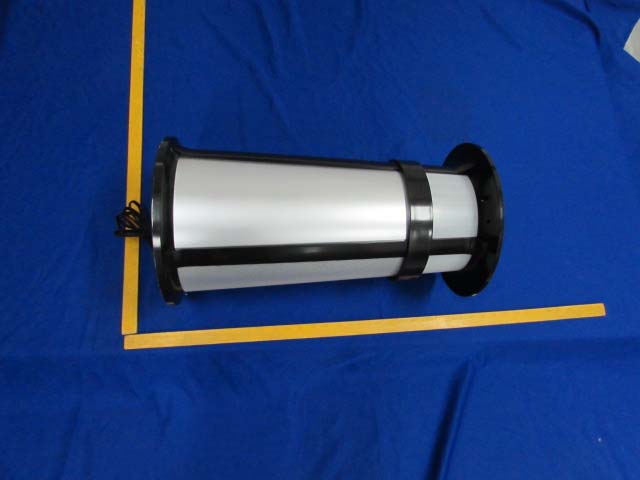

FCC ID:VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412006 Page 94 of 101 13. PHOTOS OF EUT External Photos M/N: AWSHTB FCC ID:VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412006 Page 95 of 101 External Photos M/N: AWSHTB FCC ID:VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412006 Page 96 of 101 External Photos M/N: AWSHTB

40.8 2 5 . 0 61.0 mm 2 8 . 0 m m

FCC ID: VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412007 Page 1 of 3 FCC 47 CFR MPE REPORT Voxx Accessories Corp. Wireless Speaker Model Number: AWSHTB FCC ID: VIXAWSHTB Prepared for : Voxx Accessories Corp. 3502 Woodview Trace, Suite 220, Indianapolis, IN 46268 Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1412007 Date of Test : Nov 06,2014~ Dec 13, 2014 Date of Report : Dec 16, 2014 FCC ID: VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412007 Page 2 of 3 Maximum Permissible Exposure 1、Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. (a)、Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b)、Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Times︱E︱ 2 , ︱H︱2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density 2、MPE Calculation Method E (V/m) = (30*P*G) 0.5/d Power Density: Pd (W/m2) = E2/377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d2) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: VIXAWSHTB EST Technology Co.,Ltd Report No. ESTE-R1412007 Page 3 of 3 3、Calculated Result and Limit Antenna gain Model Frequency (MHz) Peak output power (dBm) Peak output power (mW) (dBi) (Linear) Target power （dBm） Power Density (S) (mW/cm2) Limited of Power Density (S) (mW/cm2) Test Result 2402 1.2241.326 0 1.00 1±1 0.00032 1 Compiles 2441 1.8561.533 0 1.00 1±1 0.00032 1 Compiles GFSK 2480 1.8651.536 0 1.00 1±1 0.00032 1 Compiles 2402 -0.0790.982 0 1.00 -1±1 0.00020 1 Compiles 2441 0.3091.074 0 1.00 0±1 0.00025 1 Compiles 8-DPSK 2480 0.7751.195 0 1.00 0±1 0.00025 1 Compiles

FCC ID: VIXAWSHTB EST Technology Co.,Ltd Report No.ESTE-R1412006 Page 1 of 101 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Voxx Accessories Corp. Wireless Speaker Model Number: AWSHTB FCC ID: VIXAWSHTB Prepared for : Voxx Accessories Corp. 3502 Woodview Trace, Suite 220, Indianapolis, IN 46268 Prepared By : EST Technology Co., Ltd. Santun(guantai Road), Houjie Town, DongGuan City, GuangDong, China. Tel: 86-769-83081888-808 Report Number: ESTE-R1412006 Date of Test : Nov 06,2014~ Dec 13, 2014 Date of Report : Dec 16, 2014 FCC ID: VIXAWSHTB EST Technology Co.,Ltd Report No.ESTE-R1412006 Page 2 of 101 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION.........................................................................................................................3 1. GENERAL INFORMATION.................................................................................................................5 1.1. Description of Device (EUT) ........................................................................................................... 5 2. SUMMARY OF TEST.........................................................................................................................6 2.1. Summary of test result...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Assistant equipment used for test ..................................................................................................... 8 2.4. Block Diagram ................................................................................................................................. 8 2.5. Test mode ......................................................................................................................................... 9 2.6. Channel List for Bluetooth ............................................................................................................... 9 2.7. Test Equipment............................................................................................................................... 10 3. MAXIMUM PEAK OUTPUT POWER.................................................................................................11 3.1. Limit ............................................................................................................................................... 11 3.2. Test Procedure ................................................................................................................................ 11 3.3. Test Result ...................................................................................................................................... 11 3.4. Test Data ........................................................................................................................................ 12 4. 20 DB BANDWIDTH.......................................................................................................................16 4.1. Limit ............................................................................................................................................... 16 4.2. Test Procedure ................................................................................................................................ 16 4.3. Test Result ...................................................................................................................................... 16 4.4. Test Data ........................................................................................................................................ 17 5. CARRIER FREQUENCY SEPARATION..............................................................................................21 5.1. Limit ............................................................................................................................................... 21 5.2. Test Procedure ................................................................................................................................ 21 5.3. Test Result ...................................................................................................................................... 21 5.4. Test Data ........................................................................................................................................ 22 6. NUMBER OF HOPPING CHANNEL..................................................................................................26 6.1. Limit ............................................................................................................................................... 26 6.2. Test Procedure ................................................................................................................................ 26 6.3. Test Result ...................................................................................................................................... 26 6.4. Test Data ........................................................................................................................................ 27 7. DWELL TIME.................................................................................................................................29 7.1. Limit ............................................................................................................................................... 29 7.2. Test Procedure ................................................................................................................................ 29 7.3. Test Result ...................................................................................................................................... 29 7.4. Test Data .....................................................................................................…
