VIXRCQ510Alarm Clock Wireless Charger

Wireless Charging Alarm Clock with Nightlight User’s Guide Getting Started Step 1: Plug In 1. Plug the included USB-C power cable into the input jack on the back of the clock. 2. Plug the other end of this cable into the included power adapter. 3. Plug the power adapter into a working power outlet. RCQ510 IB 00 Setting the Display Brightness The clock display automatically adjusts its brightness depending on the time of day. Max brightness during the day (from 7AM to 6:59PM) Medium brightness in the evening (from 6 to 11:59PM) Minimum brightness at night (from 12 to 6:59AM) You can also go through these brightness settings manually by pressing the + and — buttons on the right side of the clock. To increase display brightness: Press the + button on the right side of the clock. Each press goes to the next setting—minimum, medium, max, and off. To decrease display brightness: Press the — button on the right side of the clock. Note: Auto brightness settings take effect automatically. For example, if you have the display set to max brightness, it will automatically go to minimum brightness at midnight. BATTERY BACKUP Your clock has a pre-installed battery backup that will keep the time in case power is interrupted (like by a power outage, for example). This battery is not user replaceable. Step 2: Set the Time When you first plug it in, the clock display shows 12:00. 1. Double press the M button on the right side of the clock. 2. Press the + or — button on the right side of the clock to switch between 12- and 24-hour time formats (for example, 5:00 pm in 12-hour format would be 17:00 in 24-hour format). By default, the clock uses the 12-hour format. Press M to choose your preference and go to the next step. 3. Use the + and — buttons on right side of the clock to adjust the hour. Press the M button to set the hour and move to the minutes. 4. Use the + and — buttons to adjust the minutes. Then press M to finish setting the time. Everyday Use Using the Nightlight The clock’s nightlight has four brightness settings: low, medium, high, and off. To turn the nightlight on and adjust it: Press the nightlight button on the left side of the clock. Each press goes to the next setting—low, medium, high, and off. Clock, back panel Clock, right side Setting the Alarm 1. Press and hold the + button on the right side of the clock for 2 seconds to activate the alarm. The alarm indicator ( ) appears on the display. 2. Press and hold the M button on the right side of the clock until the hour digits start blinking. 3. Use the + and — buttons on right side of the clock to adjust the minutes for the alarm. Press the M button to set it and move to the hour. 4. Use the + and — buttons to adjust the hour for the alarm. Press the M button to set it. To turn the alarm on: Press and hold the + button on the right side of the clock. The alarm indicator ( ) appears in the display when the alarm is on. To turn the alarm off: Press and hold the — button on the right side of the clock. The alarm indicator disappears from the display. Notes: • The alarm sounds for 3 minutes when activated. • Press any button to activate snooze. The alarm indicator remains on the clock display. Alarm indicator M + – Clock, left side Charging your Device IMPORTANT: Before you try to charge your device, make sure it is compatible with wireless charging. If your device has a metal case, remove it before you put the device on the char- ger. 1. Place your wireless charging-compatible device directly onto the charging pad on top of the clock. Refer to the placement illustrations here as a guide. Tour of the Wireless Charging Alarm Clock The charging indicator in front of the charging pad turns blue while your device is charging. It turns off when your device has finished charging. Check your device’s screen to see the progress of charging. You can remove your device at any time during charging. Important: If the charging indicator light starts blinking, there’s something interfering with the charging. Make sure there are no objects between your phone and the charging pad. You might need to remove your phone’s case to charge wirelessly. 2. When your device is completely charged, remove it from the charging pad. Note: The clock must be plugged in to provide wireless charging. You can charge normally too! This clock offers a USB port for charging. Just plug the charging cable that came with your device into this charging port to charge! Nightlight provides three levels of ambient lighting. Press the nightlight button on the left side of the clock to cycle through the settings (low, medium, high, and off). Wireless charging pad and indicator lets you charge compatible devices wirelessly when the clock is using AC power. The indicator turns solid blue when your device is charged and turns off when your device is charged. The charging indicator blinks when there is a problem charging. Right Side M button enters time set (press and hold) and alarm set (press and hold when the alarm is on) modes + button increases display brightness (press). It also turns on the alarm (press and hold) and increases the flashing value when setting the time or alarm. — button decreases display brightness (press). It also turns off the alarm (press and hold) and decreases the flashing value when setting the time or alarm. Left Side Nightlight button cycles through the brightness settings for the nightlight: low, medium, high, and off. USB charging port provides wired charging for your USB device. Back (not shown) input plugs into the provided charging cable to power the clock. Display AM/PM indicator shows that the time displayed is AM or PM (does not apply to 24-hour format). Time/date digits show the current time or time/alarm setting values. Alarm indicator ( ) shows that an alarm is set. M + – Nightlight Wireless charging pad Wireless charging indicator Right side Left side USB charging port Nightlight button

IMPORTANT SAFETY INSTRUCTIONS PLEASE READ AND SAVE THIS FOR FUTURE REFERENCE Some of the following information may not apply to your particular product; however, as with any electronic product, precautions should be observed during handling and use. • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by the manufacturer. • Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. ADDITIONAL SAFETY INFORMATION • The AC/DC adapter supplied with this product is intended to be correctly oriented in a vertical or floor mount position. • Do not use unauthorized chargers or power adapters. Use only chargers or power adapters that came with your product or that is listed in the user’s guide. • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. • Always leave sufficient space around the product for ventilation. Do not place product in or on a bed, rug, in a bookcase or cabinet that may prevent air flow through vent openings. • Do not place lighted candles, cigarettes, cigars, etc. on the product. • Care should be taken so that objects do not fall into the product. • Do not attempt to disassemble the cabinet. This product does not contain customer serviceable components. • The marking information is located at the bottom of apparatus. • To be completely disconnect the power input, the AC/ DC adaptor of apparatus shall be disconnected from the mains. • AC/DC adaptor is a disconnect device. The AC/DC adaptor should not be obstructed OR should be easily accessed during intended use. • The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table- cloths, curtains etc. • No naked flame sources such as lighted candled should be placed on the apparatus. • Attention should be drawn to the environmental aspects of battery disposal. • The use of apparatus in moderate climates. Important battery precautions This product contains a button/coin cell battery that cannot be replaced by the user. The cells shall be disposed of properly after use. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. Ecology Help protect the environment - we recommend that you dispose of used batteries by putting them into specially designed receptacles. ] Portable Cart Warning English RCQ510 Safety Warranty 02 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by VOXX Accessories Corporation could void the user’s authority to operate the equipment. FCC Radiation Exposure statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Industry Canada Regulatory Information This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Cana…

Text truncated - open the document above for the full version.

Date: Mar 26, 2020 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: VIXRCQ510 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Keny Xu in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Voxx Accessories Corp. This authorization is valid until further written notice from the applicant. Print Name: Paul Tinaphong Title: Senior V.P. Signature: On behalf of Company: Voxx Accessories Corp. Telephone: (317)218-7301 E-mail: [email protected]

To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States Regarding: Confidentiality Request regarding application for FCC ID: VIXRCQ510 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Print Name: Paul Tinaphong Title: Senior V.P. Signature: On behalf of Company: Voxx Accessories Corp. Telephone: (317)218-7301 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Voxx Accessories Corp. Address 3502 Woodview Trace, Suite 220 , Indianapolis, IN 46268, United States Grantee Code VIX FCC ID VIXRCQ510 Authorized Contact Name Paul Tinaphong Contact Email [email protected] Contact Phone (317)218-7301 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: May 7, 2020 Print Name: Paul Tinaphong Title: Senior V.P. *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Cover Letter-Wireless Charger Approval Date: 2020-03-26 Gentlemen: There’s a Alarm Clock Wireless Charger that would like to have your authorization as an Inductive wireless power transfer applications approval. The specific product as below, Alarm Clock Wireless Charger, with its designed features and specified description, meets special requirements for KDB 680106 D01 section 5.2 requirements. Company: Voxx Accessories Corp. Product Name: Alarm Clock Wireless Charger Model Number: RCQ510 FCC ID: VIXRCQ510 KDB 680106 D01 Section 5.2 Requirements Product Technical Specification Result a)Power transfer frequency is less that 1 MHz 111.06kHz -185.58kHz Complied b)Output power from each primary coil is less than or equal to 15 watts. 5 / 7.5 / 10 watts Complied c)The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils Complied d)Client device is placed directly in contact with the transmitter. Complied e)Mobile exposure conditions onlyFor inductive applications where the primary does not physically attach to the client, and it is intended for desktop use, the desktop guidance in KDB 680106 D01 may be applied Complied f)The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Please refer to RF exposure report Complied Sin cerely, Print Name: Paul Tinaphong Title: Senior V.P. Signature: On behalf of Company: Voxx Accessories Corp. Telephone: (317)218-7301 E-mail: [email protected]

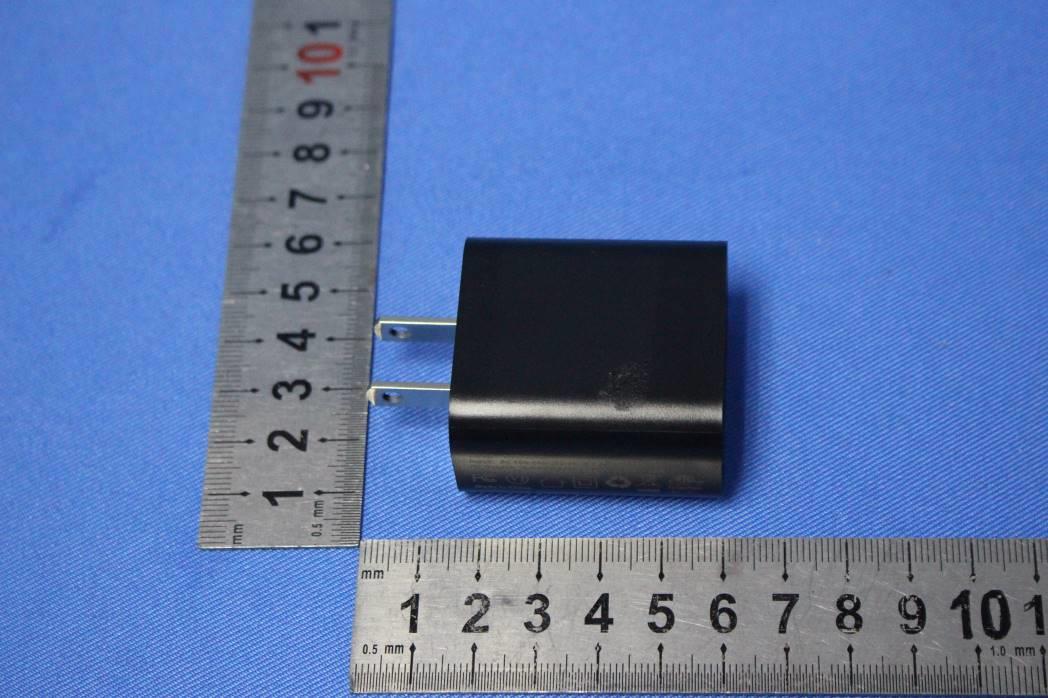

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 6 External Photos for SZEM2003001671CR FCC ID: VIXRCQ510 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 6 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 6 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 6 of 6

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 5 Internal Photos for SZEM2003001671CR FCC ID: VIXRCQ510 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 5 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 5 of 5

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 1 of 8 Keny Xu EMC Laboratory Manager Human Exposure Report Application No.: SZEM2003001671CR Applicant: VOXX Accessories Corp. Address of Applicant: 3502 Woodview Trace, Suite 220, Indianapolis, Indiana, United States 46268 Manufacturer: Shenzhen Shuo Yu Techonology Co., Ltd Address of Manufacturer: Room 1416, Xin'an Building, No. 3009 Renmin South Road, Luohu District, Shenzhen, Guangdong, China 518005 Equipment Under Test (EUT): EUT Name: Alarm Clock Wireless Charger Model No.: RCQ510 Trade mark: RCA FCC ID: VIXRCQ510 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1091 Date of Receipt: 2020-03-20 Date of Test: 2020-03-25 to 2020-04-14 Date of Issue: 2020-04-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2020-04-22 Original Authorized for issue by: Leo Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 3 of 8 1 Contents Page 1 CONTENTS ................................................................................................................................................ 3 2 GENERAL INFORMATION ........................................................................................................................ 4 2.1 DETAILS OF E.U.T. ................................................................................................................................... 4 2.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................. 4 2.3 TEST LOCATION ........................................................................................................................................ 5 2.4 TEST FACILITY .......................................................................................................................................... 5 2.5 DEVIATION FROM STANDARDS ................................................................................................................... 5 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.......................................................................................... 5 3 EQUIPMENTS USED DURING TEST ........................................................................................................ 6 4 TEST RESULTS ......................................................................................................................................... 7 4.1 RF EXPOSURE TEST ................................................................................................................................. 7 4.1.1 E.U.T. Operation ............................................................................................................................ 7 4.1.2 Measurement Data ........................................................................................................................ 8 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 4 of 8 2 General Information 2.1 Details of E.U.T. Power Supply: Adapter Model: S-TR-151QU Input: AC 100-240V~, 50/60Hz 0.5A Max QC Output: DC 3.6-6V 3A, DC 6-9V 2A, DC 9-12V 1.5A EUT Input: Type-C Port DC 5V/2A, 9V1.67A Output: USB Port: DC 5V/1A(MAX) WPC: 5W(DC 5V/1A); 7.5W(DC 5V/1.5A); 10W(DC 9V/1.1A) Cable: Type-C cable: 100cm shielded Operation Frequency: 111.06kHz to 185.58kHz Modulation Type: Load Modulation Antenna Type: Loop Antenna Remark: This device has been tested the worst status of full load and the device has been tested with load at 5W,7.5W and 10W, the worst case 10W(9V/1.1A) is reported only. 2.2 Description of Support Units Description Manufacturer Model No. Serial No. iPhone 8 Apple A1863 F4GVQ656JC6D SAMSUNG Galaxy S8 SAMSUNG SM-G9500 R28J9140LPB SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 5 of 8 2.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch E&E Lab, No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong,China 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 2.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C.. 2.5 Deviation from Standards None. 2.6 Abnormalities from Standard Conditions None. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167103 Page: 6 of 8 3 Equipments Used during Test Item Test Equipment Manufacturer Model No. Inventory No. …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167102 Page: 1 of 30 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2003001671CR Applicant: VOXX Accessories Corp. Address of Applicant: 3502 Woodview Trace, Suite 220, Indianapolis, Indiana, United States 46268 Manufacturer: Shenzhen Shuo Yu Techonology Co., Ltd Address of Manufacturer: Room 1416, Xin'an Building, No. 3009 Renmin South Road, Luohu District, Shenzhen, Guangdong, China 518005 Equipment Under Test (EUT): EUT Name: Alarm Clock Wireless Charger Model No.: RCQ510 Trade Mark: RCA FCC ID: VIXRCQ510 Standard(s) : 47 CFR Part 15, Subpart C Date of Receipt: 2020-03-20 Date of Test: 2020-03-25 to 2020-04-14 Date of Issue: 2020-04-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167102 Page: 2 of 30 Revision Record Version Chapter Date Modifier Remark 01 2020-04-22 Original Authorized for issue by: Leo Li /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167102 Page: 3 of 30 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.9.2 47 CFR Part 15, Subpart C 15.215 Pass Restricted Bands 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 Pass Radiated Emissions (9kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200300167102 Page: 4 of 30 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ...................................................................................................................................... 3 3 CONTENTS ............................................................................................................................................... 4 4 GENERAL INFORMATION ....................................................................................................................... 6 4.1 DETAILS OF E.U.T. .............................................................................................................................. 6 4.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 6 4.3 MEASUREMENT UNCERTAINTY ............................................................................................................. 6 4.4 TEST LOCATION ................................................................................................................................... 7 4.5 TEST FACILITY ..................................................................................................................................... 7 4.6 DEVIATION FROM STANDARDS .............................................................................................................. 7 4.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................... 7 5 EQUI…

Text truncated - open the document above for the full version.
