VIXSP50Bluetooth Speaker

Important Information for 808 SP50 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Unplug this apparatus during lightning storms or when unused for long periods of time. 10. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Care and Maintenance • Always use a soft cloth to clean the speaker and transmitter. Never use any product containing alcohol or other solvents as they may damage the surface. • Use caution when plugging the power transformers in an AC outlet to avoid the risk of electric shock. • If the speaker are used outside on a deck or patio, make sure you take them indoors in the event of a rainstorm to prevent possible damage. • Do not operate or store the system in extreme temperatures (below 32ºF/0ºC and above 122ºF/50ºC). Ecology Your product must be disposed of properly according to local laws and regulations. Because this product contains a rechargeable battery, the product must be disposed of separately from the household waste. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. The power unit for this device should be plugged in so that it stays vertical or lies flat. The apparatus shall not be exposed to dripping or splashing or placed near objects filled with liquids. This product contains a non-removeable Lithium Ion rechargeable battery. FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by VOXX Accessories Corporation could void the user’s authority to operate the equipment. 12 Month Limited Warranty Voxx Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for parts and repair labor. To obtain repair or replacement within the terms of the warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s), transportation prepaid, to an approved warranty station. For the location of the nearest warranty station to you, call toll-free to our control office: 1-800-645-4994. This Warranty is not transferable and does not cover product purchased, serviced or used outside the United States or Canada. The warranty does not extend to the elimination of externally generated static or noise, to costs incurred for the installation, removal or reinstallation of the product. The warranty does not apply to any product or part thereof which, in the opinion of the company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident or exposure to moisture. This warranty does not apply to damage caused by an AC adapter not provided with the product, or by leaving non-rechargeable batteries in the product while plugged into an AC outlet. THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT. This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY WARRANTY HEREUNDER, INCLUDING ANY IMPLIED WARRANTY, MUST BE BROUGHT WITHIN A PERIOD OF 24 MONTHS FROM THE DATE OF ORIGINAL PURCHAS…

Text truncated - open the document above for the full version.

Bluetooth wireless is a quick and easy way to connect a smartphone to a speaker or a headset. There are basically two steps to making Bluetooth work. PAIRING: The two devices get to know each other. CONNECTING: The two devices do something together (like play music). “Hi. I’m a phone.” This guide takes you through the steps to get started. Getting to know Bluetooth “Hi phone. I’m a speaker.” Make sure the following items came in this package. • Your speaker • USB-micro charger • Carabiner Step 1: Unpack Before you start using the Tether speaker for the first time, it’s a good idea to charge it completely. Speaker bottom Step 2: Charge your speaker The indicator on the top of the speaker is red while the speaker is charging. It turns off when the speaker is fully charged. Note: You can use the speaker while it’s charging. Step 3: Turn on Press and hold the button on the top of the speaker. The power up tone sounds and the indicator on the top of the speaker starts blinking. After a few seconds, the speaker goes to Bluetooth pairing mode to set up with your smartphone. Enable Bluetooth on your smartphone or other device. Step 4: Pair + Connect If you’ve previously paired your phone or other Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, give a short double-press to the button. The speaker gives a signal and the indicator starts blinking. Make sure the indicator on the top of the speaker is blinking rapidly. (If it isn’t, give a short double-press on the button. The speaker gives an audio signal.) The speaker gives an audio signal when it’s finished pairing and connecting to your smartphone. The indicator on the top of the speaker turns solid blue. Note: The process of enabling Bluetooth and connecting varies from device to device. See your device’s owners manual for more information and specific instructions. To charge the speaker: Open the CHARGING flap on the bottom of the speaker. Plug the included USB charger into the DC IN jack behind this flap. Plug the other end of the USB charging jack into a power source, like a computer or a USB charging adapter. Bluetooth Wireless Connection Tips • Make sure the Bluetooth capability of your device is turned on. • Make sure there’s nothing plugged into the speaker’s AUX IN jack when you’re trying to use Bluetooth. • The Bluetooth wireless connection works up to a range of roughly 33 feet (10 meters). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having problems connecting to this speaker, move closer to it. • If your device asks you for a password to connect, use “0000”. • If you’ve paired your device with the speaker before but you’re having trouble reconnecting when you turn the speaker back on, give a short press to the button while the indicator on the top of the speaker is flashing. The speaker will attempt to connect to a previously paired device. Speaker top Choose 808 TETHER from the pairing options on your smartphone. (If it’s not in the list, choose “Scan” from your phone’s Bluetooth menu.) DC IN To adjust the volume of your audio: Use the volume controls on your phone. Set your device’s volume for music to 50%. Note: This is to make sure the sound from the speaker isn’t too loud when you start streaming. Start playing music or other audio on your device. Within seconds, the speaker starts streaming the audio wirelessly via Bluetooth. Step 5: Play music 8 :45P M Now playin g Media volume 8 :45P M Use a 3.5mm audio cable (not included) to connect the audio output from your device to the AUX IN audio input on the speaker’s bottom (behind the CHARGING flap). The speaker automatically switches to the AUX IN audio, and the indicator on the top of the speaker turns solid blue. Using the Aux In input To listen to Bluetooth audio again, unplug the cable from the speaker’s AUX IN jack. The speaker will try to reconnect to the last Bluetooth device. Tour of the speaker To p button has two functions: (1) it turns the speaker on and off (press and hold) and (2) puts the speaker into pairing mode (short double- press) to connect to a new Bluetooth device. The indicator light shows the speaker’s pairing/connection status: • fast blinking blue while pairing • slow blinking blue while reconnecting • solid blue when paired or when the AUX IN jack is in use • off when the speaker’s off • solid red while charging (off when fully charged) Bottom QUICK START GUIDE SP50 QSG 01 If you have any questions about this product, visit 808Audio.com or call our toll-free help line at 1-800-732-6866. HEXTETHER WIRELESS SPEAKER Speaker bottom AUX IN AUX IN AUX IN jack lets you connect an audio device directly to the speaker using a 3.5mm audio cable. DC IN jack connects to the provided USB charging cable to plug the speaker into a power source or adapter. DC IN

Stella Yang

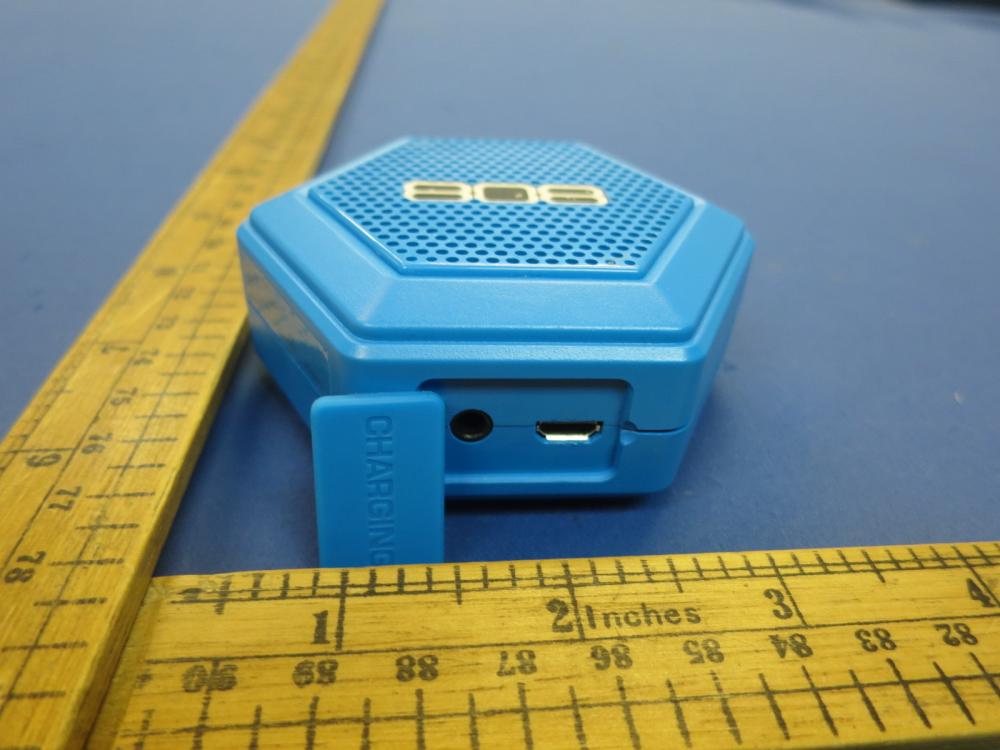

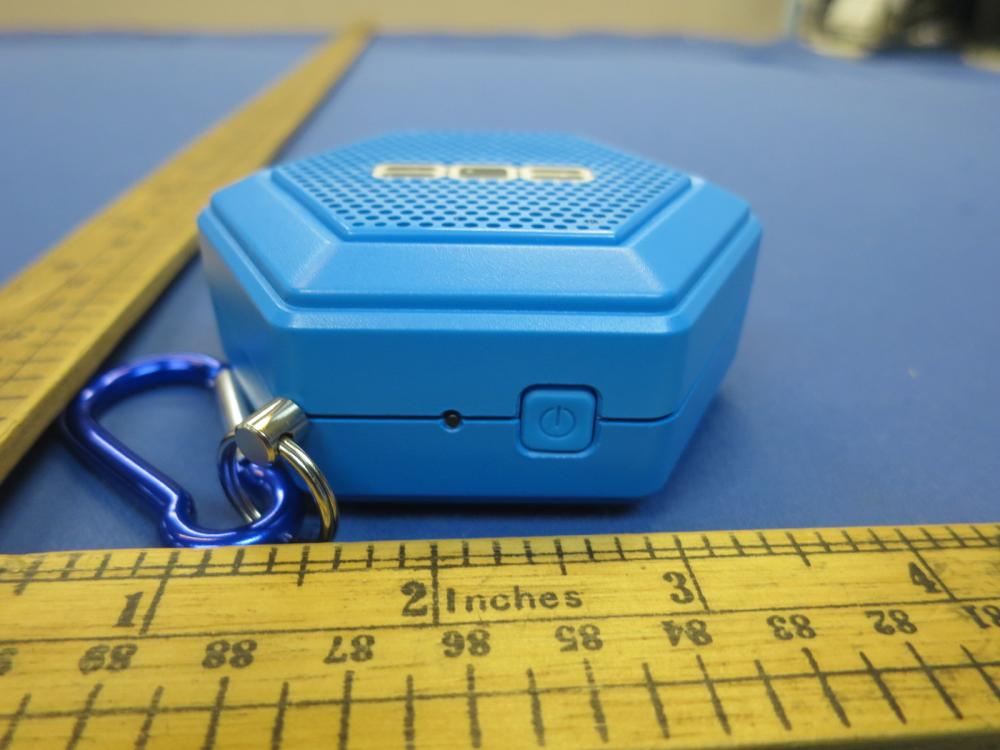

External Photos

Internal Photos

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_c Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Voxx Accessories Corp. Application For Certification FCC ID: VIXSP50 Bluetooth Speaker Model: SP50 Additional Model: SP60 Brand name: 808 2.4GHz Transceiver Report No.: 151204038SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-14] Prepared and Checked by: Approved by: Sign on file Vincent Chen Engineer Andy Yan Senior Project Engineer Date: December 23, 2015 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: VIXSP50 Report No.: 151204038SZN-001 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9: Confidentiality request EXHIBIT10: Test Equipment List INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: VIXSP50 Report No.: 151204038SZN-001 ii MEASUREMENT/TECHNICAL REPORT Smart Glory Electronics (Shenzhen) Company Limited. Model: SP50 Additional Model: SP60 FCC ID: VIXSP50 This report concerns (check one:) Original Grant X Class II Change Equipment Type: DSS - Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-14 Edition] provision. Report prepared by: Vincent Chen Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0684 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF No.: FCC 15C_TX_c FCC ID: VIXSP50 Report No.: 151204038SZN-001 iii Table of Contents 1.0 General Description ............................................................................................. 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants ................................................................................ 2 1.3 Test Methodology ............................................................................................... 3 1.4 Test Facility ........................................................................................................ 3 2.0 System Test Configuration .................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software .................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty ................................................................................... 6 2.6 Support Equipment List and Description .............................................................. 6 3.0 Test Results .......................................................................................................... 8 3.1 Radiated Test Result........................................................................................... 9 3.1.1 Field Strength Calculation ................................................................................ 9 3.1.2 Radiated Emission Configuration Photograph ................................................ 10 3.1.3 Radiated Emission ......................................................................................... 10 3.1.4 Transmitter Spurious Emissions (Radiated) ................................................... 12 3.2 Conducted Emission at Mains Terminal ............................................................ 16 3.2.1 Conducted Emission Configuration Photograph ............................................. 16 3.2.2 Conducted Emissions .................................................................................... 16 3.3 Peak Power ................................................…

Text truncated - open the document above for the full version.

Radiated Photos Front View of Radiated Emission up to 1GHz Back View of Radiated Emission up to 1GHz Front View of Radiated Emission above 1GHz Back View of Radiated Emission above 1GHz

Conducted Photos Front View Side View
