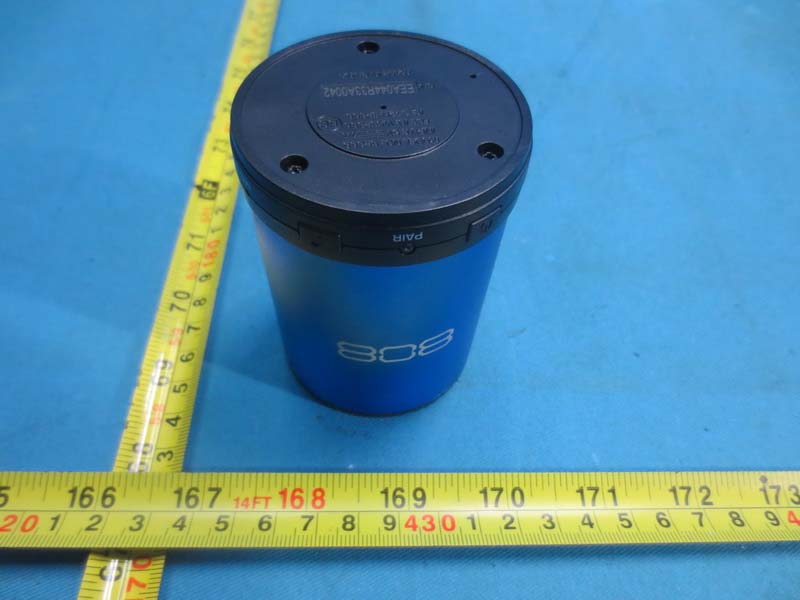

VIXSP888Bluetooth Wireless Speaker

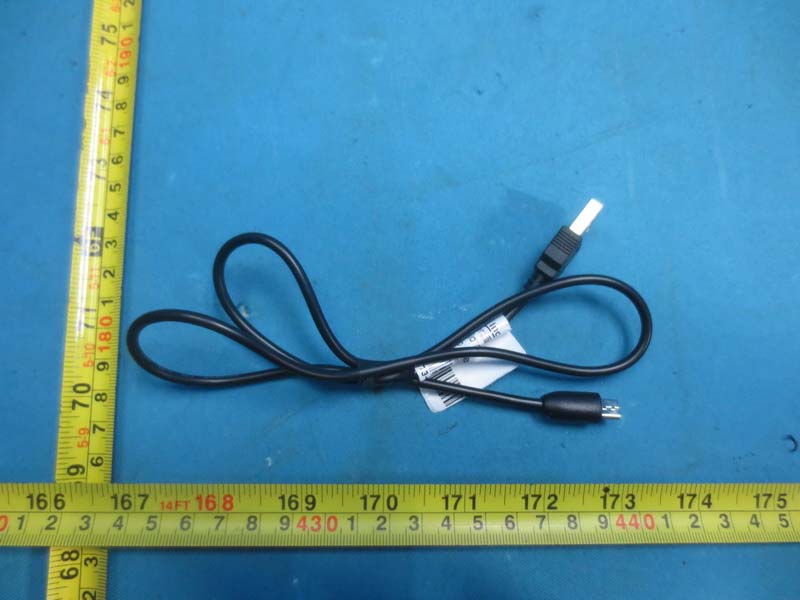

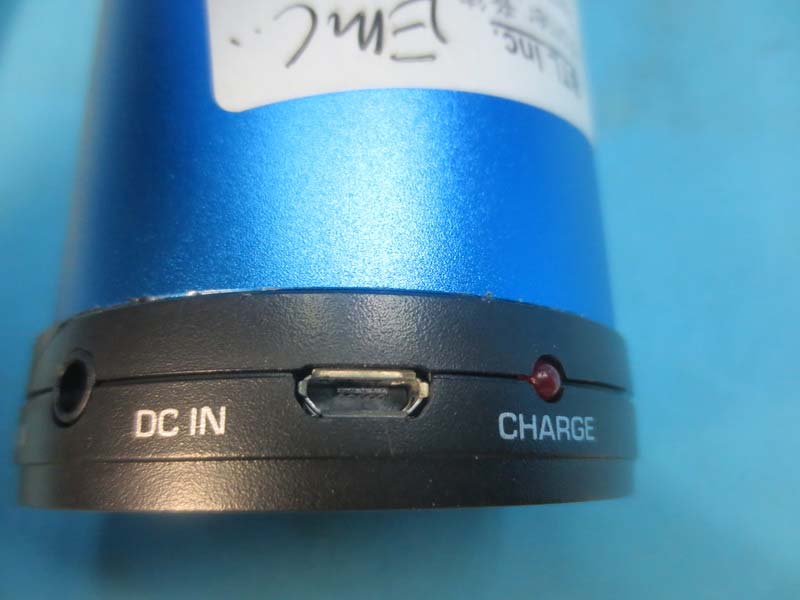

QUICK START GUIDE SP888 QSG 00 Bluetooth wireless is a quick and easy way to connect a smartphone to a speaker or a headset. There are basically two steps to making Bluetooth work. PAIRING: The two devices get to know each other. CONNECTING: The two devices do something together (like play music). “Hi. I’m a phone.” This guide takes you through the steps to get started. Getting to know Bluetooth “Hi phone. I’m a speaker.” PAIR M PAIR M Make sure the following items came in this package. Step 1: Unpack Your speaker USB cable PAIR M Before you start using the Canz Plus speaker for the first time, it’s a good idea to charge it completely. Speaker back Step 2: Charge your speaker To charge the speaker: Plug the included USB cable into the DC IN jack on the back of the speaker. Plug the other end of the USB charging cable into a power source, like a computer or a USB charging adapter. The CHARGE indicator on the back of the speaker is red while the speaker is charging. It turns off when the speaker is fully charged. Note: You can use the speaker while it’s charging. LINE INDC INCHARGE LINE INDC INCHARGE PAIR M Step 3: Turn on Press and hold the button on the front of the speaker. The power up tone sounds and the PAIR indicator starts blinking. After a few seconds, the speaker goes to Bluetooth pairing mode to set up with your smartphone. PAIR M PAIR M Enable Bluetooth on your smartphone or other device. Step 4: Pair + Connect If you’ve previously paired your phone or other Bluetooth device with this speaker, the speaker will automatically attempt to reconnect to that device when you switch the speaker on. If you want to pair to a new device, give a short double- press to the button. The speaker gives a signal and the button starts blinking. Wi-Fi Bluetooth Bluetooth Settings VPN Settings Wi-Fi Setting s 8:45P M Make sure the PAIR indicator on the front of the speaker is blinking rapidly. (If it isn’t, give a short double-press on the button. The speaker gives an audio signal.) PAIR M Choose 808 CANZ PLUS from the pairing options on your smartphone. (If it’s not in the list, choose “Scan” from your phone’s Bluetooth menu.) The speaker gives an audio signal when it’s finished pairing and connecting to your smartphone. The PAIR button on the front of the speaker turns solid blue. Note: The process of enabling Bluetooth and connecting varies from device to device. See your device’s owners manual for more information and specific instructions. Bluetooth Wireless Connection Tips • Make sure the Bluetooth capability of your device is turned on. • Make sure there’s nothing plugged into the speaker’s LINE IN jack when you’re trying to use Bluetooth. • The Bluetooth wireless connection works up to a range of roughly 33 feet (10 meters). This range may vary, however, based on other factors, such as room layout, wall material, obstacles, your device’s Bluetooth performance, etc. If you’re having problems connecting to this speaker, move closer to it. • If your device asks you for a password to connect, use “0000”. • If you’ve paired your device with the speaker before but you’re having trouble reconnecting when you turn the speaker back on, give a short press to the button while the PAIR indicator is flashing. The speaker will attempt to connect to a previously paired device. To adjust the volume of your audio: Use the volume controls on your phone. Set your device’s volume for music to 50%. Note: This is to make sure the sound from the speaker isn’t too loud when you start streaming. Start playing music or other audio on your device. Within seconds, the speaker starts streaming the audio wirelessly via Bluetooth. Step 5: Play music 8 :45P M Now playin g Media volume 8 :45P M Using the speakerphone This speaker has a built-in microphone, so you can use it for phone calls as well as music. Your phone will ring through the speaker when you’re receiving a call. To answer/end the call: Press the button on front of the speaker. Note: Make sure you’re close enough to the speaker’s built-in microphone so that the other person can hear you! IMPORTANT: Not all phones support playback control and phone answer/end control. Check your phone’s user manual for more information if you’re having trouble with these functions. PAIR M PAIR M MIC Use a 3.5mm audio cable (not included) to connect the audio output from your device to the LINE IN audio input on the speaker’s back panel. The speaker automatically switches to the AUX IN audio, and the PAIR indicator on the front of the speaker turns off. Using the Aux In input To listen to Bluetooth audio again, unplug the cable from the speaker’s LINE IN jack. The speaker will try to reconnect to the last Bluetooth device. Speaker back LINE INDC INCHARGE Tour of the speaker Front button has two functions: (1) it turns the speaker on and off (press and hold) and (2) puts the speaker into pairing mode (short double-press) to connect to a new Bluetooth device. PAIR indicator shows the speaker’s pairing/connection status: • fast blinking blue while pairing • slow blinking blue while reconnecting • solid blue when paired • off when the LINE IN jack is in use or when the speaker’s o ff. PAIR M button answers or ends calls on a Bluetooth-connected phone. MIC is the built-in microphone for using the speaker as a speakerphone. Back LINE IN jack lets you connect an audio device directly to the speaker using a 3.5mm audio cable. DC IN jack connects to the provided USB charging cable to plug the speaker into a power source or adapter. CHARGE indicator shows the charging status of the speaker: • solid red while charging • off when fully charged LINE INDC INCHARGE If you have any questions about this product, visit 808Audio.com or call our toll-free help line at 1-800-732-6866. Important Information for 808 SP888 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to quali…

Text truncated - open the document above for the full version.

Project No.: 1508255 Page 2 of 11 Project No.: 1508255 Page 3 of 11 Project No.: 1508255 Page 4 of 11 Project No.: 1508255 Page 5 of 11

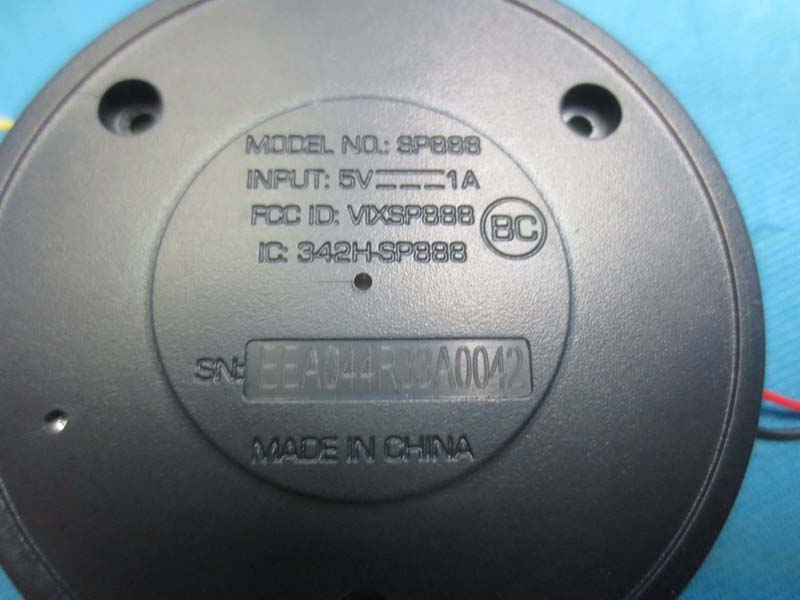

Label location

Project No.: 1508255 Page 6 of 11 Project No.: 1508255 Page 7 of 11 Project No.: 1508255 Page 8 of 11 Project No.: 1508255 Page 9 of 11 Project No.: 1508255 Page 10 of 11 Project No.: 1508255 Page 11 of 11

FCC RF EXPOSURE REPORT FCC ID: VIXSP888 Project No. : 1508255 Equipment : Bluetooth Wireless Speaker Model : SP888 Applicant : Voxx Accessories Corp Address : 3502 Woodview Trace, Suite 220 Indianapolis, IN 46268 USA According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL Inc. B1, No. 37, Lane 365, YangGuang St., NeiHu District 114, Taipei, Taiwan TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A F-6188 printed N/A 0 GENERAL CONCULUSION: Maximum measured transmitter power: OutputPower (dBm) Output Power (mW) Limit (mW) -1.12 0.8 10 According to FCC KDB447498 V05, Appendix A, SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm The maximum measured output peak power of this EUT is 0.8 mW, less than 10mW at 5mm distance. Conclusion: No SAR evaluation required since transmitter power is below FCC threshold

Report No.: BTL-FCCP-1-1508255 Page 1 of 109 FCC Radio Test Report FCC ID: VIXSP888 This report concerns (check one): Original Grant Class II Change Project No. : 1508255 Equipment : Bluetooth Wireless Speaker Model Name : SP888 Applicant : Voxx Accessories Corp Address : 3502 Woodview Trace, Suite 220 Indianapolis, IN 46268 USA Date of Receipt : Aug. 31, 2015 Date of Test : Aug .31 ,2015~Sep. 10, 2015 Issued Date : Sep. 11, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : (David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FCCP-1-1508255 Page 2 of 109 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FCCP-1-1508255 Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FCCP-1-1508255 Page 4 of 109 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FCCP-1-1508255 Page 5 of 109 Table of Contents Page 12 . EUT TEST PHOTO 30 ATTACHMENT A - CONDUCTED EMISSION 34 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 71 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 73 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 86 ATTACHMENT H - BANDWIDTH 91 ATTACHMENT I - PEAK OUTPUT POWER 96 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 101 Report No.: BTL-FCCP-1-1508255 Page 6 of 109 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FCCP-1-1508255 Original Issue. Sep. 11, 2015 Report No.: BTL-FCCP-1-1508255 Page 7 of 109 1. CERTIFICATION Equipment : Bluetooth Wireless Speaker Brand Name : 808 Model Name : SP888 Applicant : Voxx Accessories Corp Manufacturer : Dong Guan Lightion Electronics Co., LTD Address : Meilin District 523823, Dalingshan, Dongguan City, Guangdong Province, China Factory : Dong Guan Lightion Electronics Co., LTD Address : Meilin District 523823, Dalingshan, Dongguan City, Guangdong Province, China Date of Test : Aug .31 ,2015~Sep. 10, 2015 Test Sample : Engineering Sample Standard(s) : FCC Part15, Subpart C : 2014 (15.247)/ ANSI C63.10-2013 The above equipment has bee…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-1-1508255 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FCCP-1-1508255 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FCCP-1-1508255 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FCCP-1-1508255 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
