W5networks™ AP Installation Guide 2 W5networks | AP Installation Guide W5networks and W5 ESL System are trademarks of W5 Networks, Inc. © 2008 W5 Networks, Inc. This guide, as well as the hardware and software described within it, is furnished under license and may be used or copied only in accordance with the terms of such license. The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by W5 Networks. W5 Networks assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechani- cal, recording, or otherwise, without the prior written permission of W5 Networks, Inc. All trademarks are properties of their respective owners. W5 Networks, Inc., 48389 Fremont Boulevard, Fremont, California 94538, USA 3 W5networks | AP Installation Guide Regulatory Information FCC Class B Statement This device complies with Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in commercial installation. 1.This device may not cause harmful interference. 2.This device must accept any interference received, including interference that may cause undesired operation. FCC RF Safety Requirement The radiated output power is far below the FCC radio frequency exposure limits. 1.Shielded cabled, if any, must be used in order to comply with the emission limits. 2.Any change or modification not expressly approved by the grantee of the equipment authorized could void the user authority to operate the equipment. 3.This device must be fixed-mounted on indoor permanent structures with a separation distance of at least 100 cm from all persons. FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna •Increase the separation between the equipment and the receiver •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •Consult the dealer or an experienced radio/TV technician for help 4 W5networks | AP Installation Guide Contents 1Pre-Installation Procedures......................................................................... 5 Introduction........................................................................................................................................................5 Configuring the FTP Server...........................................................................................................................5 Configuring the W5 Access Point Bootloader........................................................................................5 Upgrading AP Software..................................................................................................................................7 2AP Installation............................................................................................... 8 Kit Contents ........................................................................................................................................................8 Additional Items Required.......................................................................................................................8 Hardware Installation......................................................................................................................................9 5 Chapter 1 Pre-Installation Procedures Introduction The W5 Access Point contains Flash memory to store vxWorks boot parameters. These parameters control how the AP boots up and can be configured using the vxWorks bootloader configuration menu. The W5 Access Point uses the network to boot itself, downloading both a HW FPGA bit file and a vxWorks FW image file over the network using the FTP protocol. As a result, booting up a W5 Access Point will require an existing FTP server to be set up, configured, and loaded with the appropriate HW FPGA bitfile and vxWorks FW image file. Because you must have access to the unit’s serial port for configuration, it is recommended that you complete the AP’s configuration before mounting the unit to the wall. After configuring your unit, or if no configuration changes are required, proceed to AP Installation on page 8. Configuring the FTP Server The setup and configuration of the FTP server is beyond the scope of this document. Once the FTP server has been configured and is running properly, make sure to load both the HW FPGA bit file and the vxWorks FW image file into the FTP server's home directory. Make a note of the filename used for the vxWorks FW image. This filename will need to be configured into the W5 Access Point bootloader. The HW FPGA bitfile must be named ap_top_virtex5.bit. Configuring the W5 Access Point Bootloader The W5 Access Point bootloader can be configured after entering the bootloader command line console. To do this, follow these steps: 1.Connect one end of a serial cable to the AP's serial port. 2.Connect the other end of the serial cable used above to the serial port of a computer. 3.On the computer, open a serial application program suc…

Text truncated - open the document above for the full version.

Elevation Pattern; 5.6 GHz Element; Fully Assembled Housing -40-35-30-25-20-15-10 -5 05 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 5.725 GHz5.775 GHz5.825 GHz dBi Zero Deg = Overhead Gnd Plane Antenna PCB Zero Deg HPBW = 58 Deg

Azimuth Pattern; 5.6 GHz Element; Fully Assembled Housing -30-25-20-15-10 -5 05 10 0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 145 150 155 160 165 170 175 180 185 190 195 200 205 210 215 220 225 230 235 240 245 250 255 260 265 270 275 280 285 290 295 300 305 310 315 320 325 330 335 340 345 350 355 5.725 GHz5.775 GHz5.825 GHz dBi HPBW = 60 Deg Gnd Plane Antenna PCB Zero Deg

REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 41 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 10. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 42 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations, rearranging the terms to express the distance as a function of the remaining variables, changing to units of Power to mW and Distance to cm, and substituting the logarithmic form of power and gain yields: d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) The power density in units of mW/cm^2 is converted to units of W/m^2 by multiplying by a factor of 10. REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 43 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 RESULTS ModeBandMPEOutputAntennaFCC Power DistancePowerGainDensity (cm)(dBm)(dBi)(mW/cm^2) TX5 GHz20.021.076.000.10

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR W5 ACCESS POINT MODEL NUMBER: AP-1NB4 FCC ID: VJ5-AP1NB REPORT NUMBER: 07U11457-1, REVISION A ISSUE DATE: JANUARY 24, 2008 Prepared for W5 NETWORKS 48389 FREMONT BLVD. FREMONT, CA 94538, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 2 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 12/18/07 Initial Issue T. Chan A 01/24/08 Modified model and FCC ID T. Hong REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 3 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. MAXIMUM OUTPUT POWER....................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 6 5.4. SOFTWARE AND FIRMWARE..................................................................................... 6 5.5. DESCRIPTION OF TEST SETUP................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. ANTENNA PORT TEST RESULTS .................................................................................... 10 7.1. 26 dB and 99% BANDWIDTH ..................................................................................... 10 7.2. OUTPUT POWER ....................................................................................................... 12 7.3. AVERAGE POWER .................................................................................................... 14 7.4. PEAK POWER SPECTRAL DENSITY........................................................................ 15 7.5. PEAK EXCURSION .................................................................................................... 17 7.6. CONDUCTED SPURIOUS EMISSIONS..................................................................... 19 8. RADIATED TEST RESULTS .............................................................................................. 22 8.1. LIMITS AND PROCEDURE ........................................................................................ 22 8.1.1. TRANSMITTER ABOVE 1 GHz .......................................................................... 24 8.1.2. WORST-CASE BELOW 1 GHz ........................................................................... 33 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 37 10. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 41 11. SETUP PHOTOS ............................................................................................................ 44 REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 4 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: W5 NETWORKS 48389 FREMONT BLVD. FREMONT, CA 94538, U.S.A. EUT DESCRIPTION: W5 ACCESS POINT MODEL: AP-1NB4 SERIAL NUMBER: W5N-APB3-5 DATE TESTED: NOVEMBER 19 AND 28, 2007 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart E No Non-Compliance Noted Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 07U11457-1A DATE: JANUARY 24, 2…

Text truncated - open the document above for the full version.

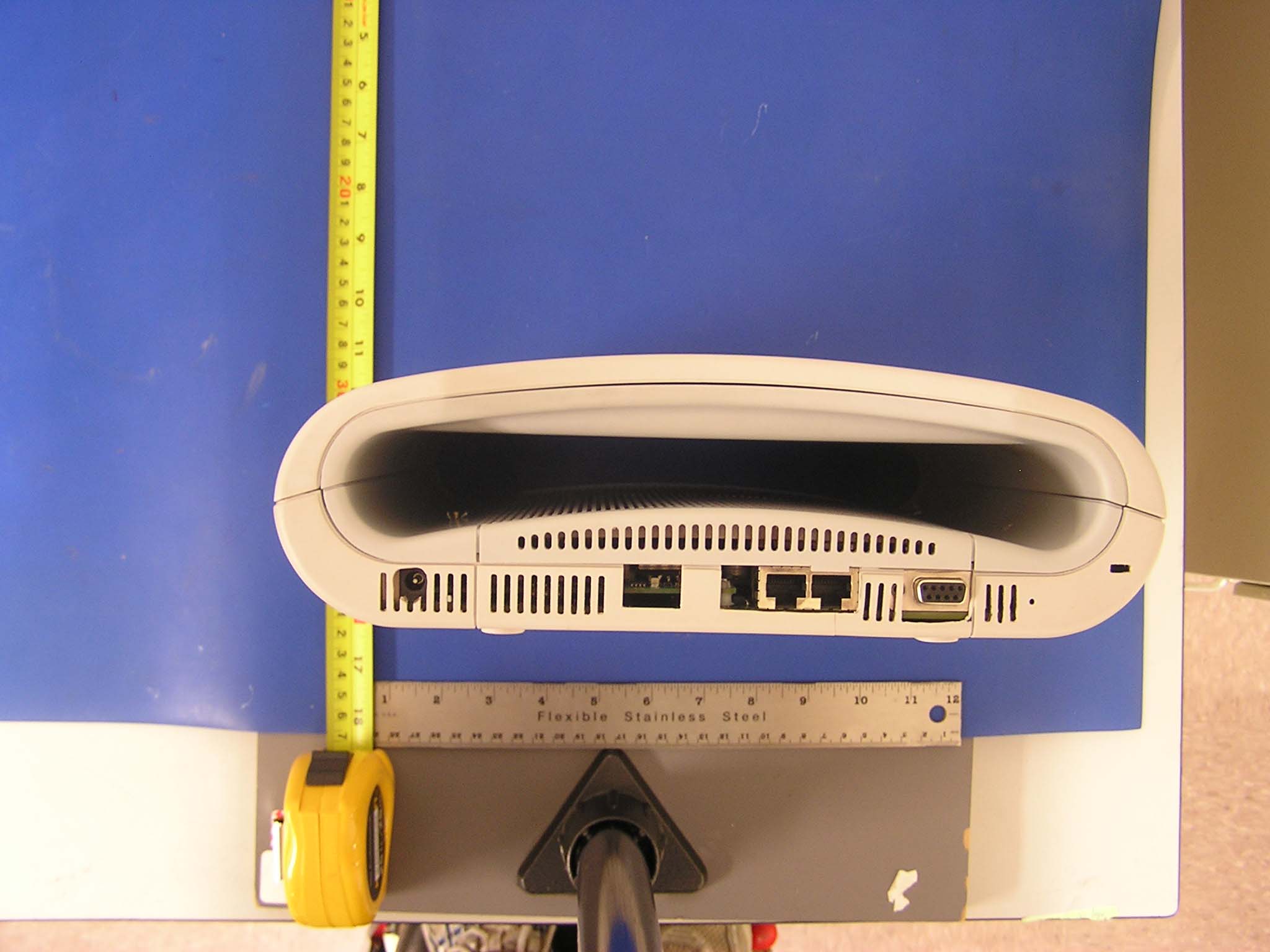

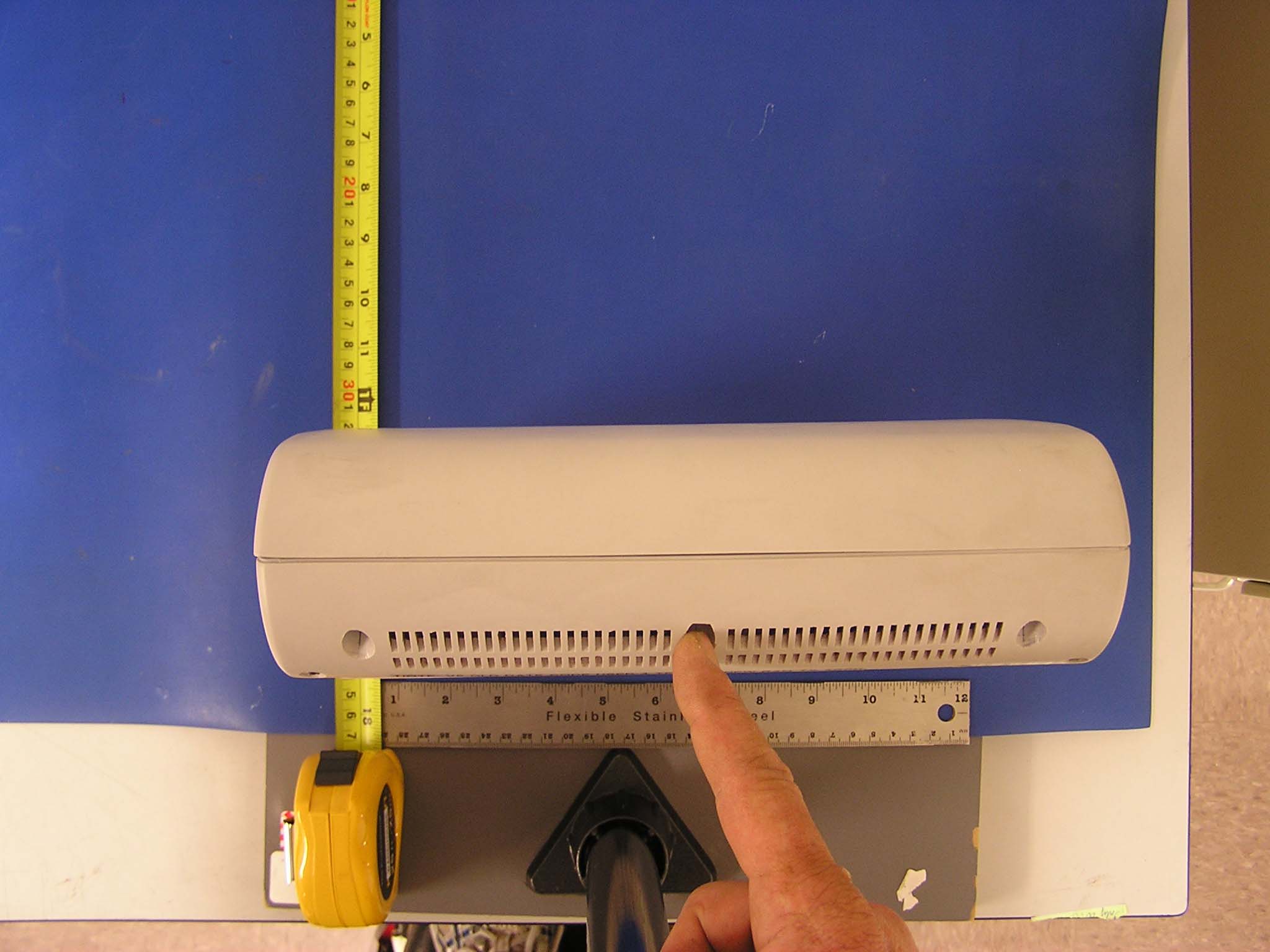

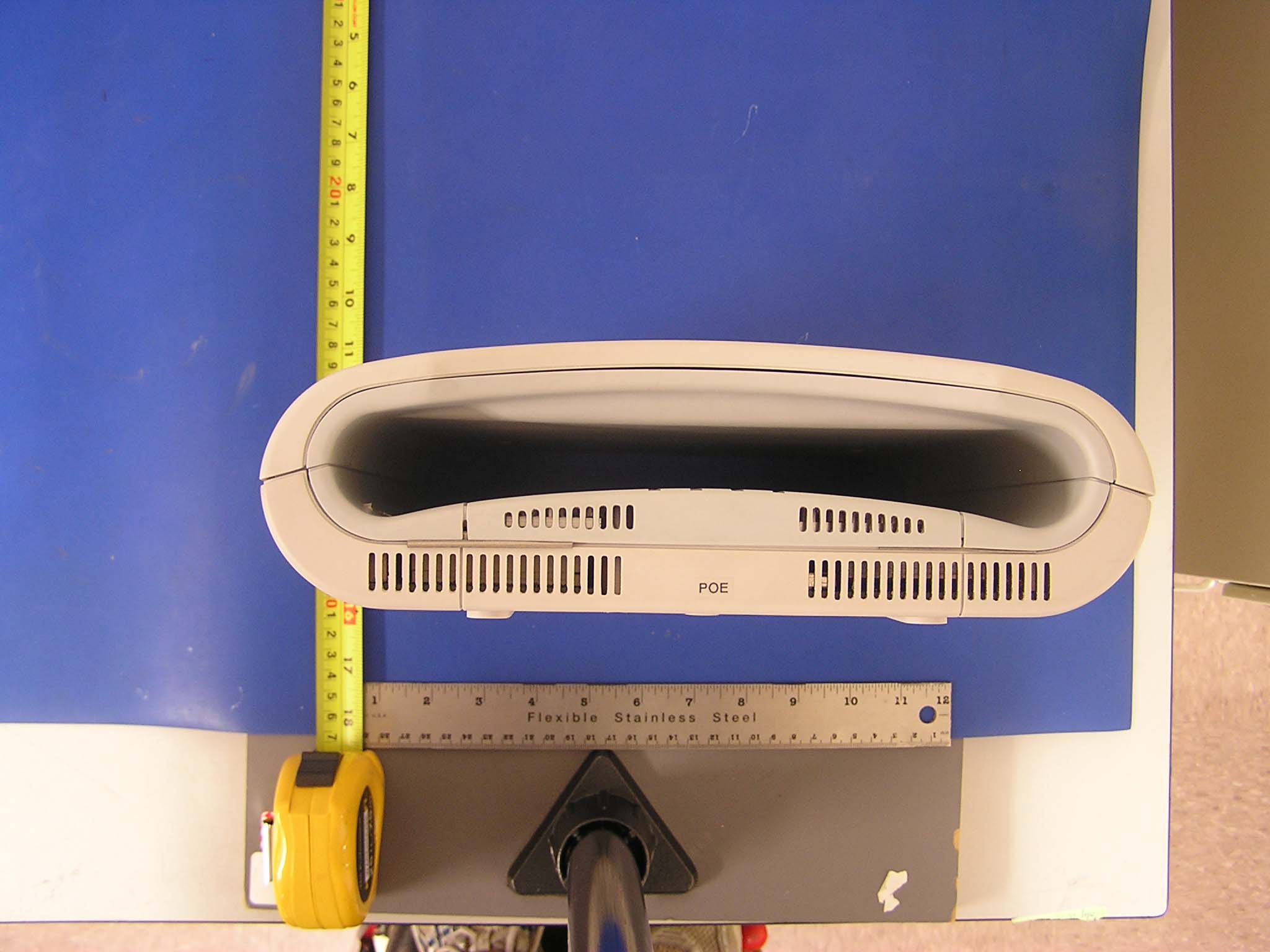

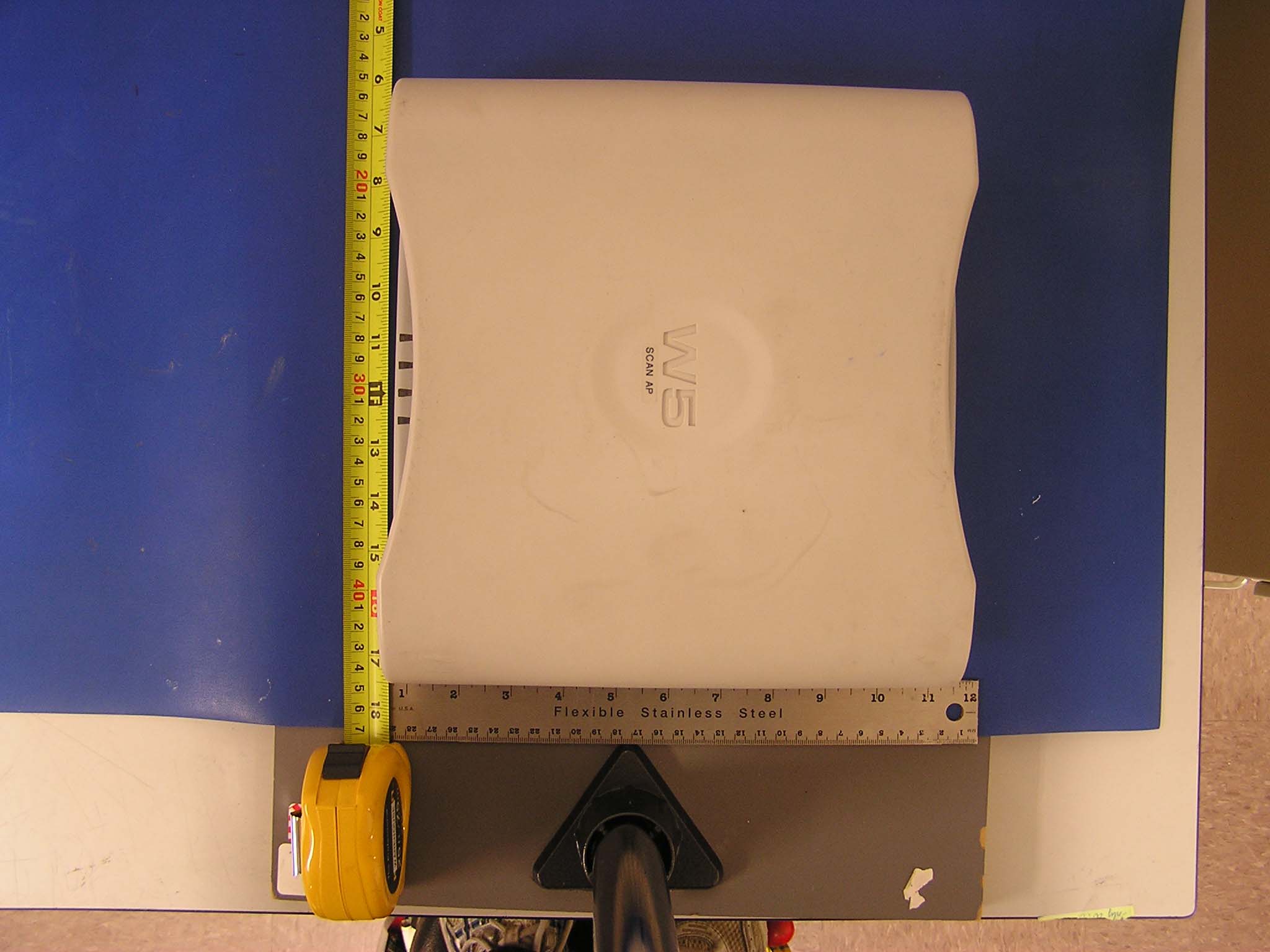

REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 44 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS RF CONDUCTED PORT RF CONDUCTED PORT REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 45 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSION RADIATED EMISSIONS (FRONT) REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 46 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED EMISSIONS (BACK) REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 47 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. AC MAINS LINE CONDUCTED EMISSION LINE CONDUCTED EMISSION (FRONT) REPORT NO: 07U11457-1A DATE: JANUARY 24, 2008 EUT: W5 ACCESS POINT FCC ID: VJ5-AP1NB Page 48 of 48 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED EMISSION (BACK)
