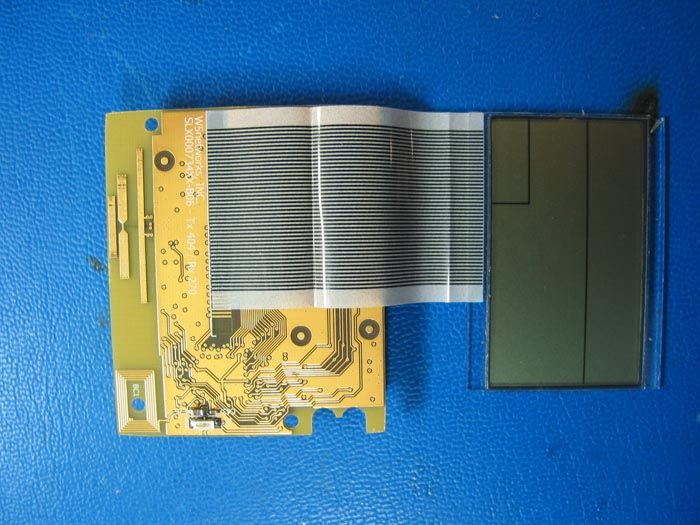

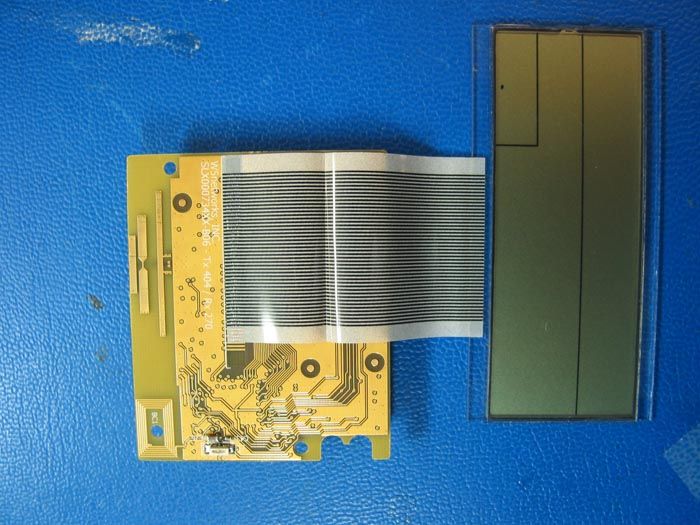

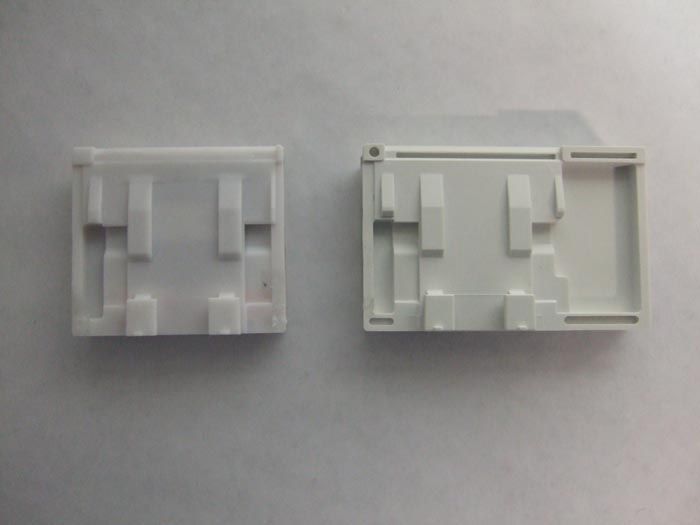

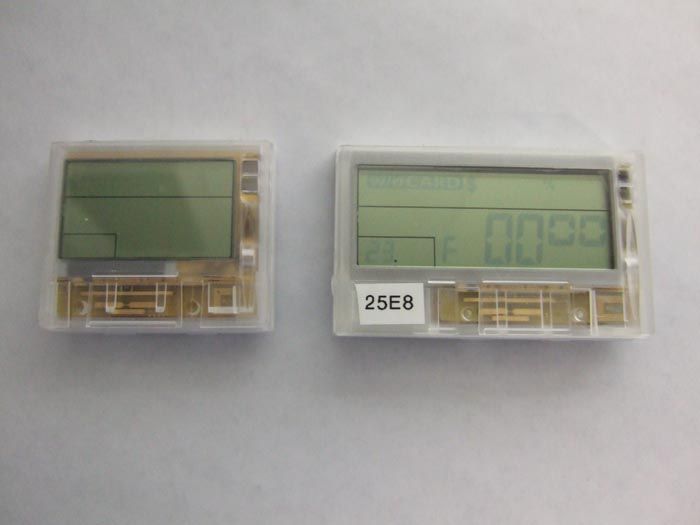

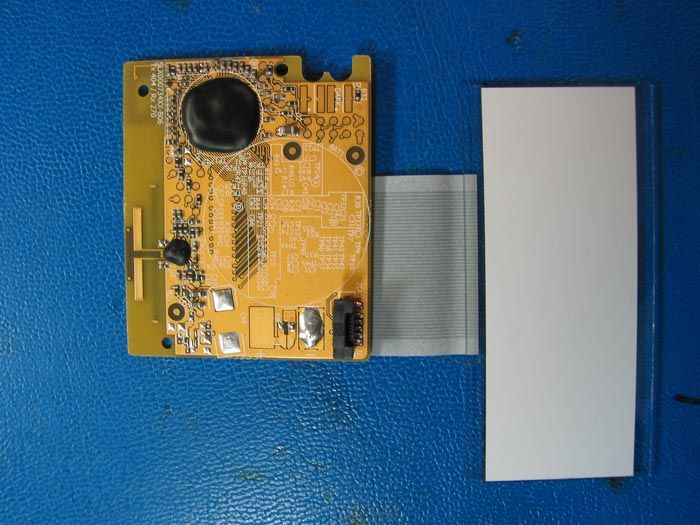

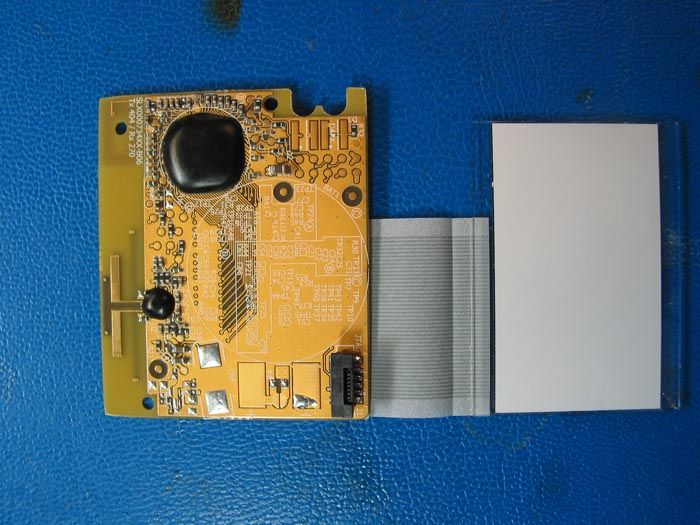

VJ5-ESLS-1NCW5 ESL

W5networks™ ESL System User Guide 2 W5networks and W5 ESL System are trademarks of W5 Networks, Inc. © 2007 W5 Networks, Inc. This guide, as well as the hardware and software described within it, is furnished under license and may be used or copied only in accordance with the terms of such license. The content of this guide is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by W5 Networks. W5 Networks assumes no responsibility or liability for any errors or inaccuracies that may appear in this book. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechani- cal, recording, or otherwise, without the prior written permission of W5 Networks, Inc. All trademarks are properties of their respective owners. W5 Networks, Inc., 48389 Fremont Boulevard, Fremont, California 94538, USA 3 ESL System | User Guide Contents 1System Overview .......................................................................................... 5 In This Chapter...................................................................................................................................................5 About This User Guide ....................................................................................................................................5 Welcome to the ESL System .........................................................................................................................6 ESL System Hardware .....................................................................................................................................7 Initializer.........................................................................................................................................................7 Electronic Shelf Labels ..............................................................................................................................7 Printer .............................................................................................................................................................9 Access Point ..................................................................................................................................................9 ESL System Server.......................................................................................................................................9 ESL System Server Console ........................................................................................................................ 10 Logging On/Off ........................................................................................................................................ 11 2ESL Setup/Initialization ..............................................................................13 In This Chapter................................................................................................................................................ 13 Overview........................................................................................................................................................... 13 Printer/Initializer Setup Procedure.......................................................................................................... 13 Connect Initializer, Scanner, and Printer to Laptop .................................................................... 13 Load Inserts into Printer ........................................................................................................................ 14 Hanging ESLs .................................................................................................................................................. 15 Hanging ESLs on Shelves ...................................................................................................................... 16 Hanging ESLs on Scan Hooks .............................................................................................................. 17 Hanging ESLs on Clip Strips ................................................................................................................. 18 Hanging ESLs on Flat Surfaces ............................................................................................................ 20 Initializing Items/Printing Labels ............................................................................................................. 21 Attaching Bibs to ESLs ................................................................................................................................. 2 2 Removing ESLs ............................................................................................................................................... 23 3The Home Page ...........................................................................................25 In This Chapter................................................................................................................................................ 25 Overview........................................................................................................................................................... 25 System and Status Summary..................................................................................................................... 26 Manager To-Do List ...................................................................................................................................... 27 Tasks and Updates Summary .................................................................................................................... 28 4Price Updates ..............................................................................................29 In This Chapter................................................................................................................…

Text truncated - open the document above for the full version.

© 2007 W5 Networks, Inc. W5networks™ Regulatory Compliance FCC Compliance This statement of compliance covers the following product(s): • W5 ESL This device operates at 4331.25MHz in compliance with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This device must be installed indoors only. Modifications Changes or modifications to this device that are not expressly approved by the manufacturer of the product will void the user’s authority to operate the equipment. Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Consult the dealer or an experienced radio/TV technician for help.

This document was created with Win2PDF available at http://www.daneprairie.com. The unregistered version of Win2PDF is for evaluation or non-commercial use only.

This document was created with Win2PDF available at http://www.daneprairie.com. The unregistered version of Win2PDF is for evaluation or non-commercial use only.

All services undertaken are subject to the following general policy. Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of TDK RF Systems Inc. This report must not be used to claim product endorsement by A2LA, NVLAP nor any other agency of the US Government Compliance report of W5 ESL Customer: W5networks Date: January 8, 2008 TDK Report: TTS-TR-T112-129 Test performed by: TDK R&D Corporation 1101 Cypress Creek Rd Cedar Park, TX 78613 Technician Checked by Radiated 30 MHz to 40 GHz A. Medina K. Yata Report A. Medina P. Carson/K. Yata This document contains confidential information and cannot be disclosed outside of W5networks or any affiliated company in whole or in part without the express written permission of TDK R&D Corporation. TTS-TR-T112-129 page 2 of 47 1. Executive Summary An EMC evaluation to determine compliance of the W5 ESL with requirements of FCC 47 CFR Part 15, Subpart F Section 15.517 was conducted. All references are to the most current version of the Code of Federal Regulations 47 that are currently in effect. In accordance with §2.1033, the following data is presented in support of the Certification of the W5 ESL. The client should retain a copy of this document on file for at least 5 years after the manufacturing of the product has been discontinued. Test Description FCC 47 CFR Section Compliance Operational Limitations 15.517(a) The client has been notified of these limitations. In normal operating mode the transmitter will only send data when associated with a receiver. See section 5 for detail UWB Bandwidth 15.517(b) Yes Radiated Emissions 15.517(c), 15.209 Yes Radiated Emissions in GPS Bands 15.517(d) Yes Peak Emissions within a 50 MHz Bandwidth 15.517(e) Yes Labelling Requirements 15.517(f) Yes Report prepared by Approved by Armando Medina Kunio Yata January 8, 2008 January 11, 2008 Page 3 of 47 2. Task Description 2.1. Scope Reference FCC ET Docket No. 98-153, FCC 02-48 First R&O; FCC 47 CFR, Part 15, Subpart A; FCC 47 CFR, Part 15, Subpart B; FCC 47 CFR, Part 15, Subpart C; FCC 47 CFR, Part 15, Subpart F FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) Title Revision of Part 15 of the Commission’s Rules Regarding Ultra-Wideband Transmissions Systems; Code of Federal Regulations, Part 15 Subpart A: General Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation Purpose of Test To gain FCC Certification for technical requirements for Indoor UWB Systems operating between 3.1 GHz and 10.6 GHz. Test Procedures The tests were conducted in accordance with the following documents: FCC ET Docket 98-153, FCC 02-48 First R&O ANSI C63.4: 2003: Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Code of Federal Regulations 47, Part 15 Subpart A: General FCC ET Docket No. 04-352, Petition for Waiver of the Part 15 UWB Regulations Filed by MBOA-SIG (Adopted: March 10, 2005) General Procedures FCC Code of Federal Regulations 47, Part 2 Frequency Allocations and Radio Treaty Matter: General Rules and Regulations Classification of EUT Indoor Ultra-Wideband System Page 4 of 47 2.2. Related Submittal(s)/Grant(s) None 2.3. Test Plan Reference Publication Year Title FCC 47 CFR, Part 15, Subpart A 10/2004 Code of Federal Regulations, Part 15 Subpart A: General FCC 47 CFR, Part 15, Subpart B 10/2004 Code of Federal Regulations, Part 15 Subpart B: Unintentional Radiators FCC 47 CFR, Part 15, Subpart C 10/2004 Code of Federal Regulations, Part 15 Subpart C: Intentional Radiators FCC 47 CFR, Part 15, Subpart F 10/2004 Code of Federal Regulations, Part 15 Subpart F: Ultra-Wideband Operation FCC ET Docket 98-153, FCC 02-48 First R&O 04/2002 Revision of Part 15 of the Commission’s Rules Regarding Ultra- Wideband Transmissions Systems: First Report & Order ANSI C63.4 01/2004 Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz 2.4. Client Information APPLICANT Name: W5networks Address: 48389 Fremont Boulevard, Fremont, CA 94538 Contact Person: Jason Okamoto MANUFACTURER Name: W5networks Address: 48389 Fremont Boulevard, Fremont, CA 94538 Contact Person: Jason Okamoto Page 5 of 47 2.5. Equipment Under Test (EUT) The following information (with the exception of the date information) has been supplied by the applicant. The test results in this report pertain only to the item tested. General Brand Name W5networks Product Name W5 ESL Model Name or Number Cosmos-Small-6, Cosmos-Large-57 Serial Number 6 and 57 Type of Equipment Electronic Shelf Label Input Power Supply Type Internal battery Classification Indoor Ultra-Wideband system Technical Power Supply Requirements Internal 3V Lithium battery RF Output Rating -42 dBm EIRP @ 3 meters Operating Frequency Range 3931.250 MHz – 4731.250 MHz RF Output Impedance 50 Ω Channel Spacing N/A Pulse Width N/A Pulse Repetition Frequency N/A 10 dB Bandwidth >500 MHz Modulation/Constellation BPSK Oscillators’ Frequencies 1443.750MHz EUT Ports None Antenna Connector Type Not applicable Antenna Description Folded Dipole Logistics EUT Receive Date December 10, 2007 EUT Receive Condition Good Test Start Date December 10, 2007 Test Completion Date January 4, 2008 Page 6 of 47 2.5.1.Support Equipment Description Manufacturer Model No. Serial No. FCC ID Access Point (AP) W5networks AP-1NB W5N-APB2-02 VG5AP1NB Antenna Panel W5networks APX200137XX APX200137XX NA LD1 Bring Up Board W5networks SLA000726XX A01-19 NA A…
