VL5-JBBA100MBLUETOOTH DEVICE

JB-BA-100m JayBird Bluetooth® Adapter for MP3 User Guide User Manual Specs: • 3.5” wide by 5.5” tall • One color on white paper (black ink) FRONT COVER JB-BA-100m JayBird Bluetooth® Adapter for MP3 Easy-step Instructions [JayBird Logo] For use with the JB-100 JayBird Bluetooth® Stereo Headset [image or line drawing of headset] COPY (starting on the inside cover) Introduction: The JayBird Bluetooth® Adapter for MP3 enables virtually any MP3 player (or other audio device that has a 3.5mm headphone jack) to transmit stereo audio to your JB-100 JayBird Bluetooth® Stereo Headset (up to a 30 foot range). Charging and Battery Status The first step is to fully charge your Bluetooth® Adapter. 1. Remove the plastic insert from the Charger Dock that came with your JayBird Bluetooth® Stereo Headset. [See Figure 1] 2. Plug in the Bluetooth® Adapter. The gold metal contacts on the adapter should be facing DOWN. [See Figure 2] 3. Make sure that your Charger Dock is plugged in to the AC Wall Adapter and an AC outlet or plugged into any open USB port. The LED on the adapter should be on. 4. Once the RED LED turns off, your adapter is fully charged (about 2 hours) 5. After about 5-6 hours of use, the LED will blink alternating blue and red colors. This is an indication that it is time to re-charge your adapter. Just follow steps 2-4 above. JB-BA-100m JayBird Bluetooth® Adapter for MP3 User Guide Pairing the adapter with your JayBird Bluetooth® Stereo Headset 1. Remove the adapter from the Charging Dock. 2. Press the button on the adapter for a few seconds until the LED flashes. The adapter LED will blink once every three seconds while in search mode. 3. Make sure that your headset is turned off. 4. Put the headset into pairing mode by pressing the POWER/TALK button on the headset until the LED on the right earpiece blink alternating red and blue colors. 5. Once the headset finds and pairs with the adapter, both the adapter and headset LEDs will blink blue once every six seconds. Your headset and adapter are now paired. Listening to Music 1. Plug the 3.5mm audio connector into the headphone jack on your MP3 player (or any stereo audio device with a 3.5mm headphone jack). 2. Confirm that your adapter is paired with your headset and that both are turned on. The LED on the adapter and on the headset should both be blinking blue every six seconds. If the LED is not blinking on your adapter, turn it on by pressing the button on the adapter for a few seconds until the LED start flashing. 3. Turn on your MP3 or other device and play music. You should now hear the music on your headset. 4. You can change the volume level by using your UP/DOWN volume buttons on the headset. You can also change the volume by using the volume controls on your MP3 player. It’s a good idea to find an acceptable volume on the MP3 player and is not a good idea to use full volume on the MP3 player. Set the volume once on your MP3 player and use the headset UP/DOWN volume buttons for adjusting the volume levels. 5. Be sure to turn off the adapter after use by pressing the adapter button for a few seconds. The LED will flash blue when turning off the power. The LED will completely turn off when the adapter is turned off. Using the phone call feature of your JayBird Bluetooth® Stereo Headset 1. The JayBird Bluetooth® Stereo Headset can also be paired with any compatible Bluetooth® enabled mobile phone. For pairing instructions, refer to the user manual that came with your headset. 2. Once paired with a mobile phone, you can make and receive phone calls even while listening to music from your MP3 player wirelessly using your JayBird Bluetooth® Adapter. When a call comes in, you will hear the phone ring. Answer the call by pressing the TALK button on the headset (or by pressing the answer button on your phone) and the music will turn JB-BA-100m JayBird Bluetooth® Adapter for MP3 User Guide off automatically and you can then take the call. When you done with the call and have hung up, the headset will switch back to music play. (Refer to your JayBird Bluetooth® Stereo Headset user manual for detailed instructions on making and receiving phone calls) TECHNICAL SPECIFICATIONS Protocol Bluetooth(R) 1.2, A2DP Frequency Band 2.4 GHz Tx Power Bluetooth(R) Class 2 Range 10 meters/33 feet Audio Format 16-bit Stereo Music Playing Time 6 Hrs (May vary dependent on usage) Battery 230 mAh Lithium Polymer Charging AC Charger or USB Cable with JayBird Charge Dock Charging Time 2 hrs Weight:(Grams) 16.5g Operating Temp 14 F to 113 F (-10° C to 45° C) (subject to change) Storage Temp -4 F to 131 F (-20° C to 55° C) (subject to change) AC power supply 5V DC 1A 100-240VAC, 50-60Hz input (AC Power supply comes with JayBird Headset SKU) No of Paired Device 1 Pairing passkey Not required - automatically pairs with headset Features Works with 3.5mm Headphone Jack. Pairing button and status LED. Agency Approvals FCC, CE Included In Box JayBird Bluetooth(R) Adapter for MP3 User Manual Compatibility Works with any MP3 player or any audio device with 3.5mm headphone jack. Federal Communication Commission This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. JB-BA-100m JayBird Bluetooth® Adapter for MP3 User Guide This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this…

Text truncated - open the document above for the full version.

JB100M Block Diagram U1 CSR BC358239A U5 XC9216A30CM U4 MCP73832T Polymer Battery 3.7v Audio input 2402MHz-2480MHz Y1 XTAL-16M Antenna

Label Drawing FCC ID: VL5-JBBA100M Model Number:JB-BA-100m

The brief introduction of the circuit of the Bluetooth Mp3 Dongle 1．IC U1 BlueCore3-Multimedia is a single chip radio and baseband IC for Bluetooth 2.4GHz systems of CSR Company .BC358239A contains 8Mbit of internal Flash momory.It provides a fully compliant Bluetooth system to v1.2 of the specification for data and voice communications. 2．The BlueCore3-Multimedia RF local oscillator and internal digital clocks are derived from the reference clock at the BlueCore3-Multimedia 16M Hz Crystal Y1 XTAL_IN input. This reference is from a crystal connected between XTAL_IN and XTAL_OUT. 3．Launching antenna is printing antenna.in fact,good effect can be obtained by chip antenna. 4．Power of the whole body is provided by 3.7V polymer battery. 5．DC-DC transfer the battery to 3.0V for the IC U1 power supply. 6．U2 is a advanced linear charge management controllers. 7．Audio input from the socket and transfer by the U1.

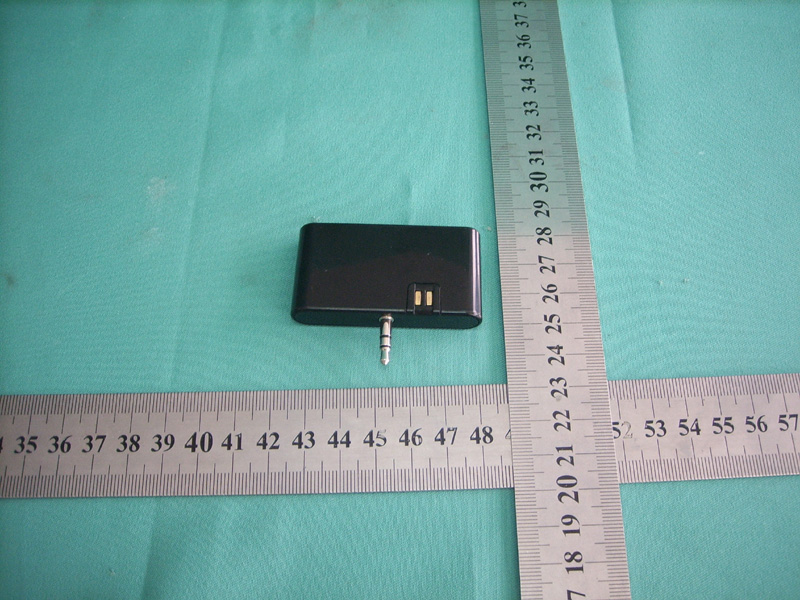

Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Plastoform Industries Ltd. FCC ID: VL5-JBBA100M Cover Sheet Test Report Product Name: JayBird Bluetooth Adapter for MP3 FCC ID: VL5-JBBA100M MODEL NO. : JB-BA-100m Applicant: Plastoform Industries Ltd. Units 6A-12, 15 Floor, Mita Centre, 552-566 Castle Peak Road, Kwai Chung Date Received: 10/21/2007-10/24/2007 Date Tested: 10/24/2007 Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5-JBBA100M TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: PLASTOFORM INDUSTRIES LTD. FCC ID: VL5-JBBA100M TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-5.........POWER LINE CONDUCTED INTERFERENC AND PLOTS PAGE 6-7.........RADIATION INTERFERENCE TEST DATA PAGE 8-11........OCCUPIED BANDWIDTH AND PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5-JBBA100M Page 1 of 11 EMC Equipment List Remark: Test Firm Name: Most Technology Service Co., Ltd. Test Firm Address: No. 5, 2nd Langshan Road, North District, Hi-tech Industrial Park,Nanshan, Shenzhen, Guangdong, China FCC Registered Test Site Number: 490827 Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCI 100492 Apr 06,2007 1 Year LISN ROHDE&SCHWARZ ENV216 100093 Apr 06,2007 1Year EMI Test Receiver ROHDE&SCHWARZ ESCI 101202 Apr 06,2007 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238316 Apr 06,2007 1 Year 50O Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Bilog Antenna Sunol JB3 A121206 Apr 06,2007 1 Year Horn Antenna EMCO 3115 640201028-06 Apr 06,2007 1 Year 50O Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Cable Resenberger N/A NO.1 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.2 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.3 Apr 06,2007 1 Year Single Phase Power Line Filter Kikusui LIN40MA-PCR -L LM002352 Apr 06,2007 1Year AC Power Source Kikusui AC40MA LM003232 Apr 06,2007 1Year Test analyzer Kikusui KHA1000 LM003720 Apr 06,2007 1Year ESD Tester Kikusui KES4021 LM003537 Apr 08,2007 1 Year Signal Generator IFR 2032 203002/100 Apr 08,2007 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Apr 06,2007 1 Year Power Head A&R PH2000 301193 Apr 06,2007 1 Year Power Meter A&R PM2002 302799 Apr 06,2007 1 Year Field Monitor A&R FM5004 300329 Apr 06,2007 1 Year Field Probe A&R FP5000 300221 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V0648102026 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V0648102026 Apr 06,2007 1 Year Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5-JBBA100M Page 2 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of MOST TECHNOLOGY SERVICE CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50H LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer and cable loss. The antenna correction factors and cable loss are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF + CABLE = FS 33 20 dBuV + 10.36 dB + 0.9 dB= 31.26 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5-JBBA100M Page 3 of 11 APPLICANT: Plastoform Industries Ltd. FCC ID: VL5-JBBA100M NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NUMBER: 15.107 MINIMUM REQUIREMENTS: FREQUENCY LEVEL MHz V 0.450-30 250 TEST PROCEDURE: ANSI STANDARD C63.4-2003 THE HIGHEST EMISSION READ FOR LINE 1 WAS 37.89 dBV 786kHz. THE HIGHEST EMISSION READ FOR LINE 2 …
