VL5JB100JAYBIRD BLUETOOTH STEREO HEADSET

JB-100 JayBird Bluetooth® Stereo Headset Freedom to rock while you play J B - 1 0 0 Federal Communication Commission This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Warranty 1 Year parts and labor FAQ / Troubleshooting Q: I have trouble getting the headset on in a comfortable, sure fit position. A: Stand in front of a mirror while following the steps in section “Wearing your JayBird Bluetooth Stereo Headset”, making particular care that the in-ear buds are in their default 10 and 2 o’clock positions, and the behind-the-head wire is under your hair and sits against your neck below your hairline. Q: I have trouble knowing when my headset is connected to my device because I can’t see the LED light due to the headset being on my head. A: Always pair your device with the headset in your hand so you can see the LED status lights. Q: The sound quality is poor and sounds distorted A: Adjust the volume control on your device to a lower setting. Find the right balance between both volume controls on the device and headset for optimal sound performance. Q: The sound cuts in and out intermittently. A: While the range of Bluetooth is 10 meters (33 feet), the optimal range is within 2 feet of the device, particularly outdoors when the signal cannot bounce off walls and ceilings. Make sure your device is above your elbow and on your right side for optimal connectivity to your headset while streaming music outdoors. Q: Phone shows Bluetooth connection to headset, but no longer plays music through the headset after a temporary cut in connection. A: Close the streaming music program on your device and launch it again to reestablish the streaming music connection to the headset. Certification and Agency Approvals Table of Contents: What’s included in this package? 1 Product Features 2 Charging your headset 2 Wearing the JayBird Bluetooth® Stereo Headset 3 Adjusting the in-ear buds for optimum fit 3 Pairing the JayBird Bluetooth® Stereo Headset with a Bluetooth® cell phone 4 Turning the headset on and off 5 Using the headset to listen to music from your cell phone. 5 Using the headset to make and answer calls with your cell phone. 5 Using your JayBird Bluetooth® Stereo Headset with an iPod® or other MP3 players. 6 Apple iPod® 6 MP3 and other portable audio players 7 Specifications 7 Warranty 9 FAQ / Troubleshooting 9 Certification and Agency Approvals 9 9 FCC ID: VL5-JB100 Tx PowerBluetooth Class 2 Range10 meters/33 feet Audio Format16-bit Stereo Talk Time 6.5 Hrs (May vary dependent on usage and cell phone) Music Playing Time 5.5 Hrs (May vary dependent on usage and cell phone) Standby Time 110Hrs (May vary dependent on usage and cell phone) Battery135 mAh Lithium Polymer ChargingAC Charger and USB Charging Time2 hrs Weight:(Grams)23.5g (headset) 57.3g (Charger) Microphone type4mm omni-directional Microphone Sensitivity-40 dB +/-3dB (1KHz, 0dB=1V/Pa) speaker sensitivity114±3dB At 1KHz Operating Temp 14 F to 113 F (-10° C to 45° C) (subject to change) Storage Temp -4 F to 131 F (-20° C to 55° C) (subject to change) AC power supply5V DC 1A 100-240VAC, 50-60Hz input No of Paired Device2 Pairing passkey0000 Features Answer call, end call, reject call, volume control Agency ApprovalsFCC, CE Included In Box • JayBird Bluetooth Stereo Headset • Charger Dock • AC Power Supply (BSA Style Plug) • USB Charging Cable • Nylon Mesh Carrying Pouch • User Manual Compatibility A full list of A2DP Cell Phones will be available upon completion of testing (August 2007) What’s included in this package? 1. JayBird Bluetooth® Stereo Headset 2. Charger Dock 3. AC Power Adapter 4. USB Charging Cable 5. Nylon Mesh Carrying Pouch 6. This User Manual 18 Note: Your AC Power Adapter might appear different than the one shown above (depending on where you purchased this product). 123 456 Product Features 1. Left Earpiece 2. Right Earpiece 3. Adjustable In-Ear Buds 4. Power/Talk Button 5. Volume Down Button 6. Volume Up Button 7. Rechargeable Lithium Polymer Battery 8. Flex-Fit Design 9. Rubberized Surfaces for Ultra-Comfort 10. Gasket Sealed Construction 11. Bluetooth® 2.0 with A2DP Wireless Technology 12. Bluetooth(R) Status Indicator 13. Battery Charging Status Indicator 14. Sweat-proof and Water Resistant Speakers 15. Omni-Directional Microphone 16. Behind-the-head Back Band Charging your headset Your JayBird Bluetooth® Stereo Headset is powered by a built-in rechargeable battery. Before using your headset for the first time, you should fully charge the battery. 1. Insert the headset into the Charger Dock as shown below…

Text truncated - open the document above for the full version.

JB100 Block Diagram U1 CSR BC358239A U7 DC-DC XC9216A202 U6 LDO XC6204B302 U2 charger management MCP73832T Polymer Battery Y1 XTAL-16M Chip Antenna L5 Speaker L MIC Speaker R 2402MHz-2480MHz

Label Drawing FCC ID: VL5JB100 Model Number:JB-100

The brief introduction of the circuit of the Bluetooth headsets 1．IC U1 BlueCore3-Multimedia is a single chip radio and baseband IC for Bluetooth 2.4GHz systems of CSR Company .BC358239A contains 8Mbit of internal Flash momory.It provides a fully compliant Bluetooth system to v1.2 of the specification for data and voice communications. 2．The BlueCore3-Multimedia RF local oscillator and internal digital clocks are derived from the reference clock at the BlueCore3-Multimedia 16M Hz Crystal Y1 XTAL_IN input. This reference is from a crystal connected between XTAL_IN and XTAL_OUT. 3．Launching antenna is chip antenna,it’s good for receive and launch 2402-2480MHz RF signal. 4．Power of the whole body is provided by 3.7V polymer battery. 5．DC-DC transfer the battery to 2.0V for the IC U1 power supply. 6．U2 is a advanced linear charge management controller. 7．U6 supplies the MIC with a DC bias through a resistor,the MIC has a built-in MIC amplifier.

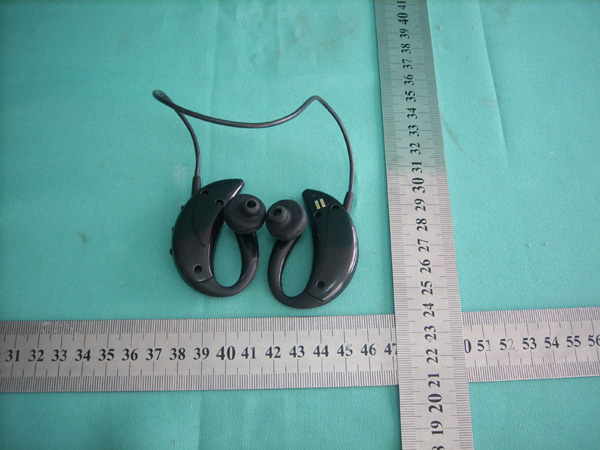

Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] Plastoform Industries Ltd. FCC ID: VL5JB100 Cover Sheet Test Report Product Name: JayBird Bluetooth Stereo Headset FCC ID: VL5JB100 MODEL NO. : JB-100 Applicant: Plastoform Industries Ltd. Units 6A-12, 15 Floor, Mita Centre, 552-566 Castle Peak Road, Kwai Chung Date Received: 10/21/2007-10/24/2007 Date Tested: 10/24/2007 Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5JB100 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: PLASTOFORM INDUSTRIES LTD. FCC ID: VL5JB100 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 2...........TEST PROCEDURE PAGE 3-5.........POWER LINE CONDUCTED INTERFERENC AND PLOTS PAGE 6-7.........RADIATION INTERFERENCE TEST DATA PAGE 8-11........OCCUPIED BANDWIDTH AND PLOTS EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........USERS MANUAL PAGE 4...........LABEL SAMPLE PAGE 5...........LABEL LOCATION PAGE 6...........EXTERNAL PHOTOGRAPHS PAGE 7...........INTERNAL PHOTOGRAPHS PAGE 8...........OPERATIONAL DESCRIPTION PAGE 9...........TEST SET UP PHOTOGRAPHS Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5JB100 Page 1 of 11 EMC Equipment List Remark: Test Firm Name: Most Technology Service Co., Ltd. Test Firm Address: No. 5, 2nd Langshan Road, North District, Hi-tech Industrial Park,Nanshan, Shenzhen, Guangdong, China FCC Registered Test Site Number: 490827 Equipment Manufacturer Model No.Serial No.Last Cal. Cal. Interval EMI Test Receiver ROHDE&SCHWARZ ESCI 100492 Apr 06,2007 1 Year LISN ROHDE&SCHWARZ ENV216 100093 Apr 06,2007 1Year EMI Test Receiver ROHDE&SCHWARZ ESCI 101202 Apr 06,2007 1 Year Spectrum Analyzer ANRITSU MS2651B 6200238316 Apr 06,2007 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Bilog Antenna Sunol JB3 A121206 Apr 06,2007 1 Year Horn Antenna EMCO 3115 640201028-0 6 Apr 06,2007 1 Year 50 Coaxial Switch ANRITSU CORP MP59B 6200283933 Apr 06,2007 1 Year Cable Resenberger N/A NO.1 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.2 Apr 06,2007 1 Year Cable SCHWARZBECK N/A NO.3 Apr 06,2007 1 Year Single Phase Power Line Filter Kikusui LIN40MA-PC R-L LM002352 Apr 06,2007 1Year AC Power Source Kikusui AC40MA LM003232 Apr 06,2007 1Year Test analyzer Kikusui KHA1000 LM003720 Apr 06,2007 1Year ESD Tester Kikusui KES4021 LM003537 Apr 08,2007 1 Year Signal Generator IFR 2032 203002/100 Apr 08,2007 1 Year Amplifier A&R 150W1000 301584 NCR NCR Dual Directional Coupler A&R DC6080 301508 Apr 06,2007 1 Year Power Head A&R PH2000 301193 Apr 06,2007 1 Year Power Meter A&R PM2002 302799 Apr 06,2007 1 Year Field Monitor A&R FM5004 300329 Apr 06,2007 1 Year Field Probe A&R FP5000 300221 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Apr 06,2007 1 Year EMCPRO System EM Test UCS-500-M4 V064810202 6 Apr 06,2007 1 Year Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5JB100 Page 2 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of MOST TECHNOLOGY SERVICE CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50H LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer and cable loss. The antenna correction factors and cable loss are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF + CABLE = FS 33 20 dBuV + 10.36 dB + 0.9 dB= 31.26 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. Most Technology Service Co., Ltd. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] APPLICANT: Plastoform Industries Ltd. FCC ID: VL5JB100 Page 3 of 11 APPLICANT: Plastoform Industries Ltd. FCC ID: VL5JB100 NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NUMBER: 15.107 MINIMUM REQUIREMENTS: FREQUENCY LEVEL MHz V 0.450-30 250 TEST PROCEDURE: ANSI STANDARD C63.4-2003 THE HIGHEST EMISSION READ FOR LINE 1 WAS 39.18 dBV 790kHz. THE HIGHEST EMISSION READ FOR LINE 2 WAS 42.59 dBV 854kHz. THE PLOTS ON THE…

Text truncated - open the document above for the full version.
