VL5PF305BELIVE-BLUETOOTH PORTION

BeLive User Manual Features ‐ Bluetooth ver 2.1 + EDR with Special Audio Algorithm and DSP Processor for clean, best‐in‐ class wireless stereo sound ‐ Looming touch key panel with amber backlight; touch key lock at the back ‐ Built‐in mic with advance noise‐cancellation enables clear wireless hands‐free calling and conferencing ‐ Two 35 mm full range drivers deliver superb music fidelity ‐ iUi Passive Woofer ‐ Convenient charging with included mini USB charging cable ‐ Rechargeable Lithium‐ion battery for up to 4 hours of playtime 1) Anatomy Button (in Bluetooth Music): A: Pervious Track B: Play/Pause C: Volume ‐ D: Next Track E: Power OFF (Long press) F: Volume + Button (during the phone call): A (during the call): Mute / Unmute the Mic B (during Ringing): Answer Call (Short press) / Reject Call (Long press) B (during the call): End of Call (Short press) / Toggle between Phone (Long Press) C: Volume – D (during the call): Mute / Unmute the Mic F: Volume + Button (in General without Bluetooth connection): E: Power ON/OFF (Long press); Entry Pairing mode (Hold pressing from OFF) Button (in Aux‐in Music): E: Power OFF 2) Power up BeLive ‐ Charge up BeLive whenever it is needed by plug into the wall charger or by computer via the USB cable ‐ Release the slide button at the back to unlock the touch panel ‐ Press “Power” key on the touch panel until the front logo turn into blue Remarks: Fully charge BeLive at least once a month 3) Piring to BeLive ‐ Select a BT 2.0 or above device (mobile phone or music player) and turn on BT connection ‐ Unlock the Key Panel with the slide switch at the back of the BeLive. ‐ Activate your BT device to the searching mode (new device searching). ‐ Touch the touch panel to activate ‐ Press and hold “Power (E)” key until the front logo flashing in BLUE/RED, BeLive has 3 mins (searchable time) for your BT device to pair with. ‐ <<BeLive>> will be displayed in your BT device and select it for pairing. “0000” is the pairing code if necessary. (Pairing code is not necessary for the iPhone, iPod , and iPad) ‐ Beep sound will be given when BeLive is successfully paired and stop flashing Remark: Pairing steps are for 1 st time connection, automatic connection is allowed on most BT devices except iPhone ‐ Double check with your BT device to see “BeLive” is connected. Remark: BeLive will also stop flashing with a different sound to indicate pairing failure after the 3mins. Repeat from beginning to try again 4) Listening to BeLive ‐ Stay connected to BeLive via BT, repeat the pairing step if it has been disconnected ‐ Select music to play in BT device ‐ Press “Phone” for Play / Pause ‐ Press “>>” for next song ‐ Press “<<” for previous song ‐ Press “+” or “‐“ to adjust volume level or adjust it from your BT device ‐ Press and hold “Power” key until logo light off to switch off 5) Talking via BeLive Remarks: Only available on BT mobile with HFP/HSP ‐ Press “Phone” for answering a call ‐ Press & hold “Phone” for rejecting the call ‐ Press “Phone” to hang up when the call finish ‐ Press & hold “Phone” during the call to switch between BeLive and mobile ‐ Double Press “Phone” to answer a call from 3 rd party ‐ Double Press “Phone” to toggle between original call and 3 rd party 6) Front logo light indicator 7) Specifications ‐ Total 6W output (3W / Channel) ‐ Full‐range (35mm) driver / Channel + Passive Radiator ‐ Distortion <= 10 % ‐ S/N ratio:>75dB@1W ‐ Frequency Response: 200Hz – 15k Hz ‐ Li—polymer Batt: 1150mAh ‐ Playtime: 5hours in 80% Volume ‐ Recharging Time: 3hours ‐ (Optional) Power Adaptor: 5VDC @ 500mA 8) Compatibility (Bluetooth device) ‐ BT 2.1 or above device with A2DP/AVRCP/ HFP/ HSP 9) Trouble Shooting Sound not Clear or no sound ‐ Please check BeLive or BT device Volume Level Playing Music Not Transfer from BT device to BeLive ‐ Make sure your BT device has A2DP ‐ Check if both devices are connected ‐ Restart BeLive for auto‐connecting with your BT device LED No Power ‐ Make sure BeLive is fully charged. Sound is Too small / too much distortion ‐ Adjust the volume level of BeLive or BT device Phone call Not Answer by BeLive ‐ Make sure your mobile has HSP/HFP ‐ Check if both devices are connected ‐ Restart BeLive for auto‐connecting with your BT device No Music Resume after hanging up a call ‐ Press play to resume music No Music Control by BeLive ‐ Make sure your BT device has AVRCP Important Information Required By the FCC The Manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes and modifications to this equipment. Such changes and modifications could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the se…

Text truncated - open the document above for the full version.

Plastoform Industries Ltd. FCC ID: VL5PF305 POWER OF ATTORNEY April 14, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, Plastoform Industries Ltd. hereby authorize Most Technology Service Co., Ltd. (Terry YANG/ Manager) located at No.5, Langshan 2nd Rd., North Hi-Tech Industrial Park ,Nanshan, Shenzhen, Guangdong ,China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen Super Test Service Technology Co., Ltd. (Terry YANG/ Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on April 30, 2011. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Plastoform Industries Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Winny Mak Manager Plastoform Industries Ltd. April 14, 2011

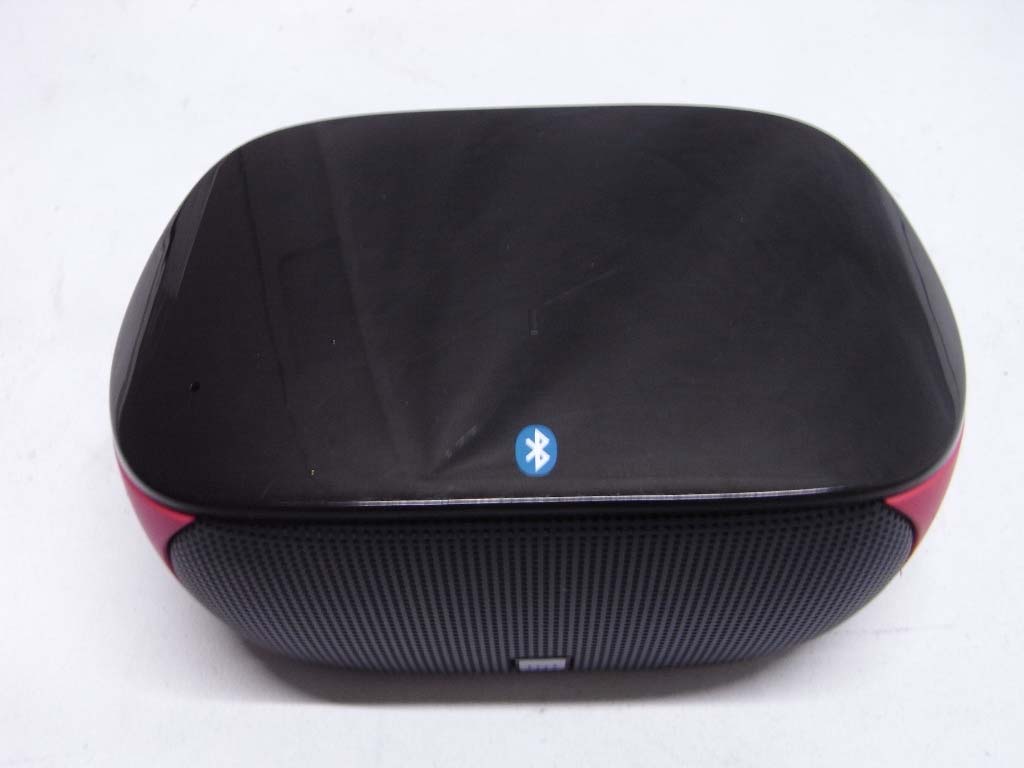

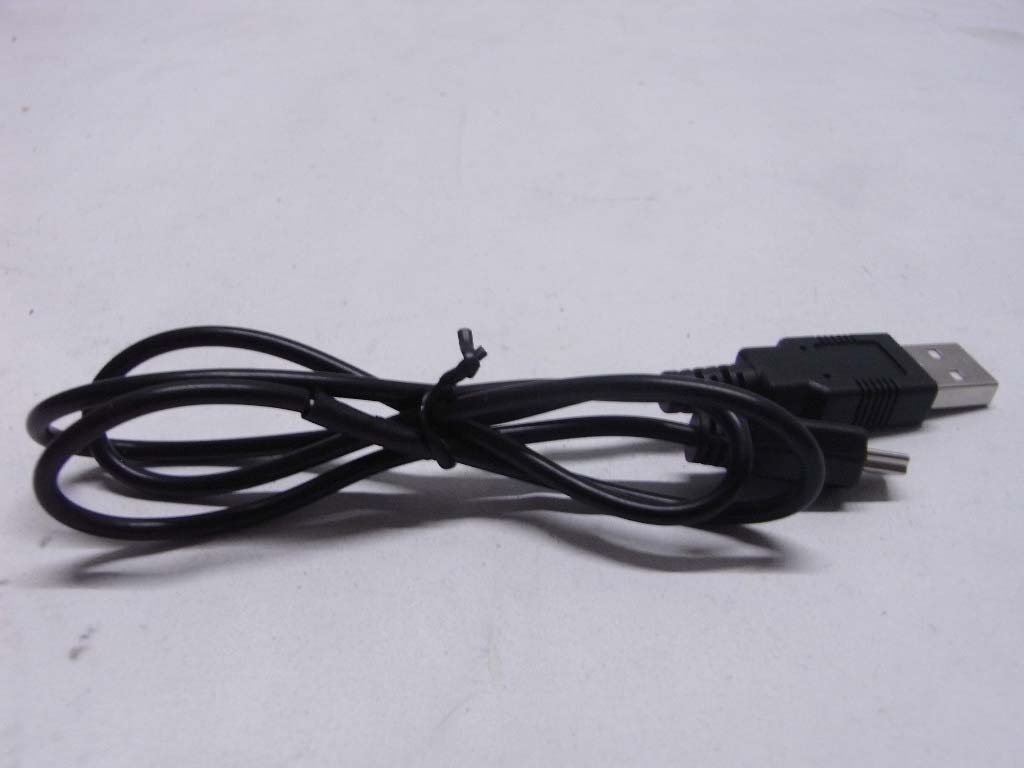

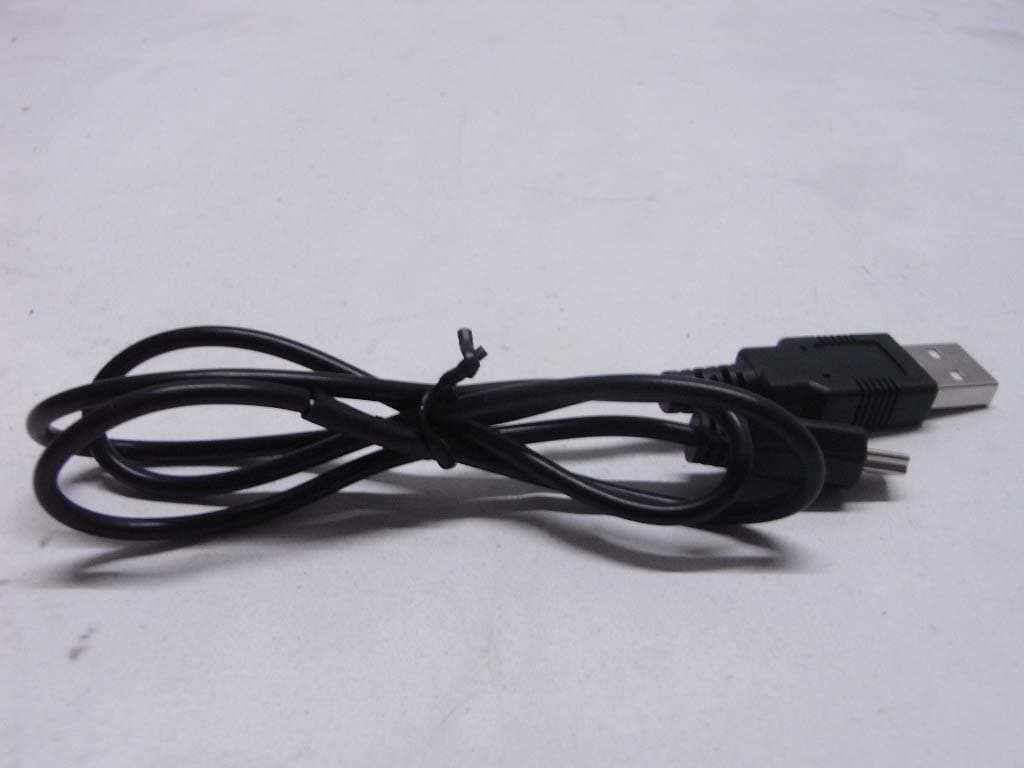

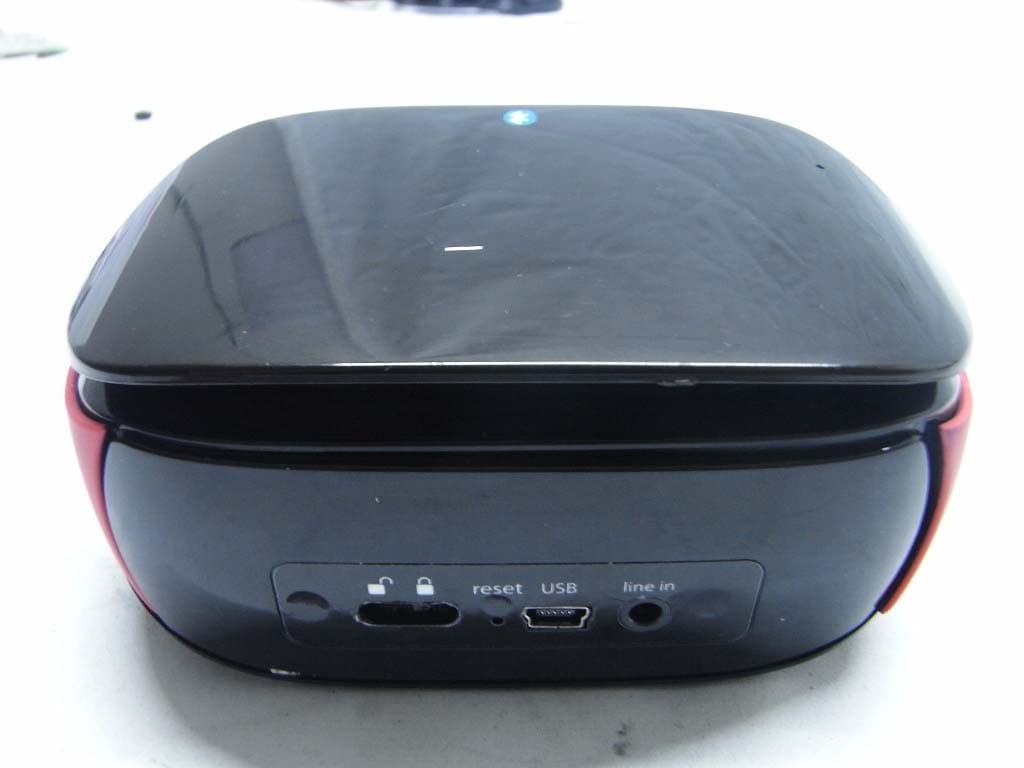

FCC ID: VL5PF305 Report No.: MOST110314F1 Page 25 of 34 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: VL5PF305 Report No.: MOST110314F1 Page 26 of 34 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: VL5PF305 Report No.: MOST110314F1 Page 27 of 34 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: VL5PF305 Report No.: MOST110314F1 Page 28 of 34 PHOTO OF USB LINE PHOTO OF POWER SUPPLY

FCC ID: VL5PF305 Report No.: MOST110314F1 Page 29 of 34 PHOTO OF BATTERY PHOTO OF THE ENTIRE SAMPLE FCC ID: VL5PF305 Report No.: MOST110314F1 Page 30 of 34 INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: VL5PF305 Report No.: MOST110314F1 Page 31 of 34 INTERNAL PHOTO OF SAMPLE –3 INTERNAL PHOTO OF SAMPLE –4 FCC ID: VL5PF305 Report No.: MOST110314F1 Page 32 of 34 INTERNAL PHOTO OF SAMPLE –5 INTERNAL PHOTO OF SAMPLE –6 FCC ID: VL5PF305 Report No.: MOST110314F1 Page 33 of 34 INTERNAL PHOTO OF SAMPLE –7 INTERNAL PHOTO OF POWER SUPPLY-1 FCC ID: VL5PF305 Report No.: MOST110314F1 Page 34 of 34 INTERNAL PHOTO OF POWER SUPPLY-2 ------END OF REPORT------

The brief introduction of the circuit for the Bluetooth Speaker PF305 1. PF305 is a module for Bluetooth 2.4GHz 16Mbit internal Flash memory which used with CSR Bluetooth stack. It provides a fully compliant Bluetooth system to V2.1+ECR of the specification for data and voice. 2. U1 is used for charging Li-ion battery(3.7V).Input from USB DC5V. 3. U4 is used for stepped up DC to DC (3.7V to 5V) 4. U7 is LDO(3.3V) for supply Bluetooth module 5. U3-A/U3-B is used for analog audio amplifier 6. U5/U8 is used for source selecting 7. U6 is used for driving speaker 8. Q21/Q16 is used for power switch

SCALE: SHEET: OF REVISION RECORD APPROVED: ECO NO: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: ABD DATE: 1 2 3 4 5 6 DCAB C SIZE: REV: CODE: LTR DRAWING NO: AS1080_3.3V GND SDA SCL ON/OFF Backlight LED Plastoform PF305 20100916 Hank PIO2 TOUCH KEY VCC1 OUT2 MIC+ MIC- Next Track Last Track power Phone Answer Volume Up Volume Down RESE VCC_INTKEY3KEY4NCR EXTKEY5 KEY6 KEY7 KEY8 VCC OUT8 OUT7 NC RES IRQ_L OUT6OUT5 RST_L OUT4 SCL SDA SLA OUT3 OUT2 OUT1 VSS KEY2 KEY1 1 2 3 4 5 6 7 891011121314 15 16 17 18 19 20 21 22232425262728 U9 AS1080 R4810K R49 10K K2 K1 R52 2.2K R53 10K C51 0.1U R56 10K R57 10K K5 K6 R58 10K R59 10K K3 K4 C52 10U D3 D4 2 1 MIC TP2 TP3TP4 TP5 TP6 1 2 3 Q5 1162 R2833R 1 2 3 Q6 1162 1 2 3 Q10 1162 R41 220R R42 220R R29 220R R30 56R C21 10U TP7 TP8 TP9 R44 100K C1 0.1U 1 2 3 4 5 6 7 8 9 10 11 12 J1-2 1 23 Q20 R60 1k TP1 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25TP26 TP27 TP28 TP29 TP30TP31 TP32 TP33 TP34 1 23 Q100 R100 1k C201 10U D100 100R SCALE: SHEET: OF REVISION RECORD APPROVED: ECO NO: LTR REV: SIZE: CODE: DATE: 1 TITLE:COMPANY: RELEASED: DATED: DATED: QUALITY CONTROL:CHECKED: DATED: DATED: DRAWN: 2 3 4 5 6 DCBA CDBA DRAWING NO: Red/Blue LED Logo Plastoform PF305 20100916 Hank POWER_ON VCC1 GND SDA SCL PIO2 GND GND BLUETOOTH L OUT2 AIO15 C1 0.1U R1 600R/100MHZ R2 600R/100M R5 10K R6 10K R7 1.5K C2 0.1U Q2 2231 R8 100K 1 2 - 3 U3-A PT2308 5 + 6 7 U3-B PT2308 4 VSS 8 VCC U3-C PT2308 R9 10K C3 100p R10 6.2K C4 1U R11 6.2K C5 1U R12 10K R13 10K C6 100p R14 6.2K C7 1U R15 6.2K C8 1U R16 10K C9 1U C10 1U C11 0.1U R17 10K R1810K C12 10U COMPFBENGND LX VCC FREQ SS 1234 8765 U4 R19 7.5K C14 1500p C15 10p C16 0.1U C18 0.033u L1 10UH D2 SS24 R20120KR2139K C19 0.1U + C20 1000U C28 0.1U R36 3K R37 3K R40 10R C29 10U C33 0.47U L2 600R C35 33p C39 0.47U L3 600R C41 33p L4 300R L5 300R L6 300R L7 300R C42 820p C43 820p C44 820p C45 820p 12 J3 SPK 12 J4 SPK C53 102 L8 600R L9 600R L10 600R L11 600R C54 10U C55331 C56 104 C57104 R66 1K R67 1K C58102 R681K C59 7p C60 0.1U C61 10U R69 2.2K 1 2 3 Q19 NC C62 NC R70 NC D1 NC R71 510k R72 1.2M L12 nc C63 0.1U C64 10U + C67 220U C68 0.1U + C69 220U 23 1 Q4 G2301 R3 10K R47 10K R54 1k R55 1k VDD PVDD -OUT_L +OUT_L +OUT_R -OUT_R PGND GND MUTE SHDN INR VREF INL 1614 3 1 5 12 10 8 7 11 9 2 15 6 4 13 U6 PAM8403 C26 1U C46 1U C4710U C48 1U C49 1U C50 NC R4 2.2k R64 2.2k 14532 J2 MINIST5 2 3 1 U7 3.3V C65 10U 12 3 Q21 BAT54C Q16 2231 C660.1U C70 nc R24 10K R25 10K C24 1000P CHRG GND PROG BAT VCC 1 2 53 4 U1 1 2 3 Q11 1162 R26 1K R27 1k C73 0.1U C74 1000p 2 T1 ANT 1 2 3 D6 SPK L- SPK L+ SPK R- SPK R+ GND MIC L+ MIC L- MIC R+ MIC R- 1.8V PCM-IN PCM-SYNG PCM-CLK PCM-OUT AIO0 AIO1 AIO15 GND 3.3V USB D+USB D- RTSCTS TXRX RESE PIO4 PIO5 PIO6 PIO7 MOSI CSB CLK MISO PIO10 PIO11 PIO3 PIO2 PIO1 PIO0 PIO8 PIO9 GND GND ANT GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18192021222324252627 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 454647 U2 BTP501 21 BT1 R22 10K R23 10K R35 10K R3810K R39 NC 1 VCC 2 D- 3 D+ 45 GND 67 J1 MINIUSB R43 NC 213 SW1 C31 0.1U TP10 TP11 TP12 TP13 C17 1000P R45 10K SA B0 VSS B1 vcc 1 2 3 4 5 6 U5 BL1553 SA B0 VSS B1 vcc 1 2 3 4 5 6 U8 BL1553 R33 10K R34 10K C34 0.1U C25 0.47U C30 0.47U D5 NC 1 2 3 COM2-1 1 2 3 COM2-2 R51 10K R50 10K R46 330R C72 10U C71 10p C75 10U C76 10U Q5 2231 Q3 2231 1 2 3 4 5 6 7 8 9 10 11 12 J1-1 L14 600R L15 600R L16 600R L17 600R L18 600R L19 600R L20 600R L21 600R L22 600R L23 600R L13 NC 1 2 3 Q1 2SC2712 12 SW2 L24 600R L25 600R L26 600R C27 0.1U Q19' 0R C13 10U D+D- PIO8 3.3V PIO4 3.7V IN-L-IN-L+ 1/2VCC1/2VCC IN-R+IN-R- 1/2VCC VCC VCC1 VCC1 MIC+ MIC- PIO9 3.3V BAT3.7V USB5V VCC VCC1 MUTE VCC1 LINNE_DETECT 3.3V POWER_OFF 3.3V USB_CHECK LOCK_KEY OUT2 AS1080_3.3V AS1080_3.3V OUT2 PIO2 PIO9 PIO8 POWER_OFF PIO2 SOURCE SDA SCL MUTE PIO4 PIO11 PIO10 3.3V PIO11 PIO10 D- D+ LOCK_KEY BAT3.7V MIC- MIC+ IN-R+ IN-R- IN-L+ IN-L- SCL SDA SOURCE VCC1 VCC1 BAT3.7V VCC1 SCL SDA USB_CHECK RESE LINNE_DETECT RESE

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant : Plastoform Industries Ltd. Address : Unit 6A-12, 15/F Mita Center, 552-566 Castle Peak Road, Kwai Chung, N.T., Hong Kong Product Name : Belive Model Name : PF305 Brand Name : N/A FCC ID : VL5PF305 Report No. : MOST110314F2 Date of Issue : April. 11, 2011 Issued by :Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: VL5PF305 Report No.: MOST110314F2 Page 2 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY ....................................................................................... 3 2. GENERAL INFORMATION.................................................................................................... 4 2.1 Product Information..................................................................................................................................... 4 2.2 Objective ..................................................................................................................................................... 5 2.3 Test Standards and Results ........................................................................................................................ 5 2.4 Environmental Conditions ........................................................................................................................... 5 3. TEST FACILITY ..................................................................................................................... 6 3.1 TEST FACILITY .......................................................................................................................................... 6 3.2 GENERAL TEST PROCEDURES............................................................................................................... 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................................... 7 4. TEST EQUIPMENT LIST ....................................................................................................... 8 5. 47 CFR Part 15 C 15.247 Requirements.............................................................................. 9 5.1 Number of Hopping Frequency ................................................................................................................... 9 5.2 20dB Bandwidth .........................................................................................................................................11 5.3 Peak Output Power ................................................................................................................................... 13 5.4 Carried Frequency Separation .................................................................................................................. 15 5.5 Time of Occupancy (Dwell time) ............................................................................................................... 16 5.6 Conducted Spurious Emission .................................................................................................................. 18 5.7 Band Edge ................................................................................................................................................ 20 5.8 5.5 Power Spectral Density (PSD) ............................................................................................................ 25 5.9 Conducted Emission ................................................................................................................................. 27 5.10 Radiated Emission .................................................................................................................................... 30 APPENDIX 1 .............................................................................................................................. 38 PHOTOGRAPHS OF TEST SETUP .......................................................................................... 38 APPENDIX 2 .............................................................................................................................. 41 PHOTOGRAPHS OF EUT ......................................................................................................... 41 FCC ID: VL5PF305 Report No.: MOST110314F2 Page 3 of 51 1. VERIFICATION OF CONFORMITY Equipment Under Test: Belive Brand Name: N/A Model Number: PF305 FCC ID： VL5PF305 Plastoform Industries Ltd. Applicant: Unit 6A-12, 15/F Mita Center, 552-566 Castle Peak Road, Kwai Chung, N.T., Hong Kong Plastoform Industries Ltd. Manufacturer: Building No.16, 19, 21, 28, 29 B Zone, The 1st Industrial Zone, Gonghe Community, Shajing Street, Baoan District, Shenzhen City, Guangdong, P.R.C Technical Standards: 47 CFR Part 15 Subpart C File Number: MOST110314F2 Date of test: April 07, 2011 ~ April 11, 2011 Deviation: None Condition of Test Sample: Normal Test Result: PASS The above equipment was tested by Most Technology Service Co., Ltd. for compliance with the requirements set forth in FCC rules and the Technical Standards mentioned above. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment and the level of the immunity endurance of the equipment are within the compliance requirements. The test results of this report relate only to the tested sample identified in this report. Tested by (+ signature): Petter Ping/Test Engineer April…

Text truncated - open the document above for the full version.

FCC ID: VL5PF305 Report No.: MOST110314F2 Page 38 of 50 CE TEST SETUP RE TEST SETUP FCC ID: VL5PF305 Report No.: MOST110314F2 Page 39 of 50 CONDUCTED SPURIOUS EMISSION TEST SETUP
