VL6JA80MWireless magnetic door detector

The JA-80M wireless magnetic door detector 2 MHQ51404 The JA-80M wireless magnetic door detector The JA-80M is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect the opening of doors, windows etc. It can also be extended by a normally closed sensor. The battery-powered detector communicates via OASIS radio protocol. MG OFF MG ON tamper switch external sensor Reaction mag. sensor ON/OFF INSTANT DELAY m a g n e t L I T H I U M 3 / 3 , 6 V A A Installation Installation shall only be undertaken by technicians holding a certificate issued by an authorized distributor. This detector reacts to the removal of its magnet unit. The electronics should be installed onto the non-moving part of windows or doors, and the magnet onto the moving part. The detector should be installed vertically. Avoid locating it directly on a metal frame as metal influences the functioning of the magnetic sensor and radio communication. If the door or window is made of metal, we recommend installing the detector unit away from the metal and wiring up an external wired magnetic sensor which is connected to the detector. See the following instructions: 5. Open the detector cover by pressing the tab in. 6. Screw the rear cover to the solid part of the door/window. 7. Attach the magnet to the moving part of the window. Its distance from the detector should not exceed 5mm when the door/window is closed. The lower edge of the magnet should be aligned with the lower edge of the detector. Only a single magnet can be installed, either on the left side or the right side of the detector. 8. Leave the battery disconnected and the cover open and then follow the control panel or receiver manual. The basics of enrollment are: 4. Enter enrollment mode on the control panel by keying in “1” in Service mode. 5. Install a battery into the detector to activate enrollment. 6. Exit enrollment mode by pressing “#” After installing a battery into the detector, allow up to 30 seconds for stabilisation. During this period the LED is continuously lit. To enroll a detector after having already connected a battery, first disconnect the battery, and press and release the tamper sensor to discharge any remaining charge to ready the device for enrollment. DIP switches MG ON / MG OFF Allows the internal magnetic sensor inside the detector to be disabled when the detector is only to be used with external sensors wired to its terminals. INS / DEL DEL provides entrance & exit delays for detectors installed in a building entrance. INS allows the detector to instantly trigger alarm activation if the control panel is armed. This DIP switch (INS/DEL) only has an effect if the detector has a natural reaction assigned to its address in the Oasis control panel. It also has no effect when used with a UC-8x or AC-8x receiver. Opening the cover makes the detector react with a tamper signal. Open/closed status detection The detector is factory-set to indicate both opening and closing so that the control panel knows the status of doors/windows. If a pulse mode is desired to indicate only opening, keep the tamper switch pressed while installing the battery. Not pressing the tamper switch gives open and closed status signals. Wiring up the external sensor External sensors can be wired to the detector. It is possible to protect more doors/windows or to wire in other types of wired detectors. There are two inputs, IN and TMP which react when disconnected from the GND common terminal. IN: If the IN terminal is disconnected from GND it sends the same signal to the control panel as if the magnet had been removed from the detector. The internal magnetic sensor can be disabled by DIP switch if desired. TMP: The TMP terminal sends a tamper signal to the control panel if disconnected from GND. Note: If any of these two inputs is not used, it must be shorted to the GND terminal. Wiring example Testing the detector 15 minutes after closing the detector cover, the LED indicates detector triggering. The strength and quality of detector signals can be measured by the control panel in Service mode. Battery replacement The detector monitors its battery voltage and if too low, a transmission is sent to the control panel to inform the installer or user. The detector continues to function and shows each triggering of the detector with a flash of its LED. Battery replacement should not be delayed by more than two weeks. This should be done by a qualified technician with the control panel in Service mode. Expired batteries should not be thrown into the garbage, but disposed of according to local regulations. Removing the detector from the system If a detector is removed, the control panel announces the removal. The detector has to be deleted in the control panel before intentional removal. Technical parameters Voltage: Lithium battery type LS(T)14500 (3,6V AA) or CR14505SL (3,0V AA) Typical battery lifetime: approx. 3 years for 20 daily activations maximum Communication band: 868 MHz, Oasis protocol Communication range: approx. 300m (open area) Typical sensitivity range of the built-in magnetic sensor 45/25mm Inputs for external sensors IN and TMP = normally closed loops Dimensions 110 x 31 x 26 mm magnet: 56 x 16 x 15 mm Operational environment according to EN 50131-1 II. Indoor general Operational temperature range -10 to +40 °C EN 50131-1,CLC/TS 50131-2-6, EN 50131-5-3 classification: grade 2 Complies with ETSI EN 300220, EN50130-4, EN55022, and EN 60950-1 Can be operated according to ERC REC 70-03 FCC ID: VL6JA80M Jablotron Ltd. hereby declares that the JA-80M is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications no expre…

Text truncated - open the document above for the full version.

JABLOTRON s.r.o. TEL:+420-483 559 854 Pod Skalkou 33 FAX:+420-483 559 853 466 01 Jablonec nad Nisou www.jablotron.cz Czech Republic mail to: [email protected] Account: KomerčnÌ banka Jablonec n.N 17409-451/0100 Entrepreneurial permit number: CZ14864959 Spisov· značka: C/141 veden· u rejstřÌkovÈho soudu v ⁄stÌ nad Labem. Intertek Deutschland GmbH Innovapark 20 DE- 87600 Kaufbeuren Attention: Application Examiner Re: Request for confidentiality Applicant: JABLOTRON Ltd. FCC ID: VL6JA80M To whom it may concern, Request is hereby submitted by JABLOTRON to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams Rationale for request for confidentiality: JABLOTRON has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. Sincerely Milan Holas, dipl. Eng. __________________ ________________ Signature Printed Title: Technical legislation and metrology manager

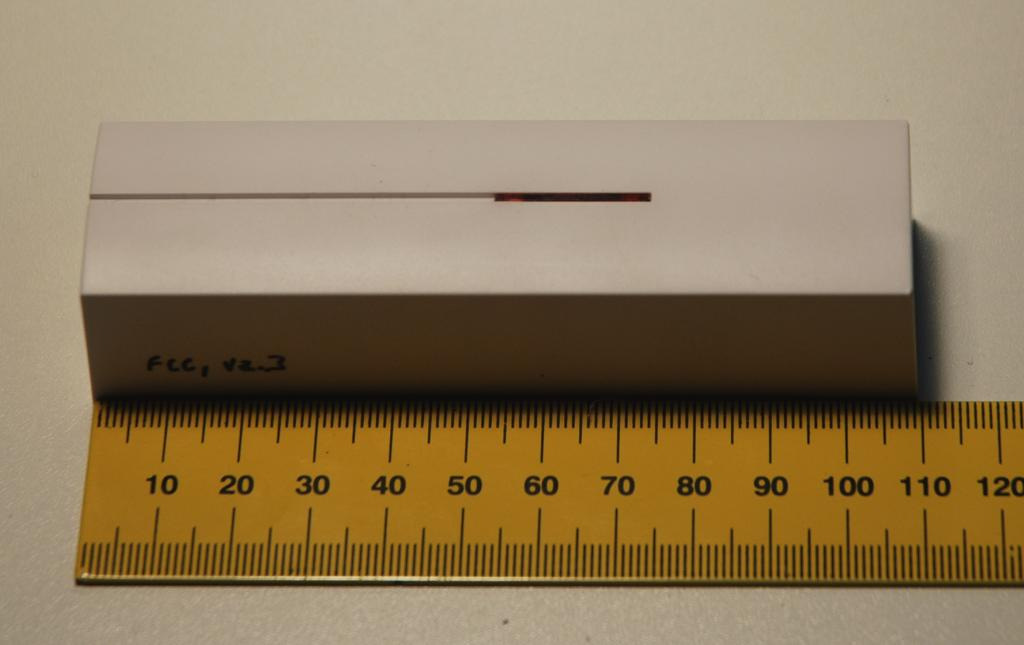

Front side view Rear side view

Above shown labels will replace the label shown on the photo bellow.

Inside view with battery PCB view from battery side PCB view rear side

Operational description The JA-80M is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect opening windows, doors etc. The battery-powered detector communicates via OASIS radio protocol. The transmitter becomes active when the magnetic sensitive contact switches on / off depending on the dip switches. Under normal conditions the detector sends once in approximately 9 minutes the data pulse 30 ms to check the integrity of the system. Antenna is internal. Operational frequency : 868,5 MHz Battery : Lithium battery type CR14505SL or LS(T)14500

Jablotron s.r.o. / JA-80M 2-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 2.1. Modifications to Test Report 07KFE007857-S-FCC-01 ..................................... 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 12 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 13 5.3.1. Field strength calculation..................................................................................................... 13 5.3.2. Normative references .......................................................................................................... 14 5.3.3. Emission Test results .......................................................................................................... 15 6. Test setup Photo documentation...................................................................... 19 7. EUT Photo documentation ................................................................................ 21 Jablotron s.r.o. / JA-80M 3-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 8. Technical specification ...................................................................................... 21 8.1. Block Diagram Of The EUT..............................................................................21 8.2. Circuit Diagram Of The Layout.........................................................................21 8.3. Instruction manual............................................................................................ 21 8.4. Product Labelling ............................................................................................. 21 Jablotron s.r.o. / JA-80M 4-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 1. General description 1.1. Product description The JA-80M is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect opening windows, doors etc. It can be installed into plastic or wooden frames and is suitable for most types of fitting. The battery-powered detector communicates via OASIS radio protocol. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new Lithium battery CR14505SL (3.0BV AA) Antenna type : monopole type , Internal, Integral on PCB. Under normal operating conditions (no alarm state) the device transmits 30 ms data pulse to control unit once in 540 s (9 minutes). 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the JA-80M with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / JA-80M 5-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / JA-80M 6-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements acco…

Text truncated - open the document above for the full version.

Jablotron s.r.o. / JA-80M 2-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 Table of Contents 1. General description.............................................................................................. 4 1.1. Product description ............................................................................................ 4 1.2. Related submittal(s) Grants................................................................................ 4 1.3. Test Methodology............................................................................................... 4 1.4. Test Facility ........................................................................................................ 4 1.5. List of exhibits .................................................................................................... 5 2. Measurements And Test Specifications............................................................. 6 2.1. Modifications to Test Report 07KFE007857-S-FCC-01 ..................................... 6 3. Description Of EUT .............................................................................................. 7 3.1. Configuration / Operating Conditions ................................................................. 7 3.2. Major Subassemblies Or Internal Peripherals .................................................... 7 3.3. Peripheral Devices Used For Testing................................................................. 7 3.4. Supply- And Interconnecting Cables .................................................................. 7 4. Test Results - Overview ....................................................................................... 8 5. Measurement results detailed ............................................................................ 9 5.1. Duty cycle and Averaging factor......................................................................... 9 5.2. Bandwidth ........................................................................................................ 12 5.3. Radiated Emission 30 MHz – 10 GHz.............................................................. 13 5.3.1. Field strength calculation..................................................................................................... 13 5.3.2. Normative references .......................................................................................................... 14 5.3.3. Emission Test results .......................................................................................................... 15 6. Test setup Photo documentation...................................................................... 19 7. EUT Photo documentation ................................................................................ 21 Jablotron s.r.o. / JA-80M 3-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 8. Technical specification ...................................................................................... 21 8.1. Block Diagram Of The EUT..............................................................................21 8.2. Circuit Diagram Of The Layout.........................................................................21 8.3. Instruction manual............................................................................................ 21 8.4. Product Labelling ............................................................................................. 21 Jablotron s.r.o. / JA-80M 4-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 1. General description 1.1. Product description The JA-80M is a component of Jablotron’s Oasis 80 alarm system. It is designed to detect opening windows, doors etc. It can be installed into plastic or wooden frames and is suitable for most types of fitting. The battery-powered detector communicates via OASIS radio protocol. The wireless transmitter (connection to control unit) has operating frequency f = 868.5 MHz. The device is battery operated. The power source delivered by producer and used for testing was a new Lithium battery CR14505SL (3.0BV AA) Antenna type : monopole type , Internal, Integral on PCB. Under normal operating conditions (no alarm state) the device transmits 30 ms data pulse to control unit once in 540 s (9 minutes). 1.2. Related submittal(s) Grants This is application for certification of the transmitter. No related devices are present. 1.3. Test Methodology The test setup and test was done according to: ANSI C63.4: 2003 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. The test setup and test was done according to: CISPR 22: 1998 + Corrigendum: 2003 + A1: 2000 + A2: 2003 and ANSI C63.4: 2003 Compliance with CISPR 22 is being used to demonstrate conformity with FCC DoC requirements. This conforms with FCC Part 15.109(g). The test results detailed in this report apply only to the JA-80M with the test setup described. Any modification such as a change, addition to or inclusion of another device into this product will require an additional evaluation. The support equipment listed as part of the emission tests is required to properly exercise and test the device under test. 1.4. Test Facility The test site was semi-anechoic chamber Intertek Germany (PM KF 1150). Measurement distance EUT – Antenna was d = 3 m. Jablotron s.r.o. / JA-80M 5-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 1.5. List of exhibits Following exhibits are delivered as separate pdf files. The name of file corresponds with description of exhibit with extension .pdf EXHIBIT 1 Test setup photo documentation EXHIBIT 2 External Photos EXHIBIT 3 Internal Photos EXHIBIT 4 Operational description EXHIBIT 5 Block diagram EXHIBIT 6 Circuit diagram EXHIBIT 7 Instruction manual EXHIBIT 8 Product label EXHIBIT 9 Confidentiality request Jablotron s.r.o. / JA-80M 6-21 07KFE007857-S-FCC-02 / 08-01-25 R_FCC 06-04 2. Measurements And Test Specifications Emission - Requirements acco…

Text truncated - open the document above for the full version.

EXHIBIT 1 Fig. 1 Front view Fig. 2 Rear view
