SYRIS Xtive RFID TAG User Manual Version 1.4 2007/09/18 SYRIS active RFID TAG Instruction 1 Product Specification Specification \ Model SYTAG245-2S SYTAG245-2K TAG Picture Communicate 2.45GHz support read and write Frequency 2.40 ~2.48 GHz Channel 316 Address 65536 Transmission Range Up to 70m RSSI 0~255 Parameters Transmission interval programmable / Wireless tag programming Wake on radio N/A ON / OFF LED N/A Two-color LED visual indication Call button capabilities N/A Emergency reporting / Signal transmission Built-in motion sensor Vibrate detect (option) Battery type 3V CR2032 x 1 Battery life 1~2 years Idle current 3 μA@3VDC Action current 24 mA@3VDC Operating temperature -20°C to 60°C, 5 to 95% RH Storage temperature -20°C to 60°C, 5 to 95% RH Housing Splash resistant case Dimensions (mm) 42W x 30H x 10D SYRIS active RFID TAG Instruction 2 SYTAG245-2S TAG 1. Diagram 2. Features: à Compact size Tag. à High security, Long range, read/write Tag. à Wireless tag programming. SYRIS active RFID TAG Instruction 3 3. How to replace the battery: First, you need to screw the lid of tag by the proper screwdriver. And than, put the new battery properly into the battery bracket which is mounted on the main board. Like as below photo. 4. Set Parameters: You can set TAG emitting frequency, receive frequency and ON/OFF Tag with SYRIS Xtive utility. (Please refer to Xtive Utility user manual) 5. Battery Life: Battery life is affect by TAG emitting frequency and receives frequency. Increasing emitting/receives frequency will shorten the battery life. Ex. Battery life for 3 month setting : Set TAG active time = 1 x 2.5 sec, Set Tag Receive Count =10 Battery life for 1 year setting : Set TAG active time = 1 x 20 sec, Set Tag Receive Count =10 SYRIS active RFID TAG Instruction 4 SYTAG245-2K TAG 1. Diagram 2. Features: à Compact size Tag. à High security, Long range, read/write Tag. à Remote ON/OFF Tag. à Wireless tag programming. à Call button: Emergency reporting / Signal transmission. à Two colors LED visual indication: Generally, the emitting signal will glitter green light; when it's low battery, it will glitter red sight. SYRIS active RFID TAG Instruction 5 3. How to replace the battery: First, you need to screw the lid off tag by the proper screwdriver. And than, put the new battery properly into the battery bracket which is mounted on the main board. Like as below photo. 4. Set Parameters: You can set TAG emitting frequency, receive frequency, ON/OFF Tag and LED indication with SYRIS Xtive utility. (Please refer to Xtive Utility user manual) 5. Battery Life: Battery life is affect by TAG emitting frequency and receives frequency. Increasing emitting/receives frequency will shorten the battery life. Ex. Battery life for 3 month setting : Set TAG active time = 1 x 2.5 sec, Set Tag Receive Count =10 Battery life for 1 year setting : Set TAG active time = 1 x 20 sec, Set Tag Receive Count =10 SYRIS active RFID TAG Instruction 6 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Caution: 1.The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

1.Product NameRFID Tag 2.Model NameSYTAG245-2K-V SYTAG245-2K,SYTAG245-2S-V,SY245TAG-2S 3.FCC ID:VLD-SYTAG245-2K 4. Model difference SYTAG245-2K Square case, Call button, LED visual indication, No motion sensor SYTAG245-2S Square case with rounded edges, No button, No LED visual indication, No motion sensor SYTAG245-2K-V Square case, Call button, LED visual indication, Built-in motion sensor SYTAG245-2S-V Square case with rounded edges, No button, No LED visual indication, Built-in motion sensor

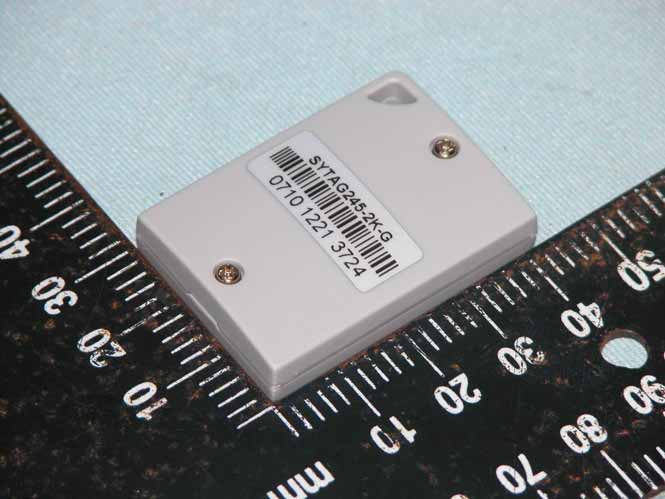

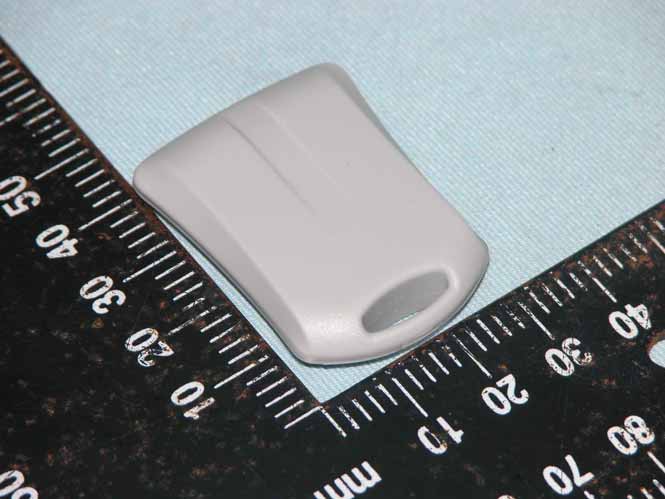

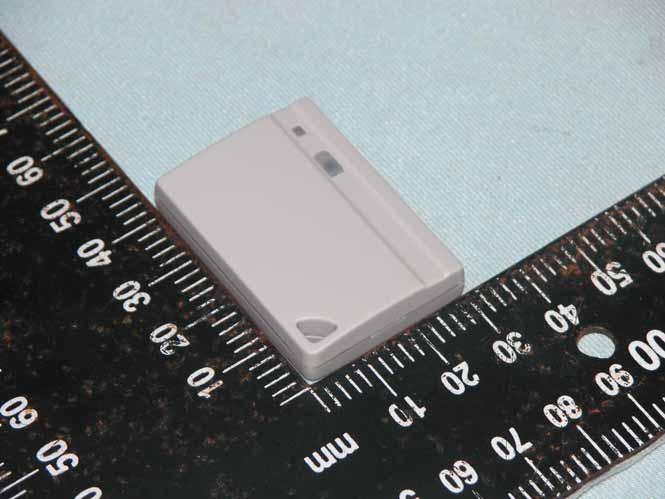

Compliance Certification Services Inc. Report No.71030302 Page 1 of 5 External Photo SYTAG245-2K / SYTAG245-2K-V SYTAG245-2K / SYTAG245-2K-V Compliance Certification Services Inc. Report No.71030302 Page 2 of 5 SYTAG245-2S / SYTAG245-2S-V SYTAG245-2S / SYTAG245-2S-V

Compliance Certification Services Inc. Report No.71030302 Page 3 of 5 Internal Photo SYTAG245-2K / SYTAG245-2K-V Compliance Certification Services Inc. Report No.71030302 Page 4 of 5 SYTAG245-2S / SYTAG245-2S-V Compliance Certification Services Inc. Report No.71030302 Page 5 of 5

ACX Advanced Ceramic X AT7020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT7020 -B2R4HAA_ 2400~2500 2.0 (XZ-V) 0.5 (XZ-V) 2 max. 50 Ω Q’ty/Reel (pcs) : 1,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 7020 - B 2R4 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 7.0× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T Mark L W T a Dimensions 7.00.2 2.00.2 1.2+ 0.1/-0.2 0.50.3 *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Typical Electrical Characteristics (T=25 o C) ™Test Board * * * 2.0 5.5 8.0 1.0 (Matching circuit and component values will be different, depending on PCB layout) Antenna No Ground Ground 20mm 19mm 40mm 9.5mm L 50Ω Feed Line ACX Advanced Ceramic X ™Return Loss ACX Advanced Ceramic X ™Radiation Patterns XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XY-V/XY-H XZ-V/XZ-H YZ-V/YZ-H Z 270 o 0 o 90 o X Y XY-cut scanning direction Y 270 o 0 o 90 o X Z XZ-cut scanning direction X 270 0 o 90 o Y Z YZ-cut scanning direction Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw 180 180 180 o

Compliance Certification Services Inc.FCC ID VLD-SYTAG245-2K Report No.71030302-RP1 Page 1 of 30 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4 : 2003 TEST REPORT For RFID Tag Model : SYTAG245-2K-V Data Applies To : SYTAG245-2K ; SYTAG245-2S ; SYTAG245-2S-V Trade Name : SYRIS Issued for SYRIS Technology Corp. 21F-2, NO. 12, Sec. 1, Taijunggang Rd. Taichung city, Taiwan (403) Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc.FCC ID VLD-SYTAG245-2K Report No.71030302-RP1 Page 2 of 30 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 5 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 5 5.1 FACILITIES .......................................................................................................................... 5 5.2 EQUIPMENT ........................................................................................................................ 5 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 6 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 6 6. CALIBRATION AND UNCERTAINTY .................................................................................... 7 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 7 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 7 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 8. APPLICABLE LIMITS AND TEST RESULTS ....................................................................... 9 8.1 DUTY CYCLE CORRECTION FACTOR ............................................................................. 9-10 8.2 RADIATED EMISSIONS ...................................................................................................... 11 8.2.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS............................................. 11-14 8.2.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................ 15 8.2.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 16-18 8.2.4 RESTRICTED BAND EDGES..................................................................................... 19-22 8.3 POWERLINE CONDUCTED EMISSIONS .......................................................................... 23-24 9. ANTENNA REQUIREMENT .................................................................................................... 25 9.1 STANDARD APPLICABLE................................................................................................... 25 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 25 APPENDIX SETUP PHOTOS....................................................................................................... 26-30 Compliance Certification Services Inc.FCC ID VLD-SYTAG245-2K Report No.71030302-RP1 Page 3 of 30 1. TEST REPORT CERTIFICATION Applicant SYRIS Technology Corp. Address 21F-2, NO. 12, Sec. 1, Taijunggang Rd. Taichung city, Taiwan (403) Equipment Under Test RFID Tag Model SYTAG245-2K-V Data Applies To SYTAG245-2K ; SYTAG245-2S ; SYTAG245-2S-V Tested Date December 25, 2007 ~ January 18, 2008 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2006 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID VLD-SYTAG245-2K Report No.71030302-RP1 Page 4 of 30 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name RFID Tag Model Number SYTAG245-2K-V Data Applies To SYTAG245-2K ; SYTAG245-2S ; SYTAG245-2S-V Frequency Range 2401.4MHz to 2480.18MHz f = 2401.4 + nMHz, n = 62, ....377 Channel Spacing 0.25MHz Channel Number 316 Channels Transmit Data Rate 250 kbps Type of Modulation MSK / GFSK Frequency Selection by software / firmware Antenna Type Chip Antenna, Antenna Gain : 2dBi Power Source 3VDC (From Newsun Lithium Battery Powered) Model No : CR2032 The difference of the series model Mode Number Difference SYTAG245-2K Square case, Call button, LED visual indication, No motion sensor SYTAG245-2K-V Square case, Call button, LED visual indication, Built-in motion sensor SYTAG245-2S Square case with rounded edges, No button, No LED visual indication, No motion sensor SYTAG2…
