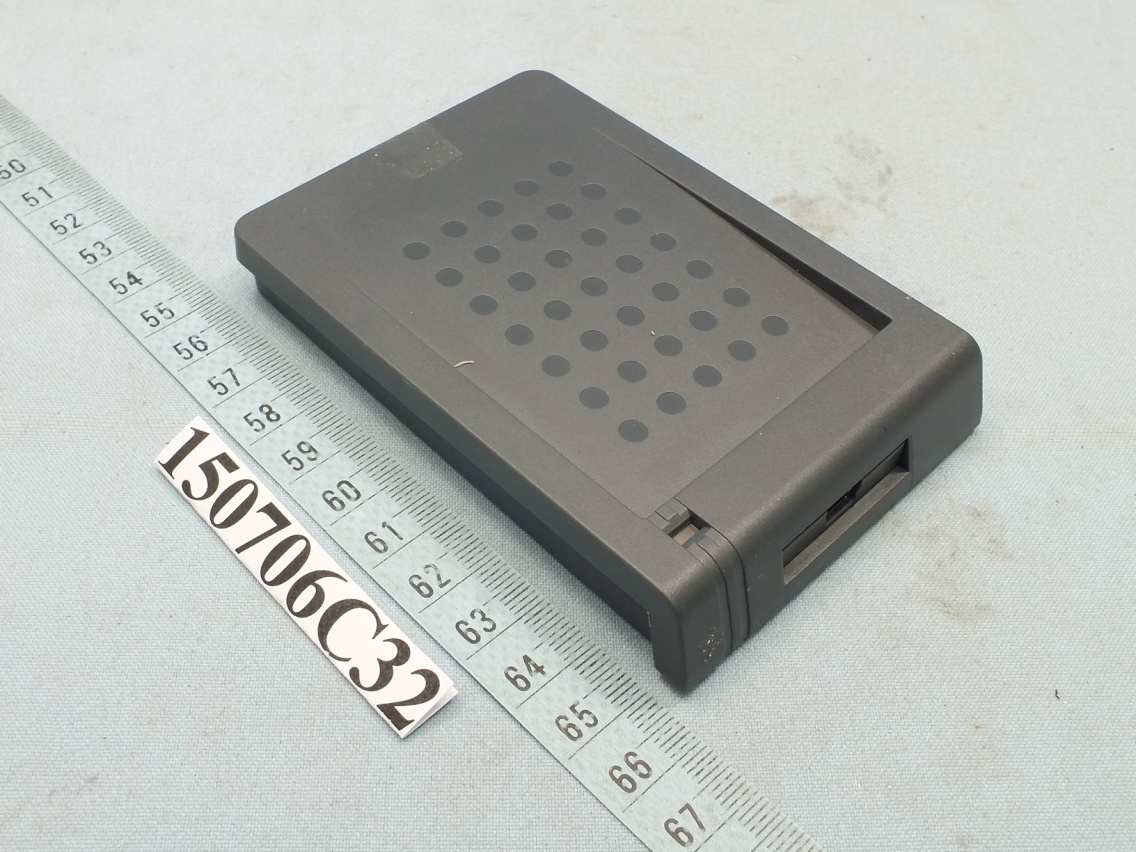

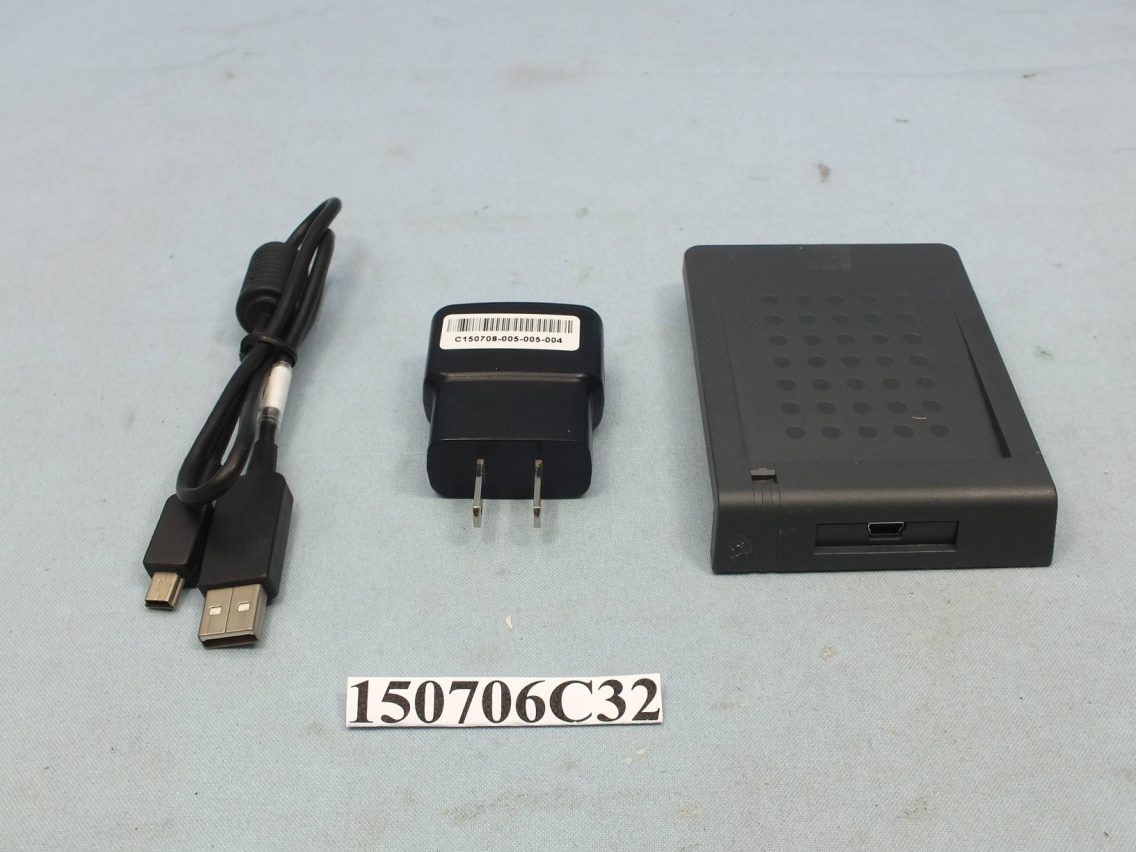

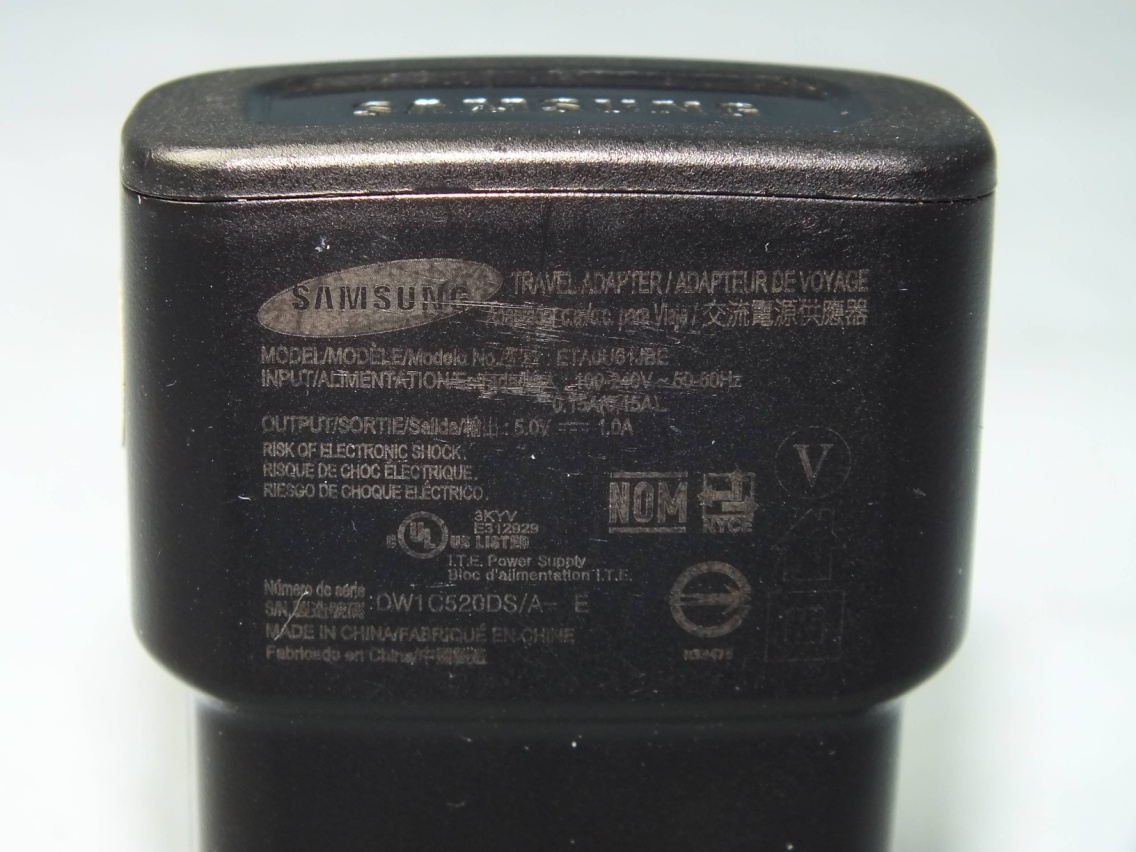

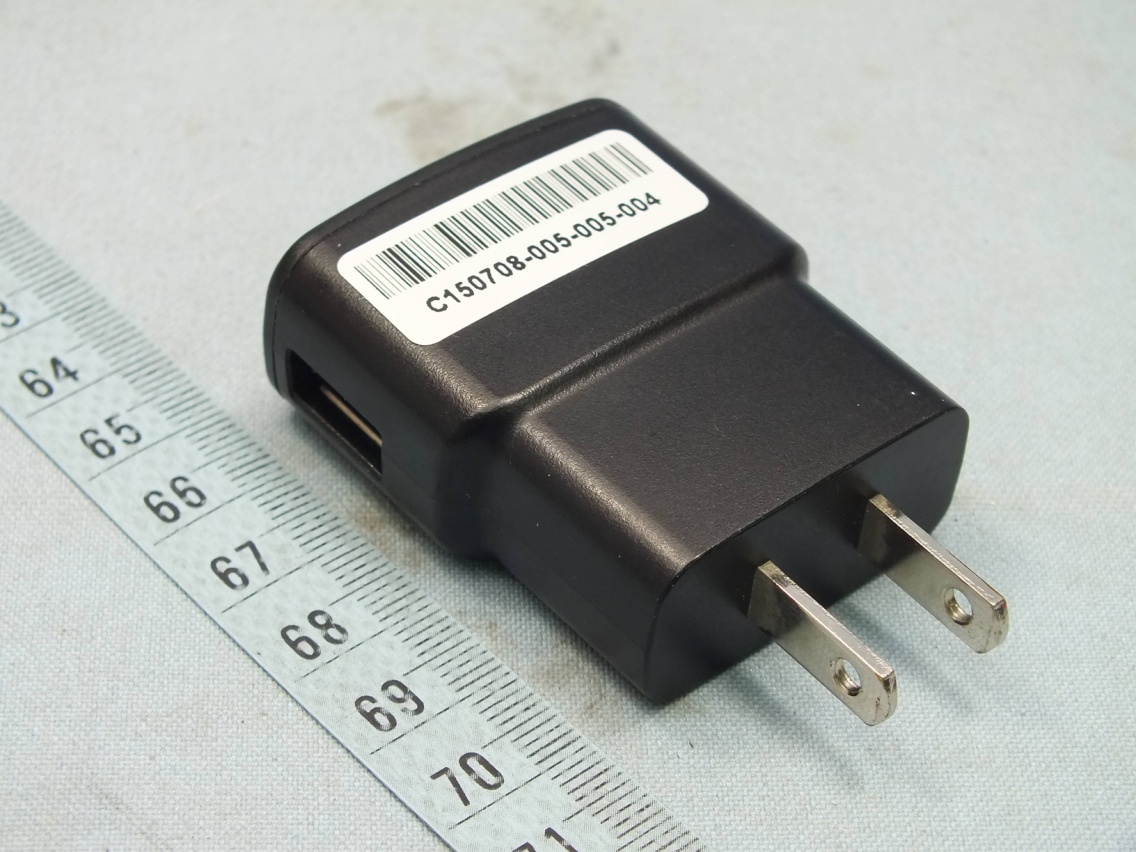

VLDRD200-U1-GUHF RFID Desktop Reader

RD200/300 TOOL OPERATION MANUAL V02.06 1 Installation ........................................................................................................................................ 2 Driver installation (For change to virtual COM port mode) ............................................................... 3 Common Setting .............................................................................................................................. 4 Auto Read (13.56 MHz only) ............................................................................................................ 9 NTAG/Ultralight (13.56 MHz only) .................................................................................................. 10 MIFARE (Mifare only) ..................................................................................................................... 12 MIFARE Key .................................................................................................................................. 13 DESFire (13.56MHz only) .............................................................................................................. 15 ISO 14443B (13.56MHz only) ........................................................................................................ 16 ISO 15693 (RD200-MIC & RD300 MHz supported) ....................................................................... 17 Fingerprint (RD300-FH1 only) ........................................................................................................ 18 Command Test ............................................................................................................................... 20 Firmware Update ........................................................................................................................... 21 2 Installation The default setting of USB Mode is USB Keyboard Emulation. This Keyboard mode would send an "Enter" signal when read the card. If user let cursor focus on "Set" button and read the card that will press the "Set" button at the same time. 3 Driver installation (For change to virtual COM port mode) 1. Follow firmware update procedure to change virtual COM port mode firmware. (ex. RD200_U1_COM_V0191_20150316.SYB) 2. Connect RD200/RD300, system will automatically pop-up the "Found New Hardware Wizard" window for install the driver. 3. Allocate the driver folder, and then complete the installation. (SYRIS_RFID_DVD\RD200\Driver) 4 Common Setting 1. USB Mode There are three selections of USB modes in "USB auto" connection, after selected the mode then click Set to finish the setting procedure, or click Get Current Setting to read current setting from the reader. USB Keyboard Emulation： The device can emulate keyboard to send character or string to host terminal. USB HID-Compliant Device： 5 Device response data when received protocol command, and the data will be queued in device buffer. USB HID-Compliant Device Auto Send： The device sends UID to host terminal after read card. 2. Virtual COM Port mode (Need update firmware) There are two selections of USB modes in "COM x" connection. USB Serial Port Auto Send： ：： ： The device send UID to host terminal after read card. USB Serial Port： ：： ： Device response data when received protocol command, and the data will be queued in device buffer. 3. USB Keypad Delay Time In this mode, you can set keypad delay timing to reduce the key code sending speed when read tag. 6 4. Read Card Mode In this mode, program provided different options for user to choose, after ticked the options, just click Set to finish the setting procedure, or click Get Current Setting to read current setting from the reader. Options Descriptions Auto Automatically read card Beep Prompt the beep sound or not. LED Flash the LED when read the card. Same Card Detection If continuously read the same card, user has to wait around 1.5 sec then could read again. Energy Saving Mode Provide more energy saving method. (It is not recommend to use in writing card blocks or several cards) eTag Read Taiwan ETC eTag format. 5. System Command This tool provides two system commands; user can use Reboot Reader to reboot the RD200 reader. The other command is Use Factory Default Settings which can restore the reader settings to initial settings. 7 6. Send ID Format This tool provide many ID format to choose, such as 4~16 numbers of hexadecimal and 4~13 numbers of decimal. Also can put comma, space...etc. into the ID format, after ticked the items then click Set to finish the setting procedure, or click Get Current Setting to read current setting from the reader. The ID format example as below: ID Format Example Result 4H 58E8 6H D558E8 8H 00D558E8 10H 1800D558E8 16H 0000001800D558E8 32H 00000000000000000000001800D558E8 5D 47295 8D 01226943 10D 0001226943 13D 0098785474751 4D 6493 FDX (LF only) 000000001226943 16H + Card ID Reverse E858D50018000000 16H + Comma 0000001800D558E8, 16H + Brackets [0000001800D558E8] 4D + Space 1928 1928 16H + Quotation '0000001800D558E8' 8 7. Read Card Time Postponement / Same Card Detection Time Read Card Time Postponement: The intermission time of card reading. Same Card Detection Time: The intermission time of same card detection. After adjusted the time then click Set to finish the setting procedure, or click Get Current Setting to read current setting from the reader. 9 Auto Read (13.56 MHz only)
Available card type: Setup read card type.
Set auto read Mifare Class or Ultralight in this tab to read specific block automatically. 1. Enable and select correct block. 2. Click set auto read. 3. Reader will always read selected block automatically.
Write Key to EEPROM: Save your Mifare key to reader. 10 NTAG/Ultralight (13.56 MHz only) 1. Read Card Data: Select correct block to read NFC tag’s data. 2. Write Card Data: Select correct block to write NFC tag’s data. (Recommend select HEX code to write.) 3. UID : Read tag’s UID 4. Read Card All Data: Input max …
