VLV13XX45XXWireless Rechargeable Dog Collar & Trainer

Wireless Rechargeable Dog Collar & Trainer This new product, Wireless Rechargeable Dog Collar & Trainer, is designed with no-pain and no-shock techniques to stop the annoying barking or to train dogs. According dogs' great learning abilities, when dogs bark, they can realize the relationship between their barks and the sharp ultrasonic wave or alarm from this product. It will completely improve the characters of dogs to stop barking. Product Features z Per each charge for 24-hour use, and Wireless Remote Control to turn ON that is much easier to train a dog z Three different sizes of clip to perfectly use with other dog leads and dog collars z Durable materials with water resistant design will not be damaged by dogs z Emitting High / Low Ultrasonic waves and Alarm with adjustable sensitivity z NO pain, NO shock, NO merciless mask, and NO surgery z Light, Handy, and 2 colors (Black and White) are available Specification Size63.2(L) x 36.2(W) x 24.5(D) (mm) Weight26.8 g Power Supply100-120V or 220-240V AC Adapter Frequency Range : 433.050~434.790MHz Output sound pressureH (high): 100dB@10mm / L (low): 90dB@10mm / Alarm (Audio): 110dB@10mm Illustration of Parts How To Use * Remote Control * Rear View Ultrasonic waves Alarm * Front View Microphone LED Indicator Nylon Collar DC Jack Function Switch z RF+MIC z OFF z RF Sensitivity VR Adjus t (0 to MAX) Output High / Low (A) Function Switch z Slide the switch from “OFF” to “RF+ MIC” (remote control operated and sound detected) or “RF” (remote control operated only) in the back of the device after taking off the protective rubber cover. z Push the buttons on the remote that “Ultra” or “Alarm” for emitting the ultrasonic wave or alarm. (B) Adjusting Sensitivity VR z In “RF+ MIC” mode, users must make sure to adjust the sensitivity before first use. The device may easy to detect all dogs’ barks if the sensitivity is too high. z The cross-switch for the Sensitivity is marked as using the adjutant tool stick into the hole and turn left (0) to right (MAX) properly. z To find the optimal sensitivity setting, we recommend that the users start with the sensitivity dial exactly in the middle. If the unit activates too often, please lower the sensitivity. If the unit is not activated often enough by the dog’s barks, please raise the sensitivity. (C) Adjusting High / Low Output z The switch H (high frequency) or L (low frequency) in the back of the device. z Help the dog to wear the unit on that hosts can use the accessory of nylon collar or their other dog collars. When Wireless Rechargeable Dog Collar & Trainer operates, it will emit the ultrasonic wave for 4 seconds (Blue LED Indicator flashes 3 to 5 times per second). z Different dogs would react differently when they hear the high or low ultrasonic wave. To find the optimal setting, we recommend that the users start with the Low ultrasonic wave. How To Recharge z Insert the AC Adapter into the DC Jack hole as Image 1. z Charge the main unit for 4 hours at least z The LED Indicator will constant ON (Blue) during the recharge. z The LED Indicator will flash once (Blue) per 2 seconds when the battery is low. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Insert the connector (parts 2) when use the attached nylon collar (parts 5) Insert the suitable clips (parts 6) when use with other types of dog leads and dog collars * Image 1 Important Notes If the dog still bowwows frequently within a few weeks, the barks would be due to instinct, harassment, stress, or self-protection. These types of barks are not annoying yaps.

DIGIMAX INNOVATIVE PRODUCTS LTD. Date:January 27, 2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Steven Wang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Brand Name: N/A Model Name: FCC ID: VLV13XX45XX Product Name: Wireless Rechargeable Dog Collar & Trainer

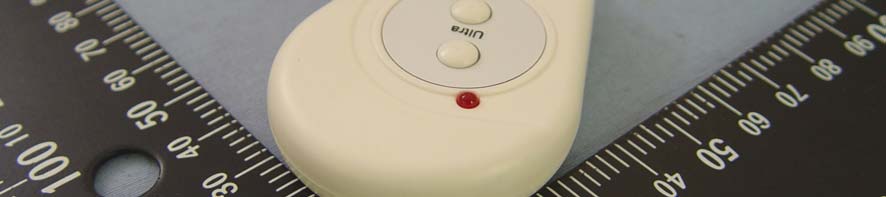

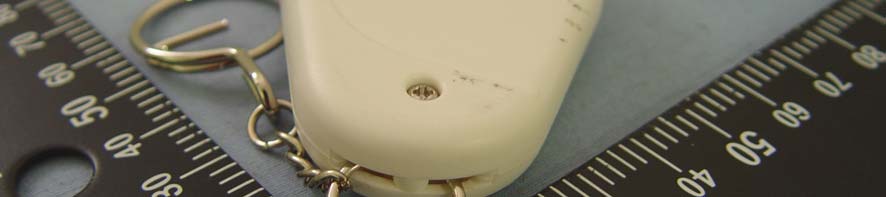

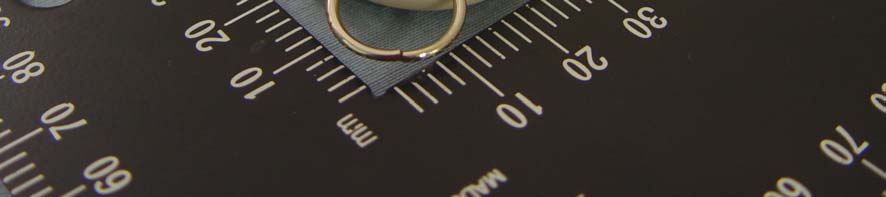

Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

15x10mm This device complies with Part 15 of the FCC Rules. Operationis subject to the following two conditions:(1) this device may notcause harmful interference and (2) this device must accept anyinterference received, including interference that may cause undesired operation

Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 2 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: T100125204 Date of Issue: February 5, 2010 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 25 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Wireless Rechargeable Dog Collar & Trainer Model: UP-13XX(45XX) Trade Name: N/A Issued to DIGIMAX INNOVATIVE PRODUCTS LTD. 2F., No.196, Sec. 2, Zhong-Xing Road,Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 9 5.2 EQUIPMENT............................................................................................................................. 9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 11 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 11 6.2 SUPPORT EQUIPMENT............................................................................................................ 11 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 12 7.1 20DB BANDWIDTH ........................................................................................................... 12 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 14 7.3 DUTY CYCLE CORRECTION FACTOR.......................................................................... 16 7.4 RADIATED EMISSIONS........................................................................................................... 18 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 23 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 24 Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: DIGIMAX INNOVATIVE PRODUCTS LTD. 2F., No.196, Sec. 2, Zhong-Xing Road,Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Equipment Under Test: Wireless Rechargeable Dog Collar & Trainer Trade Name: N/A Model: UP-13XX(45XX) Date of Test: January 25 ~ 28, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Rechargeable Dog Collar & Trainer Trade Name N/A Model Number UP-13XX(45XX) Model Difference N/A Power Supply Battery: 12V , 23A Frequency Range 433.050 ~ 434.790 MHz Operation Frequency 433.970 MHz Antenna Designation COPPER WIRE Antenna Antenna Gain 0 dBi Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: VLV13XX45XX filing to comply with Section 15.207, 15.…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Page 24 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. Report No.: T100125204-RP1 FCC ID: VLV13XX45XX Date of Issue: February 24, 2010 Page 25 Rev. 00 RADIATED EMISSION SET UP PHOTOS
