VLV45113049603Intelligent Watching Dog (Animal Chaser)

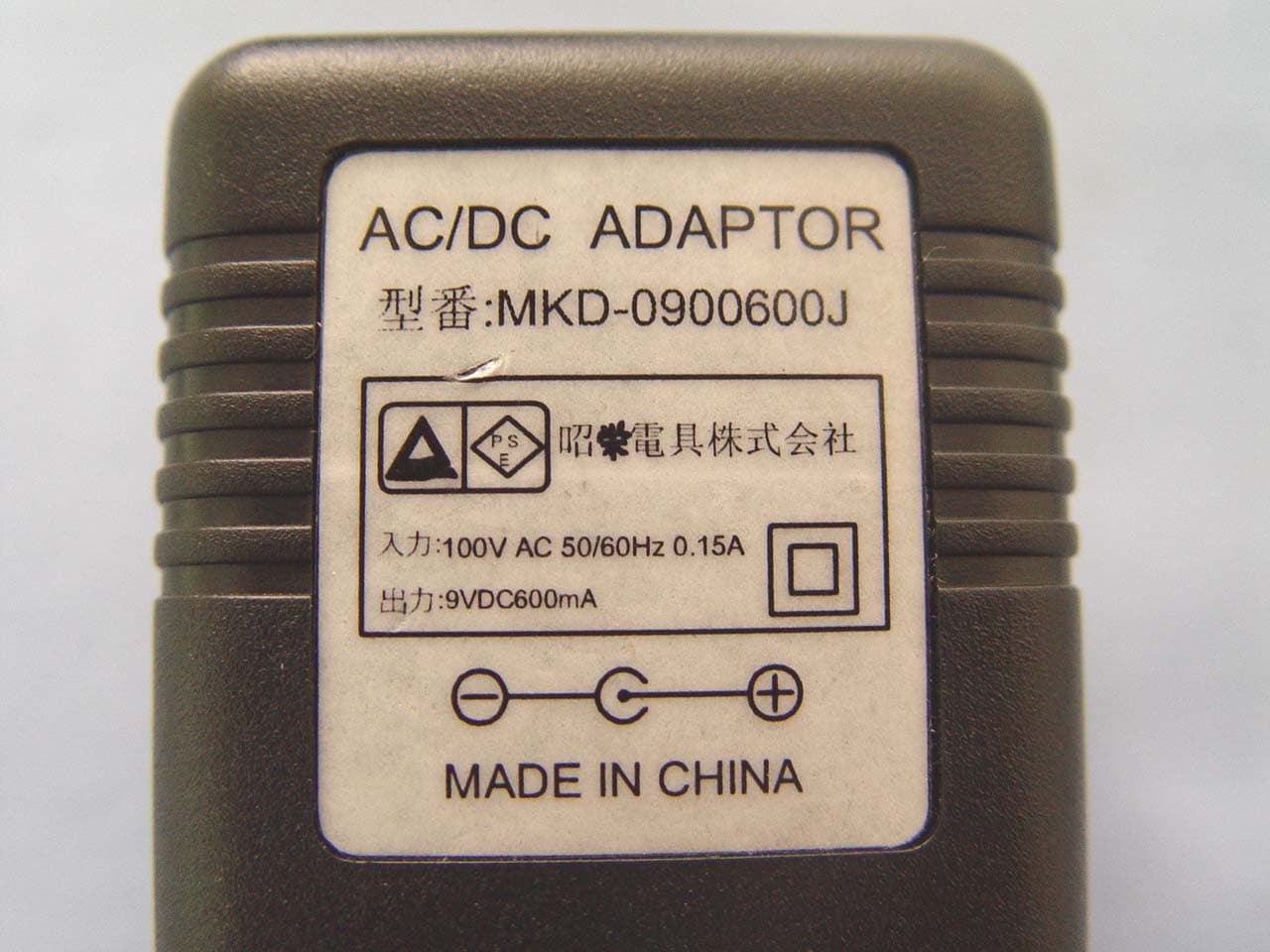

How to use1. Install batteries or plug in AC to DC adapter: When the users set this product indoors, they can use it by plugging in DC adapter. Contrary to place it indoors, the users can choose to install batteries. 2. When the product is powered, it automatically detects any movement around it in the range of 360-degree.Electrical SpecificationsThe DEVICE consumes very little electrical power when in the detecting mode but uses more power when activating.* Voltage : 9VDC* Frequency : 2.4 GHz* Net Weight : 1.0 Kg, including AC TO DC adapter* Power Barking : 2.6 Watts* Size : 198(L) x 138(W) x 98(H) mm : 7.79(L) x 5.43(W) x 3.86(H) in* Power Supply : AA size battery x 6 (not included) or : AC TO DC adapter (Optional)* Range : 2 ~8 m Intelligent Watching Dog Thank you for purchasing this product, and it is made with four special functions as Built-in 360-degree detector / 4 different alarm sounds / Waterproof design.Please read the manual carefully before using it and then keep this manual on file for future reference. -4- -1- A C D B Function Switch & IllustrationA. Volume : from OFF to MAX by turning the switch from left to right. B. Sensitivity : from LOW to HIGH by turning the switch from left to right.C. MODE : 4-way switch Record - When the users record their own voices, make sure to switch to this position. Chime - Playing the doorbell sound " Ding-Dong " Bark - Playing the dog barking noise " bow-wow ". Voice - Playing your own recording voice. <When in Voice mode, there are 2 options> Regulatory statementEuropean standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.454 -2.4835GHz frequency rangeand must be restricted to indoor use.CE Declaration of ConformityFor the following equipment: Intelligent Watching Dog (Animal Chaser) Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (ENC 2004/108/EC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: EN 300 440-2/-1 V.1.6.1 (2004) EN 301489-1/-3 V.1.4.1 (2002) When you are not at home, Intelligent Watching Dog will be your guard, and its built-in sensor 360-degree detects and scares away the strangers. This product can be set inside or outside of your house.A. “BOWWOW!!!” The noise dog bow-wow will scare away the thieves. B. “Dingdong~~~” Ringing automatically when strangers get close to your house. C. “Do Not Block the Drive Way!!!” Recording your own voice to warm invaders. Intelligent Watching Dog can be your guard, and its built-in sensor welcomes the customers during the day and scares away the strangers during the night.This product can be set inside or outside of your store.D. “Hello, Welcome! ” Recording your own voice to welcome your customers. E. “Dingdong~~~” Ringing automatically when customers get close to your store. F. “Alarm Sound” The noise alarm sound will scare away the thieves. When you go camping, Intelligent Watching Dog will be your body guard, and its built-in sensor 360-degree detects and scares away the strangers and animals.This product can be set indoor or outdoor.G. “BOWWOW!!!” The noise dog bow-wow will scare away the small animals. H. “ROAR, ROAR!!!” Recording the roar from a lion to scare away wolves. I. “Alarm Sound” The noise alarm sound can scare away the thief who is trying to steal your car. 1. When the switches are both on Voice positions, this product will play your three paragraphs of recording as showed:2. When the upper switch on Voice positions and the under switch is on Alarm positions, this product will play your three paragraphs of recorded sounds plus alarm (3 min) sound as showed:I - detect the second movement continually within 10 sec. II - detect the second movement over 10 sec. D. How to record 1. To adjust the switch to the " Record ".2. Push the "Record" button and hold it to record your own voice right after you hear " Beep ". 3. Speak directly to the microphone what you would like to record for 8 sec, then release the button for the first paragraph. 4. Push the button and hold it again for your second and third paragraph. And you will have 8 seconds for each paragraph.5. You can push the " Play " button to hear your recording sound and pushing the " Erase " button to erase them for other recordings. <For example>1 st Who are you? / 2 nd What are you doing here? 3 rd Please go away, or I will call police to come. 1 st 2 nd 3 rd 3 rd 1 st 2 nd 3 rd Alarm -2- -3- A B C ! ! ! E D ! ! ! F H I G You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Chris Harvey From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Sunday, January 20, 2008 9:10 PM To: [email protected] Cc: [email protected]; [email protected] Subject: Re:DIGIMAX INNOVATIVE PRODUCTS LTD., FCC ID: VLV45113049603, Assessment NO.: AN07T7190, Notice#1 Attachments: UP-45XX (X = 0 ~ 9 or A ~ Z) APPENDIX I.pdf; UP-45XX (X = 0 ~ 9 or A ~ Z) Internal Photo Revised 0109.pdf; UP-45XX (X = 0 ~ 9 or A ~ Z) Confidentiality letter Revised 0117.pdf; UP- 45XX (X = 0 ~ 9 or A ~ Z) Test Report Revised 0114.pdf 1/21/2008 Dear Sir, Sorry for the delay in replying your questions., plz see my reply, thank you. Best Regards, Amanda Dear Seven Chen, You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: 1. Is this device a Field-Disturbance Sensor as defined by 15.245, even though you are filing this under 15.249? Please describe the technical description of the technology used for the transmitter and sensor. Ans:Since the operation frequency is 2418-2433MHz, so we adopted 15.249. According customer's explain: Radar, transmitting Electromagnetic capacity by directional to the space, by which receive the electrinc waves by object's reflection in the space, can caculate the direction, heights and speeds of this object. The application of this device is made by Doppler theorem. Customer provide the web site for reference. http://en.wikipedia.org/wiki/Doppler_effect 2. There is a potted chip on the PCB. The photos must show the chip under the potting material. If needed, the photo without the potting material can be held confidential (with an updated letter) since the potting material in production can be a reason to hold certain internal photos as confidential. Ans: Since the potting material is phonetic chip, pls take the appendix document as confidential fils. <charvey- [email protected]> 2007/09/12 05:12 AM ¦¬¥ó¤H¡G <[email protected]> °Æ¥»§Û°e¡G <[email protected]> ¥D¦®¡G DIGIMAX INNOVATIVE PRODUCTS LTD., FCC ID: VLV45113049603, Assessment NO.: AN07T7190, Notice#1 3. The Users manual shows a sensitivity dial, which appears to be a RF power adjustment. There is no indication whether this dial was adjusted during the tests to determine the worst case emissions. Please ensure that the testing is performed using the worst case position of the sensitivity dial and update the report. Ans: Ans: Plz see page 6 of the test report. 4. The test report EUT Description and Test Modes sections indicate that this device operates from 2418 - 2433 MHz, but the test data shows CH Low as 2420MHz and CH High as 2440MHz. Please correct the report. Ans: Plz see page 21-23 of the test report. 5. The test data for the low channel shows 2420MHz in Vertical Polarity and 2416.67MHz in Horizontal polarity. Is this an error? Did the Center frequency of the low channel shift between Horizontal and Vertical polarities? Ans: sorry for mistake, it's typo. Plz see page 21-23 of the test report. 6. In accordance with FCC 15.215(c) the 20dB Occupied BW must be contained within the allowed band. The test report does not contain the 20dB Occupied Bandwidth measurement data. Please provide this 20dB BW measurement according to 15.215(c). Ans: 20dB Occupied BW had been added into the test report, plz see page 11 of the revised test report. 7. The Application Form indicates that this is equipment Code DSC (Remote Control Security Device) and does not indicate the frequency range of operation. Please provide the Frequency of operation and the Equipment Class and I can make the changes on the Application Form online. Ans: Frequency of operation: 2418 ~ 2433MHz, Equipment Class: DXX 8. Please explain how this device's 15 channels are changed and the center frequency for those channels. Ans: This device use the Doppler theorem to change those channels. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] 1/21/2008

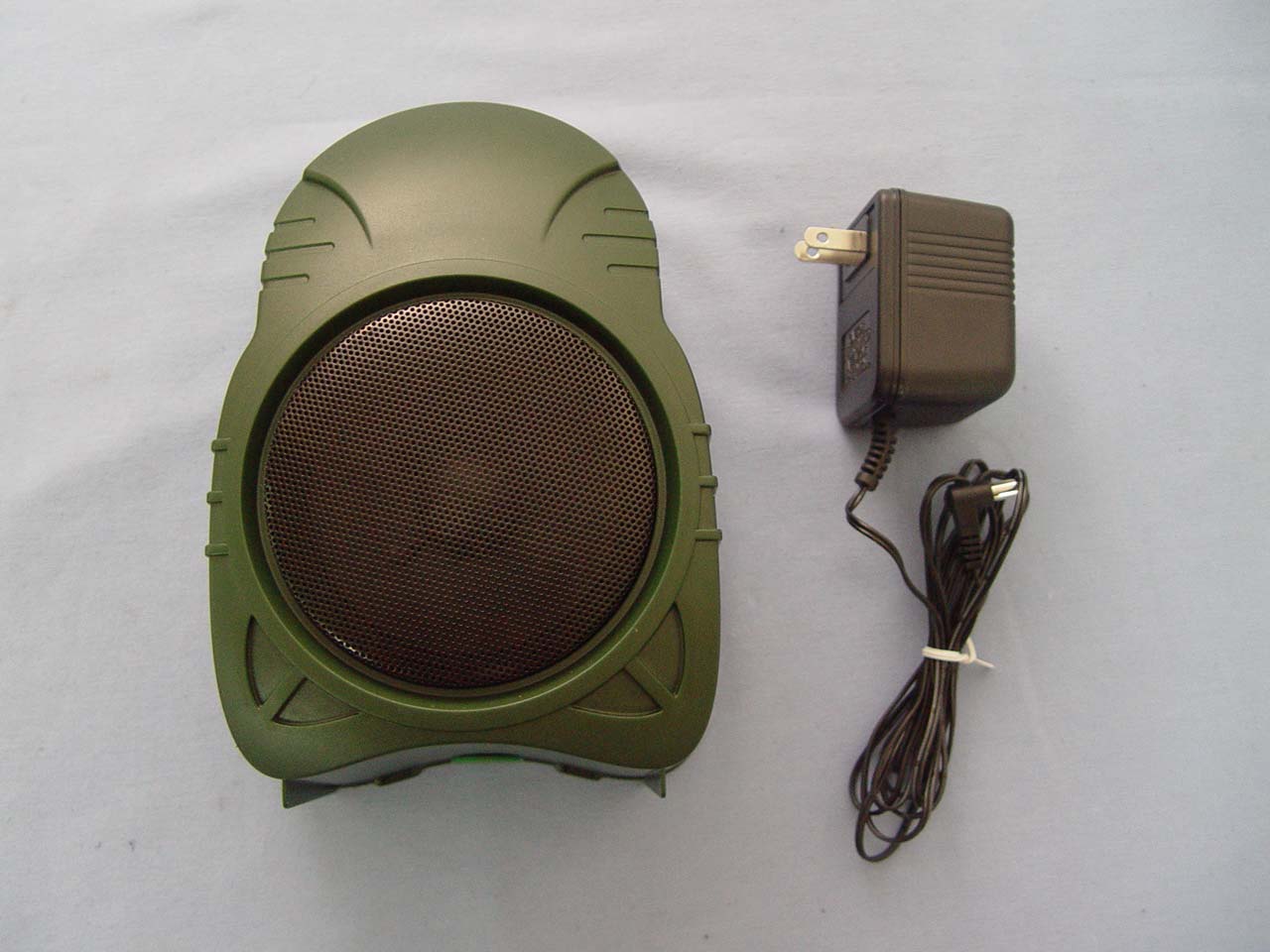

Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 1 Total Page: 9 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 2 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 5 Rev.00

Intelligent Watching Dog (Animal Chaser) Model:UP-45XX FCC ID:VLV45113049603 * Vo l t a g e : 9 VDC * Frequency : 2.4 GHz * Net weight : 1.0 Kg, including AC to DC adapter * Power Barking : 2.6 Watts * Size : 198(L) × 138(W) × 98(H) mm : 7.79(L) × 5.43(W) × 3.86(H) in * Power Supply : AA size battery ×6 (not included) or : AC to DC adapter (Optional) * Range : 2~8m 0984 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation

Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 7 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 8 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 9 Rev.00 Compliance Certification Services Inc. Report No.: 70725003 Date of Issue: September 5, 2007 Page 10 Rev.00

Antenna spec ================================= Antenna type : Printed Antenna ANT Gain : 0 dBi

Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: January 9, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 28 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Intelligent Watching Dog (Animal Chaser) Model Number: UP-45XX (X = 0 ~ 9 or A ~ Z) Trade Name: DigiMax Issued to DIGIMAX INNOVATIVE PRODUCTS LTD. 2F., No. 196, Sec. 2, Zhong-Xing Road, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: January 9, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................................ 3 2. EUT DESCRIPTION...................................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................................... 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION................................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED.................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 FACILITIES 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................................10 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 6.2 SUPPORT EQUIPMENT ........................................................................................................ 10 7. FCC PART 15.249 REQUIREMENTS ........................................................................................................ 11 7.1 20 DB BANDWIDTH ............................................................................................................. 11 7.2 BAND EDGES MEASUREMENT ......................................................................................... 14 7.3 SPURIOUS EMISSION .......................................................................................................... 17 7.4 POWERLINE CONDUCTED EMISSIONS........................................................................... 24 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................27 Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: January 9, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: DIGIMAX INNOVATIVE PRODUCTS LTD. 2F., No. 196, Sec. 2, Zhong-Xing Road, Hsin-Tien City, Taipei Hsien, Taiwan 231, R.O.C. Equipment Under Test: Intelligent Watching Dog (Animal Chaser) Trade Name: DigiMax Model Number: UP-45XX (X = 0 ~ 9 or A ~ Z) Date of Test: May 28 ~ November 23, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Johnny Liu Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: January 9, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product Intelligent Watching Dog (Animal Chaser) Trade Name DigiMax Model Number UP-45XX (X = 0 ~ 9 or A ~ Z) Model Discrepancy The suffix of UP-45XX (X = 0 ~ 9 or A ~ Z) on model number is just for marketing purpose only. Power Supply 1. Power Adapter: Model Number: MKD-0900600J I/P: 100V, 50-60Hz, 0.15A O/P: 9V, 600mA 2. Powered by 6 * AA Batteries (Rating: DC 9V) Frequency Range 2418 ~ 2433MHz Number of Channels 15 Channels Channels Spacing 1 MHz Antenna Gain 0 dBi Antenna Des…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: September 5, 2007 Page 24 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 70725003-RP1 FCC ID: VLV45113049603 Date of Issue: September 5, 2007 Page 25 Rev. 00 Powerline Conducted Emissions Setup Photos
