VNJ201TXPART 15 SECURITY/REMOTE CONTROL TRANSMITTER

LGT201TX/RX RADIO FREQUENCY REMOTE WITH SIMPLE STRUCTURE FOR GAS FIREPLACE USER MANUAL 1. Introduction of Functions - This RF Remote Control System is for Gas fireplace operations. It consists of a transmitter and a receiver. - The system turns the Flame ON /OFF. - The system turns the Fire crackle Sound ON/OFF. Transmitter: - There is a Childproof lock-out for all the transmitter keys. - The battery cover has a Childproof design. - User can program the address code on the transmitter. The code range is 1-250. Receiver : - can trun ON/OFF Millivolt valve or 24 volt valve - can turn ON/OFF Fire crackle Sound System (external CF6) - address code learn function (1 to 250) - has over-heat shut down protection - operates on 4-AA batteries 2. Specifications RF carrier 433.92MHz Transmitter power 2 AA alkaline batteries for approximately one year of service. Receiver power 4 AA alkaline batteries for approximately one year of service. Temperature range for transmitter operation: 0-40°C Temperature range for receiver operation: 0-70°C Receiver over-heat protection temperature: 65±5°C Remote range Not less than 8 meters (20 feet). Receiver output control ON/OFF Millivolt volt or 24 volt valves ON/OFF Firecrackler sound device (External CF6) 3. Transmitter Operations 3.1 Battery installation Remove the screw from the battery cover on the rear side of the transmitter, open the cover, and insert 2 AA alkaline batteries Into battery holder. 3.2 Flame ON/OFF Press ON/OFF key to control the flame ON/OFF, and the LED will light while transmits 3.3 SOUND When flame is in ON position, SOUND ON/OFF key turns ON/OFF the Fire crackle device. 3.4 CHILD LOCK To lock press both OFF and SOUND OFF keys, and LED flickers in 3 seconds indicating the remote control is locked. To unlock, press both OFF and SOUND OFF keys and LED regularly lights in 3 seconds indicating the remote is unlocked. 3.5 CHANGING ADDRESS To avoid inferences of two remote control systems of same model in one household, one of them needs to change its address code. Press both ON and SOUND ON keys, and LED will flicker in 5 seconds, and the address code increases one at each time LED flickers. The code range is 1-250. 4 Receiver Installation / Functions 4.1 Connect the Valve and Fire crackle Sound Device. Make sure that the slide switch of the receiver is in OFF position. Connect the flame control wires (red and white) of the receiver to the valve and sound control wires (blue and black) to Fire crackle Sound device. 4.2 Install Batteries Press the small square button below the battery holder of the receiver, open the battery holder, insert 4- AA alkaline batteries, and install the battery holder back into receiver. ON OFF RF Transmission Indicate ON Remote Control OFF Remote Control Fire Crackle Sound ON Fire Crackle Sound OFF SOUND ON OFF 4.3 OFF When the slide switch of receiver is in OFF position, receiver turns off FLAME and SOUND of the fireplace. Receiver will not respond to any remote signal from the transmitter. 4.4 ON Turn the slide switch of receiver to ON position, and receiver turns on FLAME and SOUND of fireplace. The receiver will not respond to any remote signal from the transmitter in ON. 4.5 REMOTE Turn the slide switch of receiver to REMOTE position and the receiver will respond to remote signals from transmitter. Transmitter turns ON/OFF Flame and Sound. Receiver will respond with Beep upon receipt of RF remote signals. Flame and Sound of fireplace is then controlled by the transmitter. 4.6 Learn address code If receiver fails to respond to RF remote signals of the transmitter or the address code of the transmitter has been changed (see 3.5), the receiver needs to relearn the address code. Make sure receiver is in REMOTE position, press LEARN CODE hole of the receiver with a pen tip, (LOW BATTERY indicator will light), and at the same time press ON or OFF key of the transmitter. Receiver will respond to RF remote signals of the transmitter with Beep indicating it has learned the address code and the system is ready for proper operation. 4.7 Over-heat protection When ambient temperature of receiver exceeds 60 °C, the Flame will turn off automatically to protect the PCB and batteries. 4.8 Low Battery New batteries have approximately one year service time. Flashing of LOW BATTERY indicator means batteries need replacement. 4.9 Manual slide switch When the battery voltage is too low for remote control function, the manual slide switch can be used to turn the fire and Sound ON/OFF. Make sure to turn receiver slide switch to OFF during long time absence from the premises. NOTE： THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTRERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT” ,

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 30-Aug-2007 Sheet of File: D:\FCC\LGT20X_TX_RX_BLOCK.ddb Drawn By: OUTPUT MCU DC-DCPOWER KEY RF LGT201_TX_BLOCK Fundamental operation frequency: 433.92 MHz

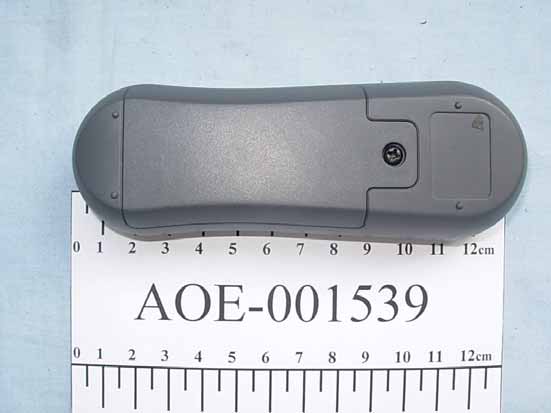

FIGURE 1 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) GENERAL APPEARANCE (FRONT VIEW) F IGURE 2 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) GENERAL APPEARANCE (BACK VIEW)

Label Location Information Refer to the below red arrow: (For example)

LGT201TX LABEL Size: 22*16mm Background: Black Text: White Label Position MODEL: LGT201TX FCC ID:VNJ201TX USE 2 AA 1.5V ALKALINE BATTERIES LEGENTEK, INC. MADE IN CHINA

FIGURE 1 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) BATTERY COVER REMOVED F IGURE 2 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) COVER REMOVED FIGURE 3 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) MAIN BOARD (SOLDERED SIDE) MAIN BOARD (COMPONENT SIDE) F IGURE 4 FIREPLACE REMOTE CONTROL SYSTEM (M/N: LGT201TX) MAIN BOARD (SOLDERED SIDE)

LGT201 Remote Control operation description: Transmitter LGT201TX operation description: 1. The MCU generates a remote control signal; it is a series of pulse. There are about one thousand pulses per second. The signal length is less then 2 secands. 2. Remote control signal is send to RF circuit and converts into RF signal. 3. RF circuit is an oscillator with A SAW, it generates a RF signal, and the frequency is 433.92 MHz. 4. The RF signal is ASK format signal. Receiver LGT201RX operation description: 1. Receiver's power is 6 volt battery. A MCU control the receiver operation. 2. the Receiver action control by transmitter RF signal. The signal includes ID code and verifiable code. The MCU check the ID code and verifiable code to prevent interference. 3. The receiver main purpose is control switch ON/OFF. Fundamental operation frequency: 433.92 MHz

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 29-Aug-2007 Sheet of File: D:\LRFST\PCB\LRFST_061018.ddb Drawn By: VDD 1 RA0/CIN+ 13 RA1/CIN- 12 RA2/INT 11 RC0 10 RC1 9 RC2 8 RC3 7 RC4 6 RC5 5 RA3/MCLR 4 RA4/OSC2 3 RA5/OSC1 2 VSS 14 IC1PIC16F630 E1 47u E24.7u BATT D1SS14 L1 100uH C10.1u 3V 5V CEOUTNC LX GND IC1HT7750 T2 2SC4988 C54PC410P SAW1 433.92MHz R733R6100 R5 68K 5V C61000P C20.1u X1 4MHz LED1LED R3199K R4100 1 2 3 4 5 CN1 C3 68P 3V 3V R2 100K 3V LGT201TX_SCH R1 10K 3V C7 1000P 3V

LegenTek, Inc FCC ID: VNJ201TX Page 1 of 51 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F07037 Prepared For : LegenTek, Inc 67 E. Live Oak Avenue, Suite 101, Arcadia, CA 91006, USA Prepared By : Audix Technology (Shanghai) Co., Ltd. 3 F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai, China 200233 Tel : +86-21-64955500 Fax : +86-21-64955491 Report No. : ACI-F07037 Date of Test : Aug 15-24, 2007 Date of Report : Aug 25, 2007 Application for FCC Certification On behalf of LegenTek, Inc Fireplace Remote control system Model No.: LGT201TX Serial No. : E07081022 FCC ID : VNJ201TX LegenTek, Inc FCC ID: VNJ201TX Page 2 of 51 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F07037 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 4 1.1 Description of Standards and Results......................................................................................... 4 2 GENERAL INFORMATION.......................................................................................................... 5 2.1 Description of Equipment Under Test........................................................................................5 2.2 Description of Test Facility ........................................................................................................ 5 2.3 Measurement Uncertainty .......................................................................................................... 5 3 RADIATED EMISSION TEST....................................................................................................... 6 3.1 Test Equipment........................................................................................................................... 6 3.2 Block Diagram of Test Setup ..................................................................................................... 6 3.3 Radiated Emission Limit ............................................................................................................ 7 3.4 Test Configuration...................................................................................................................... 7 3.5 Operating Condition of EUT ...................................................................................................... 8 3.6 Test Procedures .......................................................................................................................... 8 3.7 Test Results ................................................................................................................................ 9 4 FUNDAMENTAL AND SPURIOUS EMISSIONS TEST ......................................................... 22 4.1 Test Equipment......................................................................................................................... 22 4.2 Block Diagram of Test Setup ................................................................................................... 22 4.3 Fundamental and Spurious Emission Limit ............................................................................. 22 4.4 Test Configuration.................................................................................................................... 22 4.5 Operating Condition of EUT .................................................................................................... 23 4.6 Test Procedures ........................................................................................................................ 23 4.7 Test Results .............................................................................................................................. 24 5 BANDWIDTH MEASUREMENT................................................................................................ 37 5.1 Test Equipment......................................................................................................................... 37 5.2 Bandwidth Limit....................................................................................................................... 37 5.3 Test Results .............................................................................................................................. 37 6 OPERATION DESCRIPTION ..................................................................................................... 37 APPENDIX I PLOT OF THE PULSE TRAIN..................................................................................... 38 APPENDIX II PLOT OF THE OCCUPIED BANDWIDTH.................................................................. 43 LegenTek, Inc FCC ID: VNJ201TX Page 3 of 51 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F07037 TEST REPORT FOR FCC CERTIFICATION Applicant : LegenTek, Inc Manufacturer : Power-Mag (Suzhou) Electronics Co., Ltd EUT Description : Fireplace Remote control system (A) Model No. : LGT201TX (B) Serial No. : E07081022 (C) Power Supply : DC 3V (Battery) (D) Crystal Frequency : 433.92MHz Test Procedure Used: FCC RULES AND REGULATIONS PART 15 SUBPART C MAY 2007 AND ANSI C63.4:2003 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits radiated emission. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report shows that the EUT (M/N: LGT201TX; S/N: E07081022), which was tested in 3m anechoic chamber on Aug 15-24, 2007 to be technically compliant with the FCC official limits also. The test results for receiver part function are contained in No.: EM-F960415(ACI), a Declaration of Conformity report. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This…

Text truncated - open the document above for the full version.

1. Radiated & Fundamental And Spurious Emissions Test F RONT VIEW OF TEST (LOW FREQUENCY MODE: LYING) BACK VIEW OF TEST (LOW FREQUENCY MODE: LYING) FRONT VIEW OF TEST (L OW FREQUENCY MODE: SIDE) BACK VIEW OF TEST (LOW FREQUENCY MODE: SIDE) FRONT VIEW OF TEST (L OW FREQUENCY MODE: STAND) BACK VIEW OF TEST (LOW FREQUENCY MODE: STAND) FRONT VIEW OF TEST (H IGH FREQUENCY MODE: LYING) BACK VIEW OF TEST (HIGH FREQUENCY MODE: LYING) FRONT VIEW OF TEST (H IGH FREQUENCY MODE: SIDE) BACK VIEW OF TEST (HIGH FREQUENCY MODE: SIDE) FRONT VIEW OF TEST (H IGH FREQUENCY MODE: STAND) BACK VIEW OF TEST (HIGH FREQUENCY MODE: STAND) SETUP WITH MAXIMUM DETECTED EMISSION AT HORIZONTAL POLARIZATION (F OR OFF STAND TEST MODE) S ETUP WITH MAXIMUM DETECTED EMISSION AT VERTICAL POLARIZATION (F OR OFF STAND TEST MODE)
