VO8-TF500Bluetooth Headset

User Manual FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ǂ Reorient or relocate the receiving antenna. ǂ Increase the separation between the equipment and receiver. ǂ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ǂ Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Difference Of Models The there Models as:TF500,BH-X5 and DT120S.They are same PCB Layout and material,but with different features(to see the External photos).The other difference is the PCB of TF500 and BH-X5 removed FM and Buzzer modules from DT120S PCB.Just like the arrows specify.To see the photos as follow: DT120S TF500 and BH-X5 Company Name: GuangZhou LIWEI Electronics Co.,Ltd Contact Name/Title: JiaWei Yang/Manager Signature Date:2012-08-28

DATE 2012-08-28 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:VO8-TF500 Product Name:Bluetooth Headset Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 2012-08-28 By: Signature Printed Title: Manager On behalf of : GuangZhou LIWEI Electronics Co.,Ltd Telephone: 020-86062626

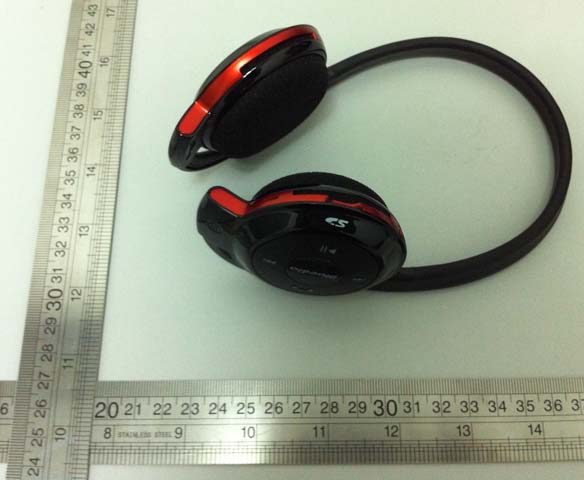

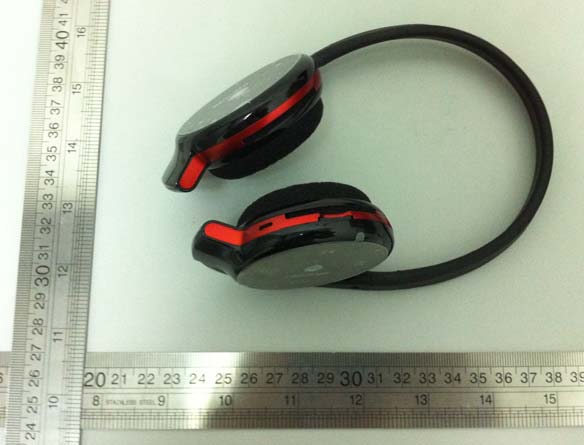

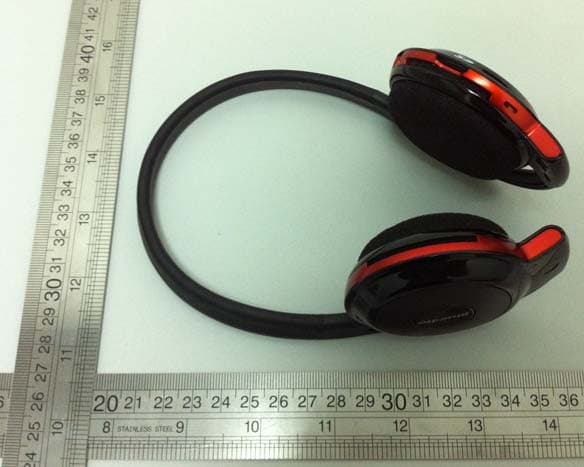

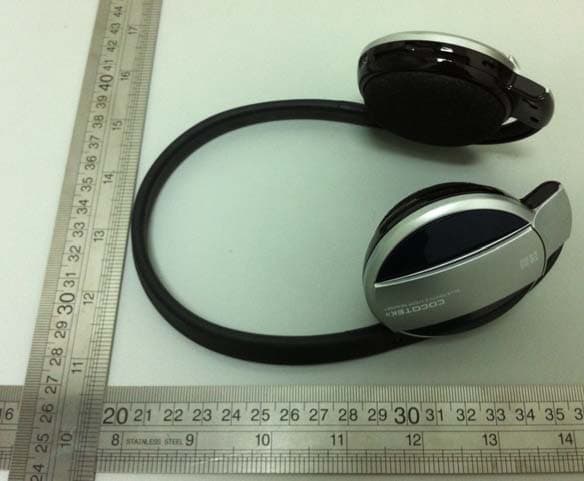

External Photographs EUT –DT120S Photos EUT –TF500 Photos EUT –BH-X5 Photos

FCC Label Sample FCC ID: VO8-TF500 Product: Bluetooth headset Model:DT120S FCC ID: VO8-TF500 Product: Bluetooth headset Model:TF500 FCC ID: VO8-TF500 Product: Bluetooth headset Model:BH- X5

FCC ID Label Location FCC ID Label Location DT120S FCC ID Label Location TF500 FCC ID Label Location BH-X5

Internal Photographs EUT –DT120S PCB View A side B side EUT –TF500/BH-X5 PCB View A side TF500 and BH-X5 are the same with DT120S at A side of PCB B side TF500 and BH-X5 remove FM and Buzzer function at B side of PCB

FCC ID : VO8-TF500 Bluetooth (Portable device) According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB 447498 (2)(a)(i) Frequency Range Low Frequency (MHz) High Frequency(MHz) Center frequency (MHz) 60/f SAR Limitation (mw) 2402 2480 2441 24.5 Maximum measured transmitter power: Conducted Power(dBm)Cable Loss(dB) Max Antenna Gain (dBi)EIRP (mw) -4.20 2.5 0 0.67 Remark：EIRP=P+C+G=-1.7dBm=0.67mW Threshold at which no SAR required is 25 mw. Maximum Tx power is 0.67 mw EIRP. Conclusion: No SAR is required. TRANSMISSION EVALUATION Pass

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Guangzhou Liwei Electronics Co.,Ltd FCC ID: VO8-TF500 Product Description: Bluetooth Headset Test Model No.: DT120S Supplement Model: TF500,BH-X5 Prepared for: Guangzhou Liwei Electronics Co.,Ltd No.33 Zhenzhong North Rd,Shenshan Ind.Park BaiYun District, Guangzhou GuangDong,China Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 15C，Block 1,Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307736 Report No.: LK12DR-0228E Issue Date: August 28, 2012 Test Date: August 25~27, 2012 Test by: Reviewed By: Owen Li Edmund Zou Report No.: LK12DR-0228E Page 2 of 65 FCC ID: ZKZ-TF500 TABLE OF CONTENTS 1. GENERAL INFORMATION....................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................4 1.2TEST FACILITY.......................................................................................................................................................5 1.3 RELATED SUBMITTAL(S) / GRANT (S)...................................................................................................................5 1.4 MEASUREMENT UNCERTAINTY.............................................................................................................................5 2. SYSTEM TEST CONFIGURATION......................................................................................................................6 2.1 EUT CONFIGURATION..........................................................................................................................................6 2.2 EUT EXERCISE.....................................................................................................................................................6 2.3 GENERAL TEST PROCEDURES.............................................................................................................................6 2.4 LIST OF MEASURING EQUIPMENTS.......................................................................................................................7 2.5 LIST OF AUXILIARY DEVICE....................................................................................................................................9 3. SUMMARY OF TEST RESULTS.........................................................................................................................10 4. CONDCUTED EMISSION TEST.........................................................................................................................11 4.1 APPLICABLE STANDARD.....................................................................................................................................11 4.2 LIMITS..................................................................................................................................................................11 4.3 EUT TEST SETUP..............................................................................................................................................11 4.4 PROCEDURE OF CONDUCTED EMISSION TEST.................................................................................................12 4.5 TEST RESULT......................................................................................................................................................12 5. TEST OF HOPPING CHANNEL BANDWIDTH................................................................................................15 5.1 APPLICABLE STANDARD.....................................................................................................................................15 5.2 EUT SETUP........................................................................................................................................................15 5.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................15 5.4 TEST PROCEDURE..............................................................................................................................................15 5.5 TEST RESULT......................................................................................................................................................15 6. TEST OF HOPPING CHANNEL SEPARATION...............................................................................................19 5.1 APPLICABLE STANDARD.....................................................................................................................................19 6.2 EUT SETUP........................................................................................................................................................19 6.3 TEST EQUIPMENT LIST AND DETAILS.................................................................................................................19 6.4 TEST PROCEDURE..............................................................................................................................................19 6.5 TEST RESULT......................................................................................................................................................19 7. TEST OF NUMBER OF HOPPING FREQUENCY...........................................................................................23 7.1 APPLICABLE STANDARD.....................................................................................................................................23 7.2 EUT SETUP........................................................................................................................................................23 7.3 TEST EQUIPMENT LIST AND DETAILS.........................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Radiated Emission
