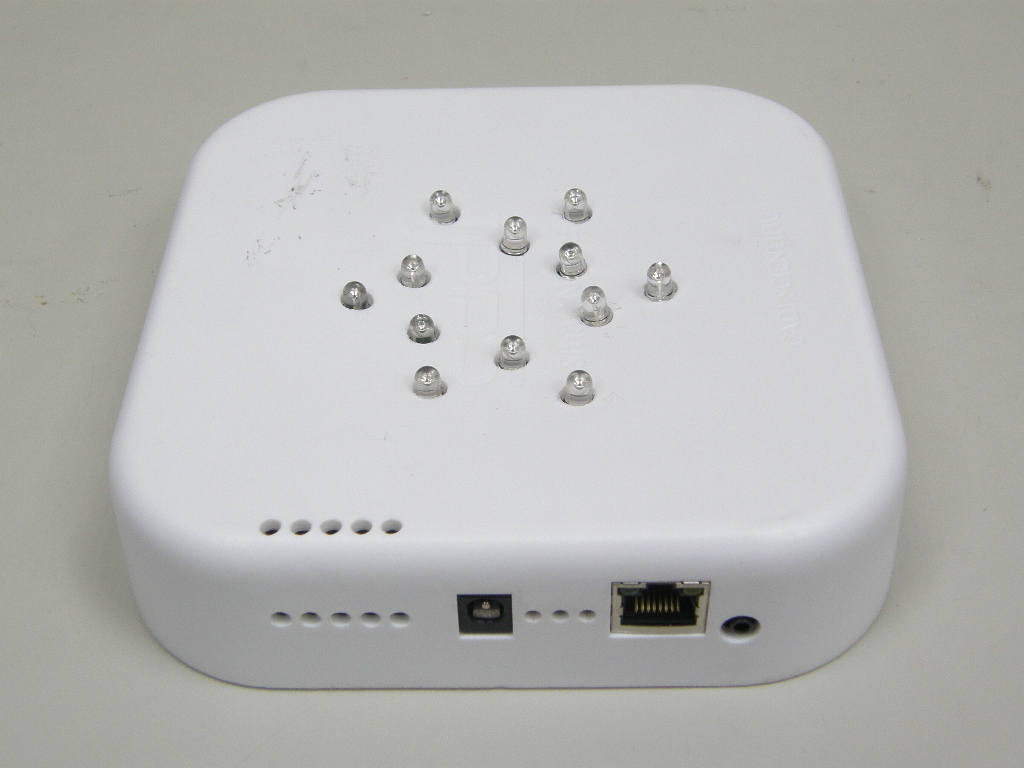

VPE-SMN890SMART NODE RECEIVER 890

SM890 SmartODE TM RFID Receiver and IR Location Beacon User Guide Cadi Scientific Pte Ltd 2 Cadi Scientific Pte Ltd 3 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. COPYRIGHT Specifications are subject to change without notice. Copyright © 2003 Cadi Scientific Pte Ltd. All rights reserved. Cadi Scientific Pte Ltd 31, UBI ROAD 1 #03-00 AZTECH BUILDING Singapore 408694 Singapore http://www.cadi.com.sg Cadi Scientific Pte Ltd 4 Introduction The SMN-890 SmartNODE TM RFID Receiver is an integral component of the SmartSense Wireless Vital Signs and Location Tracking System. The system is designed for wireless and automated measurement and recording of patient vital signs and for location tracking of patients and high-value assets. The SMN-890 will periodically transmit IR and LF beacon signal. This beacon signal consists of unique location ID. This location will be received by tag which are in range. IR and LF signal are very localized which give better location tracking determination. The SMN-890 SmartNODE TM RFID Receiver is a LAN-enabled receiver for receiving data transmitted by the SmartSense TM series of wireless sensors and monitors. The receiver uploads data received from the sensors to the SmartSense TM database via its built in Ethernet LAN interface. In a typical installation, the receivers are to be installed at strategic locations in the hospital in a manner to meet the specific coverage requirement of the application. The receivers being Ethernet LAN capable lend themselves well to deployment using standard Ethernet LAN equipment and infrastructure. Cadi Scientific Pte Ltd 5 Typical System Setup The following diagram shows how SMN-800/900 is deployed in a typical SmartSense System configuration. etwork Switch AC Outlet Server Power Ethernet Ethernet SmartNODE Configuration Below is SmartNode Serial Configuration . COMMAND VALUES DESCRIPTION 01 00 01 LAN FULL DUPLEX LAN HALF DUPLEX 09 S1 <IP:PORT> S2 <IP:PORT> S3 <IP:PORT> S4 <IP:PORT> SERVER 1 IP : PORT # SERVER 2 IP : PORT # SERVER 3 IP : PORT # SERVER 4 IP : PORT # 0B <IP> GATEWAY (Need Device Reset For Setting To T ake Effect) 0C <IP> NETWORK MASK (Need Device Reset For Setting To Take Effect) 0D <IP> DEVICE IP (Need Device Reset For Setting To Take Effect) 0E 00 01 USE DHCP (Need Device Reset For Setting To Take Eff ect) USE STATIC IP (Need Device Reset For Setting To Tak e Effect) 0F <DATE> DATE IN DD.MM.YY 10 <TIME> TIME IN HH.MM.SS 11 01 ~ 65000 Upload Interval In Seconds (Default 5 secs) 14 01 02 03 04 Channel 1 Channel 2 Channel 3 Channel 4 15 01 02 03 04 Tx Power Level 1 (-10dB) Tx Power Level 2 (-6dB) Tx Power Level 3 (+2dB) Tx Power Level 4 (+10dB) 16 00 01 Normal Rx Strength Reduce Rx Strength 18 <LAST 4 DIGIT OF MAC ADDRESS) Set the device MAC Address 1A 00-255 SmartSense Network ID 20 D1 < IP> D2 < IP> DNS Server Address 1 DNS Server Address 2 21 00 01 Don’t Use DNS To Query Server Address Use DNS To Query Server Address 22 H1 <HOSTNAME > H2 <HOSTNAME > H3 <HOSTNAME > H4 <HOSTNAME > Hostname of Server 1 use for DNS Query(Not more tha n 64 Bytes) Hostname of Server 2 use for DNS Query(Not more tha n 64 Bytes) Hostname of Server 3 use for DNS Query(Not more tha n 64 Bytes) Hostname of Server 4 use for DNS Query(Not more tha n 64 Bytes) Cadi Scientific Pte Ltd 7 23 0 ~ 254 TCP Timeout values in second 28 DEVICE ID Query Only. Use with Command Byte “FD” Usage: FD28(CR) Will give the Device ID FB 00 AA Clear The Data Buffer Set to Factory Default. This will clear the MAC Add ress setting also. FD <Command Byte> Query Any Of the Settings. Some c ommand cannot be query. FF 99 DEBUG ECHOID ECHOPID FFFORCE CHANGE MAC FFTEST EEPROM SERVER=N SERVER? VERSION Reset The device. Toggle Device Debug Message Toggle Echoing of received Packet by the radio Toggle Echoing of received Guaranteed delivery data type Clear the MAC Address of the Device. Must be set wi th < command 18 > Perform a read-write test of the EEPROM. This test will destroy all data on the EEPROM! Force Device to connect to Server N (where N is 1 ~ 4) Check Which Server the device is currently connecte d Get The Version No. Specifications TECHICAL DATA Interfaces Ethernet LAN 10 Base-T RF RF Frequency US (SMN-9xx): 919.8MHz or 925MHz Europe (SMN-8xx): 868.4MHz Input connector US (SMN-9xx): RP-SMA Europe (SMN-8xx): SMA Input impedance 50ohm IR Frequency 38kHz Nature 940 nm peak IR wavelength LF Frequency 125Khz Nature Magnetic Field Signal Power Power source 12VDC Current consumption 250mA Environment Operating temp…
