VPE-TSS870BITS SENSOR

TSS-870 Instruction Manual WARNINGS For customer in the U.S.A and Canada x You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. x This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Increase the separation between the equipment and receiver. x Operation is subject to the following two conditions: 1) This device may not cause interference and 2) This device must accept any interference, including interference that may cause undesired operation of the device. x This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For customer in Europe x This equipment has been tested and found to comply with the limits set out in the R&TTE Directive. x Where you see this symbol on any of our electrical products/packaging in Europe, it means that at end of life the product/battery must be disposed of in accordance with any applicable laws or requirements for the separate disposal of electrical equipment/batteries. x The manufacturer of this product is CADI Scientific Pte Ltd, 31 Ubi Road 1, #03-00 Aztech Building, Singapore 408694. PRECAUTIONS x Connect only recommended power supply to the unit. x Place the unit on a stable and non-slip surface. SETUP The diagram shows the battery compartment of the TSS-870. They are located at the bottom of the unit. The SMN-870 can be powered with 2 x CR2032 coin cell lithium batteries. Insert the batteries into the TSS-870 as shown in the diagram above. The batteries should be inserted into the TSS-870 according to the indicator shown on the batteries cover. Secure the batteries compartment by tightening the screw. Description The TSS-870 ThermoSensor is designed as part of the SmartSense suite of products, to measure the temperature of products that is in it is in contact with. It receives messages on LF channel, and transmits and receives via UHF signals. The TSS-870 has no input and communicates wirelessly with either a SMN- 800/SMN-890 or the desktop SMN-870. USAGE The TSS-870 can either be in low power mode or Operational mode. The TSS-870 can be set to either mode using the SMN-870 desktop reader. Low Power Mode When the TSS-870 is in Low Power mode, it will only respond to command from the SMN-870 desktop reader. Operational Mode When the TSS-870 is in operational mode, it will respond to command from the SMN-870 desktop reader. The SMN-870 can be used to queried the current temperature, to turn the TSS-870 on/off etc. When in operational mode, the TSS-870 will transmit a heartbeat beacon every 10 minutes via its UHF channel. It will also listen for messages on its LF channel. Upon receiving a special crafted message from the SMN-826, the TSS-870 will transmit the received message to the central server. When in operational mode, the TSS-870 will measure the temperature every minute and logged the temperature to its memory. The TSS-870 can save up to 42 days of temperature measurement (at one minute logging interval). SPECIFICATIONS Product Model TSS-870 Operating Ambient Temp -20.0 degC to 60.0 degC Temp Accuracy +/- 1 degC Waterproof Yes Power Source 2 x CR-2032 Battery Life 9 Month Dimension 71 x 56 x 9.0 mm Operating Frequency (LF) LF 125kHz (Receiving) Operating Frequency (RF) UHF 919.8MHz, 925.0MHz

Date: 23 December 2011 Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned Cadi Scientific Pte Ltd, hereby appoint TUV SUD PSB PTE LTD, to act on our behalf in all matters relating to all processes required in FCC equipment authorization for FCC ID:VPE-TSS870. Any and all acts carried out by TUV SUD PSB PTE LTD on our behalf shall have the same effects as acts of our own, where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Cadi Scientific Pte Ltd We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you. Regards, _____________________ Name: Ng Soon Ann Designation: R&D Manager (Hardware)

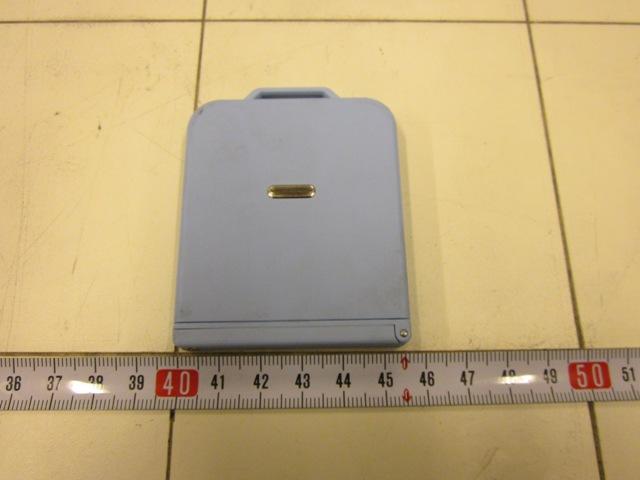

FCC ID: VPE-TSS870 Model: TSS-870 EXTERNAL PHOTOGRAPHS FOR SENSOR MODEL TSS-870 Front View RearView

FCC ID: VPE-TSS870 Labeling requirements per Section 2.925 & 15.19 The label shown will be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Sample Label Physical Location of FCC Label on EUT

FCC ID: VPE-TSS870 Model: TSS-870 INTERNAL PHOTOGRAPHS FOR SENSOR MODEL TSS-870 Main-BoardPCB Component Side RF Antenna RFModule FCC ID: VPE-TSS870 Model: TSS-870 INTERNAL PHOTOGRAPHS FOR SENSOR MODEL TSS-870 Main-BoardPCB Trace Side

Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 Note: This report is issued subject to the Testing and Certification Regulations of the TÜV SÜDGroup and the General Terms and Conditions of Business of TÜV SÜD PSB Pte Ltd. In addition, this report is governed by the terms set out within this report. LA-2007-0380-A LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C LA-2010-0464-D The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC- SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive, #04-01/05 The Franklin, Singapore 118223 Page 1 of 25 FORMAL REPORT ON TESTING IN ACCORDANCE WITH 47 CFR FCC Parts 15B & C : 2011 OF A BITS SENSOR [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, No. 1 Science Park Drive, Singapore 118221 TÜV SÜD PSB Pte Ltd, Electrical & Electronics Centre (EEC), Product Services, 13 Internatonal Business Park #01-01, Singapore 609932 FCC REG. NO. 160581 (3m and 10m Semi-Anechoic Chamber, International Business Park) 99142 (3m and 10m Semi-Anechoic Chamber, Science Park) IND. CANADA REG. NO. 2932N-1 (10m Semi-Anechoic Chamber, International Business Park) 2932I-1 (3m and 10m Semi-Anechoic Chamber, Science Park) PREPARED FOR Cadi Scientific Pte Ltd 31 Ubi Road 1 #03-00 Aztech Building Singapore 408694 Tel : +65 6276 2676Fax : +65 6276 6216 QUOTATION NUMBER 219135810 JOB NUMBER 7191016180 TEST PERIOD 16 Sep 2011 – 20 Nov 2011 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Cadi Scientific Pte LtdPage 2 of 25 Bits Sensor [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS RADIATED EMISSION (SPURIOUS EMISSIONS INCLUSIVE RESTRICTED BANDS REQUIREMENT) TEST RADIATED EMISSION (FUNDAMENTAL AND HARMONICS) TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Cadi Scientific Pte LtdPage 3 of 25 Bits Sensor [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail 47 CFR FCC Part 15: 2011 15.107(a), 15.207Conducted EmissionsNot Applicable * See Note 5 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.249(a)Radiated Emissions (Fundamental and Harmonics) Pass Notes 1. The Equipment Under Test (EUT) is to be operated in the two frequencies as listed below. For each frequencies, the EUT was configured to operate in the test mode. Transmit Frequencies 919.8MHz 925.0MHz 2. The EUT is a Class B device when in non-transmitting state and meets the 47 CFR FCC Part15B Class B requirements. 3. All test measurement procedures are according to ANSI C63.4: 2003. 4. The maximum measured RF power of the Equipment Under Test (EUT) is -3.6dBm. 5. TSS-870 is a battery operated device and contains no provision for public utility connections. 6. The EUT (TSS-870) was tested using fully charged batteries with DC voltage of 3.0Vdc. Modifications No modifications were made. Cadi Scientific Pte LtdPage 4 of 25 Bits Sensor [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is aBITSSENSOR. Manufacturer: Cadi Scientific Pte Ltd 31 Ubi Road 1 #03-00 Aztech Building Singapore 408694 Model Number(s): TSS-870 FCC ID: VPE-TSS870 Serial Number(s): Nil Microprocessor(s): Microchip PIC18F45K20 Operating Frequency: Transmit @919.8MHz & 925.0MHz Clock / Oscillator Frequency : 16MHz Modulation: Gaussian Frequency Shift Keying (GFSK) Antenna Gain: 0dBi IF Filter Bandwidth: Nil Port / Connectors: Refer to manufacturer’s user manual / operating manual. Rated Input Power: 3Vdc Operating Temperature: -20 o C - 40 o C Accessories: Refer to manufacturer’s user manual / operating manual. Cadi Scientific Pte LtdPage 5 of 25 Bits Sensor [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 SUPPORTING DESCRIPTION DESCRIPTION Equipment Description (Including Brand Name) Model, Serial & FCC ID Number Cable Description (List Length, Type & Purpose) Dell LaptopM/N: Inspiron 14202.00m unshielded power cable 2.00m shielded LAN cable S/N: H656X1S FCC ID: DoC Dell Power AdapterM/N: LA65NS0-002.00m unshielded power cable S/N: CN-0DF263-74615-69G-341D FCC ID: Nil UE Power AdapterM/N: VE15WCP1-0502005SDA2.00m unshielded power cable S/N: Nil FCC ID: Nil Vanson Switching Mode Power Supply M/N: SMP-1000A2.00m unshielded power cable S/N: Nil FCC ID: Nil Optoelectronics 1D Barcode Laser Scanner M/N: OPR-32012.00m unshielded cable S/N: 005551 FCC ID: Nil Newstar Power AdapterM/N: NA-1235es2.00m unshielded power cable S/N: Nil FCC ID: Nil Cadi Scientific Pte LtdM/N: SMN-8702.00m unshielded power cable S/N: Nil FCC ID: VPE-SMN870 Cadi Scientific Pte LtdPage 6 of 25 Bits Sensor [ Model : TSS-870 ] [ FCC ID : VPE-TSS870 ] Test Report No. 7191016180-EEC11/04 dated 23 Nov 2011 EUT OPERATING CONDITIONS 47 CFR FCCPart 15 1.Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) 2. Radiated Emissions…

Text truncated - open the document above for the full version.

FCC ID: VPE-TSS870 Model: TSS-870 TEST SETUP PHOTOGRAPHS Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) FCC ID: VPE-TSS870 Model: TSS-870 TEST SETUP PHOTOGRAPHS Radiated Emissions Test Setup (FrontView) Radiated Emissions Test Setup (Rear View)
