VPE-TSS900ThermoSensor

TSS-800/900 ThermoSENSOR TM Wireless Temperature Sensor User Guide Cadi Scientific Pte Ltd 2 Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. COPYRIGHT Specifications are subject to change without notice. Copyright © 2003 Cadi Scientific Pte Ltd. All rights reserved. Cadi Scientific Pte Ltd 1003 Bukit Merah Central #04-40 Singapore 159836 Singapore http://www.cadi.com.sg Cadi Scientific Pte Ltd 3 Introduction The TSS-800/900 ThermoSENSOR TM is a wireless temperature sensor for measuring a patient’s body temperature. It is part of the SmartSense Wireless Integrated Sensing System – a system designed for monitoring of vital signs, tracking of the location of people and equipment, contact-tracing between people, and providing alert notification of people or equipment that has arrived at designated locations. The ThermoSENSOR TM is to be attached to patients’ body, at the lower abdomen area, with the use of a comfortable and hypoallergenic dressing, such as the 3M Tegaderm, to continuously measure patient’s body temperature. Every 30 seconds, the sensor will take a temperature measurement and transmits the measured temperature to the SMN-800/900 SmartNODE. Cadi Scientific Pte Ltd 4 Features • Each ThermoSENSOR TM has a unique ID • Measures patient’s body temperature by contact with patient’s skin • Wirelessly transmits ID and temperature data to the SMN-800/900 SmartNODE • Sensor is activated or deactivated using SSW SmartSWITCH • Sensor has a lifespan of up to 12 months of continuous usage (based on 30 seconds transmit interval) • Water-resistant enclosure that allows cleaning using water or alcohol Cadi Scientific Pte Ltd 5 Instruction for use Identify an area for ThermoSENSOR™ to be pasted. 1. Place 3 fingers down from the navel. Refer to diagram. 2. Place the first layer of adhesive dressing about half the distance from the center to the side of the body. Refer to diagram. 3. Place ThermoSENSOR™ on another layer of adhesive dressing*. The second layer of dressing should be pasted over the front of the sensor. Do not paste the dressing on the metal part of the sensor. You may use any suitable medical adhesive dressing e.g. 3M tegaderm 4. Place ThermoSENSOR™ (with the second layer of adhesive dressing) over the first layer of adhesive dressing. 3 fingers down Cadi Scientific Pte Ltd 6 5. For cleaning before use, wipe the ThermoSENSOR™ with an alcohol swab. • Cadi Scientific recommends 3M Tegederm dressing for use with the ThermoSENSOR as it has been tested to have no adverse effect on the user/ThermoSENSOR. Medical Device Safety Service, GmbH Schiffgraben 41, 30175 Hannover, Germany CADI SCIENTIFIC 1003 Bukit Merah Central, #04-40, Singapore 159836 Tel: (65) 62762676 Fax: (65) 62766216 Email: [email protected] URL: www.cadi.com.sg Made In Singapore 0434 Cadi Scientific Pte Ltd 7 Specifications Technical Data General Unique Sensor ID 24 bits Thermistor accuracy +/- 0.2 o C (32.0 to 42.0 o C) Transmission Rate Data transmission rate Every 30 seconds (on average) RF RF Frequency US (TSS-9xx): 919.8MHz or 925MHz Europe (TSS-8xx): 868.4MHz Transmit Power Less than -2dBm Power Source Power source Internal 3V lithium cell Estimated battery life 12 months (@30 sec transmit interval) Environment Operating temperature range 10 – 50 o C Water resistant Yes Physical Dimension 36mm DIA, 11.6mm HT Weight 12g Compliance Certification CE, FCC RF Compliance ETSI EN 300 220 EMC Compliance ETSI EN 301 489

Block diagram: TSS900 PIC16F913 (Internal Oscillator 4MHz) LED IR-Emitter Crystal 16MHz nRF905 SPI UART Thermistor IR-Receiver Antenna Crystal 32.768KHz

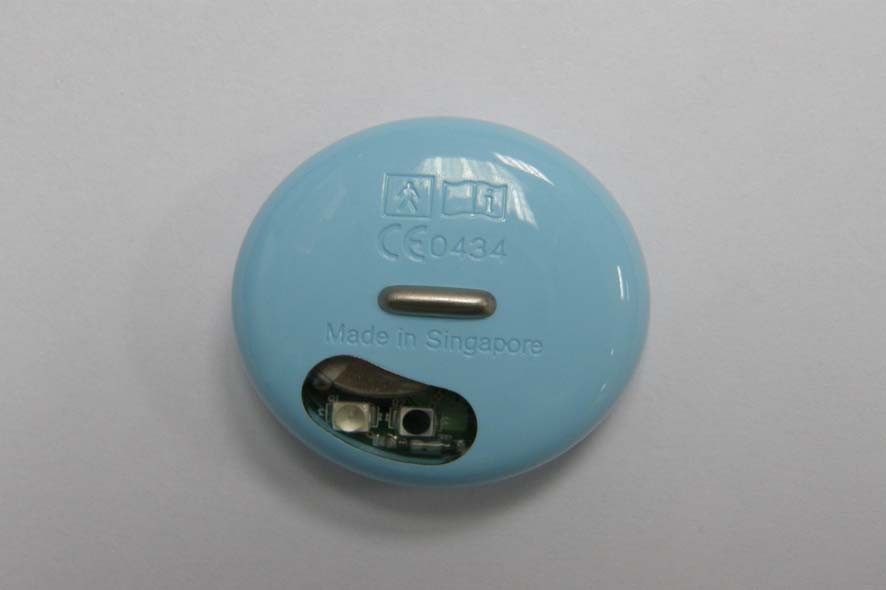

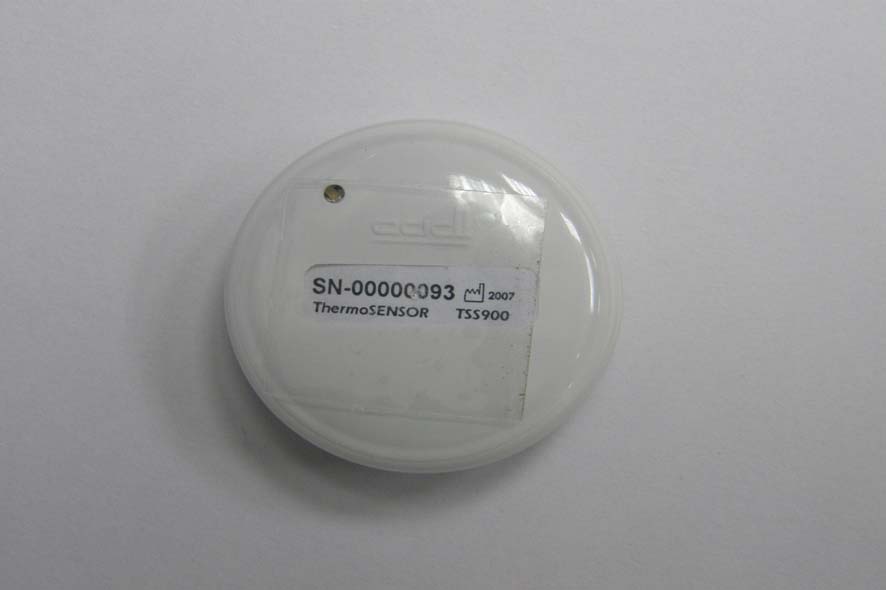

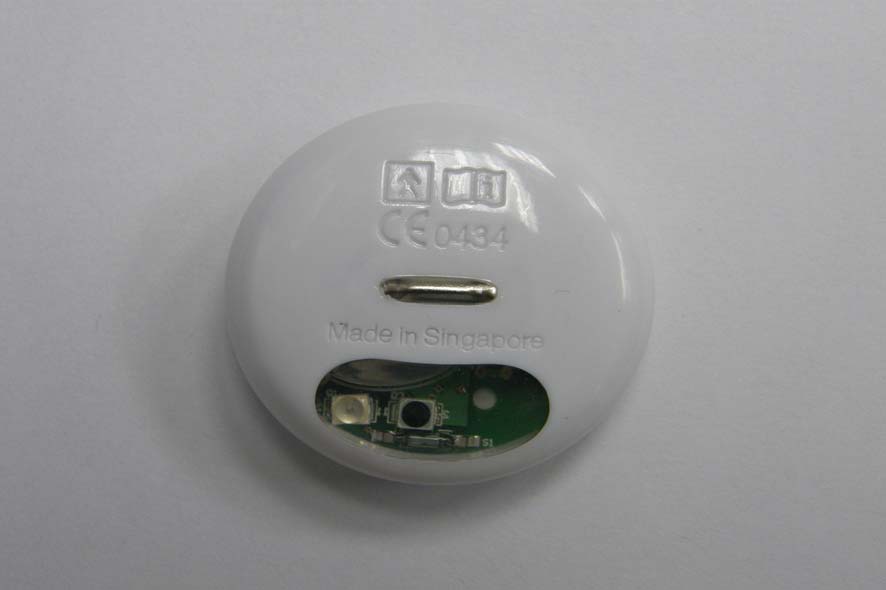

Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL OF EUT Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT (919.8MHz) Back View of EUT (919.8MHz) Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT (925MHz) Back View of EUT (925MHz)

FCC ID LABEL FORMAT AND LOCATION Applicant: Cadi Scientific Pte. Ltd. FCC ID: VPE-TSS900

Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL OF EUT Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT – 1 Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 2 Internal of EUT – 3

Operational description: 1) The thermistor is used in combination with the ADC of the PIC16F913 to detect temperature. 2) PIC16F913 will transmit data (eg, Tag ID, temperature) through RF transceiver (nRF905) 3) LED will blink if the tag is on. 4) When microcontroller is running, internal oscillator 4MHz will operate. 5) Crystal 32.768 KHz will keep on running when PIC16F913 in sleep mode and wake up the microcontroller periodically. 6) Infrared Emitter and Receiver is to on/off the thermoSensor by “SmartSwitch”.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 23-Jan-2008 Sheet of File: D:\868MHz_2nd Gen\ST800ver1.6\ST800ver1.6C\ST8 00ver1.6C.ddb Drawn By: TRX_CE 1 PWR_UP 2 uPCLK 3 VDD 4 VSS 5 CD 6 AM 7 DR 8 VSS 9 MISO 10 MOSI 11 SCK 12 CSN 13 XC1 14 XC2 15 VSS 16 VDD 17 VSS 18 VDD_PA 19 ANT1 20 ANT2 21 VSS 22 IREF 23 VSS 24 VDD 25 VSS 26 VSS 27 VSS 28 VSS 29 VSS 30 DVDD_1V2 31 TXEN 32 nRF905 U1 NRF905 C50.22uF C233pF Y116MHz TXEN C110nF TRX CEPWR UPCD C333pF AMDR C1022pF C1122pF R21M SPI MISOSPI MOSISPI SCK R322K C83.3nF C63.9pFC74.7pFC95.6pF C433pF VDD R11M SPI CSN Antenna VDD VDD VDD 1.3 1 C1627pFC1727pF 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 23-Jan-2008 Sheet of File: D:\868MHz_2nd Gen\ST800ver1.6\ST800ver1.6C\ST8 00ver1.6C.ddb Drawn By: R510k C120.1uF TRX CE TXEN PWR UP CD AMSPI SCK SPI MISO SPI MOSIDRSPI CSN MCLR 1 VDD 2 RB7 4 RB6 5 ICD Con RB3 6 GND 3 Connector1 ICD_CONNECTOR C130.22uF Y232kHz C1415pF C1515pF RA2/AN2/VREF- 1 RA3/AN3/VREF+ 2 RA4/C1OUT/T0CK1 3 RA5/AN4/C2OUT/SS 4 Vss 5 RA7/OSC1/CLK1/T1OSI 6 RA6/OSC2/CLK0/T1OSO 7 RC0 8 RC1 9 RC2 10 RC3 11 RC4/SDO 12 RC5/T1CKI 13 RC6/TX/CK/SCK/SCL 14 RC7/RX/DT/SDI/SDA 15 Vss 16 VDD 17 RB0/INT 18 RB1 19 RB2 20 RB3 21 RB4 22 RB5 23 RB6/ICSPCLK 24 RB7/ICSPDAT 25 RE3/MCLR/Vpp 26 RA0/AN0 27 RA1/AN1 28 U2PIC16F913 R10470 MCLR MCLR t RT1THERMISTOR R818.7k R610k R710k R115.6k R1256 + 1 - 2 BT1BATTERY VDD VDD VDD VDD R92k2 Cathode 2 Anode 1 Q1INFRARED Collector 1 Emitter 2 Q2 PHOTOTRANSISTOR 1 A 2 K D1 LED R131 VBat VDD VBat 1 1 2 2 S1 SW-SPST 1.3 2

Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 Page: 1 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條 款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可， 不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: ThermoSensor Brand Name: Cadi Scientific Model Name: TSS-9XX FCC ID: VPE-TSS900 Report No.: ER/2007/70047 Issue Date: Jan. 29, 2008 FCC Rule Part: §15.249 Prepared for: Cadi Scientific Pte. Ltd. 1003 Bukit Merah Central #04-40 Singapore 159836 Prepared by: SGS Taiwan Ltd. Electronics & Communication Laboratory No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 Page 2 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Cadi Scientific Pte. Ltd. 1003 Bukit Merah Central #04-40 Singapore 159836 Product Description: SmartNode Brand Name: Cadi Scientific FCC ID Number: VPE-TSS900 Model No.: TSS-9XX Model Difference: N/A File Number: ER/2007/70047 Date of test: Jan. 17, 2008 ~ Jan. 26, 2008 Date of EUT Received: Jan. 17, 2008 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. Electronics & Communication Laboratory The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.249. The test results of this report relate only to the tested sample identified in this report. Test By: Date Jan. 29, 2008 Jason Wu/Asst. Supervisor Prepared By: Date Jan. 29, 2008 Elisa Chen/Asst. Supervisor Approved By: Date Jan. 29, 2008 Vincent Su/Manager Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 Page 3 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Jan. 29, 2008 01 Feb. 12, 2008 Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 Page 4 of 23 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2)…

Text truncated - open the document above for the full version.

Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRAPHS OF SET UP Report No.: ER/2007/70047 FCC ID: VPE-TSS900 Issue Date: Jan. 29, 2008 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款列 印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不可 部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Setup Photos
