VRA-SG9011079RFID Reader

Sagrad, Inc.

Click to zoom

Application Details

Equipment Class: LMS - Part 90 Location & Monitoring Transmitter
Date of Grant: Aug 15, 2010
Application Purpose: Original Equipment
Date of Application: Aug 15, 2010
Equipment Note: RFID Reader
Frequency Range: 909.75000000 - 921.75000000
Company: Sagrad, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: VRA-SG9011079 IC: 7420A-SG9011079 FCC Rule Part: CFR Part 90 Subpart I, Part 90 Subpart M IC Radio Standards Specification: RSS-137 ACS Report Number: 10-2041.W06.11.A Manufacturer: Sagrad, Inc. Model: SG901-1075 Manual Installation / Users Manual For: RFID Reader Model SG901-1079 Sagrad Inc. Corporate Headquarters and Service 751 North Drive, Suite 10 Melbourne, Fl 32934 PH# 321-255-0515 Toll Free 888-723-5521 Fax 321-214-0315 www.Sagrad.com Sagrad DOC # 906-0006 Product Description: You have purchased an RFID Reader. This product was designed to be used for reading RFID Tags. To turn the unit on plug the power cable into the power connector and turn on the power. This unit has a self contained antenna. Installation: To install this product use the four mounting holes on the mounting bracket on the bottom side of the chassis. Place where there is no obstruction between the RFID Reader and the TAG. Sagrad DOC # 906-0006 General Statement: Warning: Changes or modifications to this device not expressly approved by Sagrad Inc. could void the user’s authority to operate the equipment. FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 28 centimeters between the radiator and your body. Industry Canada Statement: This Class B digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Cet appareillage numérique de la classe B répond à toutes les exigences de l'interférence canadienne causant des règlements d'équipement. L'opération est sujette aux deux conditions suivantes: (1) ce dispositif peut ne pas causer l'interférence nocive, et (2) ce dispositif doit accepter n'importe quelle interférence reçue, y compris l'interférence qui peut causer l'opération peu désirée. . Sagrad DOC # 906-0006 Sagrad DOC # 906-0006 Limited Warranty Sagrad Inc. (“Sagrad”) warrants this Product (including any accessories) against defects in material or workmanship as follows: • LABOR: For the period of one (1) year from the date of purchase, if this product is determined to be defective, Sagrad will repair or replace the Product, as its option, at no charge, or pay labor charges to any Sagrad authorized service facility. After the warranty Period, the customer is liable for all labor charges. • PARTS: In addition, Sagrad will supply, at no charge, new or rebuilt replacements in exchange for defective parts for the period of one (1) year. After the warranty period, the customer is liable for all parts. • ACCESSORIES: Parts and Labor for all accessories are for the period of one (1) year. Limitations to this limited warranty : 1. This warranty extends to the original consumer purchaser only and is not assignable or transferable. 2. This warranty shall not apply to any Product which has been subjected to misuse, abuse, abnormal use, negligence, alteration or accident, or has its serial number altered or removed. 3. This warranty does not apply when the user has disregarded instructions for installation and use of the product. 4. This warranty does not apply to water or liquid damage of any kind. 5. This warranty does not apply to any defects or damage directly or indirectly caused by or resulting from the use of unauthorized replacement parts and/or service performed by unauthorized personnel. 6. This warranty does not apply to the instruction manual . THIS WARRANTY IS MADE EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND ALL OTHER OBLIGATIONS ON THE PART OF SAGRAD, INC. PROVIDED, HOWEVER, THAT IF THE DISCLAIMER OF IMPLIED WARRANTIES IN INEFFECTIVE UNDER APPLICABLE LAW, THE DURATION OF ANY IMPLIED WARRANTIES ARISING BY OPERATION OF LAW SHALL BE LIMITED TO ONEE (1) YEAR FROM THE DATE OF PURCHSE OR SUCH LONGER PERIOD AS MAY BE REQUIRED BY APPLICABLE LAW. SAGRAD, INC. HEREBY DISCLAIMS ANY AND ALL LIABILITY FOR CONSEQUENTIAL AND INCIDENTILA DAMAGES ARISING OUT OF OR IN CONNECTION WITH ANY BREACH OF THIS WARRANTY OR ANY OTHER CLAIM WITH RESPECT TO THIS PRODUCT, INCLUDING BUT NOT LIMITED TO, CLAIMS OF NEGLIGENCE, STRICT LIABILITY IN TORT OR BREACH OF CONTRACT. SOME STATES DO NOT ALLOW (A) LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR (B) THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC RIGHTS AND YOU MAY HAVE OTHER RIG…

Text truncated - open the document above for the full version.

Cover Letter(s)

Advanced Compliance Solutions – 5015 B.U. Bowman Drive, Buford, GA 30518 August 12, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Sagrad Inc. respectfully requests confidentiality of certain materials provided with the submission of the SG901-1075 under FCC ID: VRA-SG9011079 in accordance with FCC Regulations 0.459. The confidentiality request applies to the following exhibits: 10-2041 – Schematics.pdf 10-2041 – System Block Diagram.pdf 10-2041 – Theory of Operation.pdf 10-2041 – Tune Up Procedure.pdf 10-2041 – Part s List.pdf The SG901-1075 has been developed at considerable effort and expense by Sagrad Inc.. These items are considered as Trade Secrets and therefore public access to the proprietary material could possibly result in duplication of equipment that could severely damage the company’s business advantage. I appreciate your assistance in this matter. Sincerely, Sam Wismer Vice President, Technology Agent Phone: (770) 831-8048 Fax: (770) 831-8598

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 August 12, 2010 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: VRA-SG9011079 To Whom It May Concern: The following application is submitted on behalf of our client, Sagrad, Inc., for evaluation of their model SG901-1075 for certification under FCC Part 90. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

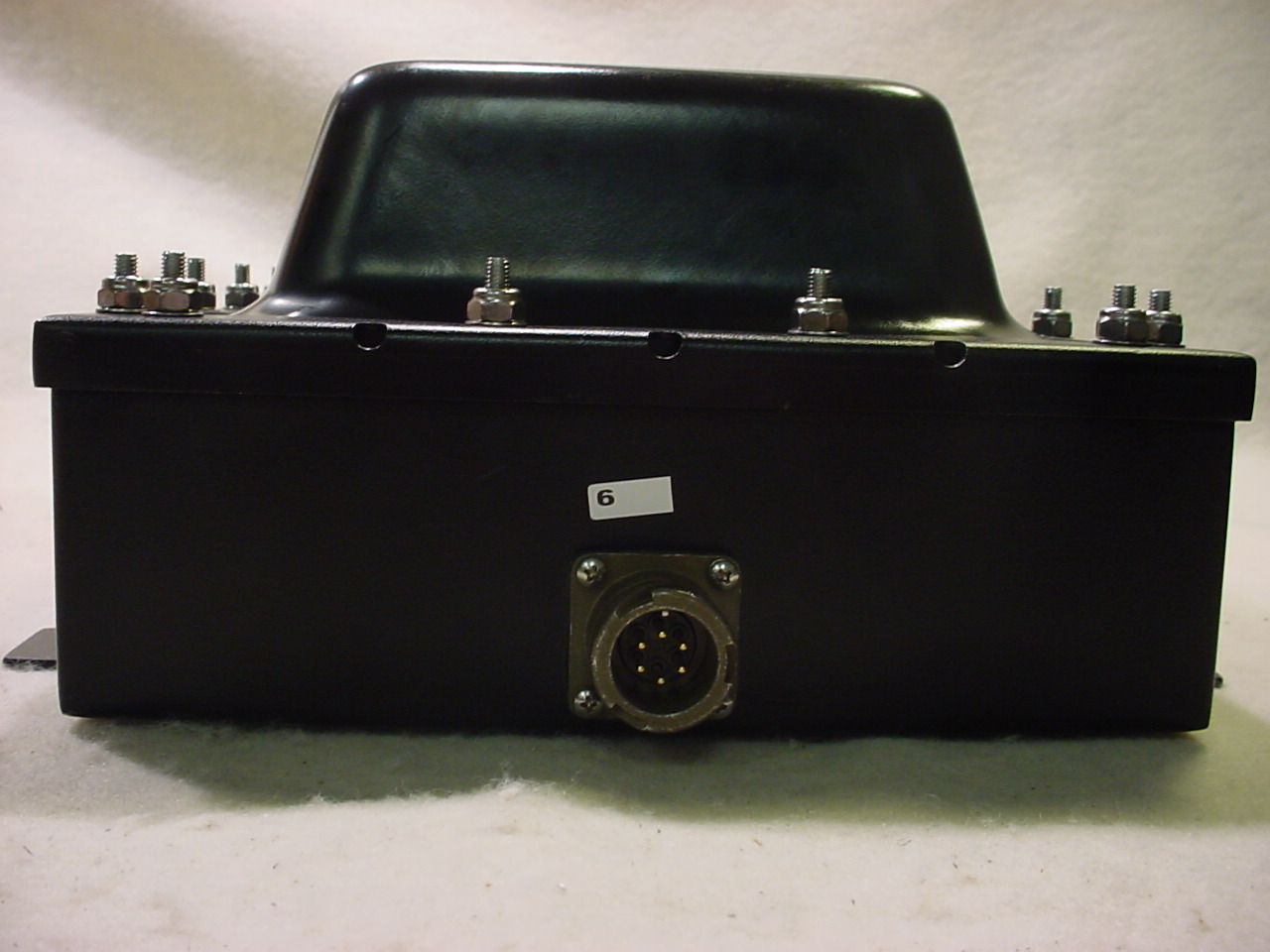

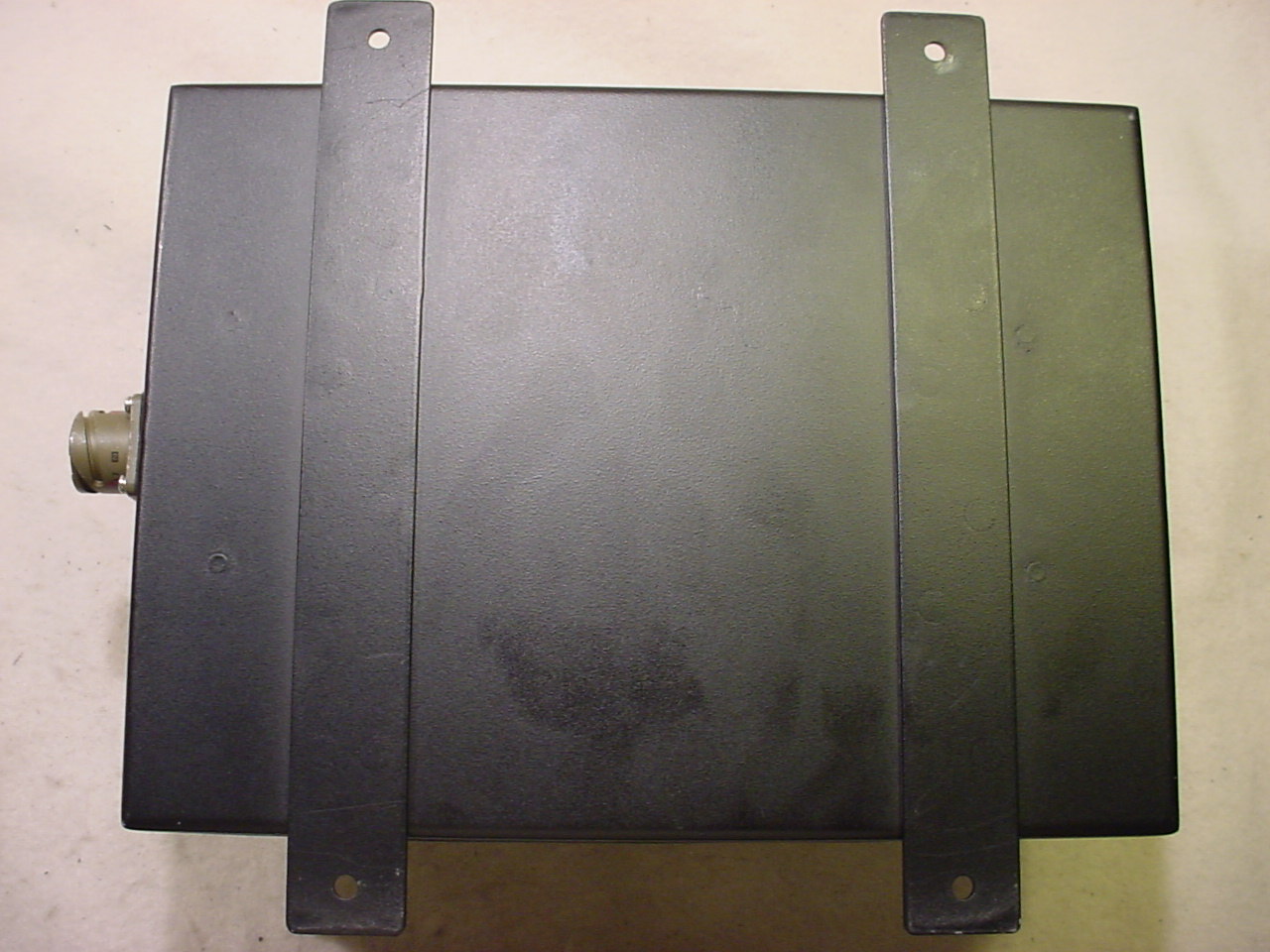

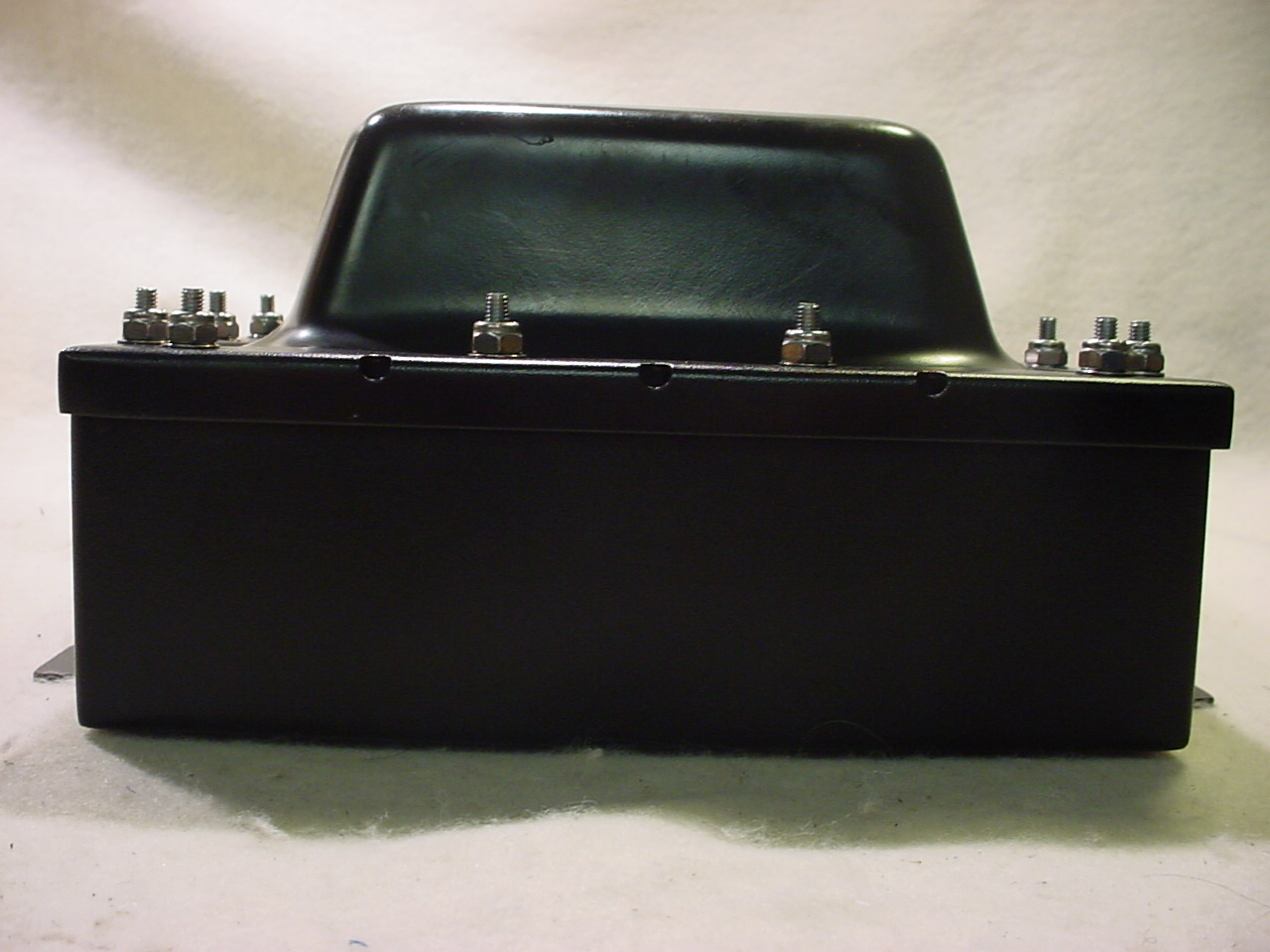

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Certification Exhibit FCC ID: VRA-SG9011079 IC: 7420A-SG9011079 FCC Rule Part: CFR Part 90 Subpart I, Part 90 Subpart M IC Radio Standards Specification: RSS-137 ACS Report Number: 10-2041.W06.11A Manufacturer: Sagrad, Inc. Model: SG901-1075 RF Exposure Model(s): SG901-1075 FCC ID: VRA-SG9011079 IC: 7420A-SG9011079 ACS Report: 10-2041.W06.11.A Advanced Compliance Solutions Page 2 General Information: Applicant: Sagrad, Inc. ACS Project: 10-2041 Device Category: Fixed Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: Patch Antenna Gain: 7 dBi Maximum Transmitter Conducted Power: 30.42 dBm Maximum System EIRP: 37.42 dBm, 5.52 W MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Distance (cm) Power Density (mW/cm^2) 902.25 30.42 0.60 1101.54 7 5.012 28 0.560 903.75 30.41 0.60 1099.01 7 5.012 28 0.559 910 30.34 0.61 1081.43 7 5.012 28 0.592 915 30.28 0.61 1066.60 7 5.012 28 0.584 921.5 30.18 0.61 1042.32 7 5.012 28 0.570 Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 28 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.
