VRJHFE00110713.560 MHz RFID READER WITH BLUETOOTH TRANSCEIVER

V5.0.2 Explore-R HF Explore-R HF RFID Reader User Manual Quick Start Guide Thank you for choosing the RFID Reader from Tracient. Before you start using your RFID Reader please read the following instructions:
Install the software provided on the CD-ROM, before connecting your RFID Reader to the PC.
To install the software you need a PC that runs Microsoft Windows XP and is compatible with the provided USB cable.
The RFID Reader will need charging for at least 2 hours before use. After installing the software, charge the RFID Reader by connecting it to the PC using the provided USB cable.
After installation of the software, user manuals for the RFID Reader and TraceConnect software are available in electronic format on the PC or CD-ROM.
AN09 – Virtual COM Port Connections on Bluetooth Enabled Laptops and Desktop Computers Important Notice! Install the software supplied with the Reader before connecting the Reader to the PC. Failure to do so may cause problems when using the Reader with the PC. Overview of Features Hardware The Explore-R RFID Reader has the following features:
Battery powered.
Status LED’s.
Bluetooth Enabled.
USB Connection for battery charging, data downloads and configuration. Software The TraceConnect software supplied with the Reader gives you everything you need to evaluate your RFID reader. The software supplied has the following features:
Control Panel Applet for configuration of the Reader for both the PC and PDA.
RFID Wedge for capturing Tags for PC and PDA applications.
RFID Sync log download application for the PC. Software Developers Kit (SDK) If you have purchased the SDK version, software will be provided that gives you the tools to begin developing your own applications. The SDK includes:
The SDK, a programming interface for Tracient RFID products.
Example software (including source code) for PC.
Documentation. Using the Explore-R HF Using the Button The push button is used to operate the Explore-R. This provides a means of turning the Reader On, OFF and initiating a tag read. Charging the Explore-R Battery The Explore-R is powered by a Lithium-Ion battery. The battery is charged via the USB port on a PC or via one of the other charging accessories that can be purchased separately. Whenever the Explore-R is connected to a PC the battery will be charged. When charging, the Amber LED will be on. Charging times vary depending on the state of the battery. It is recommended that the battery is charged when not in use. Doing so ensures the battery is kept in working order. A full charge takes approx 2 Hrs. Low Battery Indication The Explore-R indicates a low battery condition by continuously flashing the Amber LED. If this happens it is recommended that you give the Padl- R a full charge. Single button press – Press the button, then remove your finger Long Press – Hold your finger on the button until the reader responds and then remove your finger from the button Turning the Explore-R ON Press the button. The Blue LED flashes 3. If the battery is flat the Explore-R will turn straight off again. This will be seen as the Blue LED flashing 6 times in quick succession. Turning the Explore-R OFF Press and hold the button. The Blue LED flashes 3 times. The Explore-R is also equipped with an auto shutdown feature. The factory default for this feature is to shutdown after 20 minutes of inactivity. If the Explore-R is plugged into a USB connection, the auto power OFF will not operate. Reading a Tag To read a Tag, present a compatible Tag to the Reader’s antenna area. Press and release the button.
In Single Read Mode the Reader will flash Green to indicate a successful read and Red to indicate a failed read attempt. Explore-R Use and Maintenance Firmware Upgrades Your Reader has the ability to have its firmware upgraded in the field via the USB interface. These upgrades will be available for download from the Tracient website (www.tracient.com). Accessories A full range of accessories are available for the Explore-R. These include:
Various charging options, such as mains and car chargers
Protective boots, to provide additional weather and mechanical protection
Key fobs and chains
Other RFID Tags For a complete list of available accessories or requests for other RFID products or services, please contact Tracient or visit the website ( www.tracient.com). Battery Handling and Care This RFID Reader contains a Lithium- Ion battery. To get maximum performance from the Reader follow the instructions relating to charging in the supplied manual. Battery charging is controlled by the device when connected either to a PC via a USB cable, or to other Tracient specified chargers. The battery should not be removed, unless done so by an authorized Tracient service engineer. Charging the Battery Charge the battery for at least 10 hours before use. Be sure to follow the warnings listed below while charging the battery. Failure to do so may cause the battery to become hot, explode, or ignite and cause serious injury.
When charging the battery, use a specified battery charger.
Do not continue charging the battery if it does not recharge within the specified charging time. Doing so may cause the battery to become hot, explode, or ignite. The temperature range over which the battery can be charged is 0°C to 45°C. Charging the battery at temperatures outside this range may cause severe damage to the battery or reduce battery life. Using the Battery Battery packs may get hot, explode, or ignite and cause serious injury if exposed to abuse conditions. Be sure to follow the safety warnings listed below:
Do not place the battery in fire or near a heat source. Doing so may cause the battery to explode, ignite, or result in a loss of performance.
Do not install the battery backwards.
Do not short circuit the battery.
Do not puncture the battery, deform or subject it to strong impacts or shocks.
Do not allow the battery to get wet.
Do not disassem…

Text truncated - open the document above for the full version.

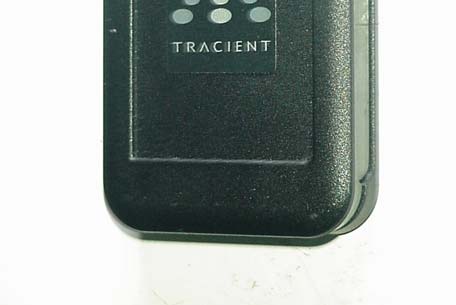

EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 25 of 31 This report may not be reproduced except in full 9. PHOTOGRAPHS External Photos

12 mm +/- 0.5mm 48 mm +/- 0.5mm Title: HFE-00-003 Product Label Size: 12 x 48mm No. LAB-00009-00 Date: 18/10/2007 Sht: 1 of 1 Drawn: DL Radius 3 mm +/- 0.1 mm Material - Matt Silver Compucal Lettering - Silver Letters on a Black background Font - Myriad Pro IC: 7453A-HFE001107 FCC ID: VRJHFE001107 Explore-R RFID Reader Type: HFE-00-003 Z997

EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 30 of 31 This report may not be reproduced except in full Internal Views – HF Antenna EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 31 of 31 This report may not be reproduced except in full Additional internal photos Bluetooth Module Bluetooth Module – Antenna at the top of the board which can be seen in the left hand corner in the form of a white component. RFID Module RFID Module Motherboard Motherboard

EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 1 of 28 This report may not be reproduced except in full TEST REPORT Explore-R HFE-00-003 RFID Reader (FCC ID: VRJHFE001107) tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Section 15.225 Operation within the band 13.110 -14.010 MHz Section 15.249 Operation within the band of 2400 – 2483.5 MHz for Tracient Technologies Ltd This Test Report is issued with the authority of: ________________________________________ Andrew Cutler- General Manager EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 2 of 28 This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 4 6. SETUPS AND PROCEDURES 5 7. TEST EQUIPMENT USED 20 8. ACCREDITATIONS 20 9. PHOTOGRAPHS 21 EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 3 of 28 This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Explore-R HFE-00-003 RFID Reader complies with FCC Part 15 Subpart C Section 15.225 and Section 15.249 as an Intentional Radiator when the methods as described in ANSI C63.4 - 2003 are applied. 2. RESULTS SUMMARY The results from testing are summarised in the following table: Clause Parameter Result 15.201 Equipment authorisation requirement Certification required. 15.203 Antenna requirement Complies. Antennas internal to the device. 15.204 External PA and antenna modifications Not applicable. No external devices. 15.205 Restricted bands of operation Complies. Device transmits on 13.560 MHz and in the 2.4 GHz band. 15.207 Conducted limits Complies. 15.209 Radiated emission limits - Spurious emissions <30 MHz Complies with a 31.1 dB margin at 27.120 MHz 15.209 Radiated emission limits – Spurious emissions >30 MHz Complies with a 0.6 dB margin at 149.160 MHz (Vertical). 15.215 Additional provisions Complies 15.225 Radiated emission limits - Fundamental Complies with a 55.1 dB margin at 13.560 MHz. 15.225 Frequency stability Complies 15.249 (a) Field strength of fundamental Complies 15.249 (a) Field strength of harmonics Complies 15.249 (b) Fixed, point to point operations Not applicable 15.249 (c) 3 metre measurement distance Noted 15.249 (d) Spurious emission levels except harmonics Complies. See 15.209 listed above 15.249 (e) Detectors above 1000 MHz Noted 15.249 (f) Reference to section 15.37(d) Noted EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 4 of 28 This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements performed for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company Name Tracient Technologies Ltd Address Unit 8 Amuri Park 404 Barbadoes Street City Christchurch Country New Zealand Contact Mr Paul Reid 5. DESCRIPTION OF TEST SAMPLE Brand Name Explore-R Model Number HFE-00-003 Product HF RFID Reader with Bluetooth option Manufacturer Tracient Technologies Ltd Country of Origin New Zealand Serial Number 01650 (FCC ID: VRJHFE001107) EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 5 of 28 This report may not be reproduced except in full 6. SETUPS AND PROCEDURES Standard The sample was tested in accordance with 47 CFR…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 22 of 28 This report may not be reproduced except in full Radiated Emission Test Set Ups – USB Mode EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 23 of 28 This report may not be reproduced except in full EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 24 of 28 This report may not be reproduced except in full Blue Tooth Mode X – Plane mode standing upright EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 25 of 28 This report may not be reproduced except in full Z Plane Mode – Standing on its edge Y Plane Mode – Laying flat on top of the test table EMC Technologies (NZ) Ltd Test Report No: 091201.1 Report date: 22 nd April 2010 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 26 of 28 This report may not be reproduced except in full Conducted emissions test set up
