VRJUFP0010072.4 ghz BLUETOOTH TRANSCEIVER

Version 2.0.0.0 1 Version 2.0.0.0 2 Padl-R UF Reader User Manual Version 2.0.0.0 3 Quick Start Guide Thank you for choosing the RFID Discovery Kit from Tracient. Before you start to use the RFID Reader please read the following instructions:
Install the software provided on the CD-ROM, before connecting your RFID Reader to the PC.
To install the software you need a PC that runs Microsoft Windows XP or Windows 2000 and is compatible with the provided USB cable.
The RFID Reader will need charging for at least 10 hours before use. After installing the software, charge the RFID Reader by connecting it to the PC using the provided USB cable.
After installation of the software, user manuals for the RFID Reader and TraceConnect software are available in electronic format on the PC or CD-ROM. Important Notice Install the software supplied with the reader before connecting the reader to the PC. Failure to do so may cause problems when using the reader with the PC. Version 2.0.0.0 4 Overview of Features Hardware The Padl-R RFID Reader has the following features:
Battery powered.
Touch Sensitive button.
Status LED’s.
Bluetooth Enabled.
USB Connection for battery charging, data downloads and configuration.
ID log storage for 1000 Tag ID’s. Software The TraceConnect software supplied with the Reader gives you everything you need to evaluate your RFID reader. The software supplied has the following features:
Control Panel Applet for configuration of the Reader for both the PC and PDA.
RFID Wedge for capturing Tags for PC and PDA applications.
RFID Sync log download application for the PC. Software Developers Kit (SDK) If you have purchased the SDK version, software will be provided that gives you the tools to begin developing your own applications. The SDK includes:
The SDK, a programming interface for Tracient RFID products.
Example software (Including source code) for PC and PDA.
Documentation. Version 2.0.0.0 5 Using the Padl-R Using the Button The button on the Padl-R is touch sensitive and as such responds to your finger either pressing the button or resting lightly over it. To prevent unexpected operation please remove your finger from the button when not in use. Charging the Padl-R Battery The Padl-R is powered by a Lithium- Ion battery. The battery is charged via the USB port on a PC or via one of the other charging accessories that can be purchased separately. Whenever the Padl-R is connected to a PC the battery will be charged. When charging, the Amber LED will be on. Charging times vary depending on the state of the battery It is recommended that the battery is charged when not in use. Doing so ensures the battery is kept in a good working order. A full charge takes approx 10 Hrs. Single button press – Press or touch the button, then remove your finger Long Press – Hold your finger on the button until the reader responds and then remove your finger from the button Version 2.0.0.0 6 Low Battery Indication The Padl-R indicates a low battery condition by continuously flashing the Amber LED. If this happens it is recommended that you give the Padl-R a full charge. Turning the Padl-R ON Press and hold the button. The Blue LED flashes 3 times and the Padl-R plays a short multi tone tune. If the battery is flat the Padl-R will turn straight off again. This will be seen as the Blue LED flashing 6 times in quick succession. Turning the Padl-R OFF Press and hold the button. The Blue LED flashes 3 times and the Padl-R plays a different multi tone tune. The Padl-R is also equipped with an auto shutdown feature. The factory default for this feature is to shutdown after 1200 seconds (20 minutes) of inactivity. If the Padl-R is plugged into a USB connection, the auto power OFF will not operate. Reading a Tag To read a Tag, present a compatible Tag to the Reader’s antenna. Press and release the button. If successful, the Padl-R will beep and the Green LED will flash twice. If unsuccessful the Padl-R will beep and the Red LED will flash twice. The button is touch sensitive technology. Please remove your finger from the button when not in use. Keeping your finger on the button will turn the Padl-R off. Version 2.0.0.0 7 For Your Safety Read these guidelines before using your Reader. Failure to comply with these guidelines may be dangerous or illegal. Road Safety Do not operate a vehicle while using the Reader. Interference Device performance may be affected by interference. Hospitals and Pacemakers Do not operate the Reader near medical equipment or pacemakers. Aircraft It is illegal to use wireless devices on aircraft. Refuelling Do not use the Reader when refuelling or near chemicals. Use Qualified Service This Reader has no user-serviceable parts. Only qualified personnel may repair or service this equipment. Accessories Use only approved accessories. Do not connect incompatible products. Batteries This Reader is equipped with a Lithium Ion Battery. Do not incinerate. Version 2.0.0.0 8 Padl-R Use and Maintenance Firmware Upgrades Your Reader has the ability to have its firmware upgraded in the field via the USB interface. These upgrades will be available for download from the Tracient website ( www.tracient.com). Accessories A full range of accessories are available for the Padl-R. These include:
Various charging options, such as mains and car chargers
Protective boots, to provide additional weather and mechanical protection
Key fobs and chains
Other RFID Tags For a complete list of available accessories or requests for other RFID products or services, please contact Tracient or visit the website (www.tracient.com). Battery Handling and Care This RFID Reader contains a Lithium- Ion battery. To get maximum performance from the Reader follow the instructions relating to charging in the supplied manual. Battery charging is controlled by the device when connected to either a PC via a USB cable, or other Tracient specified chargers. The battery should not be removed, unl…

Text truncated - open the document above for the full version.

*{Dt aart TRNCIENT TECHNOLOGIES 23'o October 2007 EMC Technologies Limited 47 MacKelvie Street Grey Lynn Auckland New Zealand Dear Andrew Cutler With reference to the PADL-R UF RFID READER, Tracient Technologies Limited authorise EMC Technologies Limited to act on their behalf in obtaining FCC approval for this product. Yours sincerely, Derek Law Manager Research and Development Unit B Amuri Park 404 Barbadoee Street PO Box 12056 Christchurch f{ew Zealand www.traci€nt.c0m P. +64 3 977 7072 F. +61 3 977 7AA1

lueudole so puB rlrJBgseu JsoBuBtrT /nB-l leJeo 'fiarcous slno 'uollBsuoqFv lueudlnb3 Jo lueJg aql Jo uollBJnp et{t IoJ lB[uepuu@ sB pe]eeJl eq pnoqs il 's.roilledtuoo Jllo ol e6eluenpe JteJUn uB u! ilnseJ pFoo uolleulroJu! Bltlt p eJnsopstcl 'sroUleduroo Jno ol ro c;pnd erll ol elgBlle e epBut Agaunnor lou sl r.lclq,vi uolleuuolullarces epeJl sulBluoo uolletutoJulsltll uoltdpcseo geuogletedg 'uer6upg lcolg'slsil urd'sruerOe;p tllguatlts'stu:l6egp ilnt !c:uollBuuolul lilceds 's,uolloJ se pepenbel stltuelluepuuoo (e) 69t'0 uolpes eru ol pens.tnd pue (!D (p) eg't'O suolpes slru souaraleu rsSno3u ALllvlrN3olJNoc uJeouoc Aeu il uotl,s oI uolsslruruoc suollsJlunuuoc lalepsJ /O0Zreqopg 5g'{epuoyg slrS0roNHSlt IN]IfVUJ- I.':l :li.illii i {}{D# iFtD!} agr

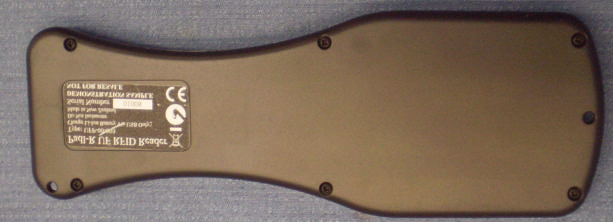

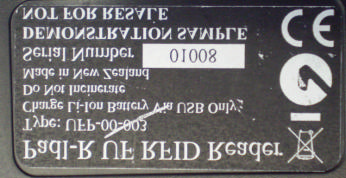

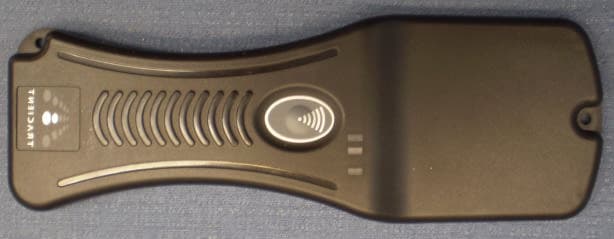

EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 31 of 36 This report may not be reproduced except in full 8. PHOTOGRAPHS External photos

EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 32 of 36 This report may not be reproduced except in full Internal Photos - Overall Main Board EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 33 of 36 This report may not be reproduced except in full RF Module Board EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 34 of 36 This report may not be reproduced except in full

EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 29 of 36 This report may not be reproduced except in full Section 15.247(i) – Radio Frequency Hazard Information The device is portable and is held in the hand however a 20 cm minimum distance can be maintained. The device only operates when the read button is pushed by the user with the transmitter turning itself off once a card has been activated. When the device is transmitting there is an audible and visual warning to the user. The power output of the Bluetooth device has been measured to be less than 1 mW and has therefore been considered to be inconsequential. In accordance with Section 1.1310 the Maximum Permissible Exposure (MPE) limits for the General Population / Uncontrolled Exposure of f/1500 have been applied. The maximum distance from the antenna at which the MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in watts, transmit antenna gain and separation distance in metres: E, V/m = (√ (30 * P * G)) / d Power density, mW/m2 = E2/3770 E for MPE: (902/1500) = E2/3770 E = √(902/1500)*3770 E = 47.6 V/m The maximum radiated power measured was +28.3 dBm or 0.68 watts. Therefore: E = √ (30 * P * G) / d d = √ (30 * P * G) / E d = √ (30 * 0.68) / 47.6 d = 0.09 m or 9 cm Result: Complies if a minimum safe distance of 20 cm is specified.

EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 35 of 36 This report may not be reproduced except in full Radiated Emissions Test Set Up EMC Technologies (NZ) Ltd Test Report No 71031.1 Report date: 6 November 2007 ___________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 36 of 36 This report may not be reproduced except in full Conducted emissions test set up
