EVOGate 2.0 with RTU+Server2 Installation Manual Serial Number Document Code E MNL000057_01_EN EVOGate 2.0 2 / 29 Copyright EnergyICT n.v. Copyright 2011 by EnergyICT n.v. All rights reserved. The information in this document is subject to change without notice and does not represent a commitment on the part of EnergyICT. The software described in this document is furnished under a license agreement, and may be used or copied only in accordance with the terms of that agreement. No part of this document may be reproduced, transmitted, transcribed, stored in any retrieval system, or translated into any language by any means, electronic or mechanical, including photocopying and recording, for any purpose other than the licensee's personal use without the express written permission of EnergyICT. In no event will EnergyICT be responsible for any damages, including any lost profits, lost savings or other incidental or consequential damages arising out of the use of this product. Disclaimer The information contained in this message (including any attachments) is confidential and intended solely for the attention and use of the named addressee(s). It must not be disclosed to any person without our authority. If you are not the intended recipient, please delete it from your system immediately - any disclosure, copying or distribution thereof or any action taken or omitted to be taken in reliance thereon is prohibited and may be unlawful. 3 / 29 Table of contents Safety Precautions........................................................................................................................................4 Notice on Interference ..................................................................................................................................5 Chapter 1: Introduction........................................................................................................ 6 About the EVOGate 2.0.................................................................................................................................7 EVOGate 2.0 Component Overview ...............................................................................................................8 Technical Specifications ..............................................................................................................................10 RTU+Server2 Casing...................................................................................................................................11 IP Enclosure Casing ....................................................................................................................................12 RTU+Server2 Labels ...................................................................................................................................14 IP Enclosure Labels.....................................................................................................................................16 LED Indications...........................................................................................................................................19 Chapter 2: Mounting and Wiring.........................................................................................20 Mounting Instructions IP Enclosure .............................................................................................................21 Power Supply Wiring Safety Guidelines........................................................................................................21 Power Supply Wiring Instructions EVOGate 2.0............................................................................................22 Power Supply Wiring RTU+Server2 .............................................................................................................23 Chapter 3: Communication Interfaces................................................................................24 Overview Communication Interfaces............................................................................................................25 Double Ethernet Connection........................................................................................................................26 Double USB 2.0 Host Connection.................................................................................................................26 GSM/GPRS Modem......................................................................................................................................27 Wavenis RF Modem ....................................................................................................................................28 Appendix .............................................................................................................................29 4 / 29 Safety Precautions Precautions The EVOGate 2.0 with RTU+ ® Server2 has been designed and tested with US norms and has left the factory in a safe condition. The present installation manual contains important information and warnings which have to be followed by the user to ensure safe operation and to retain the unit in safe condition. Interventions Any interventions to the EVOGate 2.0 with RTU+ ® Server2 must be done by technical service staff only. Note + Changes or modifications not expressly approved by the responsible party for compliance (EnergyICT ® ) could void the user's authority to operate the equipment. Clock The device contains a real-time clock with 6 day autonomy in case of absence of power. WARNING! When activating the Wavenis modem, an RF antenna must already be connected to the EVOGate 2.0! The absence of an antenna during activation will cause irreparable damage to the modem. Consult “Wavenis RF Modem” on page 27 for more information. 5 / 29 Notice on Interference FCC T he EVOGate 2.0 complies with Part 15 of the FCC Rules / Industry Canada license- exempt RSS standard(s). Operation is subject to the following two condition…
Text truncated - open the document above for the full version.

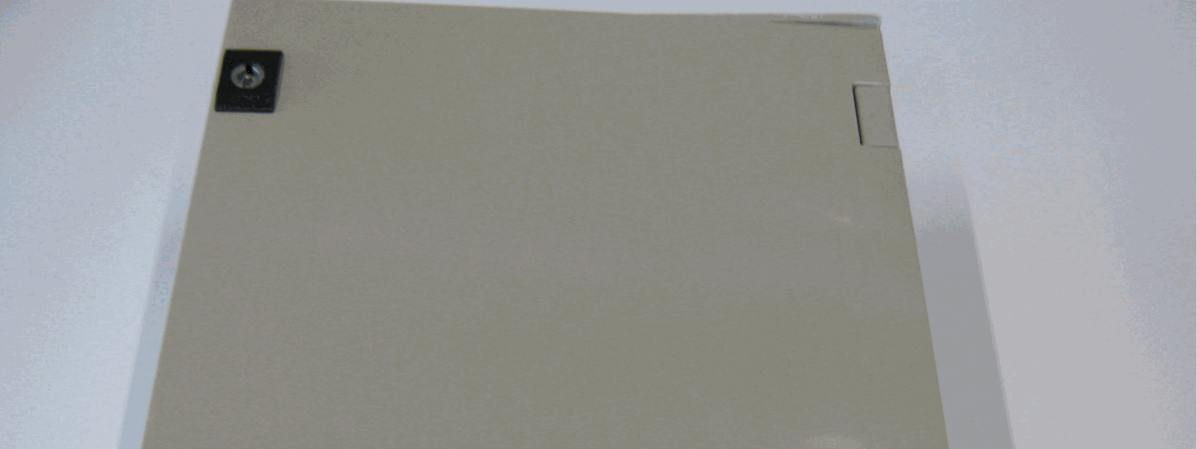

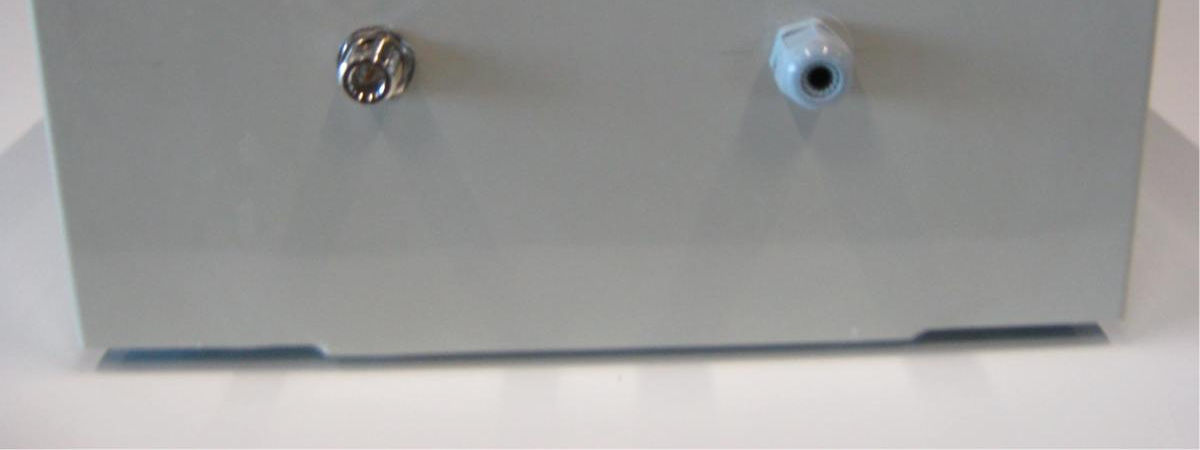

ELGR900008 : External Photos Front View 33cm Bottom view 43cm 20 cm

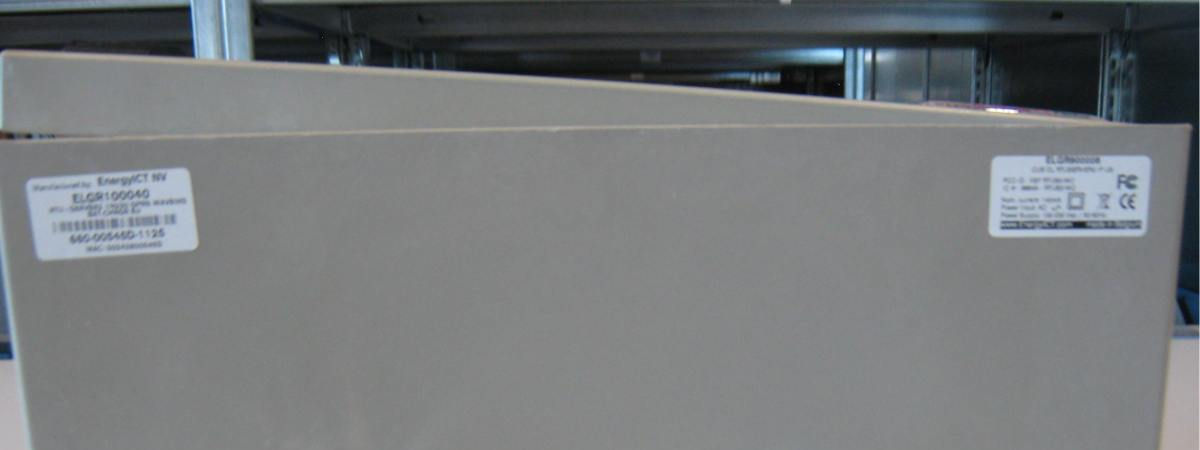

ELGR 900008 : Label Location ELGR100039 product label. (Copy of internal label of RTU+Server2) ELGR900008 product label. Warning label
ELGR900008 Internal Photos : Generalinternaloverview : 19 cm 11 cm 13cm 17,3cm 12,5cm 3,5cm 30,5cm 13 cm Battery liion 7,4V–10Ah Netfilter/Surgeprotection/fuses Batteryconnection GPRSantenna HINT100119(includingwavecard) 9cm 6,5cm Wavecard HPSU000015(PowerSupplyboard): 16,5cm 11,5cm Powersupply HMTH000019(Motherboard): 5processor GSM Internalmountingofboards:
Z.I. Angers - Beaucouzé - 15, rue de la Claie - 49070 BEAUCOUZE - Siret : 344 545 645 00055 Tél. : 02 41 73 26 27 - Fax : 02 41 73 26 40 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B R051-24-11-102887-1/A Ed. 0 RADIO test report according to standard: FCC Part 15 Equipment under test: Data concentrator RTU + SERVER 2 FCC ID: VS7 RTUS2-WC Company: EnergyICT DISTRIBUTION: Mr FAVOREL Company: EnergyICT Number of pages: 46 including 7 annexes Technical Verification Ed. Date ModifiedWritten by Quality Approval pages Name Visa Name Visa 0 22-Sep-11 Creation L. BERTHAUD Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. R051-24-11-102887-1/A Ed. 0 PAGE 2 R051-24-11-102887-1-A-AE PRODUCT: Data concentrator Reference / model : RTU + Server 2 Serial number : 5100EE544B400002 (radio address) MANUFACTURER: EnergyICT COMPANY SUBMITTING THE PRODUCT: Company : EnergyICT Address: Stasegemsesteenweg 112 8500 KORTRIJK BELGIUM Responsible : Mr FAVOREL DATE(S) OF TEST: 23, 29 and 30 August 2011 TESTING LOCATION: EMITECH ATLANTIQUE laboratory at ANGERS (49) FRANCE EMITECH ATLANTIQUE open area test site in LA POUEZE (49) FRANCE FCC Registration Number: 101696 / FRN: 0006 6490 08 TESTED BY: L. BERTHAUD R051-24-11-102887-1/A Ed. 0 PAGE 3 R051-24-11-102887-1-A-AE CONTENTS TITLE PAGE 1. INTRODUCTION.......................................................................................................................... 4 2. PRODUCT DESCRIPTION .........................................................................................................4 3. NORMATIVE REFERENCE....................................................................................................... 4 4. TEST METHODOLOGY .............................................................................................................5 5. TEST EQUIPMENT CALIBRATION DATES.......................................................................... 6 6. TESTS AND CONCLUSIONS ..................................................................................................... 7 6.1 unintentional radiator (subpart B) .............................................................................................. 7 6.2 intentional radiator (subpart C) .................................................................................................. 7 7. MEASUREMENT OF THE CONDUCTED DISTURBANCES............................................... 9 Measurement on the mains power supply: ..................................................................................... 10 8. RADIATED EMISSION LIMITS .............................................................................................. 12 9. MEASUREMENT OF THE CONDUCTED DISTURBANCES............................................. 14 Measurement on the mains power supply: ..................................................................................... 15 10. ADDITIONAL PROVISIONS TO THE GENERAL RADIATED EMISSION LIMITATIONS ................................................................................................................................ 19 11. MAXIMUM PEAK OUTPUT POWER .................................................................................. 20 12. INTENTIONAL RADIATOR .................................................................................................. 22 ANNEX 1: BAND-EDGE COMPLIANCE ................................................................................... 25 ANNEX 2: OCCUPIED BANDWIDTH AND CHANNEL SEPARATION .............................. 27 ANNEX 3: NUMBER OF HOPPING FREQUENCIES .............................................................. 33 ANNEX 4: DWELL TIME .............................................................................................................36 ANNEX 5: AVERAGE TIME OF OCCUPANCY ....................................................................... 39 ANNEX 6: PICTURES OF THE EQUIPMENT UNDER TEST................................................ 42 ANNEX 7: TEST CONFIGURATIONS........................................................................................ 45 R051-24-11-102887-1/A Ed. 0 PAGE 4 R051-24-11-102887-1-A-AE 1. INTRODUCTION This document presents the result of RADIO test carried out on the following equipment: RTU + Server 2 in accordance with normative reference. The device integrates a GPRS module already certified (FCC ID: VW3HILONC). 2. PRODUCT DESCRIPTION ITU Emission code: 160KF7D Class: B (residential environment) Utilization: Data concentrator collecting meter data over Wavenis RF network Antenna type and gain: 6 dBd Fiberglass antenna (3.83 dBi) Operating frequency range: From 904.8384 MHz to 925.4592 MHz Number of channels: 63 Channel spacing: 170 kHz Frequency generation: PLL Modulation: FSK Power source: 120 Va.c. (mains) Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. FCC Part 15 (2011) Radio Frequency Devices ANSI C63.4 (2003) Methods of Measurement of Radio-Noise Emissions from Low- voltage Electrical and Electronics Equipment in the range of 9 kHz to 40 GHz. Public Notice DA 00-705 Filing and Measurement Guideline for Frequency Hopping Spread Spectrum Systems. R051-24-11-102887-1/A Ed. 0 PAGE 5 R0…
Text truncated - open the document above for the full version.
CONDUCTED MEASURE RADIATED MEASURE OPEN AREA TEST SITE
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 904.8384 MHz - 925.4592 MHz | 120.00 mW |
